Side-By-Side Refrigerator

Model # FGHC2334KP1 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FGHC2334KP1 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

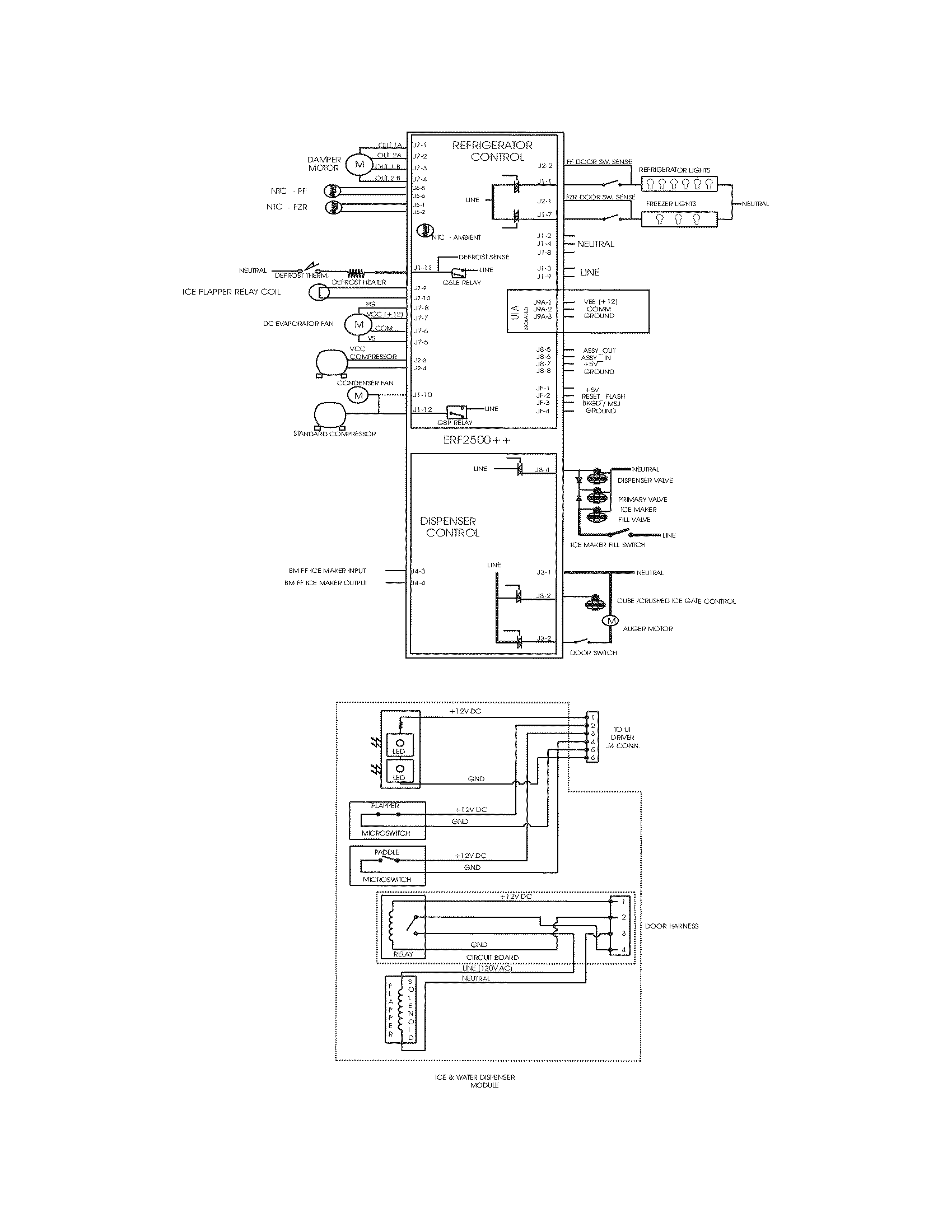

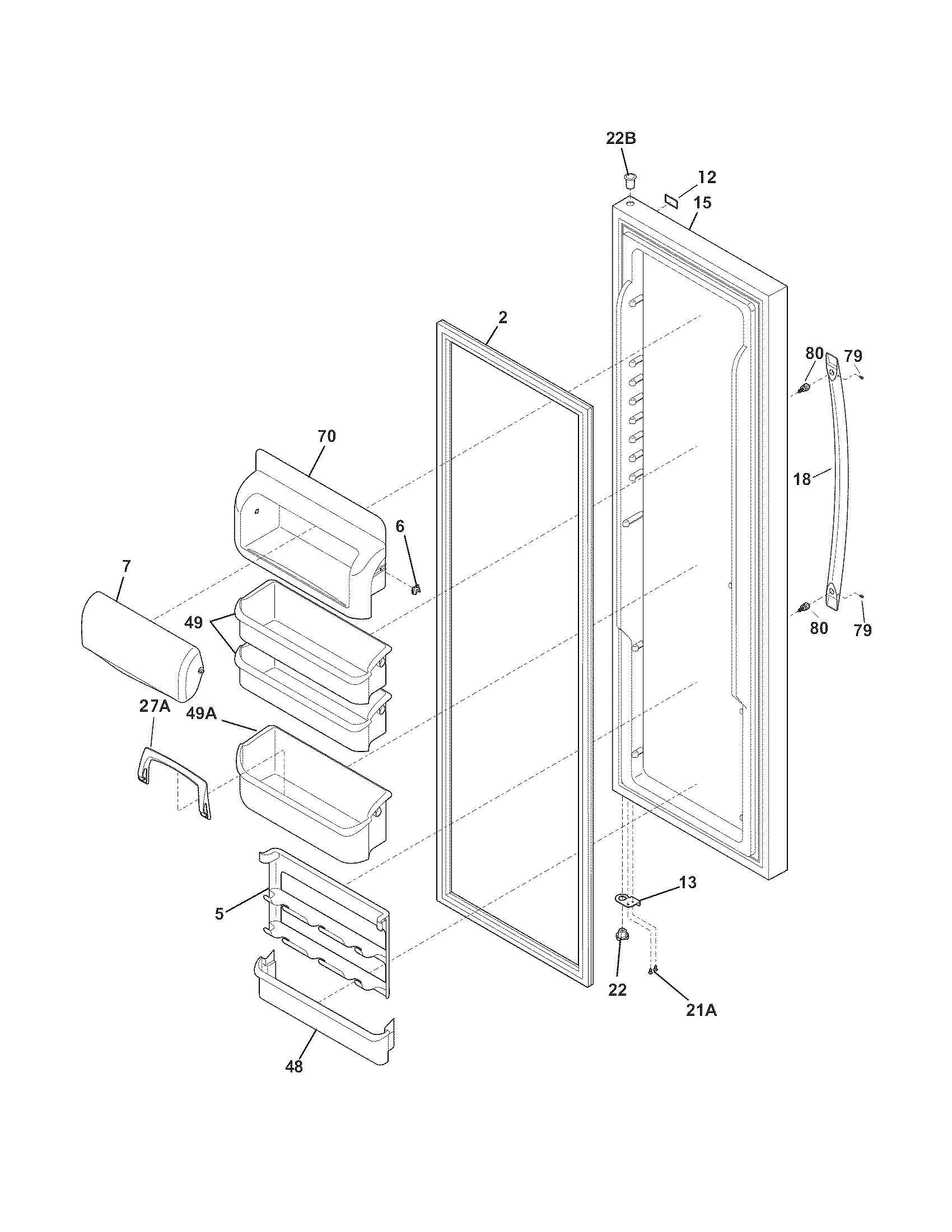

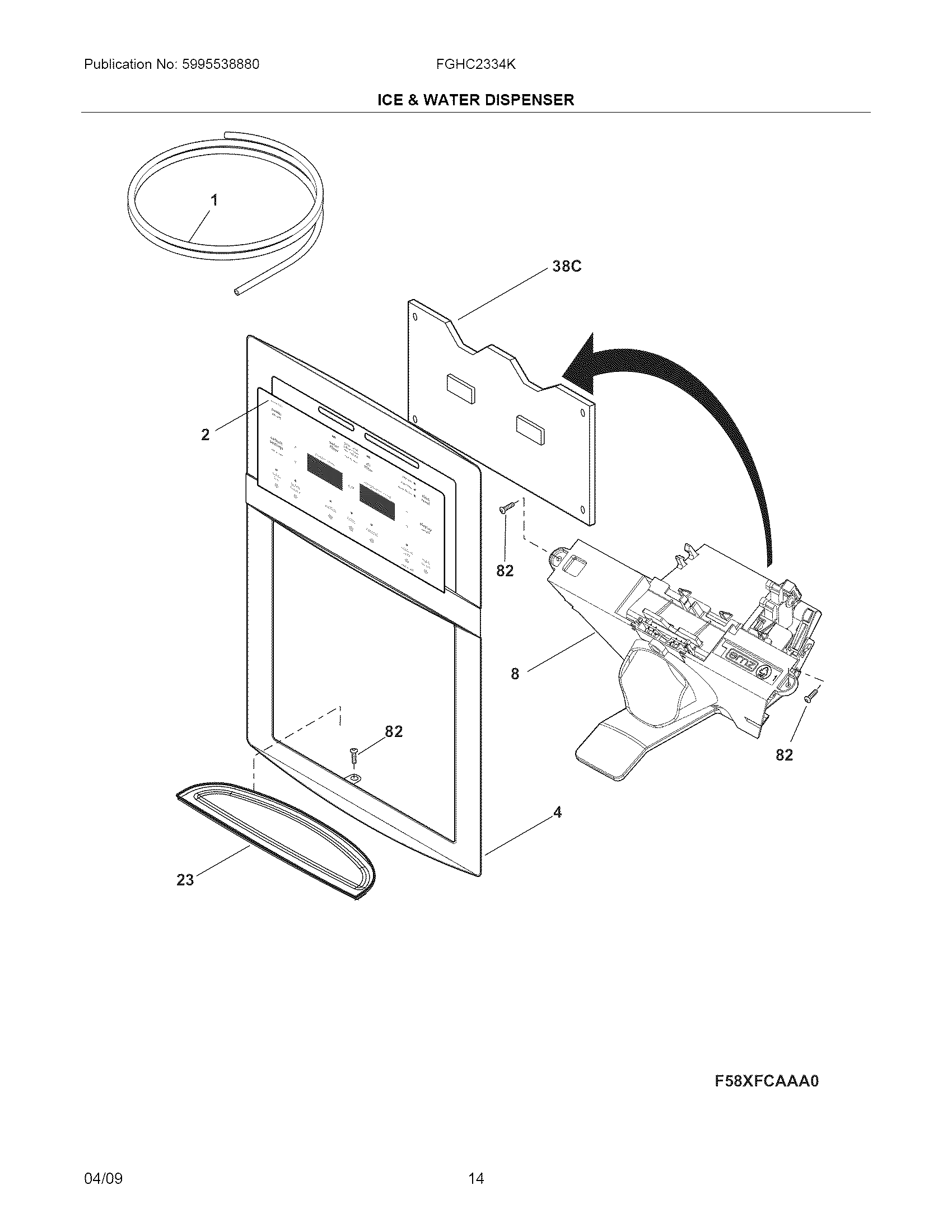

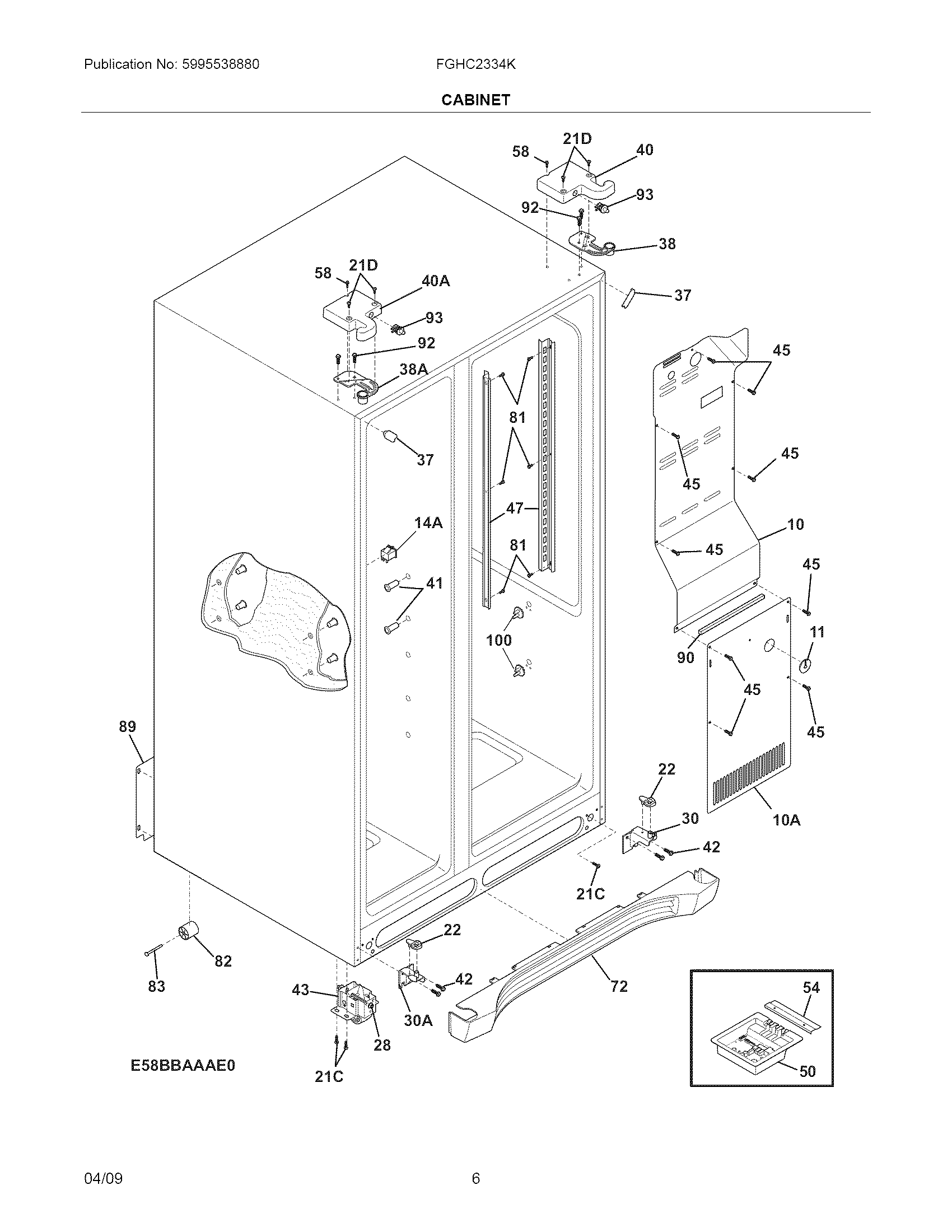

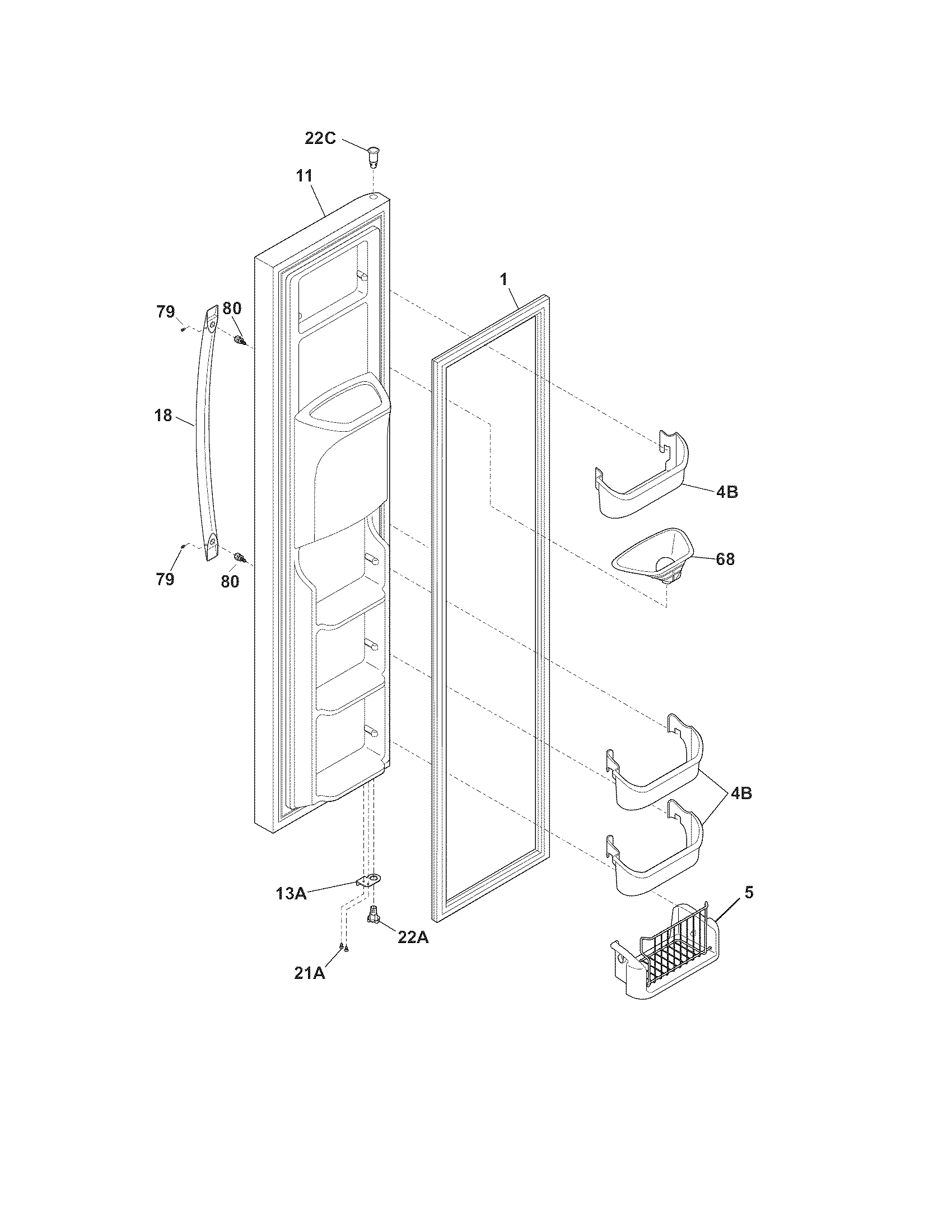

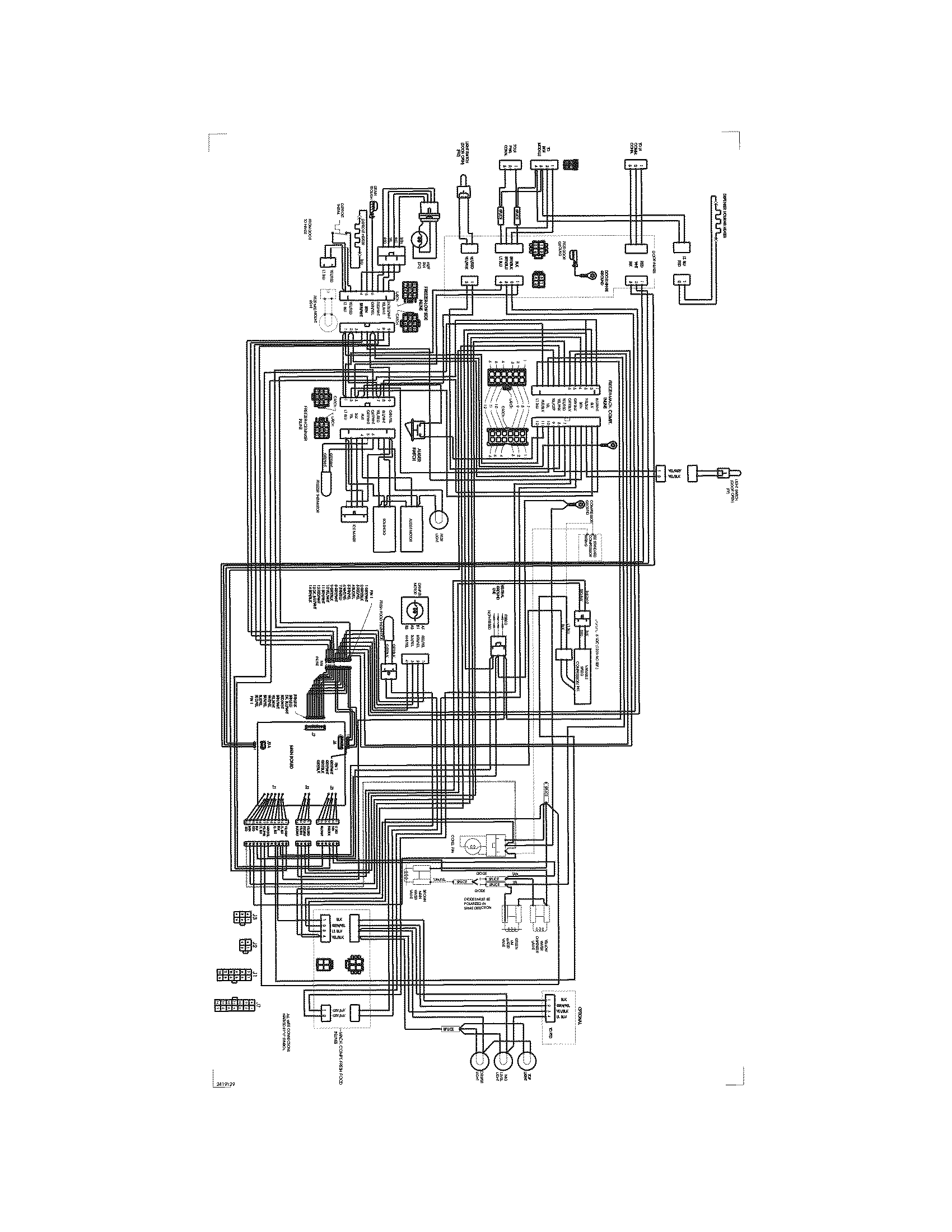

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FGHC2334KP1 Refrigerators
Ice Maker Mold 5304456669
#17

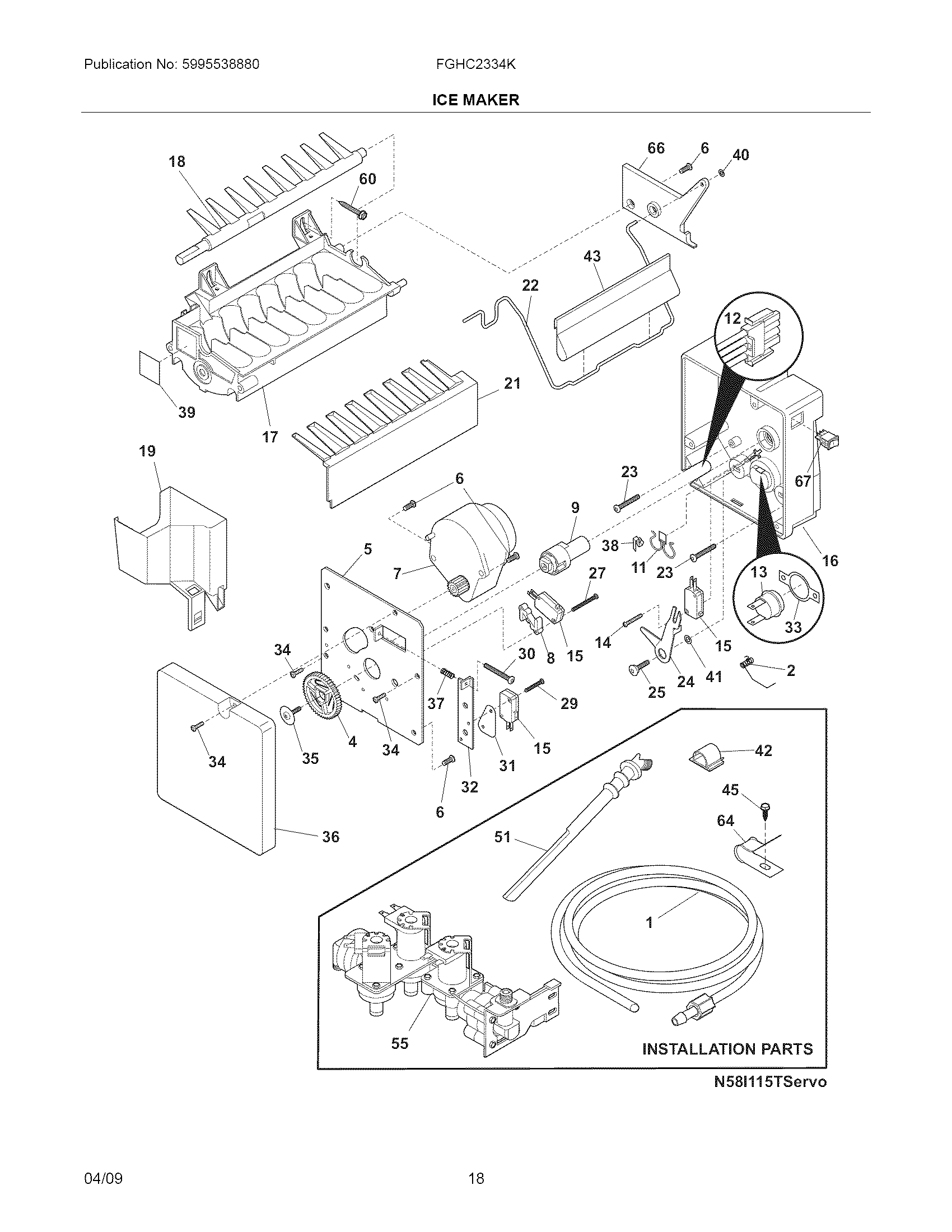

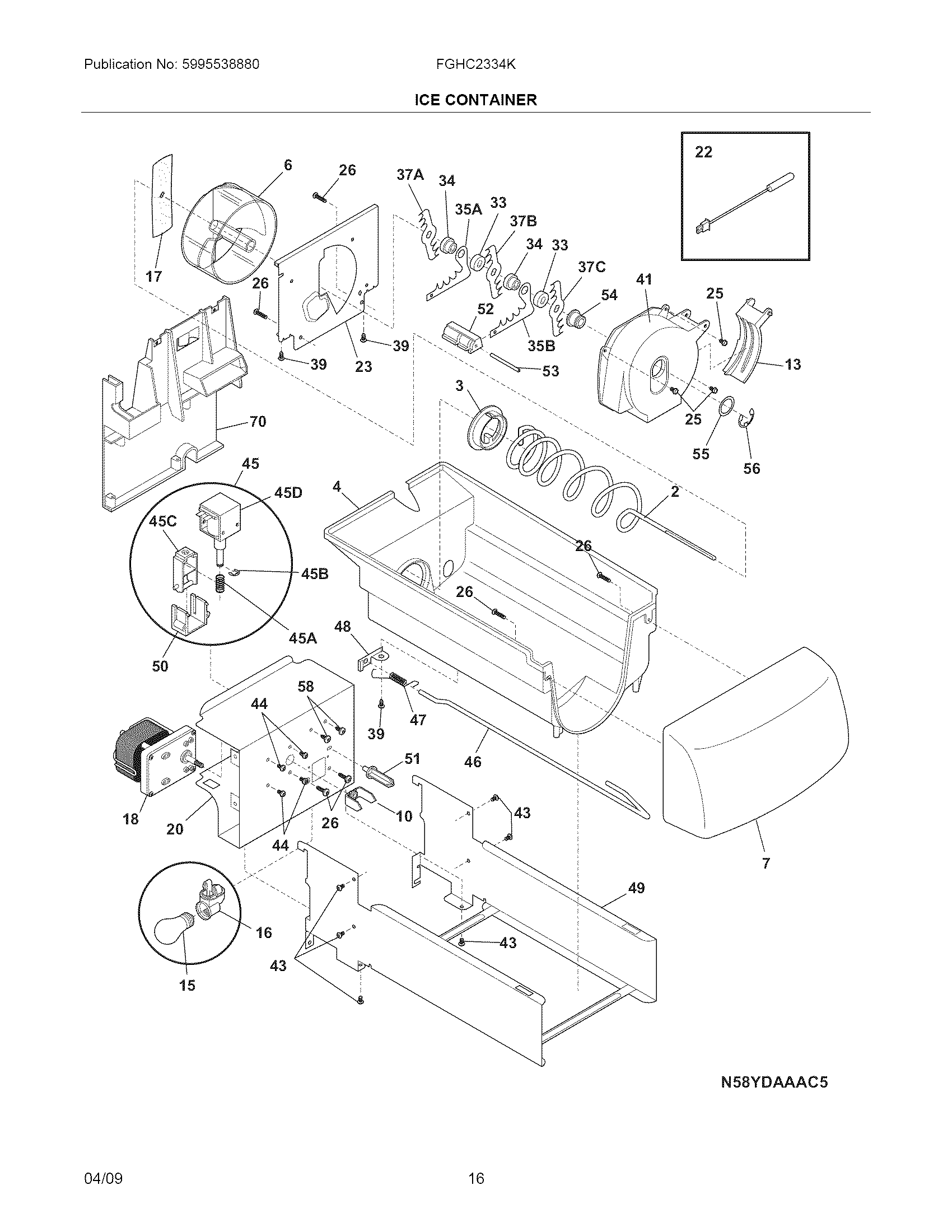

Ice maker diagram

Ice maker mold

Part #5304456669

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5304456669. Substitute parts can look different from the original.
4.48 (52)
BEST SELLER
$106.20 |
10% OFF Phone Price : $118.20
In Stock
Refrigerator Filter Drier 218944001
#4

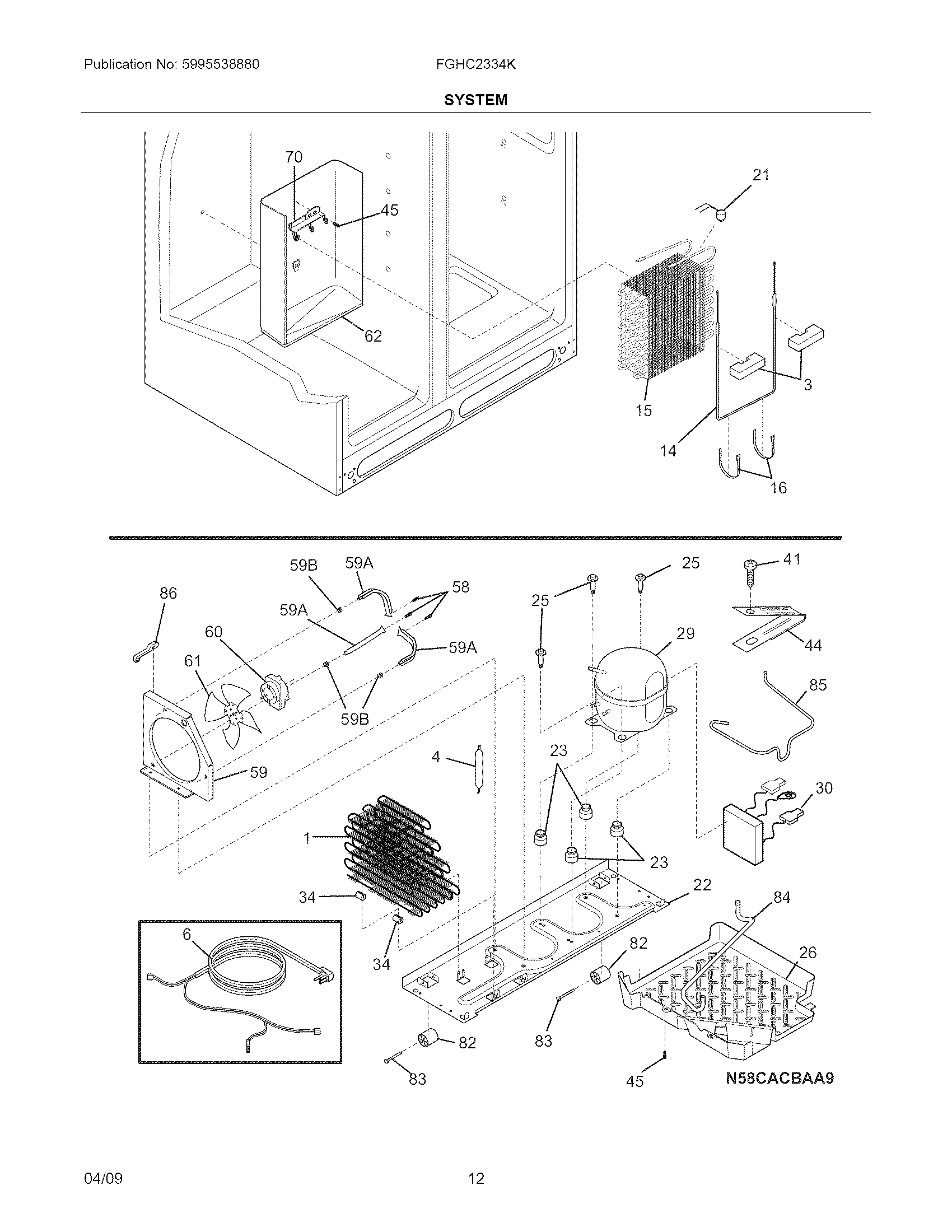

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Water Inlet Valve Assembly 241734301
#55

Ice maker diagram

Refrigerator water inlet valve assembly

Part #241734301

Replaced by #242252702

?
Manufacturer substitution
This part replaces 241734301. Substitute parts can look different from the original.
4.74 (39)
BEST SELLER
$53.94 |
10% OFF Phone Price : $59.94
In Stock
Refrigerator Water Filter 241791601
#137

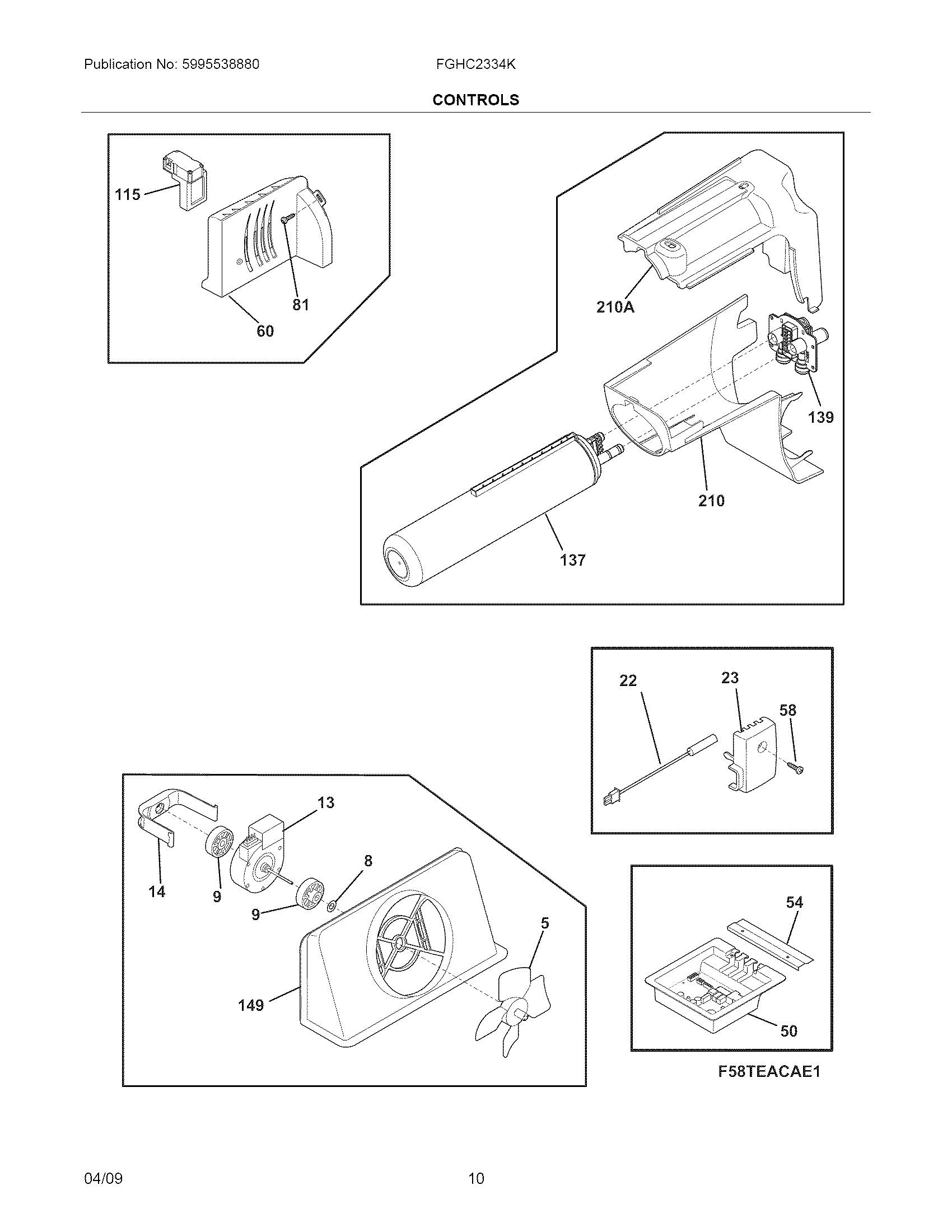

Controls diagram

Refrigerator water filter

Part #241791601

Replaced by #ULTRAWF

?
Manufacturer substitution
This part replaces 241791601. Substitute parts can look different from the original.
4.33 (63)
BEST SELLER

Get free shipping with Automatic Reorder

$67.60 |
8% OFF Phone Price : $73.60
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 75303918214) 5303918214
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 75303918214)

Part #5303918214

5 (2)
BEST SELLER
$24.57 |
20% OFF Phone Price : $30.57
In Stock
Universal/multiflex (frigidaire) Refrigerator Evaporator Fan Motor (replaces 241509401, 7241509402) 241509402
#13

Controls diagram

Universal/multiflex (frigidaire) refrigerator evaporator fan motor (replaces 241509401, 7241509402)

Part #241509402

4.2 (10)
BEST SELLER
$124.25 |
9% OFF Phone Price : $136.25
In Stock
Refrigerator Ice Maker 241709801
#NI

Ice maker diagram

Refrigerator ice maker

Part #241709801

Replaced by #5303918344

?
Manufacturer substitution
This part replaces 241709801. Substitute parts can look different from the original.
4.25 (16)
BEST SELLER
$113.72 |
10% OFF Phone Price : $125.72
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

Controls diagram

Refrigerator evaporator fan blade

Part #5308000010

4 (4)
BEST SELLER
$39.89 |
13% OFF Phone Price : $45.89
In Stock
Refrigerator Evaporator (replaces 5303918216, 75303918284) 5303918284
#15

System diagram

Refrigerator evaporator (replaces 5303918216, 75303918284)

Part #5303918284

BEST SELLER
$323.19 |
$12.00 OFF Phone Price : $335.19
In Stock
Frigidaire Refrigerator Crisper Drawer By Frigidaire (replaces 240351003, 240351005, 240351007, 240351016, 240351048, 240351049, 240351053, 240351054, 240351058, 240351062, 240351066, 240351067) 240351061
#26

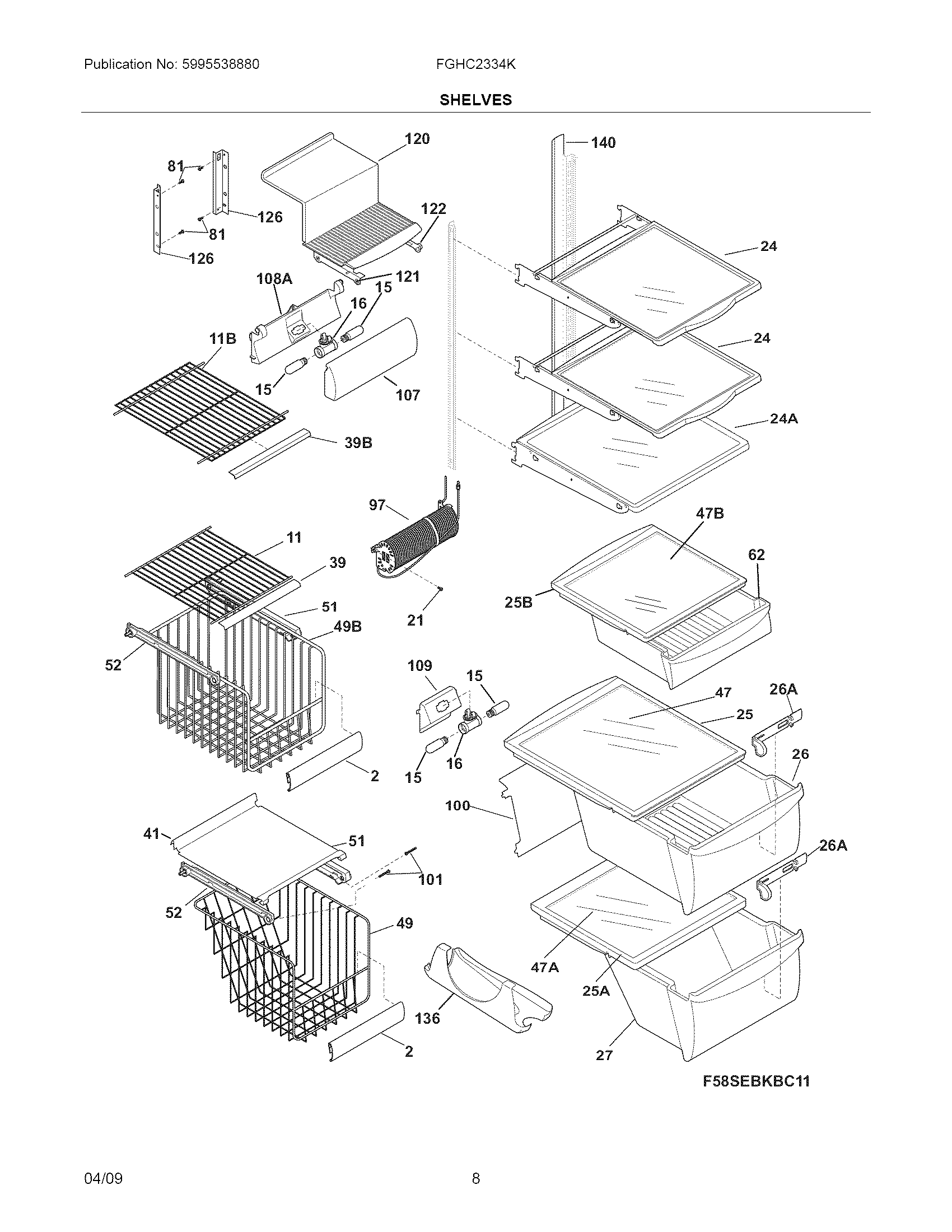

Shelves diagram

Frigidaire refrigerator crisper drawer by frigidaire (replaces 240351003, 240351005, 240351007, 240351016, 240351048, 240351049, 240351053, 240351054, 240351058, 240351062, 240351066, 240351067)

Part #240351061

3.69 (29)
BEST SELLER
$63.27 |
9% OFF Phone Price : $69.27
In Stock
