Here are the diagrams and repair parts for Official Kenmore Elite 66513769K601 dishwasher, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for66513769K601 Dishwasher

#17

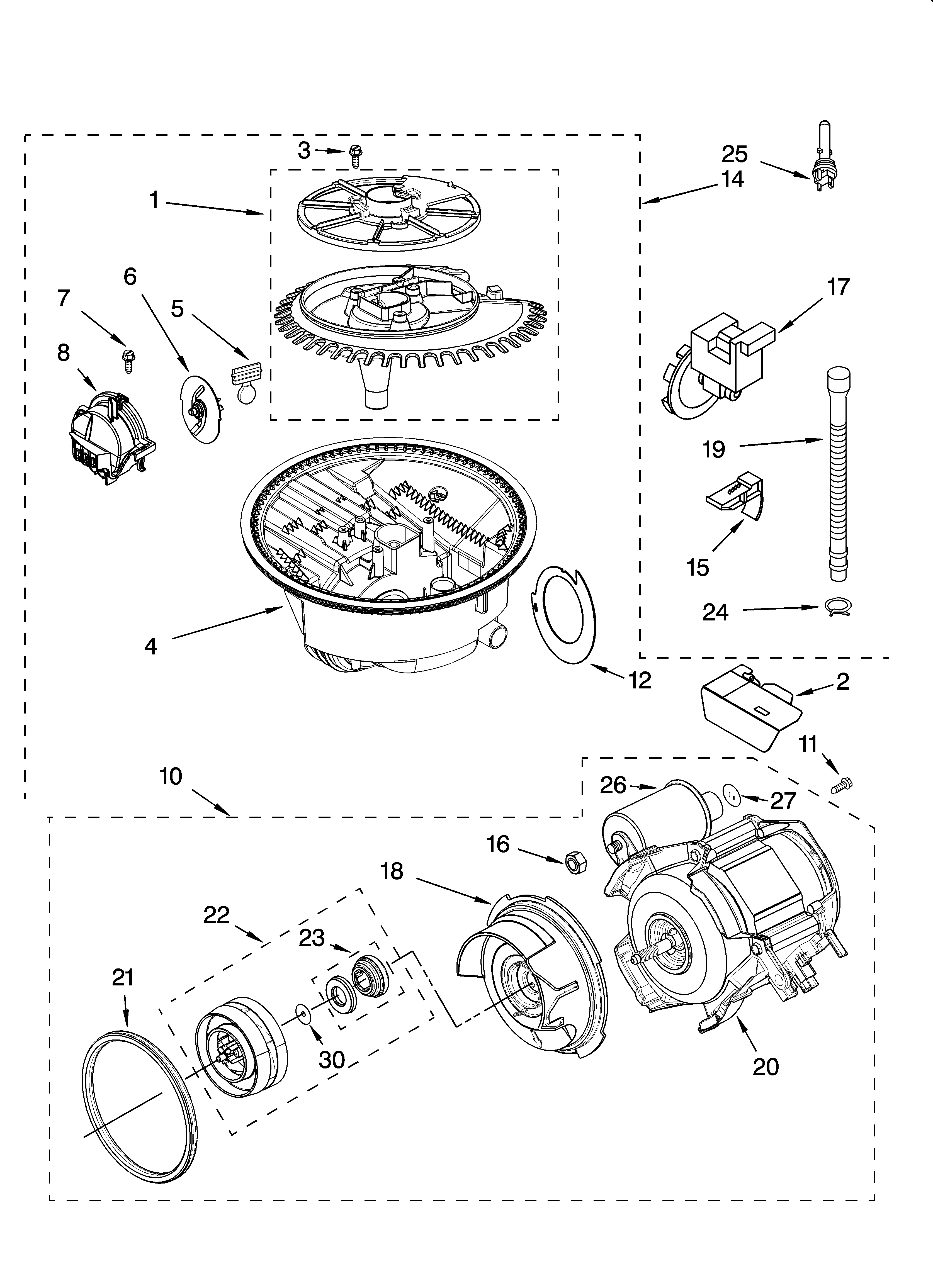

Pump and motor parts diagram
Dishwasher drain pump
Part #661662
Replaced by #WPW10348269
?
Manufacturer substitution
This part replaces 661662. Substitute parts can look different from the original.
4.4 (60)
$51.40 |
10% OFF Phone Price : $57.40
In Stock
Qty
#24

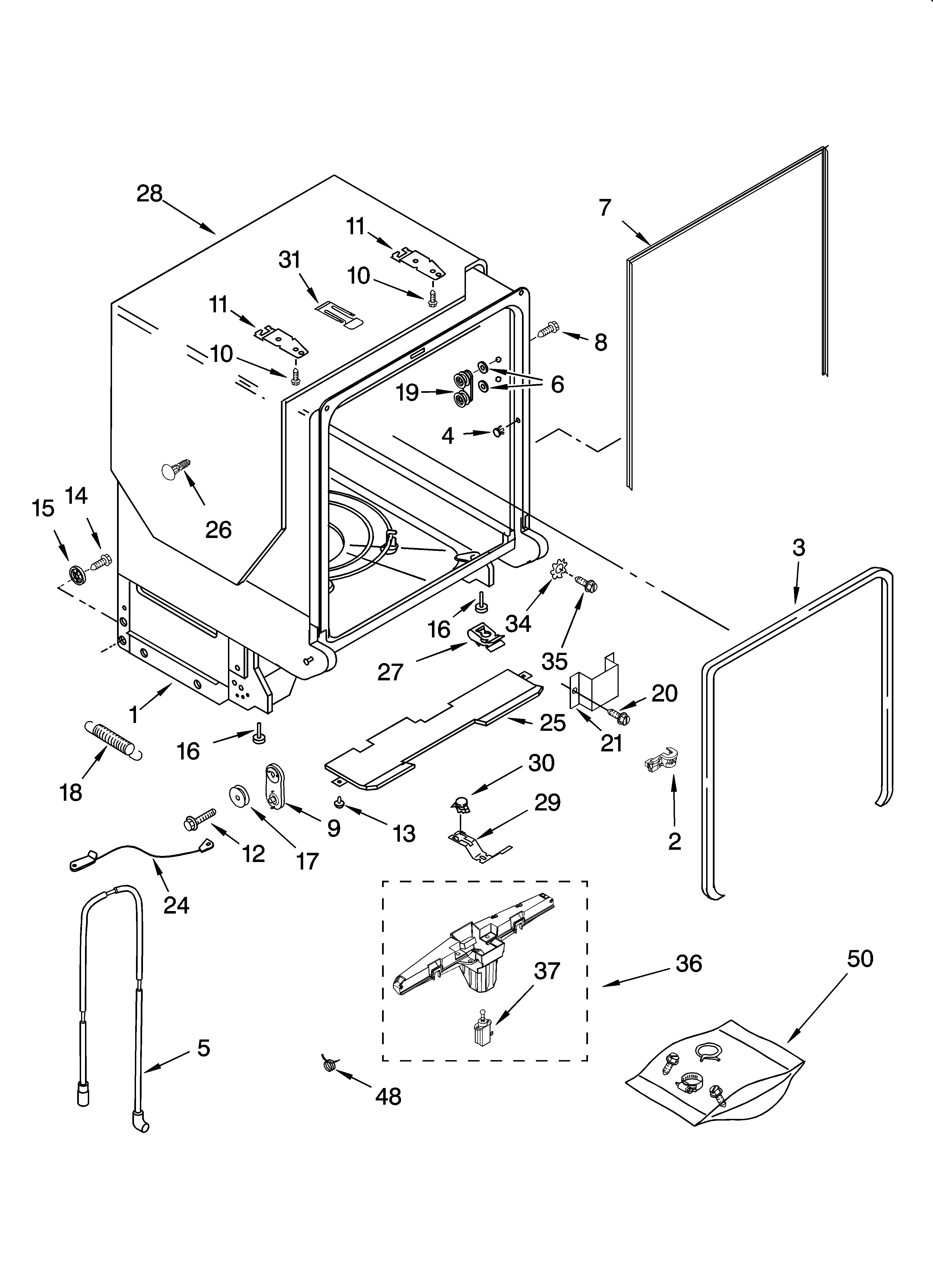

Tub and frame parts diagram
Link
Part #8535568
Replaced by #8194001
?
Manufacturer substitution
This part replaces 8535568. Substitute parts can look different from the original.
4.7 (71)
$24.69 |
20% OFF Phone Price : $30.69
In Stock
Qty
#10
Lower rack parts, optional parts (not included) diagram
Dishwasher silverware basket
Part #8562085
Replaced by #W10807920
?
Manufacturer substitution
This part replaces 8562085. Substitute parts can look different from the original.
4.6 (251)
$41.07 |
13% OFF Phone Price : $47.07
In Stock
Qty
#14
Pump and motor parts diagram
Pump motor
Part #8572615
Replaced by #WPW10780877
?
Manufacturer substitution
This part replaces 8572615. Substitute parts can look different from the original.
4.5 (20)
$172.19 |
7% OFF Phone Price : $184.19
In Stock
Qty
#19
Pump and motor parts diagram
Dishwasher drain hose
Part #8269144
Replaced by #8269144A
?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
5 (4)
$17.35 |
10% OFF Phone Price : $19.35
In Stock
Qty
#11

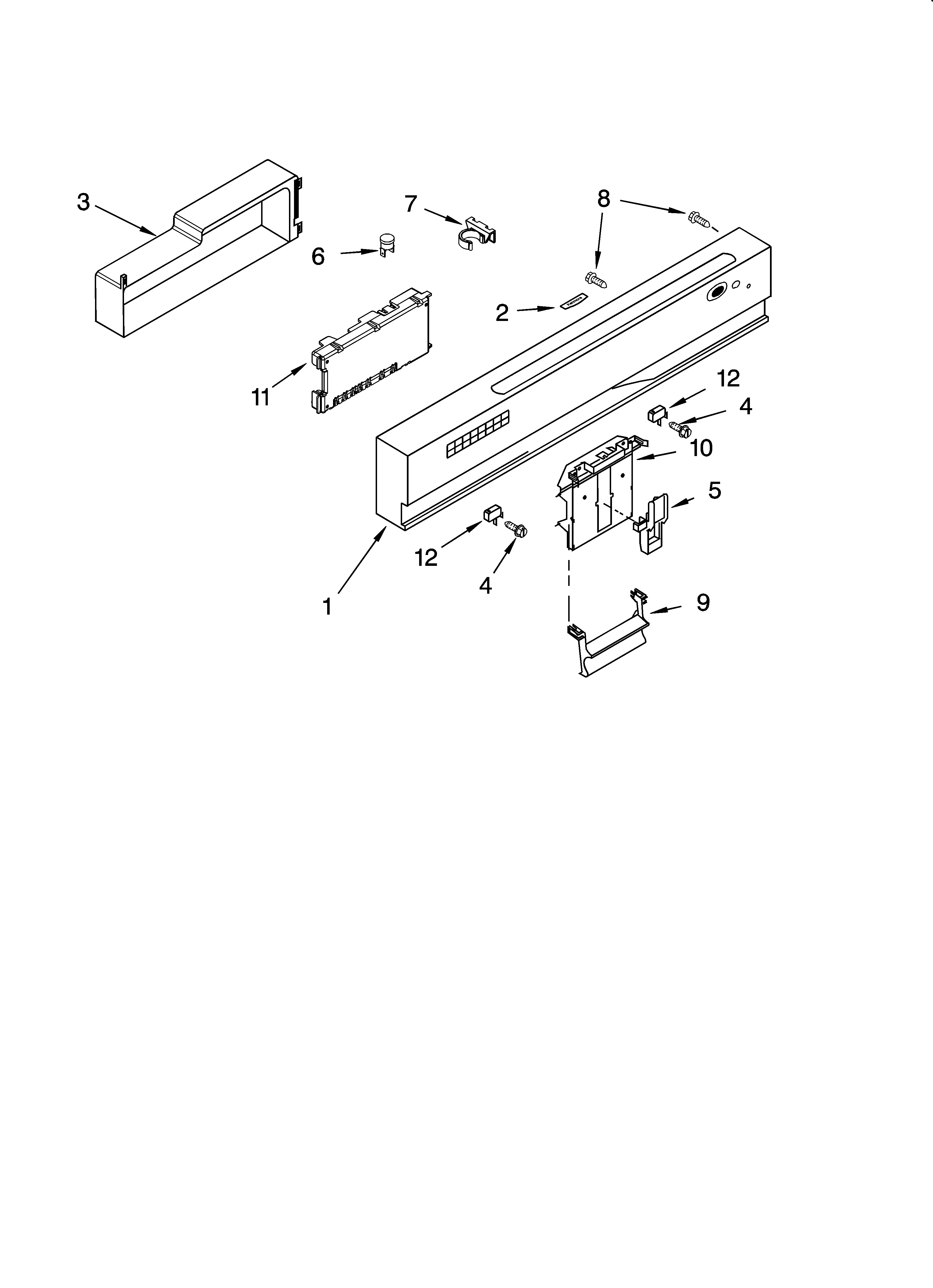

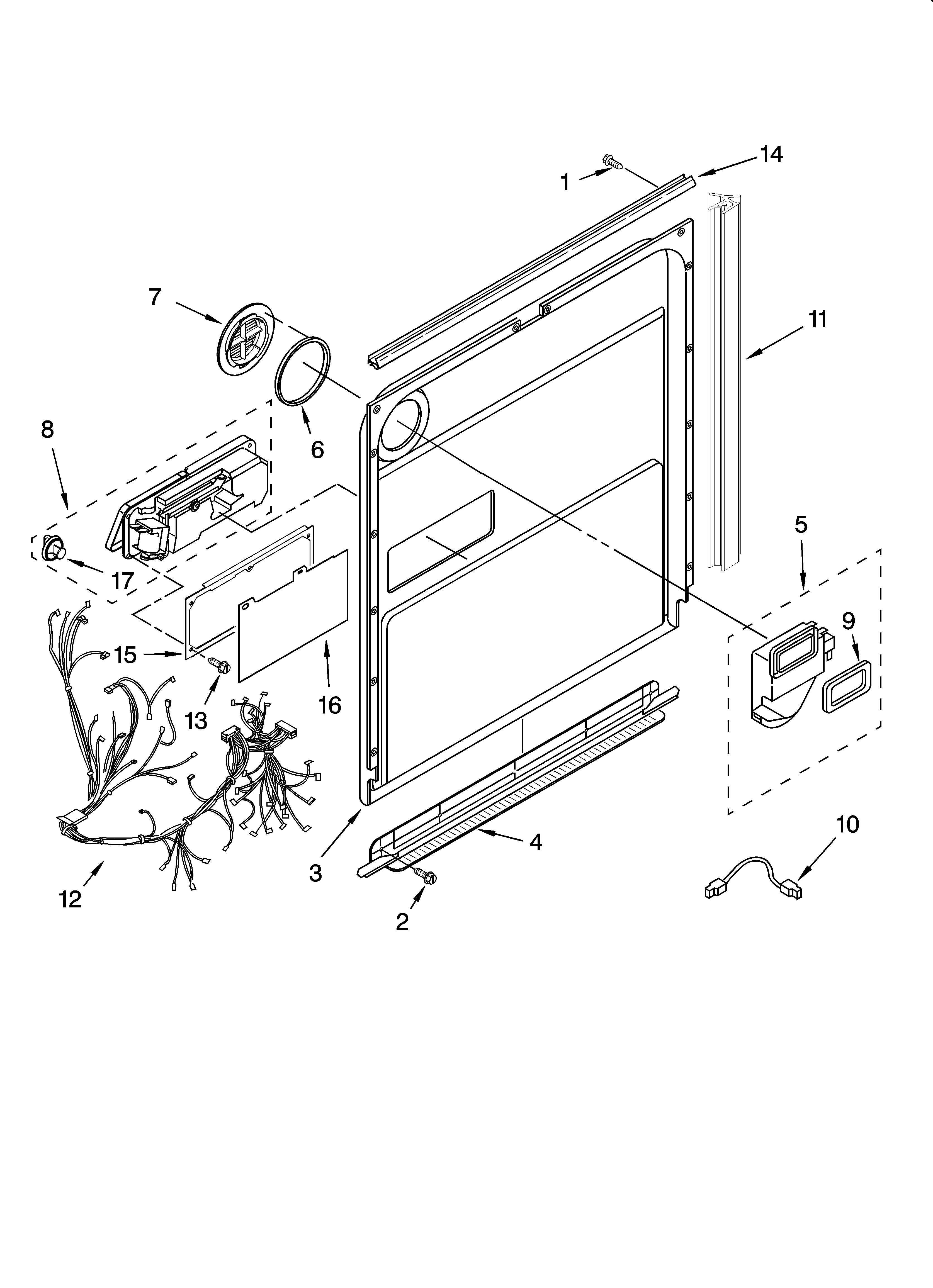

Control panel parts diagram
Dishwasher electronic control board
Part #8562996
Replaced by #WPW10084141
?
Manufacturer substitution
This part replaces 8562996. Substitute parts can look different from the original.
3.8 (17)
$196.71 |
6% OFF Phone Price : $208.71
Back Order
Qty
#1

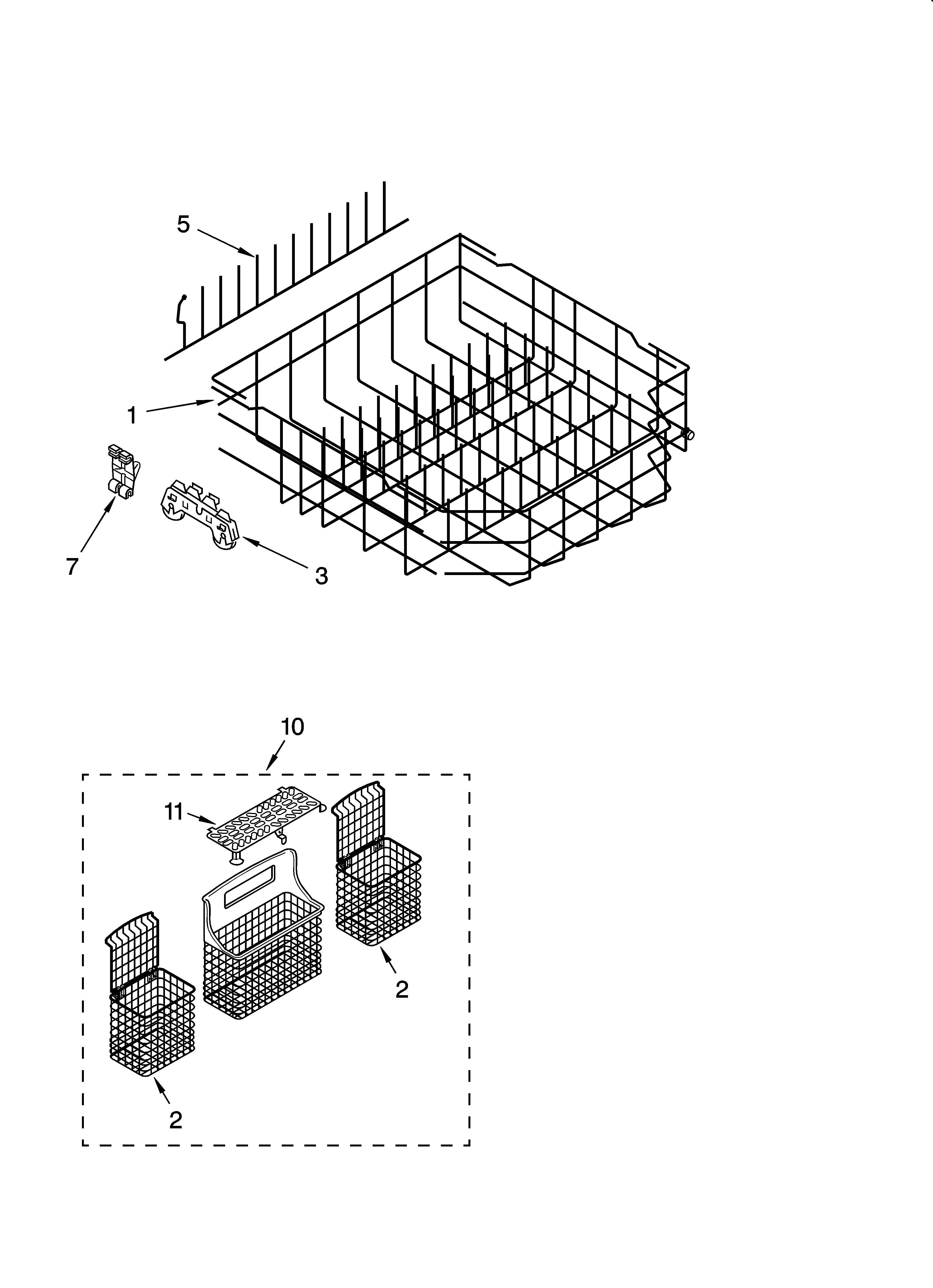

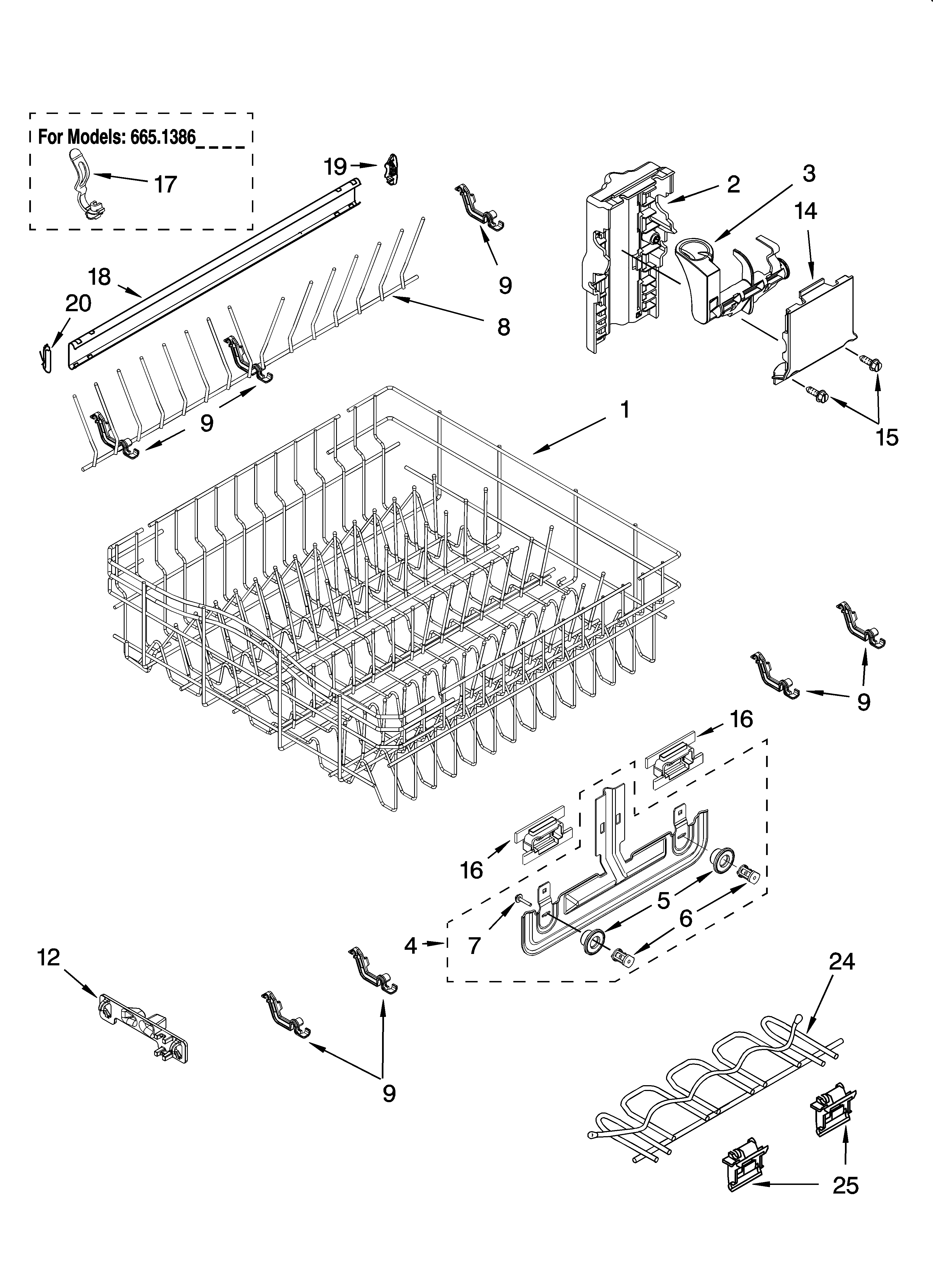

Lower rack parts, optional parts (not included) diagram
Dishwasher dishrack
Part #8539257
Replaced by #W10728159
?
Manufacturer substitution
This part replaces 8539257. Substitute parts can look different from the original.
3.7 (50)
$180.93 |
6% OFF Phone Price : $192.93
In Stock
Qty
#25

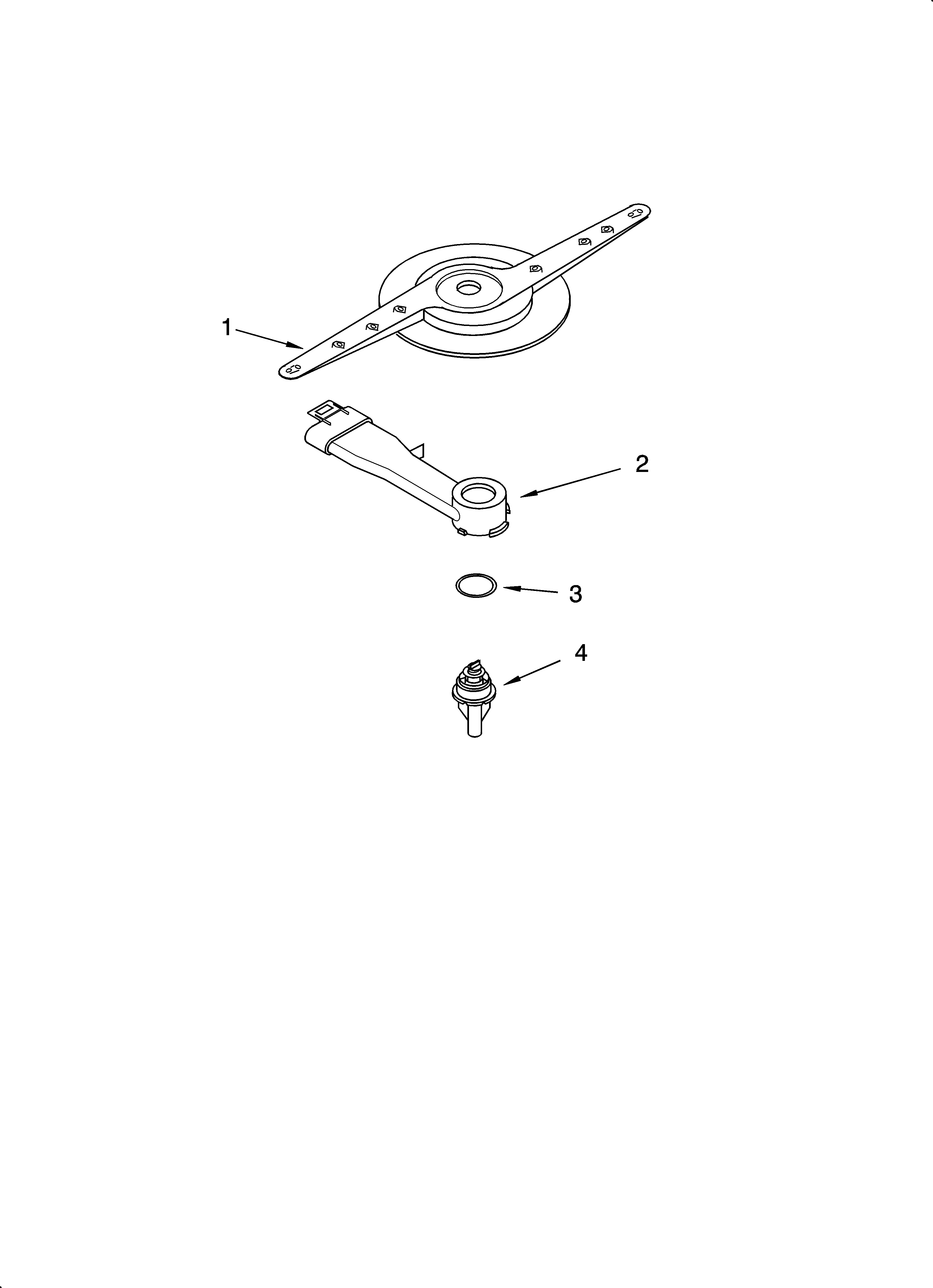

Pump and motor parts diagram
Sensor
Part #W10055980
Replaced by #WPW10705575
?
Manufacturer substitution
This part replaces W10055980. Substitute parts can look different from the original.
4 (2)
$22.00 |
21% OFF Phone Price : $28.00
In Stock
Qty
#30
Tub and frame parts diagram
Dishwasher thermostat
Part #661566
Replaced by #WP661566
?
Manufacturer substitution
This part replaces 661566. Substitute parts can look different from the original.
4 (3)
$21.20 |
22% OFF Phone Price : $27.20
In Stock
Qty
#7
Tub and frame parts diagram
Seal
Part #8269110
Replaced by #W10864081
?
Manufacturer substitution
This part replaces 8269110. Substitute parts can look different from the original.
2.5 (22)
$61.49 |
9% OFF Phone Price : $67.49
In Stock
Qty
