Model # DW618B3 TYPE1 Official DeWalt router

Here are the diagrams and repair parts for Official DeWalt DW618B3-TYPE1 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Id Label 397450-00
Id label

Part #397450-00

The manufacturer no longer makes this part, and there's no substitute part

Switch 399064-00
#6

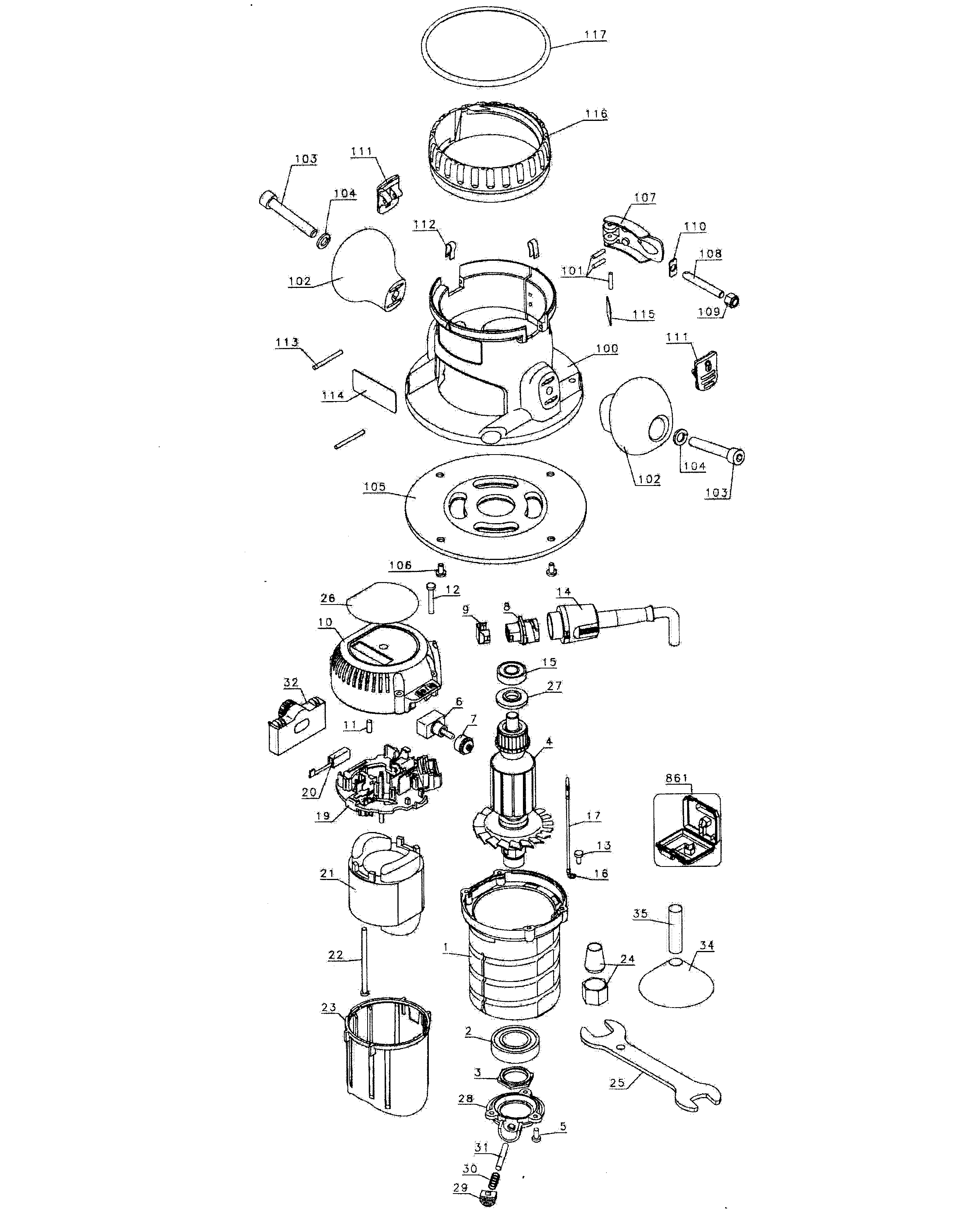

Router diagram

Switch

Part #399064-00

The manufacturer no longer makes this part, and there's no substitute part

Label 606907-00
#240

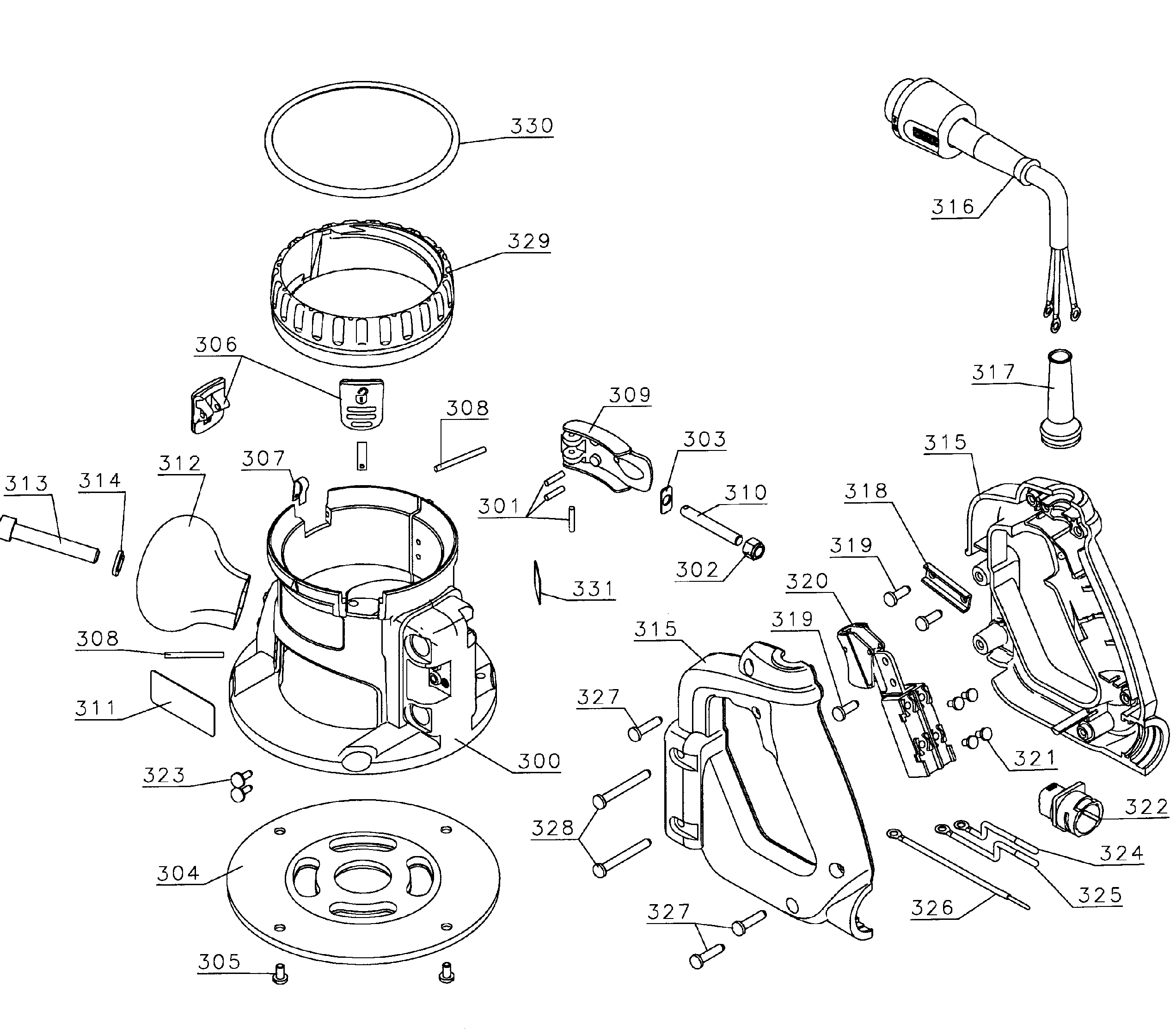

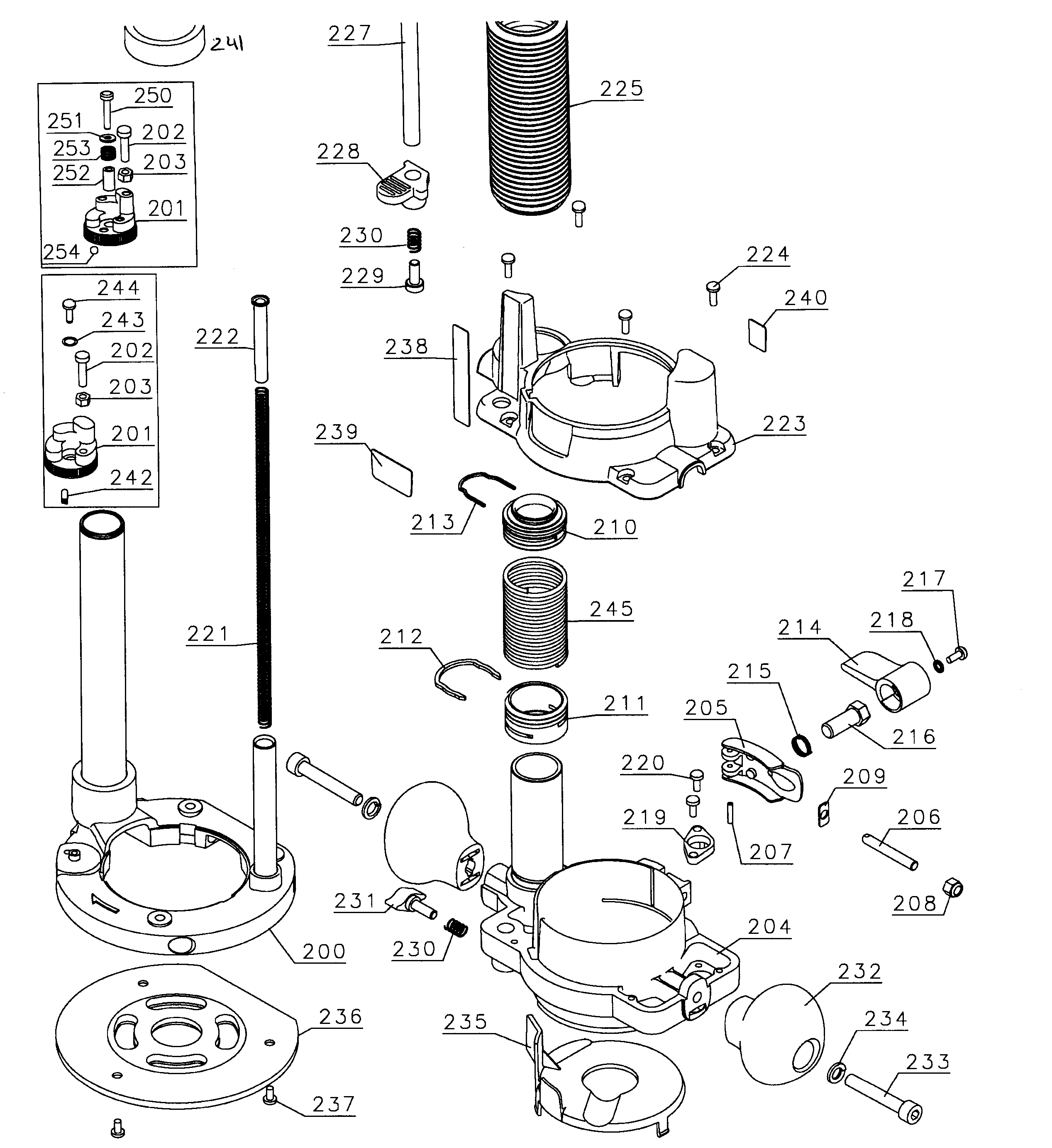

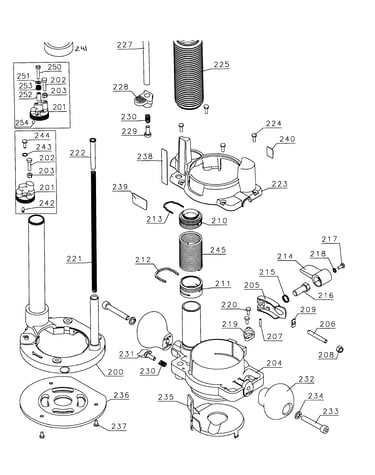

Base plunge diagram

Label

Part #606907-00

The manufacturer no longer makes this part, and there's no substitute part

Shaft 607522-00
#35

Router diagram

Shaft

Part #607522-00

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 397500-00
Receptacle

Part #397500-00

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 607560-00
#324

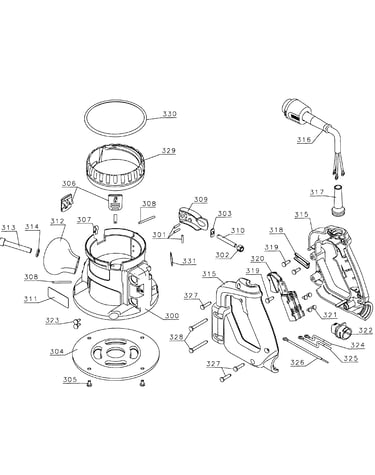

Base fix diagram

Lead wire

Part #607560-00

The manufacturer no longer makes this part, and there's no substitute part

Retaining 608926-00
#213

Base plunge diagram

Retaining

Part #608926-00

The manufacturer no longer makes this part, and there's no substitute part

Comp. Spri 400001-00
#30

Router diagram

Comp. spri

Part #400001-00

The manufacturer no longer makes this part, and there's no substitute part

Knob 397560-00
Knob

Part #397560-00

The manufacturer no longer makes this part, and there's no substitute part

Cord Set 399063-01
#316

Base fix diagram

Cord set

Part #399063-01

The manufacturer no longer makes this part, and there's no substitute part
