Model # 50ZP042300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 50ZP042300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

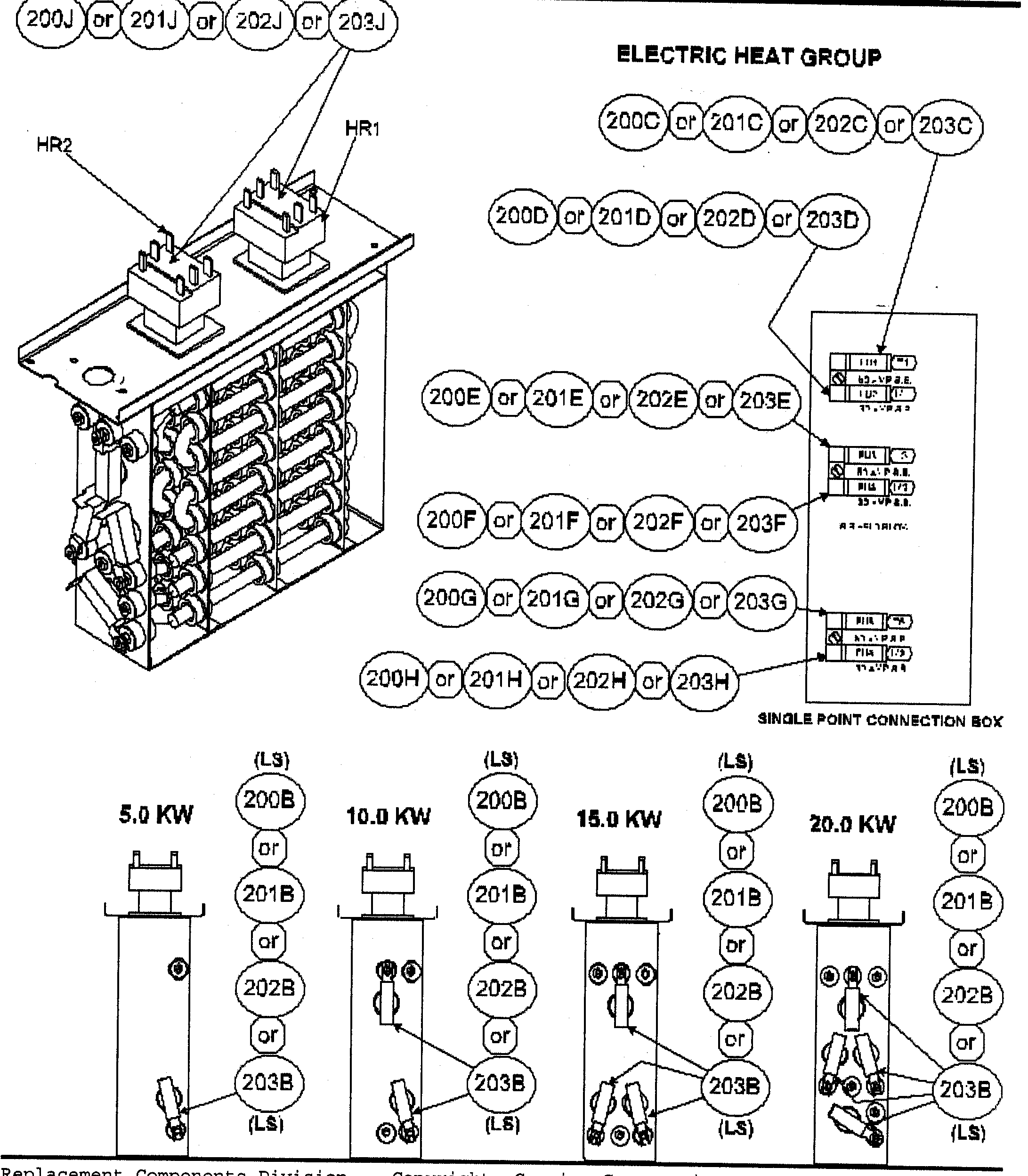

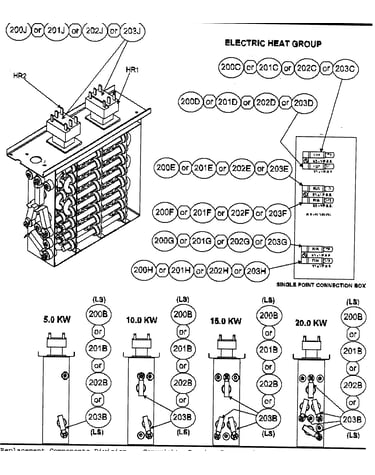

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Contactor HN51KB024
#39

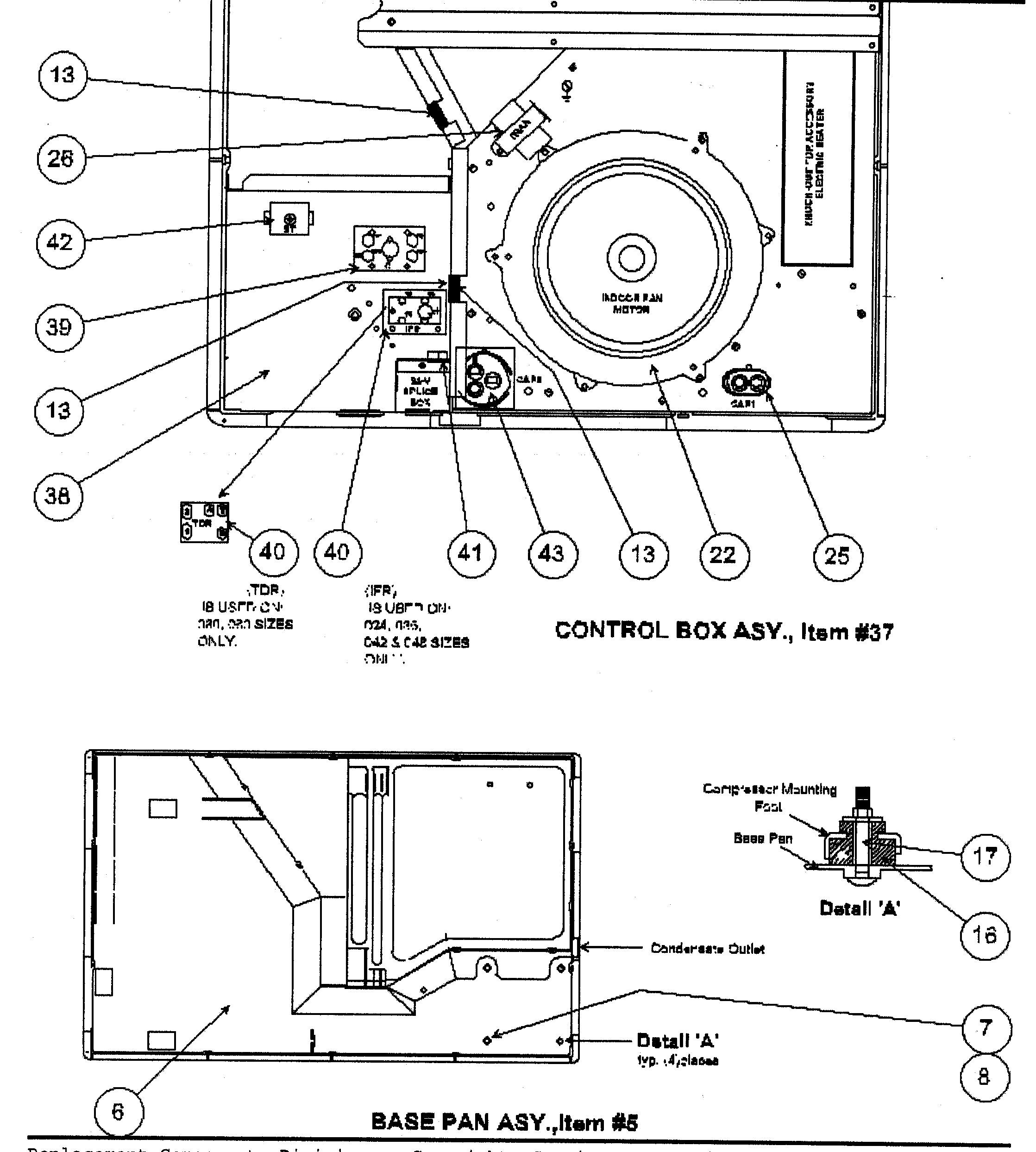

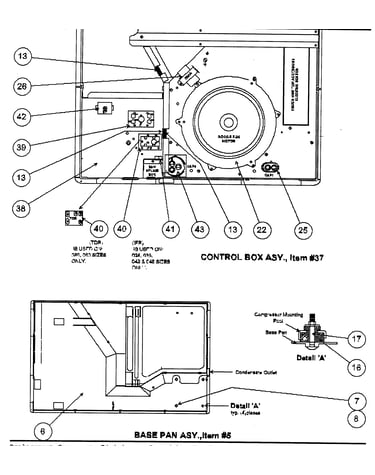

Control box/base pan assy diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Relay HN61DC024
Relay

Part #HN61DC024

$237.64 |
5% OFF Phone Price : $249.64
In Stock
Orifice 50ZP500026
#22

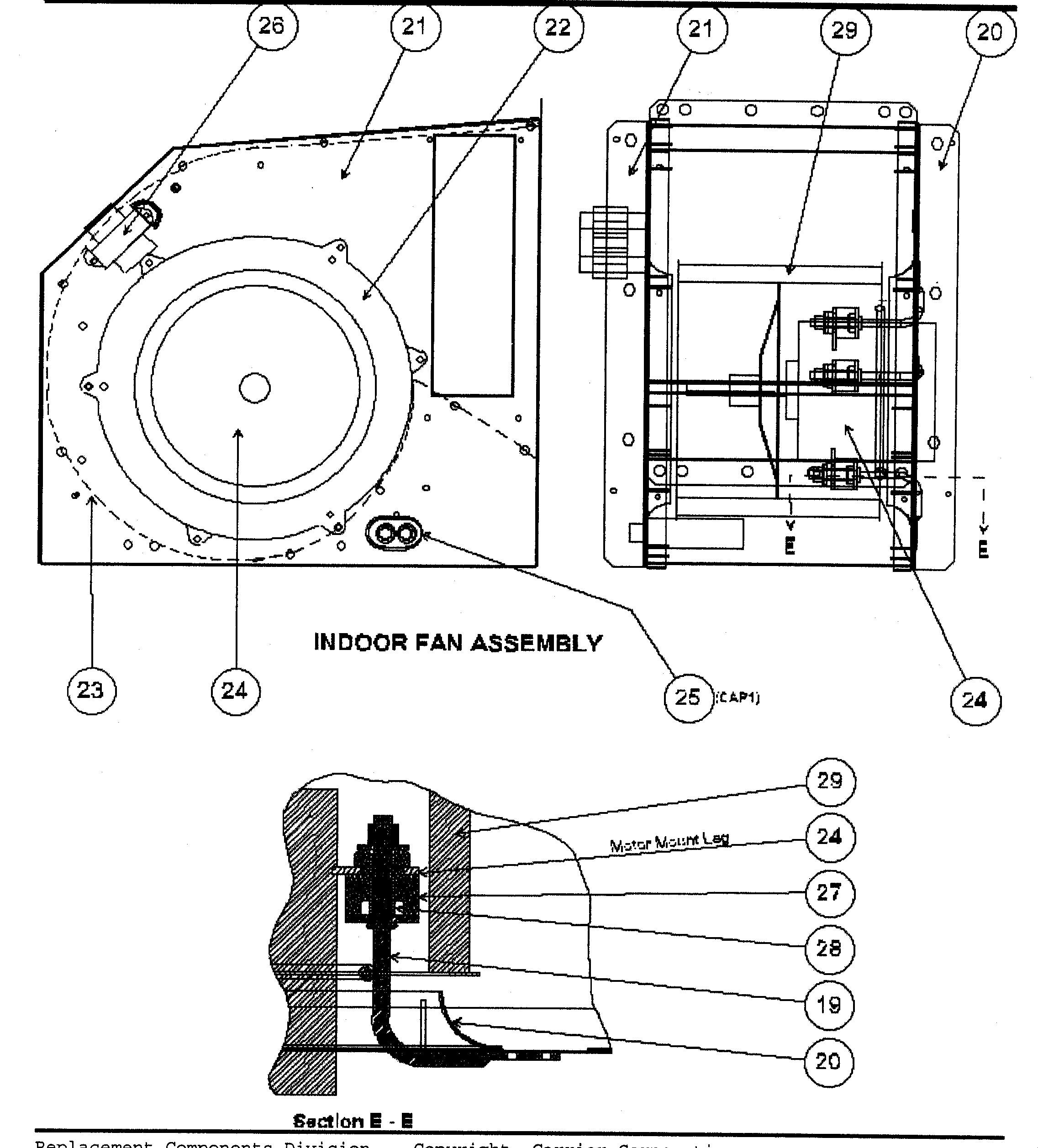

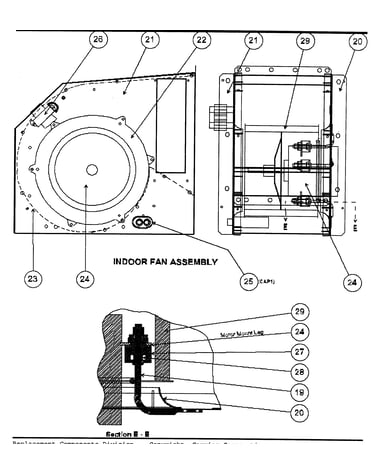

Indoor fan assy diagram

Orifice

Part #50ZP500026

$87.78
In Stock
Furnace Blower Fan Motor HC43CE200
#24

Indoor fan assy diagram

Furnace blower fan motor

Part #HC43CE200

$541.89 |
$12.00 OFF Phone Price : $553.89
In Stock
Mount 50ZP400040
#19

Indoor fan assy diagram

Mount

Part #50ZP400040

$46.13
In Stock
Carrier Parition 50ZP400057
#11

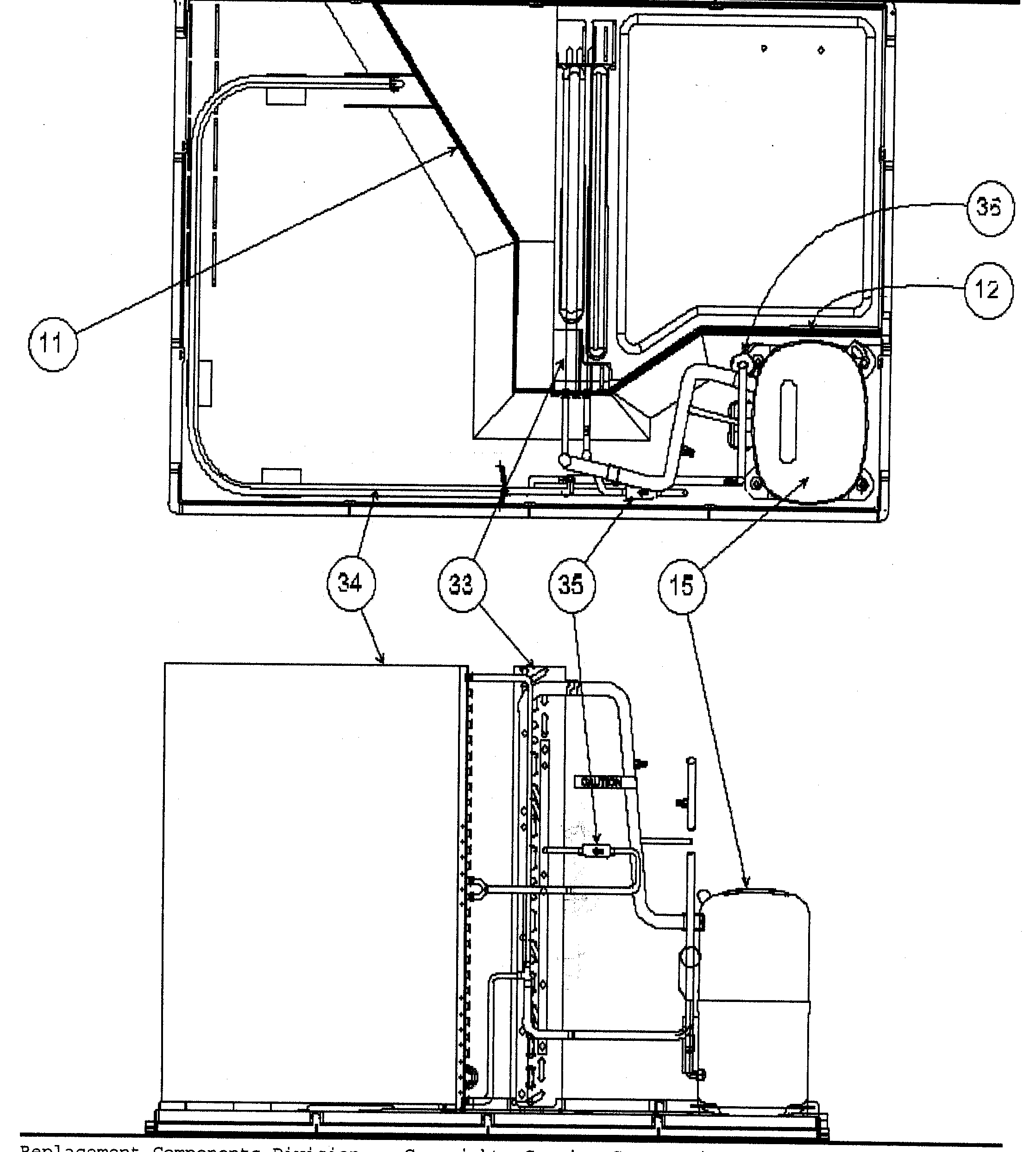

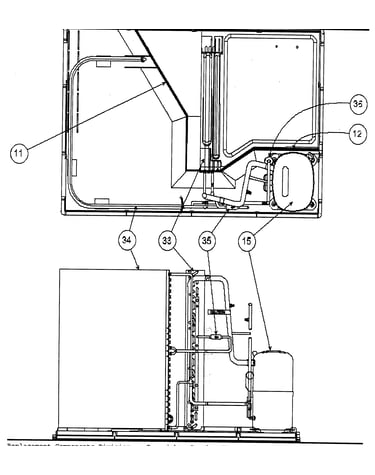

Inside view diagram

Carrier parition

Part #50ZP400057

$361.69
In Stock
Paint 313974-751
#NI

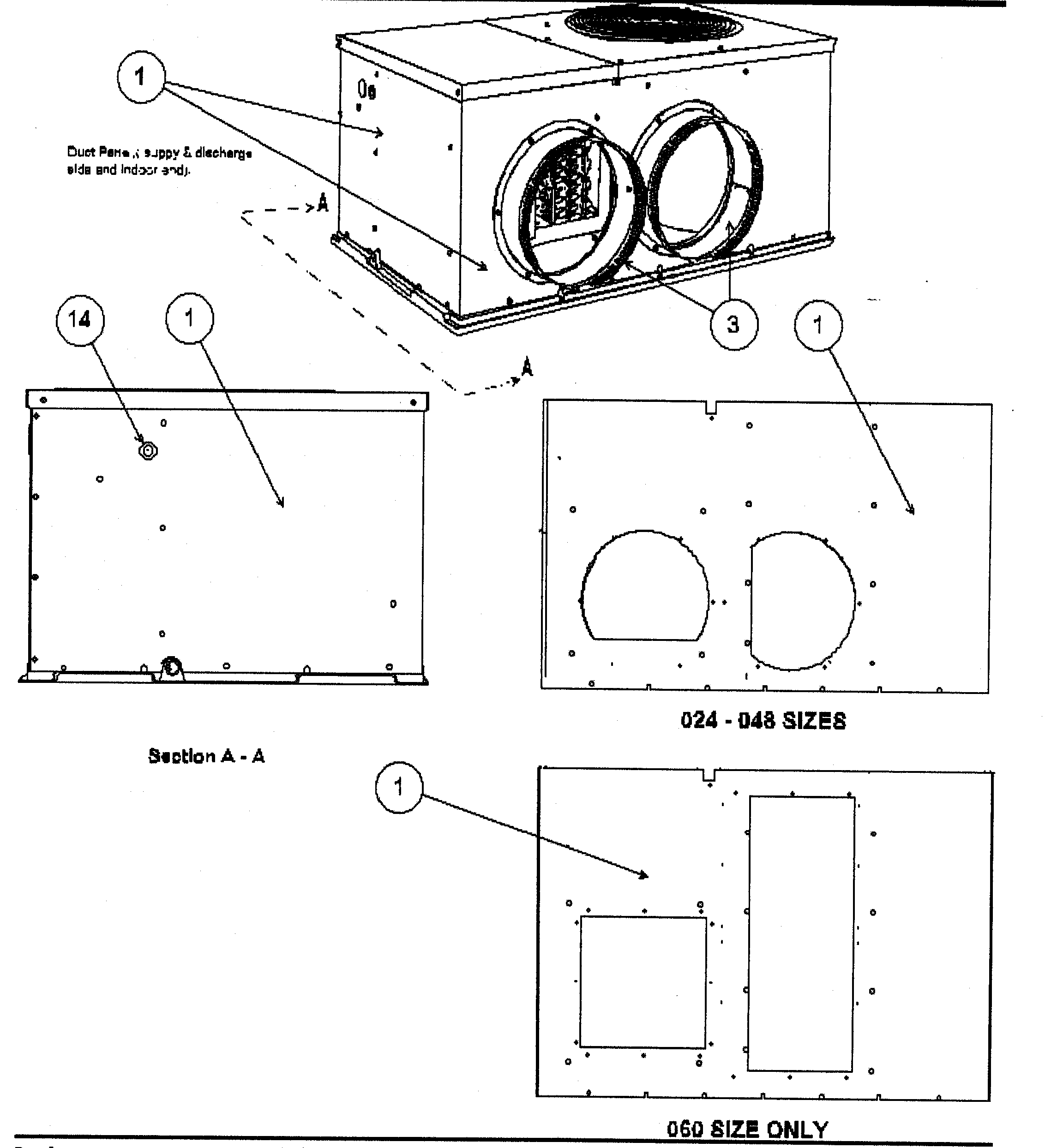

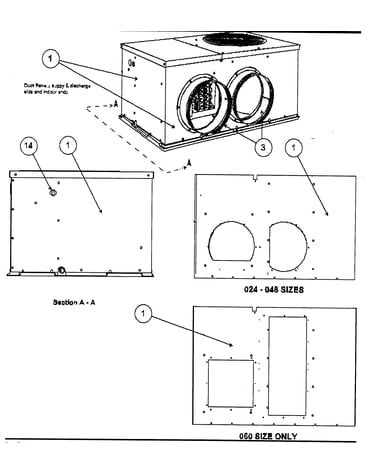

Outside view diagram

Paint

Part #313974-751

$60.89
In Stock
Sideplate 50ZP500025
#21

Indoor fan assy diagram

Sideplate

Part #50ZP500025

$60.38
In Stock
Fan Blade LA01RA033
#31

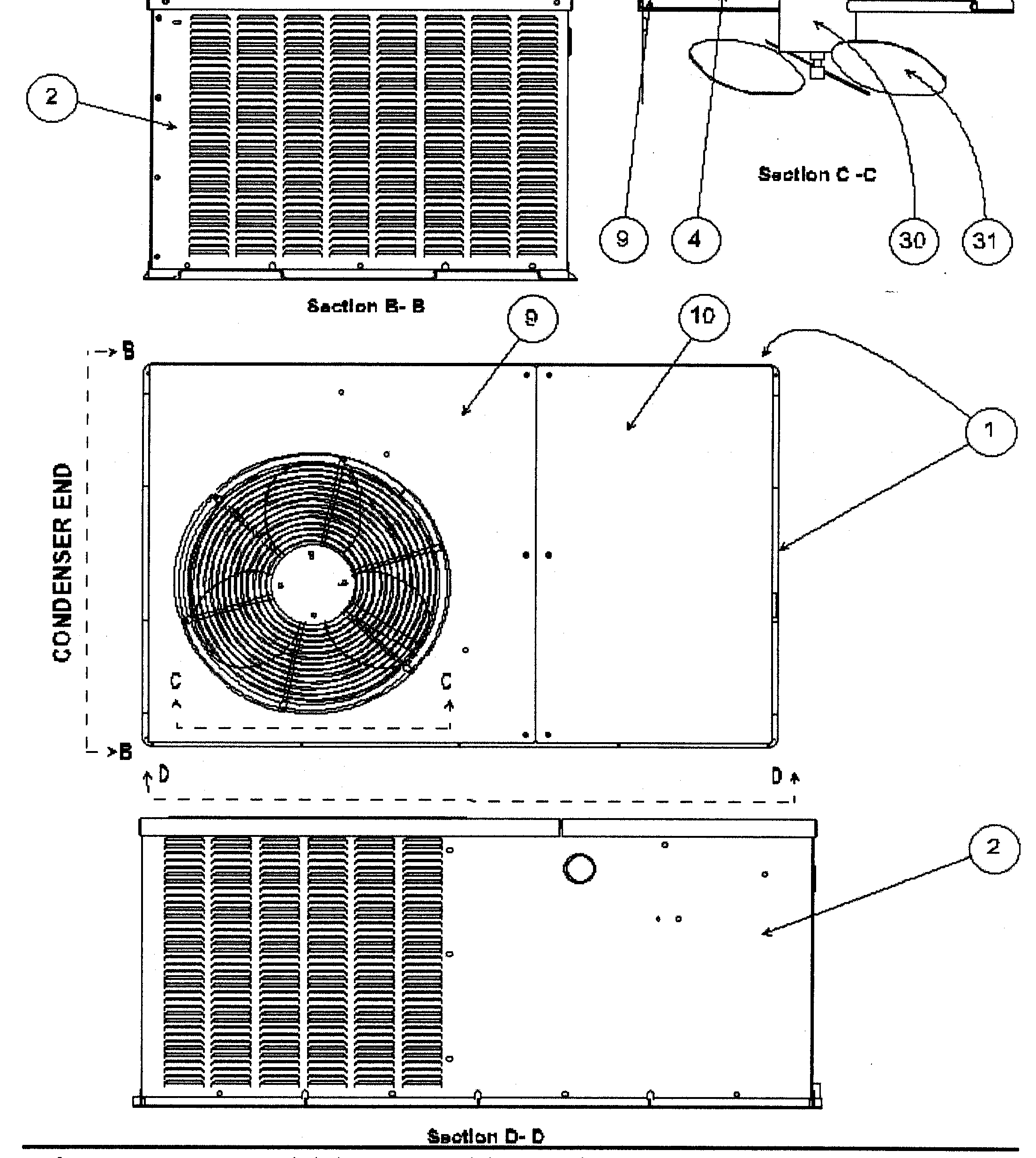

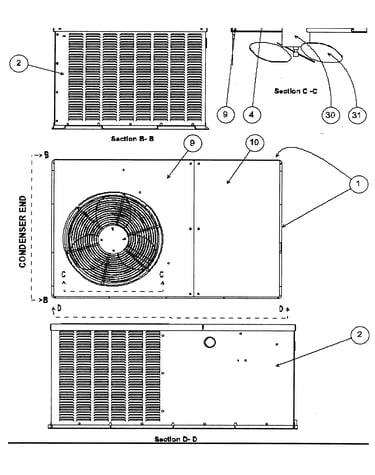

Condenser diagram

Fan blade

Part #LA01RA033

$343.68
In Stock
Grommet P041-5102
Grommet

Part #P041-5102

This item is not returnable
$4.66
In Stock
