Model # 5K5SS Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid 5K5SS mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

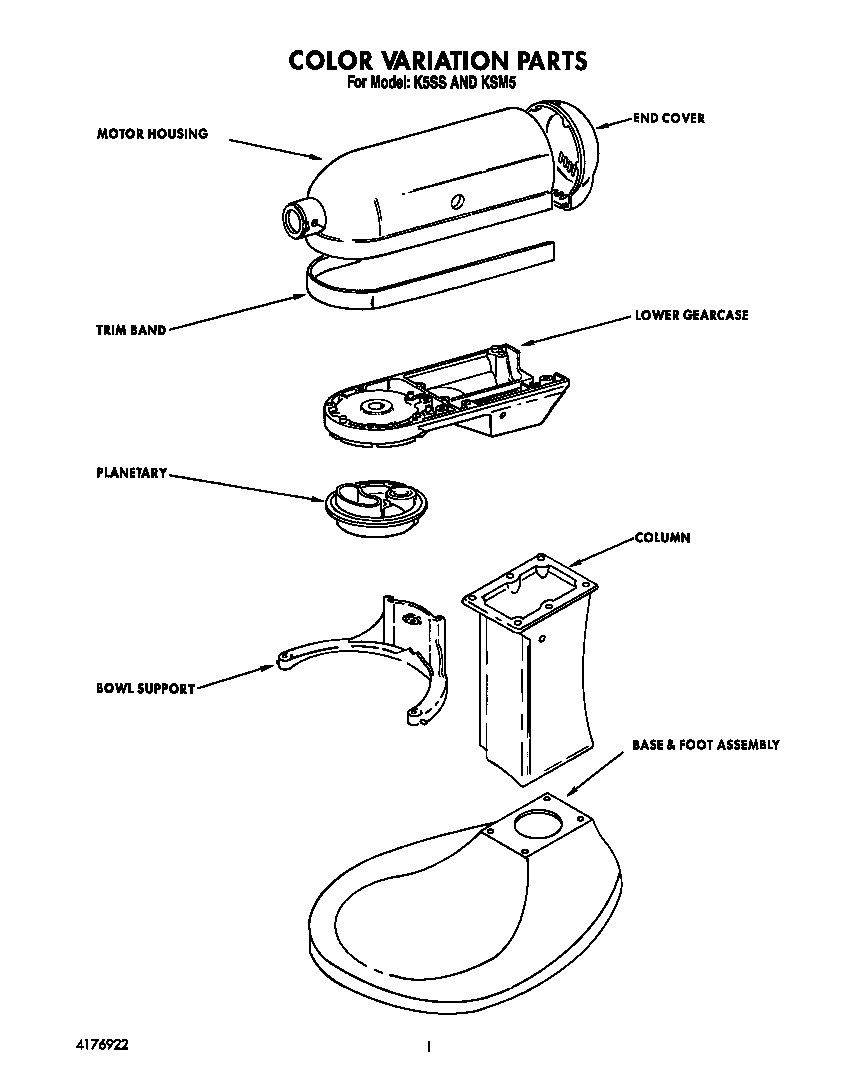

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Stand Mixer Screw 4159193
#22

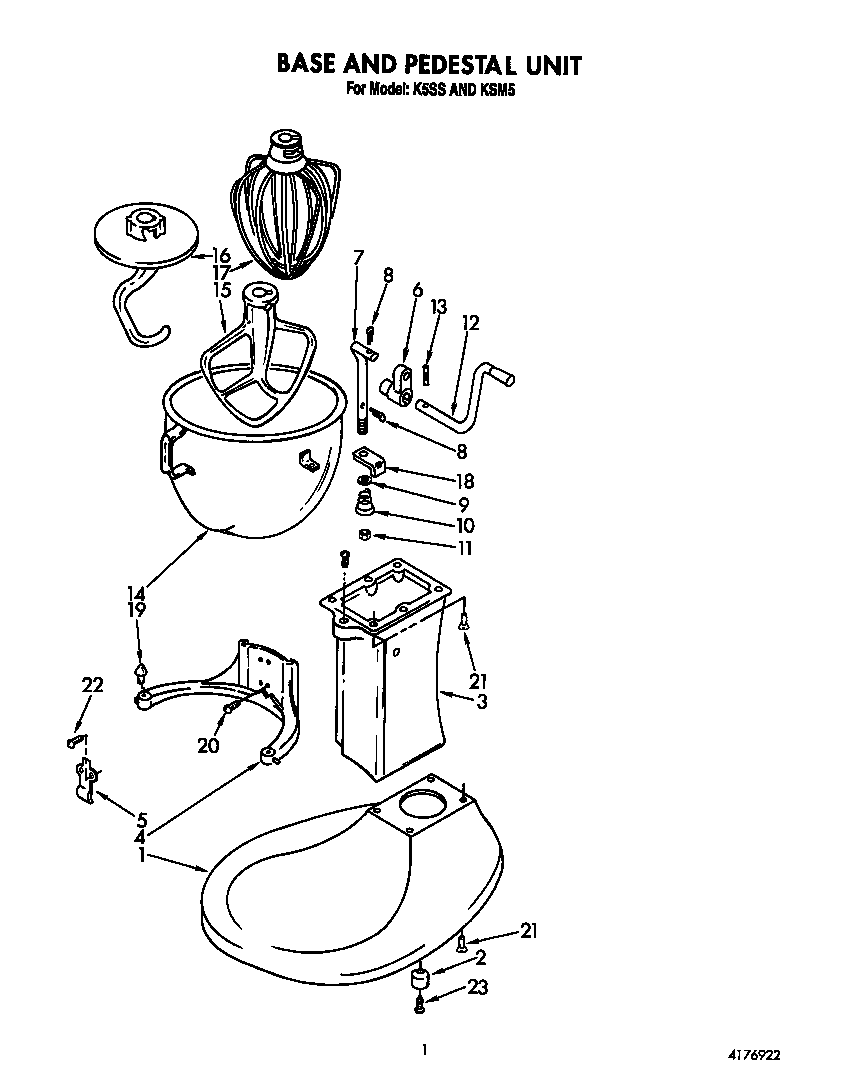

Base and pedestal diagram

Stand mixer screw

Part #4159193

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 4159193. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Flat Beater 4176182
#15B

Base and pedestal diagram

Flat beater

Part #4176182

Replaced by #W11356332

?
Manufacturer substitution
This part replaces 4176182. Substitute parts can look different from the original.
$20.51 |
23% OFF Phone Price : $26.51
Back Order
Ring-o 4159817
#53

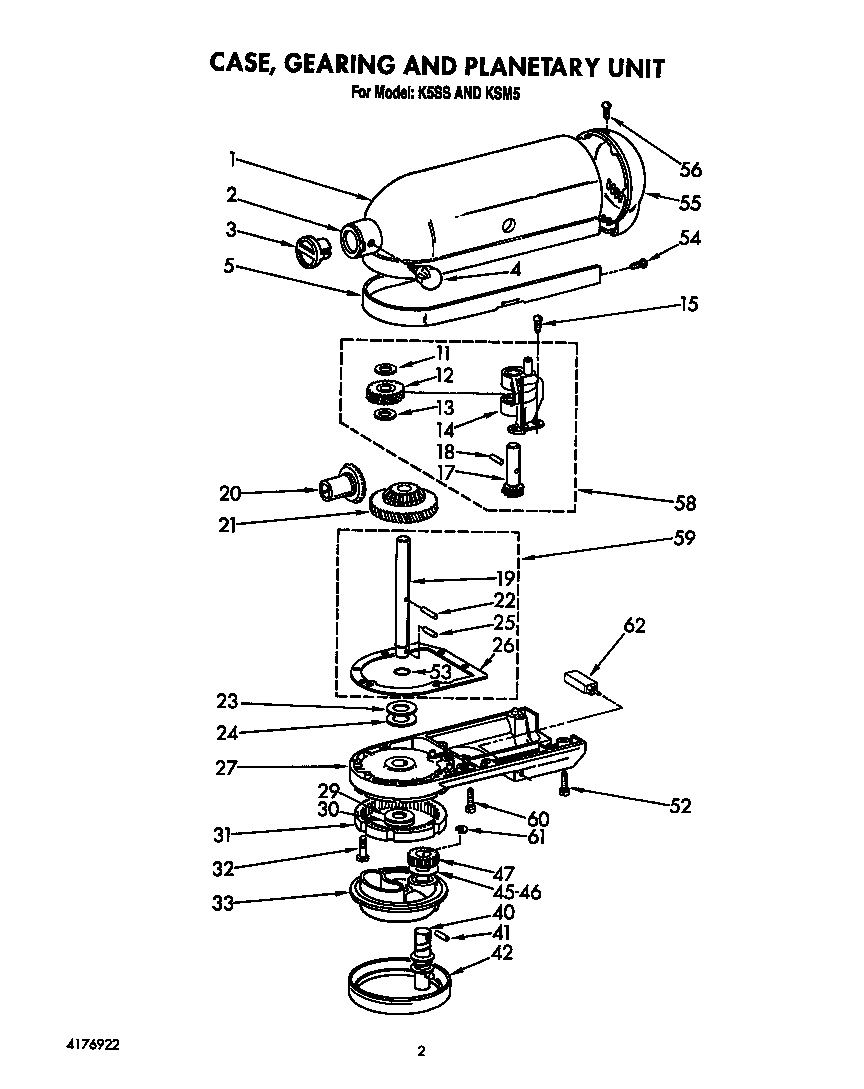

Case, gearing and planetary unit diagram

Ring-o

Part #4159817

Replaced by #WP67500-55

?
Manufacturer substitution
This part replaces 4159817. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Power Cord 4162596
#37

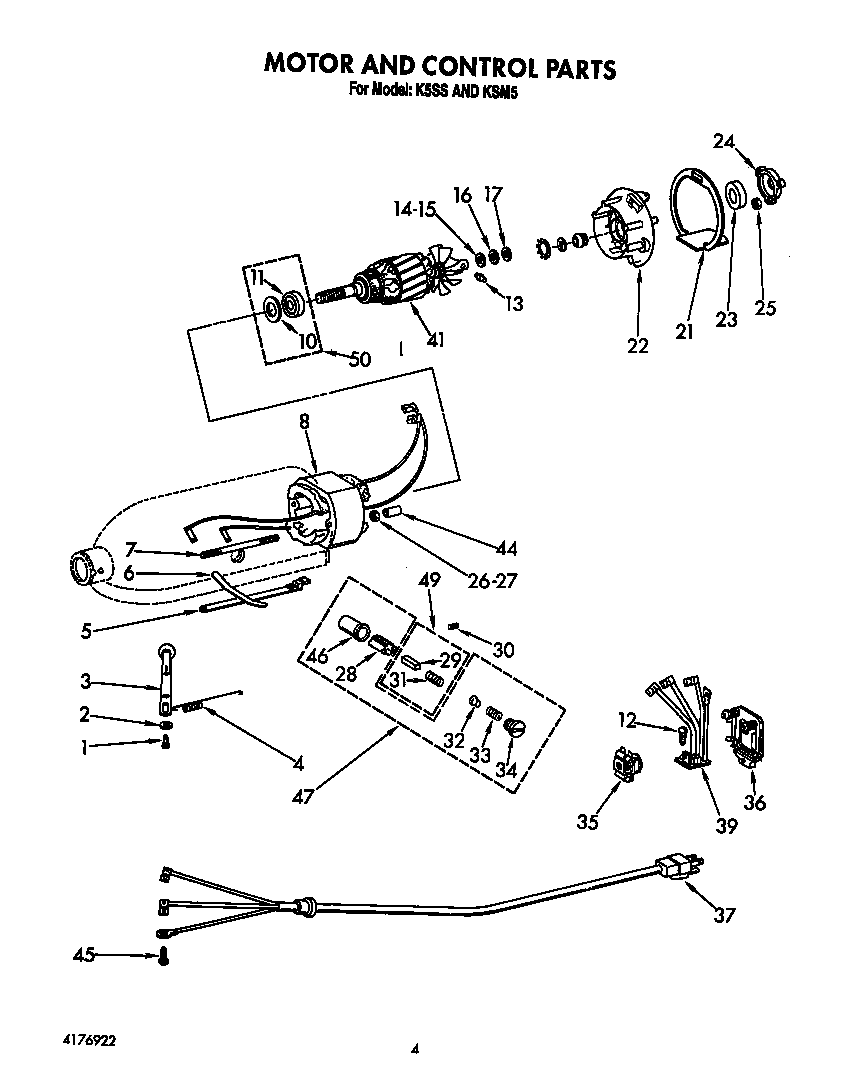

Motor and control diagram

Power cord

Part #4162596

Replaced by #W11396625

?
Manufacturer substitution
This part replaces 4162596. Substitute parts can look different from the original.
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Stand Mixer Bowl Lift Rod Spring 4159622
#10

Base and pedestal diagram

Stand mixer bowl lift rod spring

Part #4159622

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Board 4163712
#39A

Motor and control diagram

Board

Part #4163712

Replaced by #W11174552

?
Manufacturer substitution
This part replaces 4163712. Substitute parts can look different from the original.
This item is not returnable
$17.99 |
10% OFF Phone Price : $19.99
In Stock
Screw 4159204
#52

Case, gearing and planetary unit diagram

Screw

Part #4159204

Replaced by #WP3400025

?
Manufacturer substitution
This part replaces 4159204. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Gear-pinon 4161401
#47

Case, gearing and planetary unit diagram

Gear-pinon

Part #4161401

Replaced by #W11133645

?
Manufacturer substitution
This part replaces 4161401. Substitute parts can look different from the original.
This item is not returnable
$5.40
In Stock
Drip Ring 4162074
#42

Case, gearing and planetary unit diagram

Drip ring

Part #4162074

Replaced by #WP240285

?
Manufacturer substitution
This part replaces 4162074. Substitute parts can look different from the original.
This item is not returnable
$9.29 |
10% OFF Phone Price : $10.29
In Stock
Washer 4159537
Washer

Part #4159537

Replaced by #WPW10323378

?
Manufacturer substitution
This part replaces 4159537. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock
