Here are the diagrams and repair parts for Official Kenmore 11086407120 electric dryer, as well as links to manuals and error code tables, if available.

By Schematic

By Part

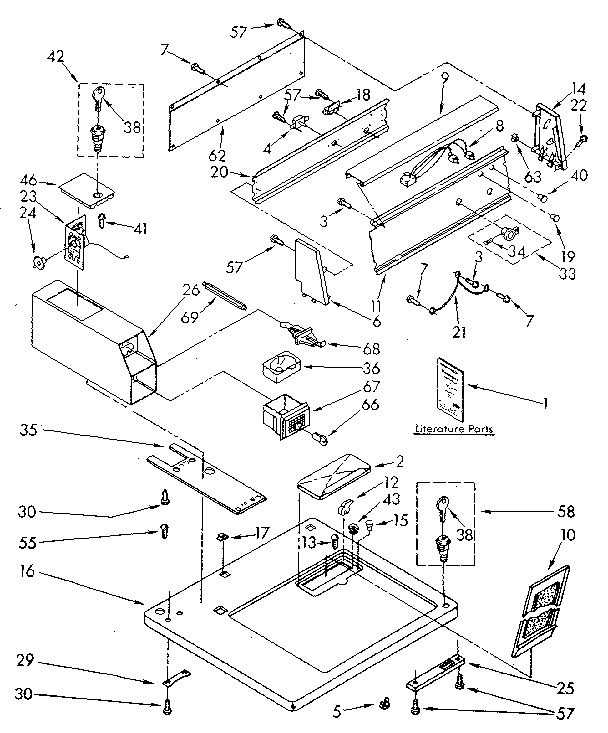

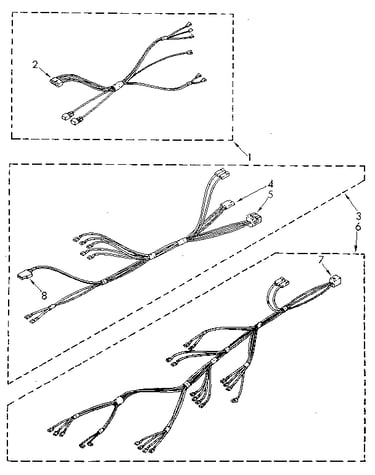

SELECT DIAGRAM

Browse Parts for11086407120 Electric Dryer

#56

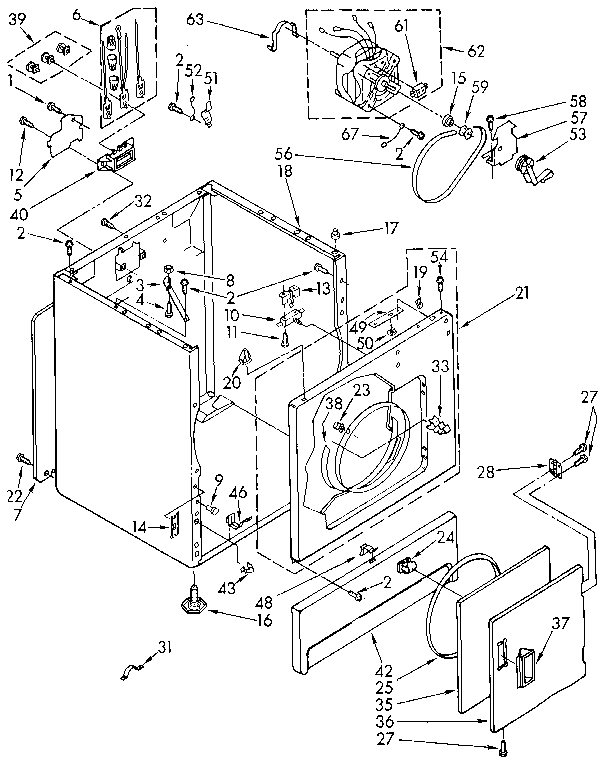

Cabinet diagram
Belt
Part #660997
Replaced by #341241
?
Manufacturer substitution
This part replaces 660997. Substitute parts can look different from the original.
$9.89 |
9% OFF Phone Price : $10.89
In Stock
Qty
#61
Cabinet diagram
Dryer motor switch
Part #3388235
Replaced by #279827
?
Manufacturer substitution
This part replaces 3388235. Substitute parts can look different from the original.
$81.17 |
7% OFF Phone Price : $87.17
In Stock
Qty
#62
Cabinet diagram
Drive motor
Part #3391888
Replaced by #279827
?
Manufacturer substitution
This part replaces 3391888. Substitute parts can look different from the original.
$81.17 |
7% OFF Phone Price : $87.17
In Stock
Qty
#33
Cabinet diagram
Strike
Part #696144
Replaced by #279570
?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
This item is not returnable
$4.25 |
19% OFF Phone Price : $5.25
In Stock
Qty
#4

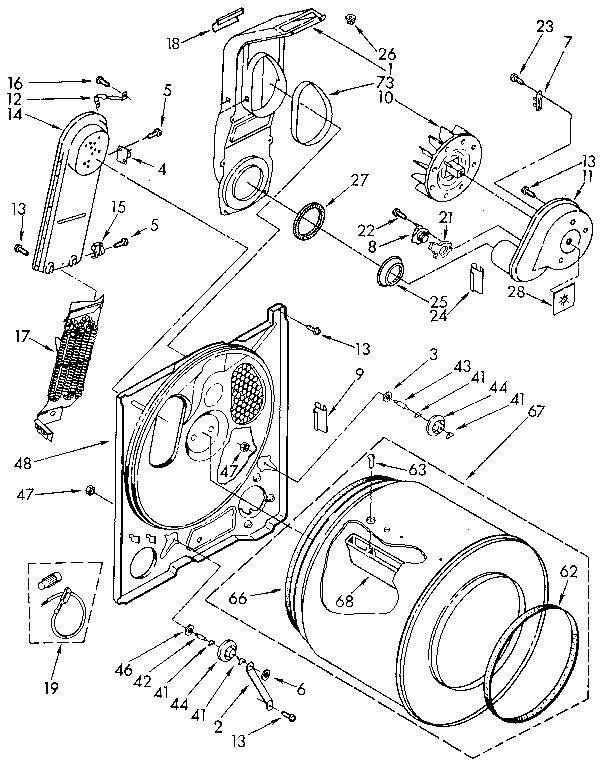

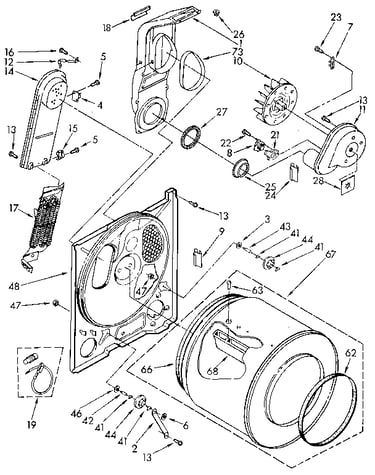

Bulkhead diagram
Cut-off kit
Part #3389946
Replaced by #279769
?
Manufacturer substitution
This part replaces 3389946. Substitute parts can look different from the original.
$36.60 |
14% OFF Phone Price : $42.60
In Stock
Qty
#10
Cabinet diagram
Door switch
Part #3391839
Replaced by #W10820036
?
Manufacturer substitution
This part replaces 3391839. Substitute parts can look different from the original.
$21.44 |
22% OFF Phone Price : $27.44
In Stock
Qty
#41
Bulkhead diagram
Dryer tri-ring retainer
Part #690997
Replaced by #WPW10512946
?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
This item is not returnable
$7.11 |
12% OFF Phone Price : $8.11
In Stock
Qty
#19
Bulkhead diagram
Dryer heating element wire kit
Part #279457
$8.41 |
11% OFF Phone Price : $9.41
In Stock
Qty
#15
Bulkhead diagram
Dryer high-limit thermostat
Part #3390291
Replaced by #WP3390291
?
Manufacturer substitution
This part replaces 3390291. Substitute parts can look different from the original.
$46.97 |
11% OFF Phone Price : $52.97
In Stock
Qty
#42
Bulkhead diagram
Shaft
Part #347364
Replaced by #WPW10359270
?
Manufacturer substitution
This part replaces 347364. Substitute parts can look different from the original.
$36.51 |
14% OFF Phone Price : $42.51
In Stock
Qty
