Reciprocating Saw

Model # 32017255 Official Craftsman scrolling sabre saw

Here are the diagrams and repair parts for Official Craftsman 32017255 scrolling sabre saw, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
32017255 Power Tools
Rotor Set DSJS2702
#9

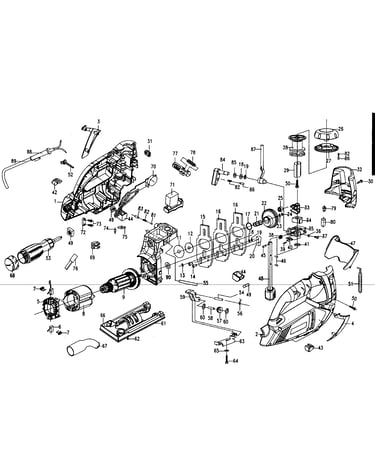

Saw diagram

Rotor set

Part #DSJS2702

The manufacturer no longer makes this part, and there's no substitute part

Roll Ring 3550214001
#25

Saw diagram

Roll ring

Part #3550214001

The manufacturer no longer makes this part, and there's no substitute part

Pin 3550202001
#45

Saw diagram

Pin

Part #3550202001

The manufacturer no longer makes this part, and there's no substitute part

Slot 3700815001
#33

Saw diagram

Slot

Part #3700815001

The manufacturer no longer makes this part, and there's no substitute part

B Spring 3660050001
#82

Saw diagram

B spring

Part #3660050001

The manufacturer no longer makes this part, and there's no substitute part

Pin 3550194001
#54

Saw diagram

Pin

Part #3550194001

The manufacturer no longer makes this part, and there's no substitute part

Base Plate 3420340001
#66

Saw diagram

Base plate

Part #3420340001

The manufacturer no longer makes this part, and there's no substitute part

Nut 3700164001
#75

Saw diagram

Nut

Part #3700164001

The manufacturer no longer makes this part, and there's no substitute part

Bal.plate 3700225001
#15

Saw diagram

Bal.plate

Part #3700225001

The manufacturer no longer makes this part, and there's no substitute part

Stator DSJS2701
#8

Saw diagram

Stator

Part #DSJS2701

The manufacturer no longer makes this part, and there's no substitute part
