Model # 229960190 Official Kenmore hot water boiler
Here are the diagrams and repair parts for Official Kenmore 229960190 hot water boiler, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
229960190 Hot Water Boiler
#7

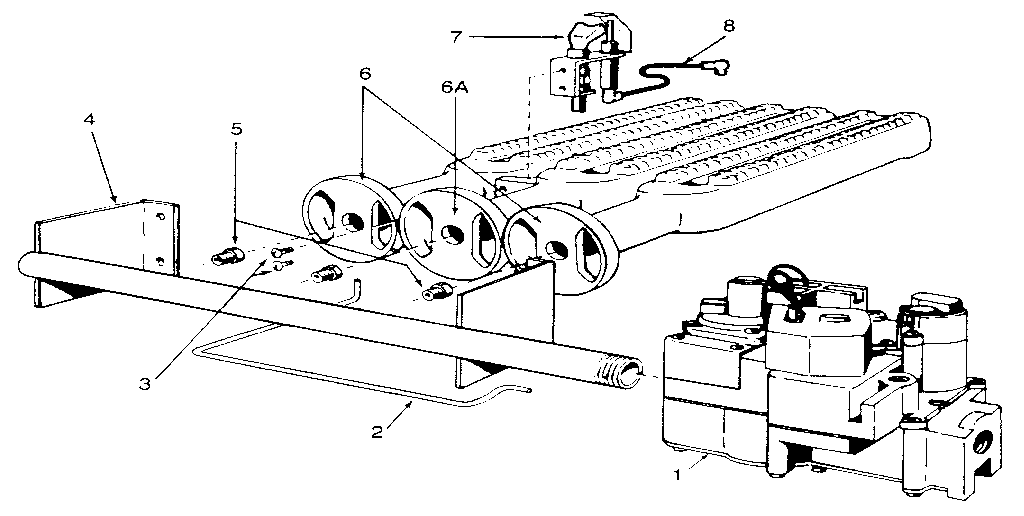

Gas burners and manifold parts diagram
Burner
Part #146-62-054
The manufacturer no longer makes this part, and there's no substitute part
#1A
Gas burners and manifold parts diagram
Gas valve
Part #146-62-060
The manufacturer no longer makes this part, and there's no substitute part
#8
Gas burners and manifold parts diagram
Ignit cable
Part #146-62-076
The manufacturer no longer makes this part, and there's no substitute part
#1
Gas burners and manifold parts diagram
Gas valve
Part #146-62-058
The manufacturer no longer makes this part, and there's no substitute part
#9
Boiler controls and piping diagram
Circulator
Part #146-26-045
Replaced by #103251
?
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
#13C
Boiler controls and piping diagram
Vent dmpr
Part #146-28-011
Replaced by #240006936
?
Manufacturer substitution
This part replaces 146-28-011. Substitute parts can look different from the original.
$355.33
In Stock
#1
Boiler controls and piping diagram
Relief valve
Part #146-22-011
Replaced by #10-408-05
?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
Vent damper
Part #146-28-003
Replaced by #FC46487201
?
Manufacturer substitution
This part replaces 146-28-003. Substitute parts can look different from the original.
$233.99
In Stock
Boiler burner roll-out limit switch (replaces 146-29-002-60)
Part #146-29-002
The manufacturer no longer makes this part, and there's no substitute part
#7A
Gas burners and manifold parts diagram
Pilot
Part #146-62-053
The manufacturer no longer makes this part, and there's no substitute part
