Craftsman
Gas Walk-Behind Mower

Model # 917380042 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380042 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

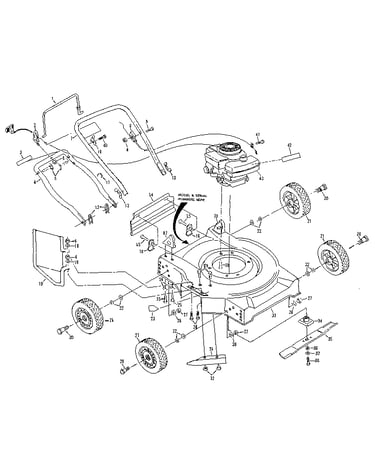

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Washer 61537
#26

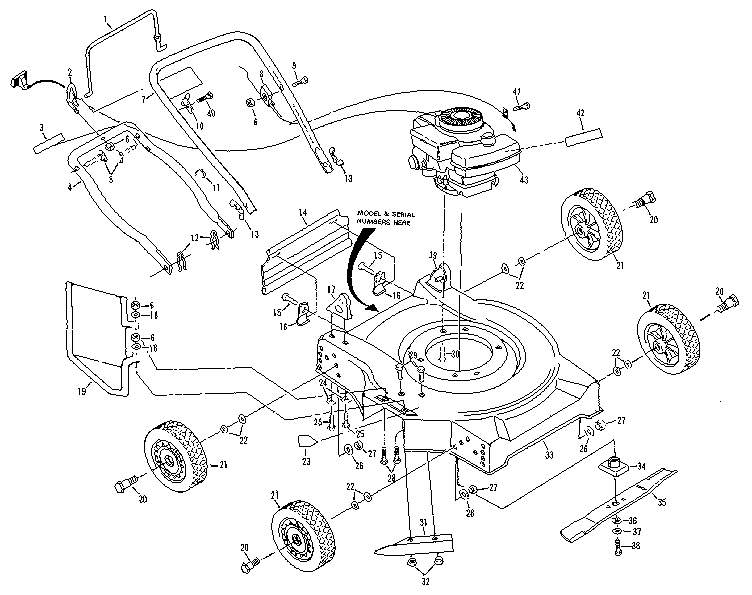

Replacement parts diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Mower Blade Adapter 851514
Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Bracket 86900
#10

Replacement parts diagram

Bracket

Part #86900

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86900. Substitute parts can look different from the original.
$10.26
In Stock
Tapping Screw 750097
#40

Replacement parts diagram

Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Bolt 58714
#5

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#36

Replacement parts diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Wheel 800060
#21

Replacement parts diagram

Wheel

Part #800060

Replaced by #532436482

?
Manufacturer substitution
This part replaces 800060. Substitute parts can look different from the original.
$20.54
In Stock
Screw 55187
#25

Replacement parts diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn & Garden Equipment Screw 851084
#38

Replacement parts diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532851084

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Mower Recoil Starter Rope Guide 103672X
#2

Replacement parts diagram

Lawn mower recoil starter rope guide

Part #103672X

Replaced by #583642701

?
Manufacturer substitution
This part replaces 103672X. Substitute parts can look different from the original.
$10.26
In Stock
