Model # HE365A1006 Official Honeywell humidifier

Here are the diagrams and repair parts for Official Honeywell HE365A1006 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |

Current Sensing Relay 32001754-001
#15

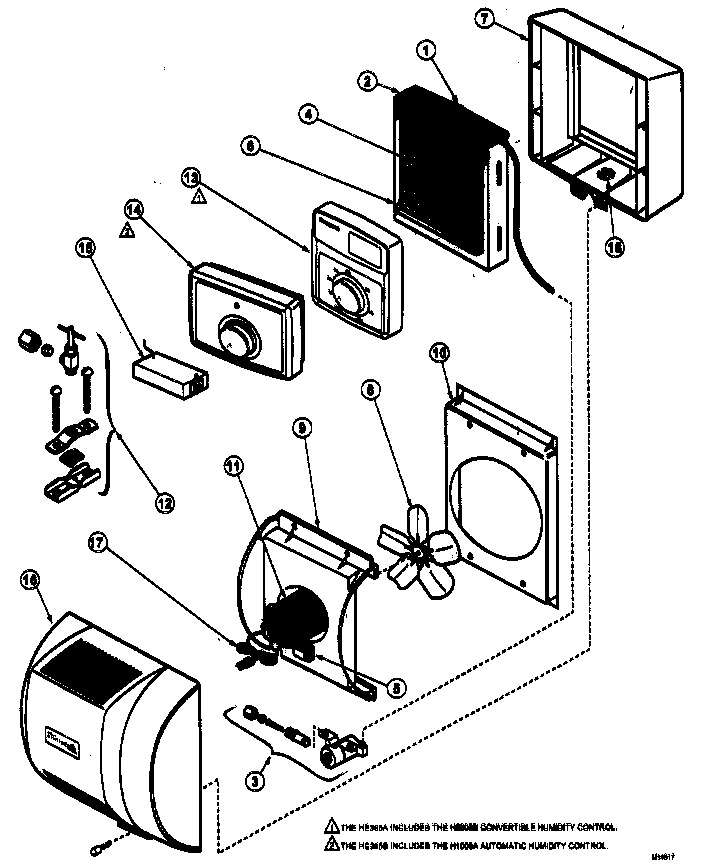

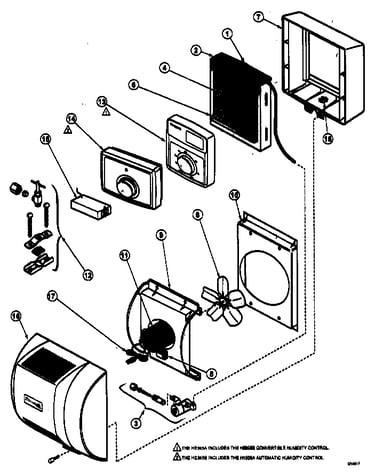

Cabinet parts diagram

Current sensing relay

Part #32001754-001

The manufacturer no longer makes this part, and there's no substitute part

Fitting 32001615-001
#18

Cabinet parts diagram

Fitting

Part #32001615-001

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Water Line Installation Kit 32001752-001
#NI

Cabinet parts diagram

Humidifier water line installation kit

Part #32001752-001

The manufacturer no longer makes this part, and there's no substitute part

Frame 32001632-001
#6

Cabinet parts diagram

Frame

Part #32001632-001

The manufacturer no longer makes this part, and there's no substitute part

Water Tray 32001630-001
#2

Cabinet parts diagram

Water tray

Part #32001630-001

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Water Valve And Nozzle 32001876-001
#3

Cabinet parts diagram

Humidifier water valve and nozzle

Part #32001876-001

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Pad HC26E1004
#4

Cabinet parts diagram

Humidifier pad

Part #HC26E1004

The manufacturer no longer makes this part, and there's no substitute part

Humidistat H8908B1002
#13

Cabinet parts diagram

Humidistat

Part #H8908B1002

The manufacturer no longer makes this part, and there's no substitute part

Humidistat H1008A1008
#14

Cabinet parts diagram

Humidistat

Part #H1008A1008

The manufacturer no longer makes this part, and there's no substitute part

Board 32001676-001
#5

Cabinet parts diagram

Board

Part #32001676-001

The manufacturer no longer makes this part, and there's no substitute part
