Model # DDE7900GDL Official GE electric dryer

Here are the diagrams and repair parts for Official GE DDE7900GDL electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Idler Pulley WE12X0083

#216

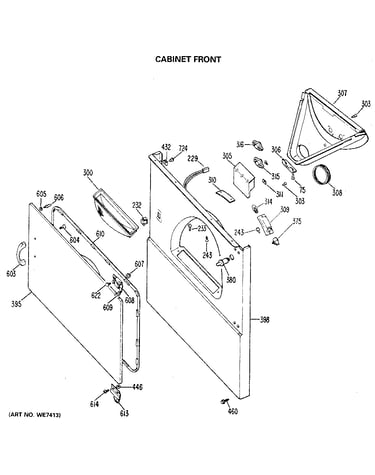

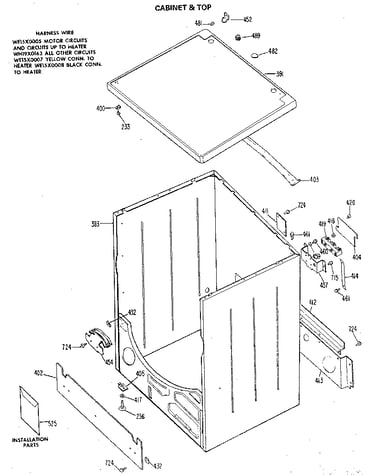

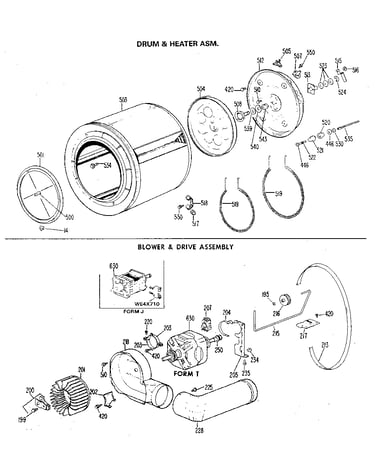

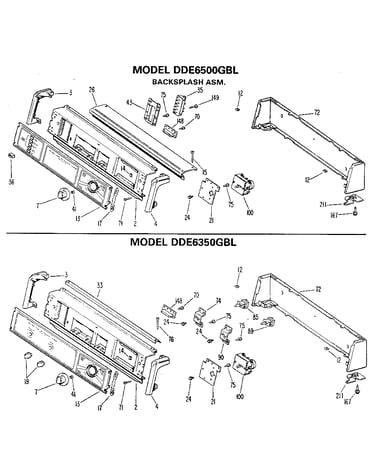

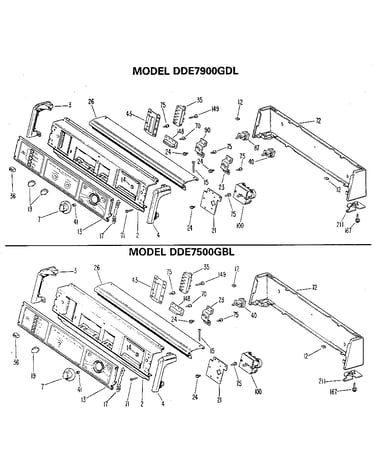

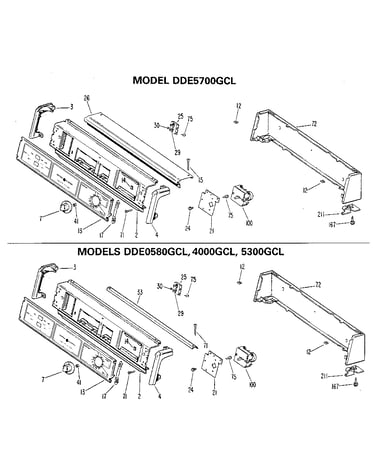

All parts diagram

Idler pulley

Part #WE12X0083

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12X0083. Substitute parts can look different from the original.
BEST SELLER
$25.35 |
19% OFF Phone Price : $31.35
In Stock
Shft-brkt As WE03X0039

#508

All parts diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Washer WE02X0195

#539

All parts diagram

Washer

Part #WE02X0195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE02X0195. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Lamp WE04X0718

#314

All parts diagram

Lamp

Part #WE04X0718

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE04X0718. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Motor WE17X0032

#630

All parts diagram

Motor

Part #WE17X0032

Replaced by #WE17X10010

?
Manufacturer substitution
This part replaces WE17X0032. Substitute parts can look different from the original.
BEST SELLER
$223.60 |
5% OFF Phone Price : $235.60
In Stock
Dryer Blower Wheel WE16X0017

#201A

All parts diagram

Dryer blower wheel

Part #WE16X0017

Replaced by #WE16M15

?
Manufacturer substitution
This part replaces WE16X0017. Substitute parts can look different from the original.
BEST SELLER
$60.14 |
9% OFF Phone Price : $66.14
In Stock
Dryer Drive Belt WE12X0082

#213

All parts diagram

Dryer drive belt

Part #WE12X0082

Replaced by #WE12X10014

?
Manufacturer substitution
This part replaces WE12X0082. Substitute parts can look different from the original.
BEST SELLER
$20.46 |
23% OFF Phone Price : $26.46
In Stock
Clamp Screw WE01X0688

#200

All parts diagram

Clamp screw

Part #WE01X0688

Replaced by #WE1X688

?
Manufacturer substitution
This part replaces WE01X0688. Substitute parts can look different from the original.
This item is not returnable
$18.07 |
10% OFF Phone Price : $20.07
In Stock
Motor Strap WE13X0182

#203

All parts diagram

Motor strap

Part #WE13X0182

Replaced by #WE13X200

?
Manufacturer substitution
This part replaces WE13X0182. Substitute parts can look different from the original.
$6.92 |
13% OFF Phone Price : $7.92
In Stock
T Stat Asm WE04X0730

#505

All parts diagram

T stat asm

Part #WE04X0730

Replaced by #WE4X800

?
Manufacturer substitution
This part replaces WE04X0730. Substitute parts can look different from the original.
$13.72 |
13% OFF Phone Price : $15.72
In Stock
