Model # 153312561 Official Kenmore electric water heater
Here are the diagrams and repair parts for Official Kenmore 153312561 electric water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for153312561 Water Heaters
- #9

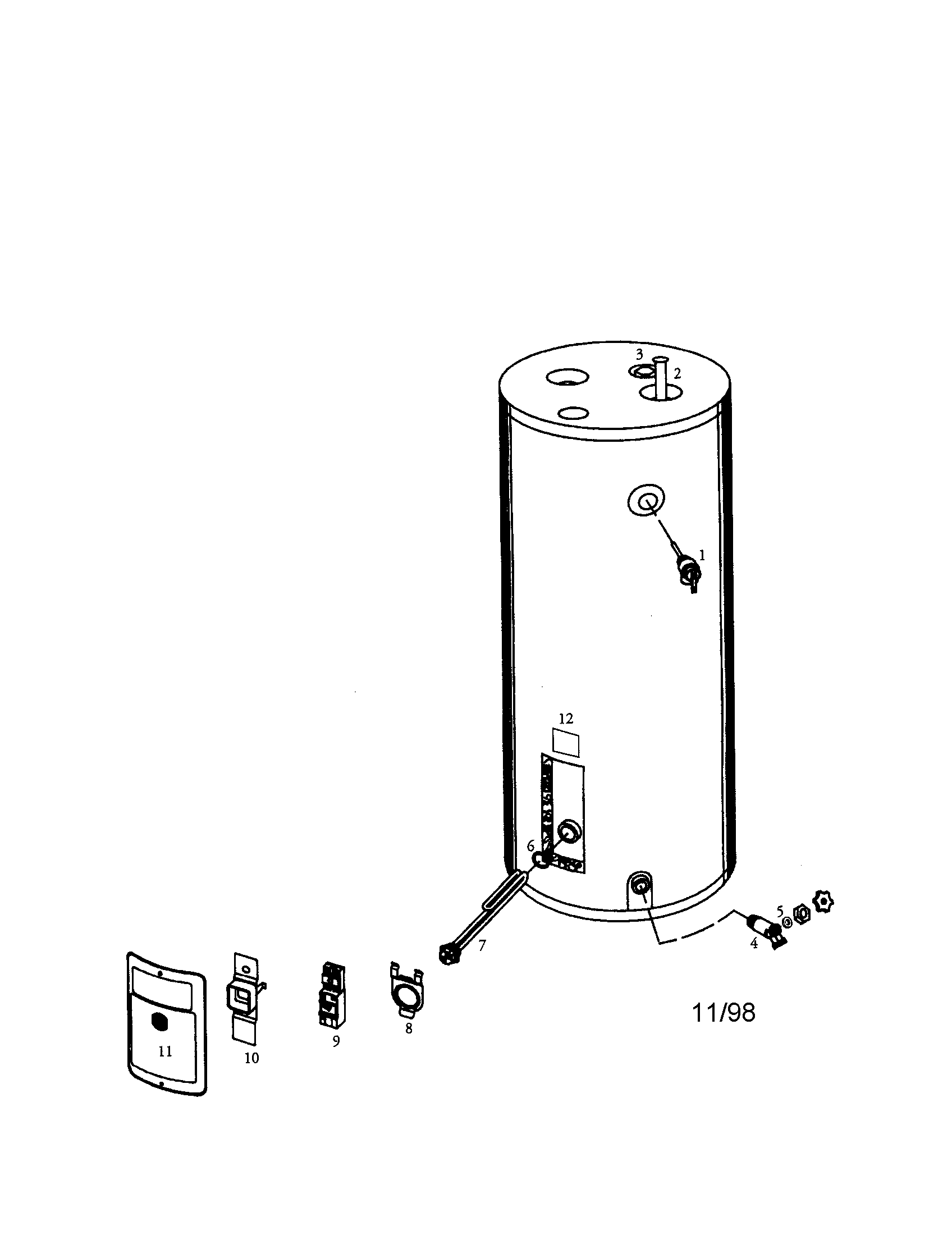

50 gallon electric water heater diagram
ThermostatPart #31918
Replaced by #9000509015
?Manufacturer substitutionThis part replaces 31918. Substitute parts can look different from the original.$58.02 |9% OFF Phone Price : $64.02In Stock - #6
50 gallon electric water heater diagram
Water heater heating element gasketPart #9000308
Replaced by #9000308005
?Manufacturer substitutionThis part replaces 9000308. Substitute parts can look different from the original.$30.62 |16% OFF Phone Price : $36.62In Stock - #3
50 gallon electric water heater diagram
Anode rodPart #9001828
Replaced by #100109594
?Manufacturer substitutionThis part replaces 9001828. Substitute parts can look different from the original.$85.48 |7% OFF Phone Price : $91.48Back Order - #7
50 gallon electric water heater diagram
ElementPart #31906
The manufacturer no longer makes this part, and there's no substitute part
- #8
50 gallon electric water heater diagram
Water heater thermostat bracketPart #9000309
Replaced by #100108380
?Manufacturer substitutionThis part replaces 9000309. Substitute parts can look different from the original.$53.73In Stock - #4
50 gallon electric water heater diagram
DrainPart #9000058
Replaced by #100108269
?Manufacturer substitutionThis part replaces 9000058. Substitute parts can look different from the original.$27.93In Stock - #5
50 gallon electric water heater diagram
Kenmore elite water heater washerPart #9001584
Replaced by #100108603
?Manufacturer substitutionThis part replaces 9001584. Substitute parts can look different from the original.$47.29Back Order - #2
50 gallon electric water heater diagram
Dip tubePart #9000280
Replaced by #100108609
?Manufacturer substitutionThis part replaces 9000280. Substitute parts can look different from the original.$58.02In Stock - #12
50 gallon electric water heater diagram
Rating platePart #0270182
The manufacturer no longer makes this part, and there's no substitute part
- #1
50 gallon electric water heater diagram
Temp pressurPart #33085
The manufacturer no longer makes this part, and there's no substitute part
