Digital Camcorder

Model # HDR-PJ760V Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-PJ760V camcorder, as well as links to manuals and error code tables, if available.

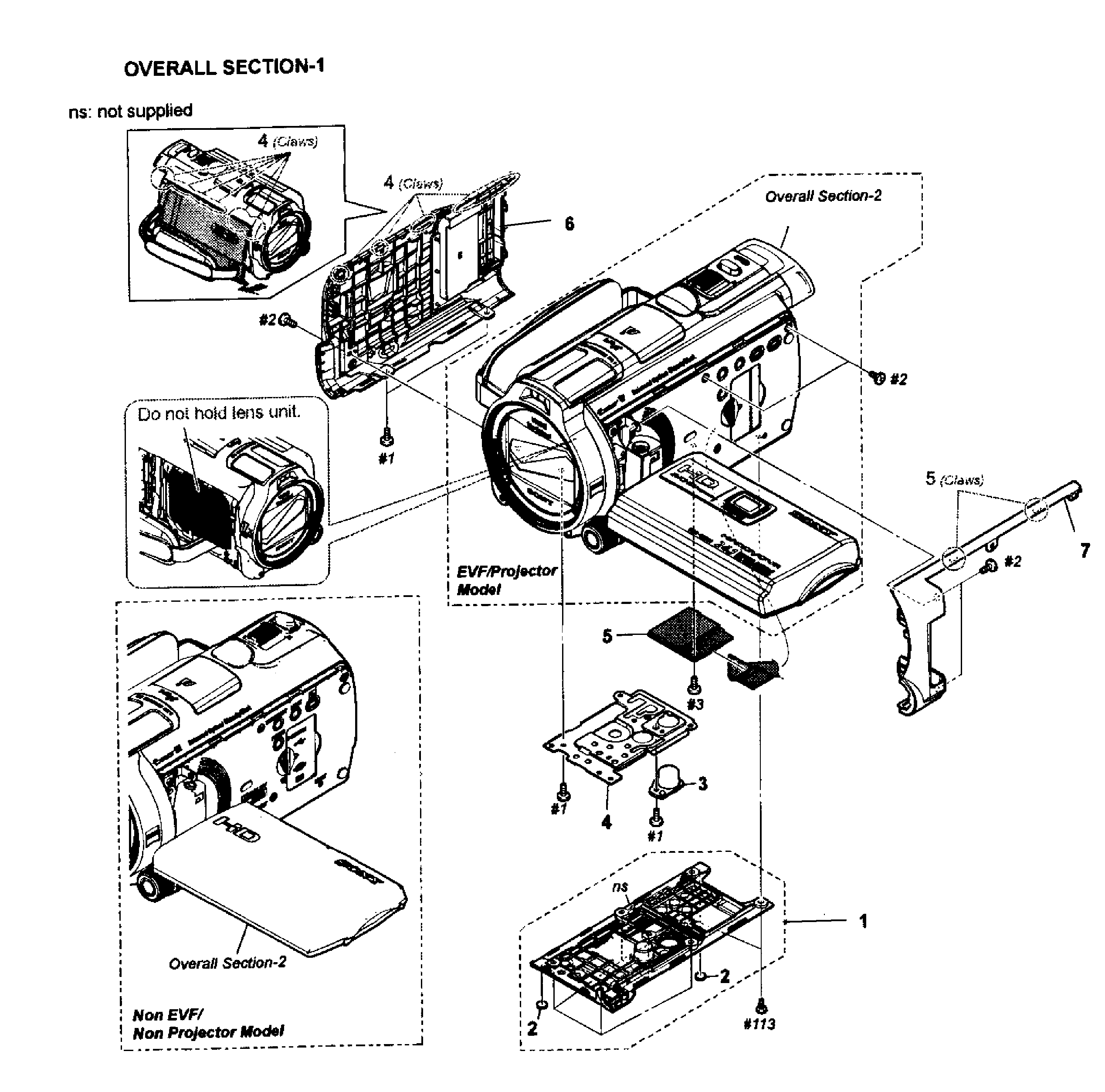

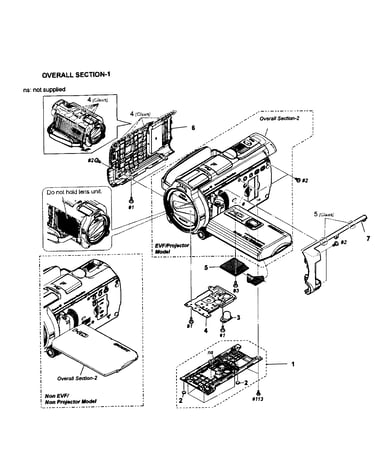

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forHDR-PJ760V Camcorders

  • Hinge Cover 442232301
    #365

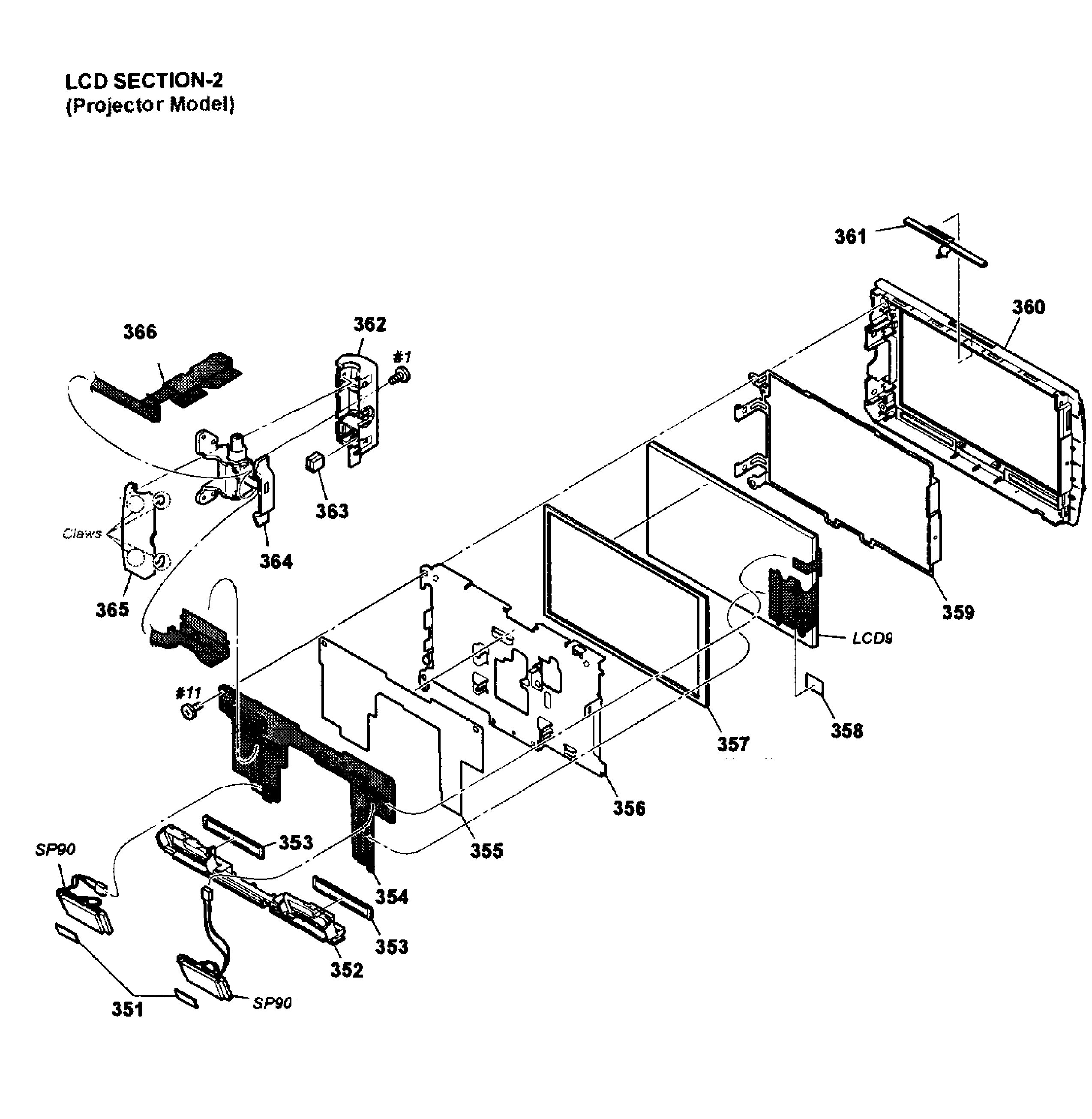

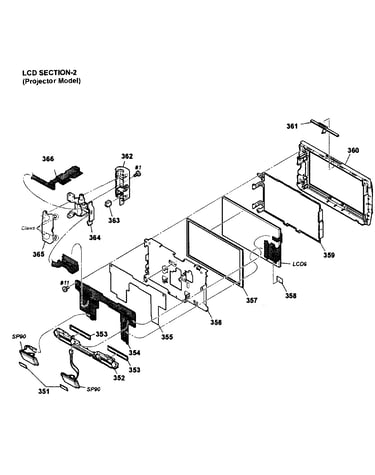

    Lcd-2 diagram

    Hinge cover

    Part #442232301

    $11.75
    In Stock
  • Frame 442235601
    #207

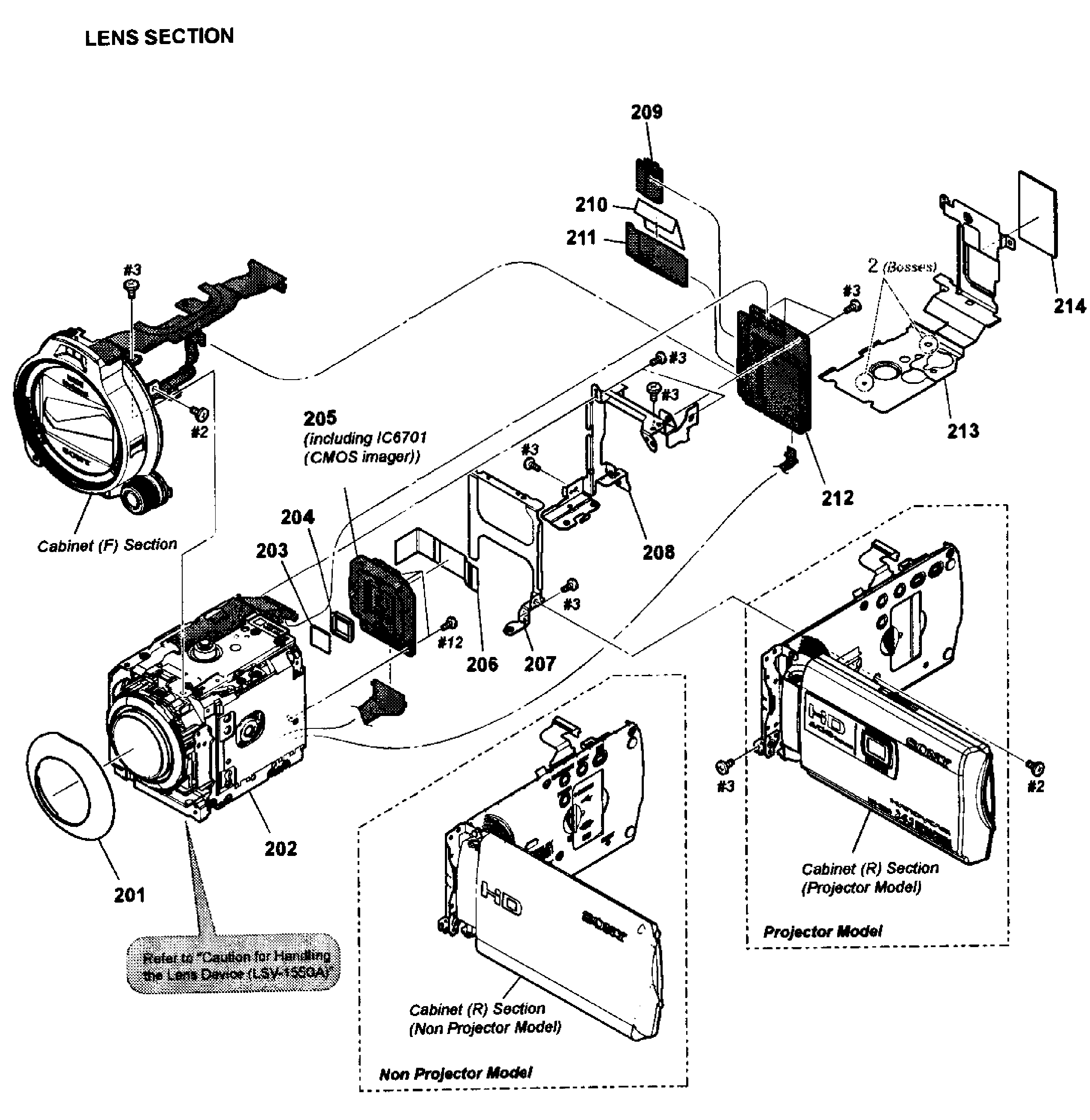

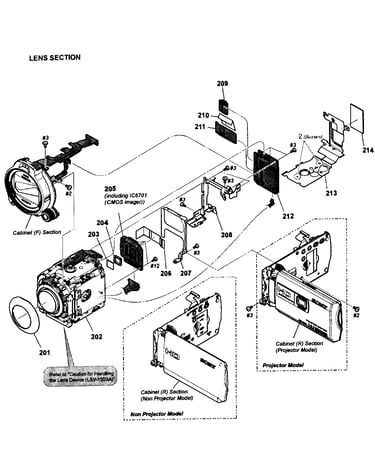

    Lens assy diagram

    Frame

    Part #442235601

    $10.31
    In Stock
  • Belt Guard 442233901
    #109

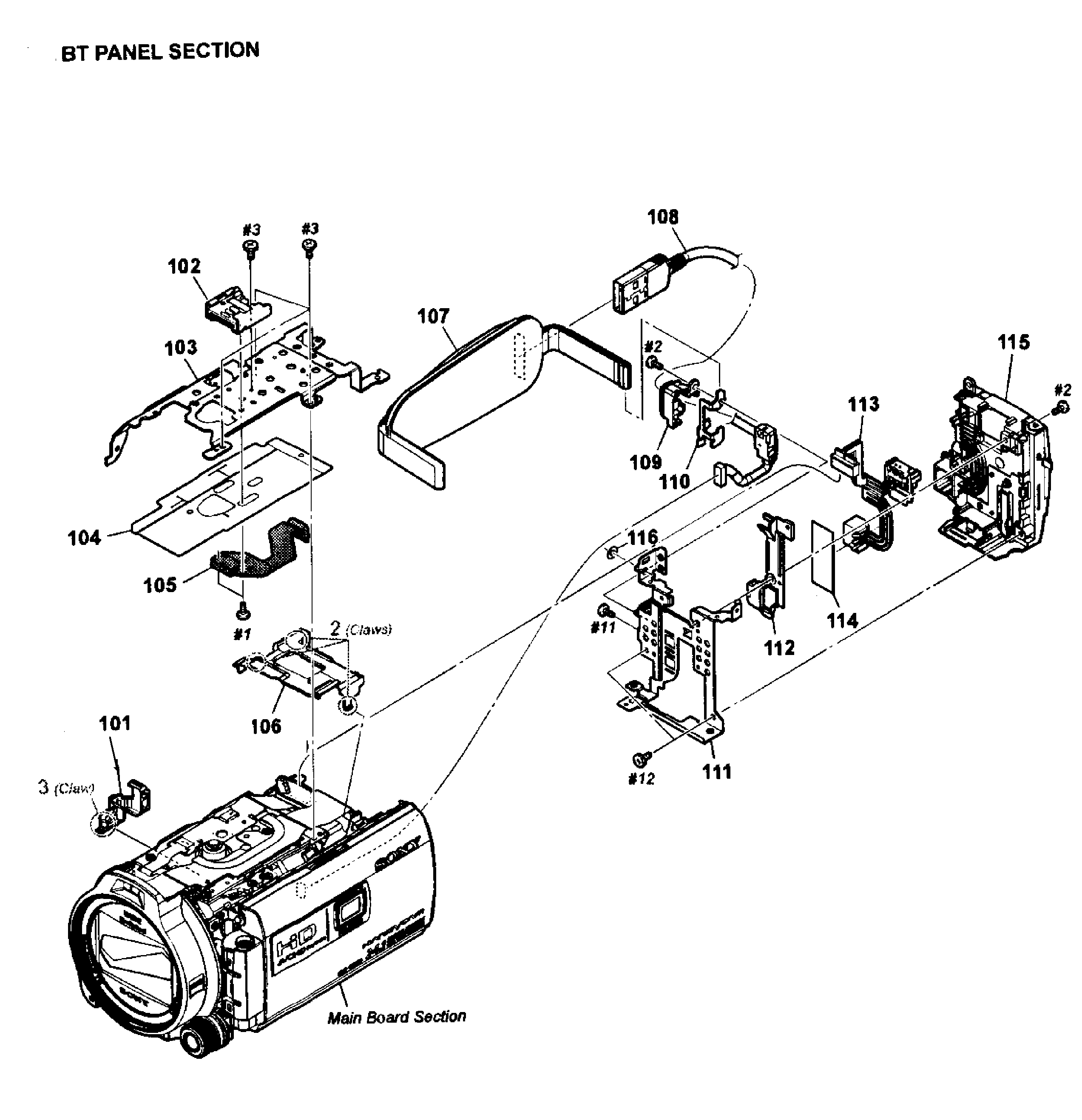

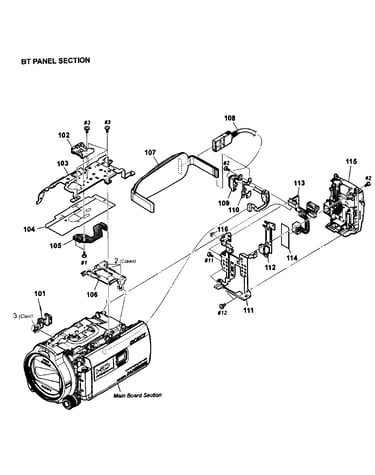

    Bt panel diagram

    Belt guard

    Part #442233901

    $8.03
    In Stock
  • Gasket 427235701
    #302

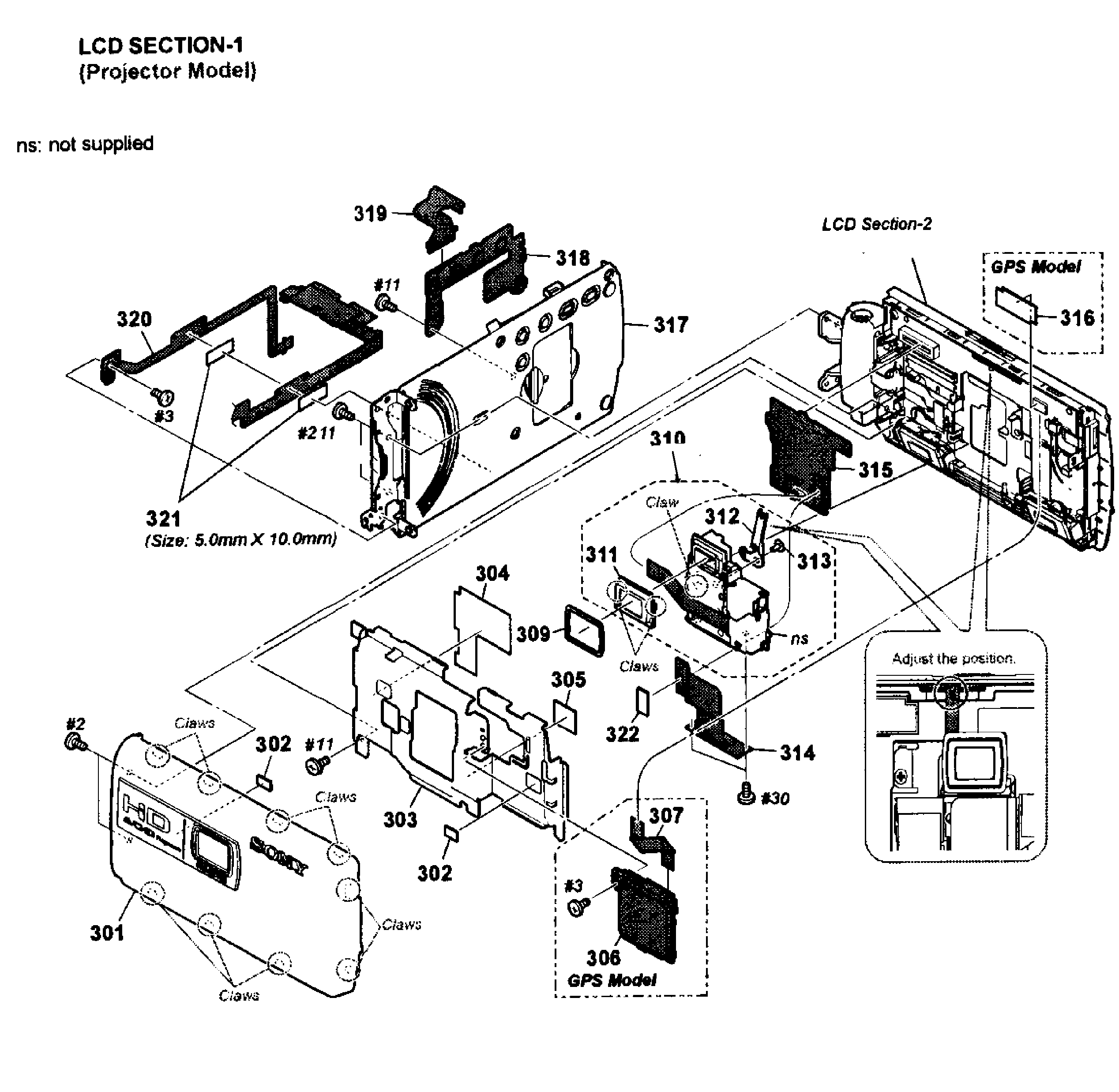

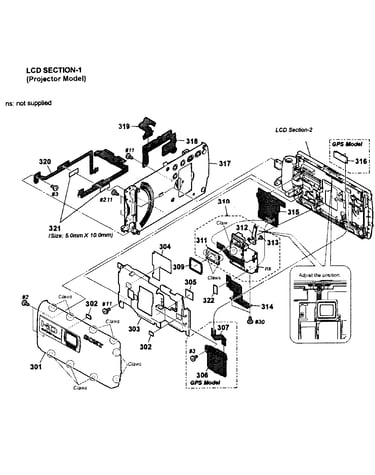

    Lcd-1 diagram

    Gasket

    Part #427235701

    This item is not returnable
    $2.16
    In Stock
  • Led Block A1872023A
    #254

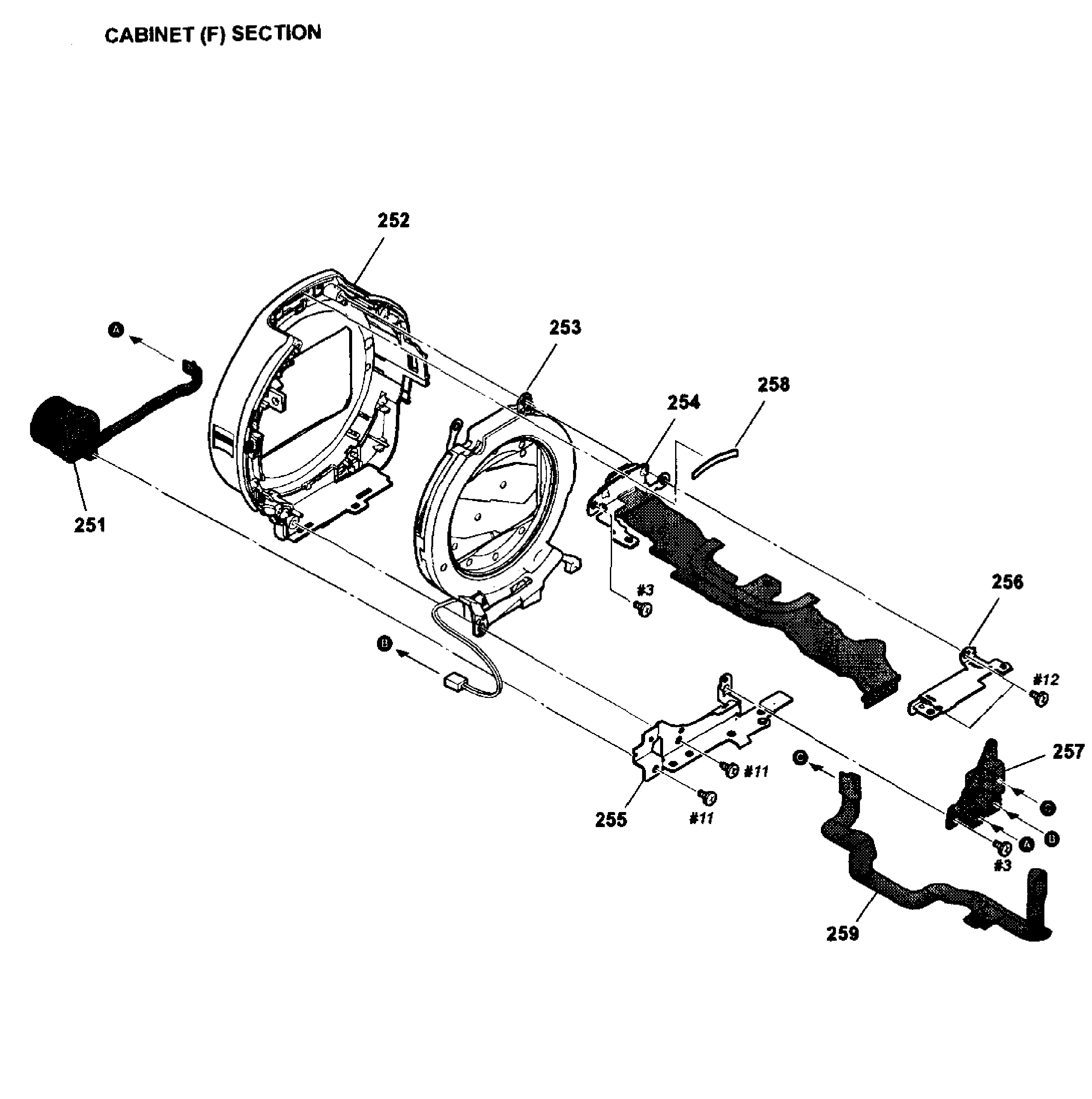

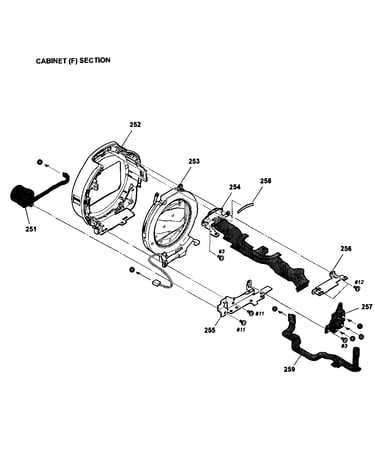

    Front assy diagram

    Led block

    Part #A1872023A

    $62.91
    In Stock
  • Microphone 154290711
    #MIC9

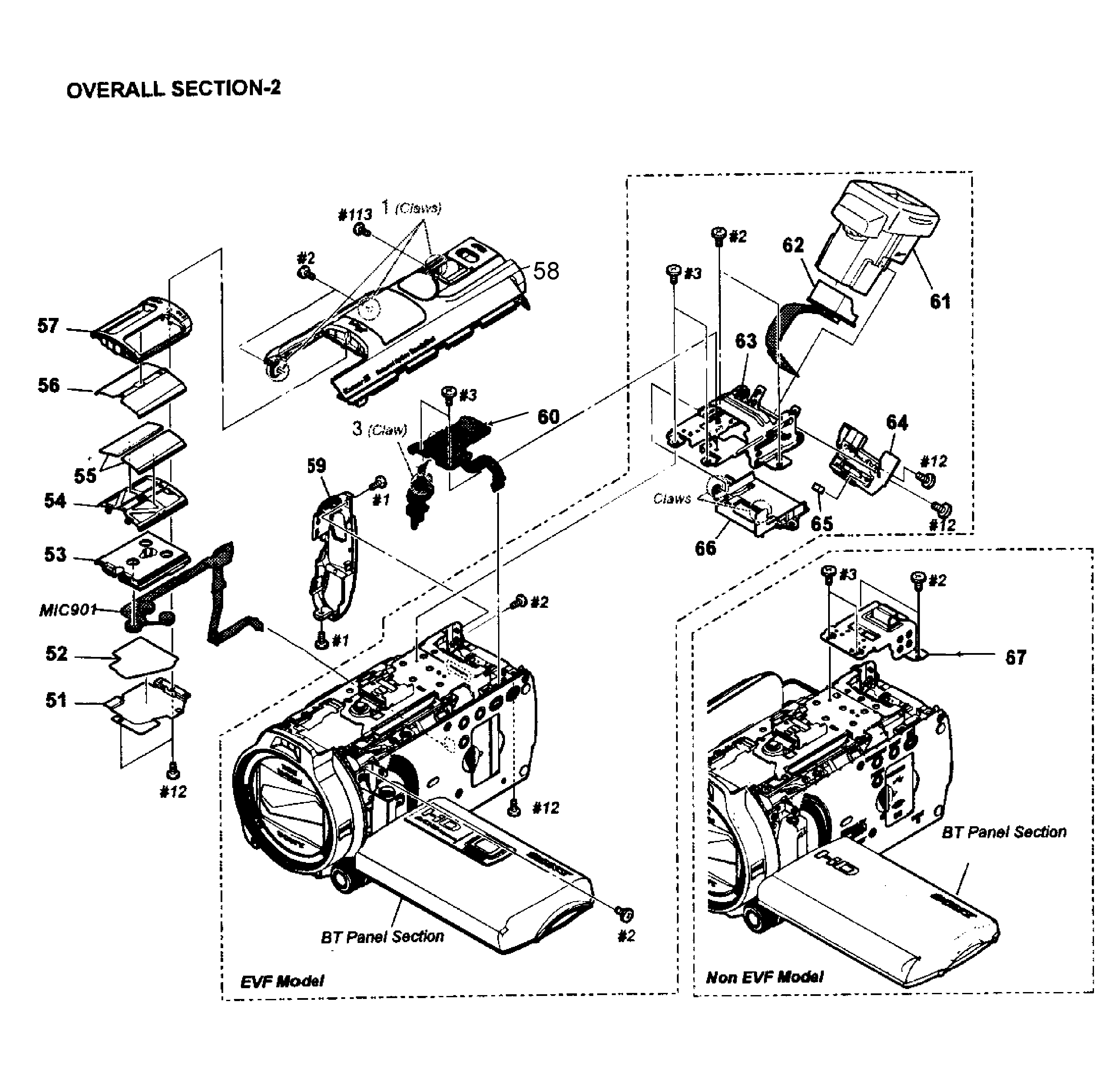

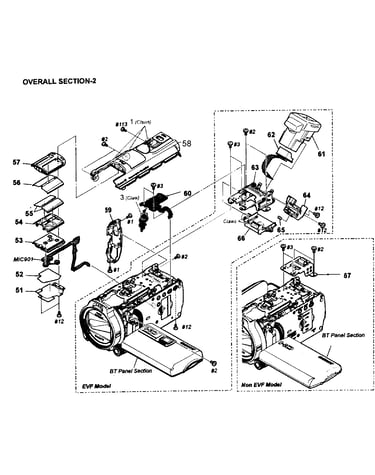

    Section-2 diagram

    Microphone

    Part #154290711

    $23.44
    In Stock
  • Camcorder Speaker 185852851
    #SP90

    Lcd-2 diagram

    Camcorder speaker

    Part #185852851

    $20.67
    In Stock
  • Cushion 427235801
    #309

    Lcd-1 diagram

    Cushion

    Part #427235801

    This item is not returnable
    $5.65
    In Stock
  • E2t 0.2 Pi A1876774A
    #310

    Lcd-1 diagram

    E2t 0.2 pi

    Part #A1876774A

    $384.79
    In Stock
  • Fp-1522 Pc 188510511
    #157

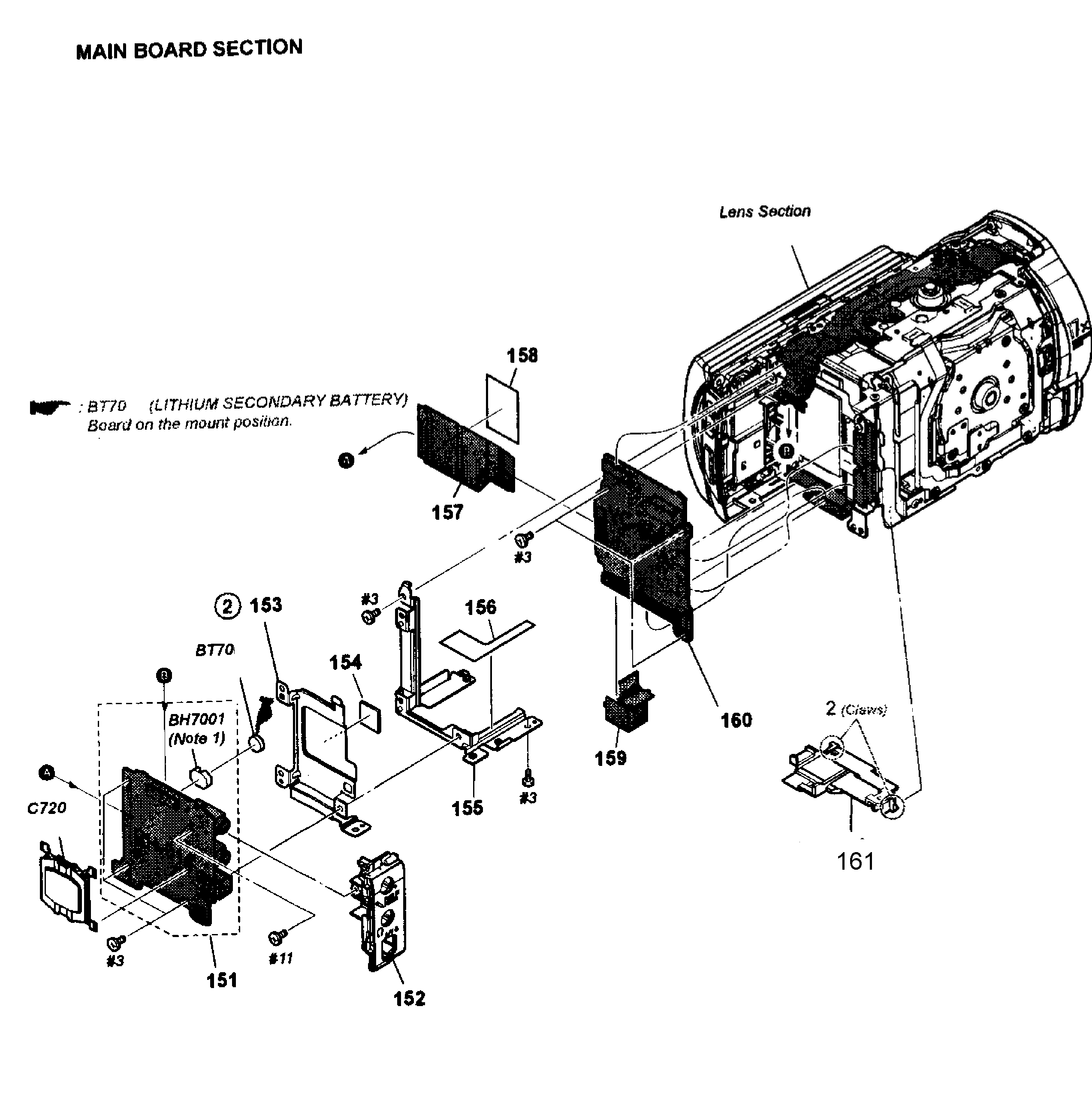

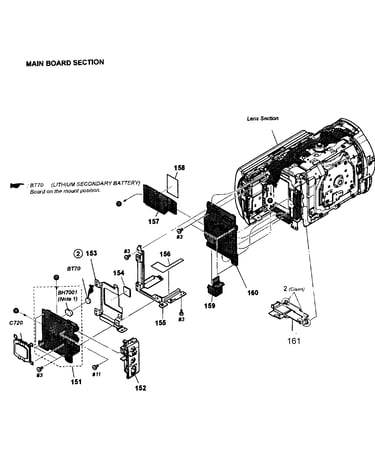

    Main pcb diagram

    Fp-1522 pc

    Part #188510511

    $17.26
    In Stock
