Model # SHE55M12UC/57 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE55M12UC-57 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

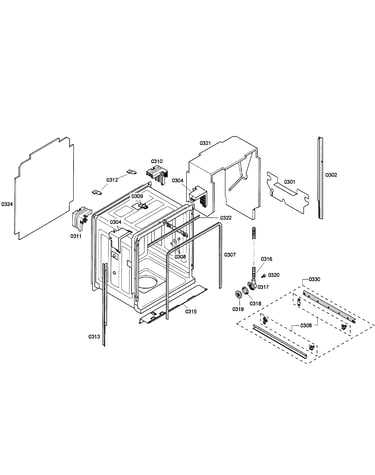

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Drain Pump 642239
#417

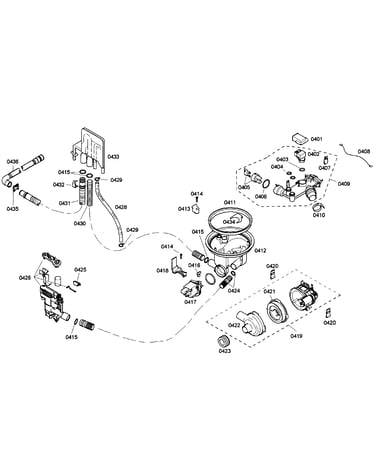

Pump assy diagram

Drain pump

Part #642239

Replaced by #00642239

?
Manufacturer substitution
This part replaces 642239. Substitute parts can look different from the original.
BEST SELLER
$126.36 |
9% OFF Phone Price : $138.36
In Stock
Dishwasher Recirculation Pump Assembly 442548
#419

Pump assy diagram

Dishwasher recirculation pump assembly

Part #442548

Replaced by #00442548

?
Manufacturer substitution
This part replaces 442548. Substitute parts can look different from the original.
BEST SELLER
$236.57 |
5% OFF Phone Price : $248.57
In Stock
Hose Clamp 172272
#410

Pump assy diagram

Hose clamp

Part #172272

Replaced by #00172272

?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Water Inlet Valve 607335
#520

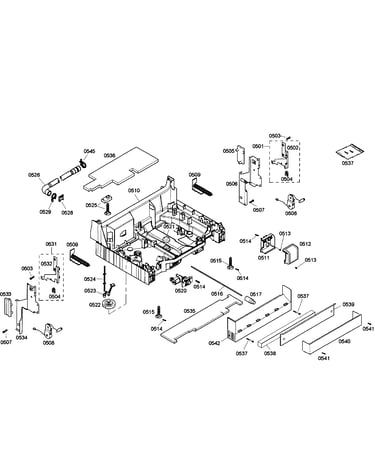

Base assy diagram

Dishwasher water inlet valve

Part #607335

Replaced by #00607335

?
Manufacturer substitution
This part replaces 607335. Substitute parts can look different from the original.
BEST SELLER
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Basket 248822
#620

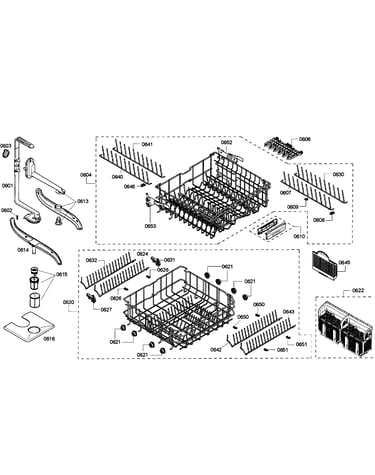

Baskets diagram

Basket

Part #248822

Replaced by #00249276

?
Manufacturer substitution
This part replaces 248822. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
In Stock
Door Seal 432490
#203

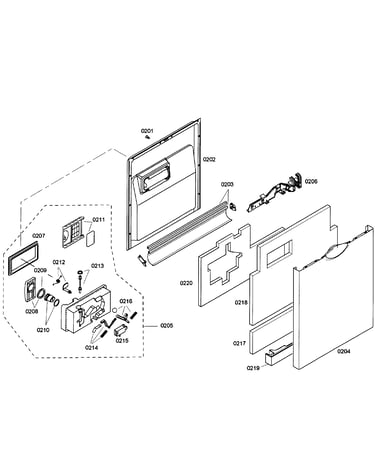

Door assy diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Door Latch 664710
#103

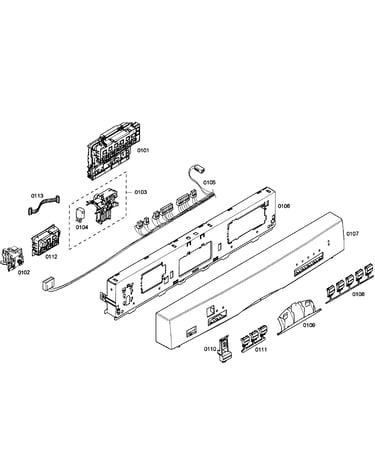

Control panel diagram

Door latch

Part #664710

Replaced by #00438026

?
Manufacturer substitution
This part replaces 664710. Substitute parts can look different from the original.
$90.49 |
6% OFF Phone Price : $96.49
In Stock
Dishwasher Water Inlet Valve 263833
#433

Pump assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Holder 611981
#626

Baskets diagram

Holder

Part #611981

Replaced by #00611981

?
Manufacturer substitution
This part replaces 611981. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Holder 616990
#608

Baskets diagram

Holder

Part #616990

The manufacturer no longer makes this part, and there's no substitute part
