Model # 706597182 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706597182 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Tool Chest Clip M9371
#NI

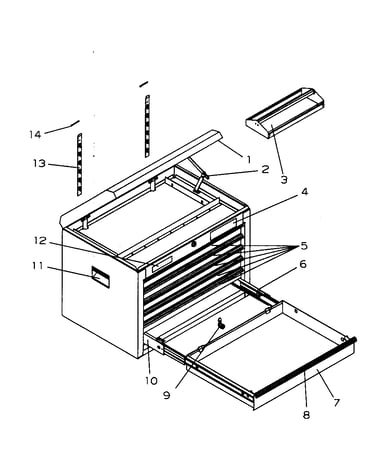

Chest diagram

Tool chest clip

Part #M9371

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Decal M15228A1
#12

Chest diagram

Tool chest decal

Part #M15228A1

The manufacturer no longer makes this part, and there's no substitute part

Tool Cabinet Drawer Trim (replaces 12842, 12842a19, T18571) M12842
#8

Chest diagram

Tool cabinet drawer trim (replaces 12842, 12842a19, t18571)

Part #M12842

The manufacturer no longer makes this part, and there's no substitute part

Companion Tool Chest Door Hinge Pin M1495
#14

Chest diagram

Companion tool chest door hinge pin

Part #M1495

The manufacturer no longer makes this part, and there's no substitute part

Tote Tray A4828-DCG
#3

Chest diagram

Tote tray

Part #A4828-DCG

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 3-in 18194A1-DCG
#7

Chest diagram

Drawer, 3-in

Part #18194A1-DCG

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle M12833
#11

Chest diagram

Tool chest handle

Part #M12833

The manufacturer no longer makes this part, and there's no substitute part

Lock Bar T16514-ER
#13

Chest diagram

Lock bar

Part #T16514-ER

The manufacturer no longer makes this part, and there's no substitute part

Drawer Slide M15861
#10

Chest diagram

Drawer slide

Part #M15861

The manufacturer no longer makes this part, and there's no substitute part

Lock M12918A35-SS
#9

Chest diagram

Lock

Part #M12918A35-SS

The manufacturer no longer makes this part, and there's no substitute part
