Model # JGP990BEL1BB Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP990BEL1BB gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Spark Module WB02X11172
#436

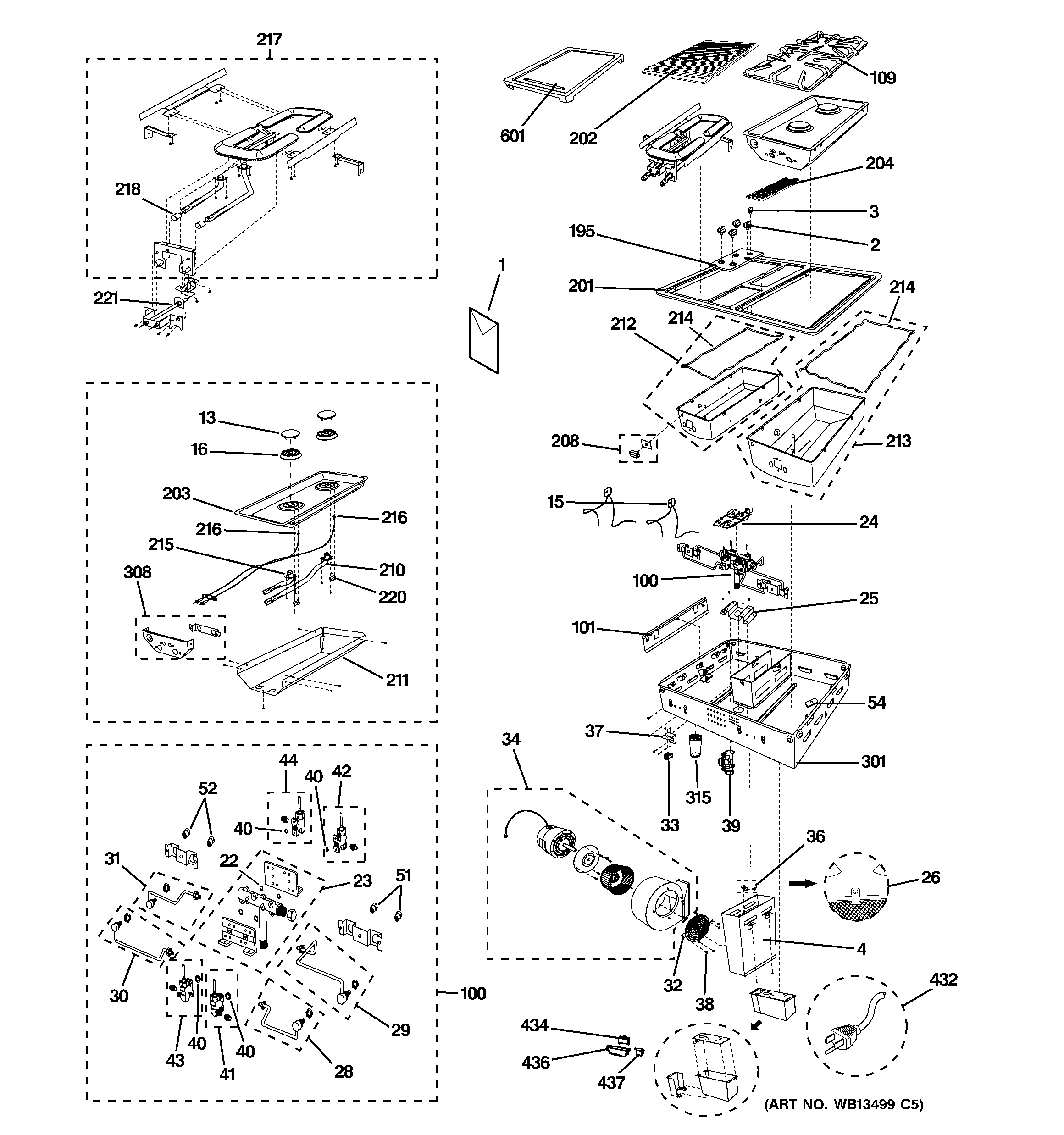

Cooktop range diagram

Spark module

Part #WB02X11172

Replaced by #WB13T10046

?
Manufacturer substitution
This part replaces WB02X11172. Substitute parts can look different from the original.
