Kenmore
Upright Freezer

Model # 2539232283 Official Kenmore upright freezer

Here are the diagrams and repair parts for Official Kenmore 2539232283 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Filter 5308000027
#21

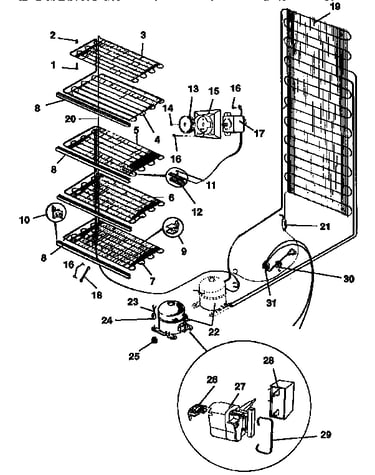

Unit parts diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 5308037402
#10

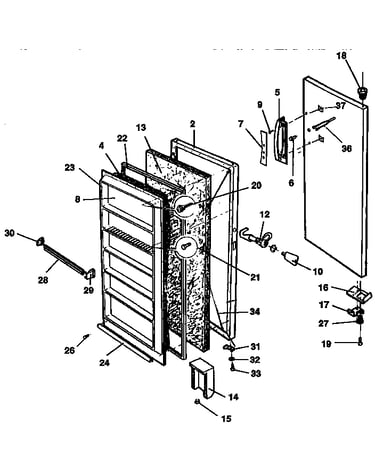

Door parts diagram

Key

Part #5308037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 5308037402. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Freezer Drain Hose Adapter 5308005500
#23

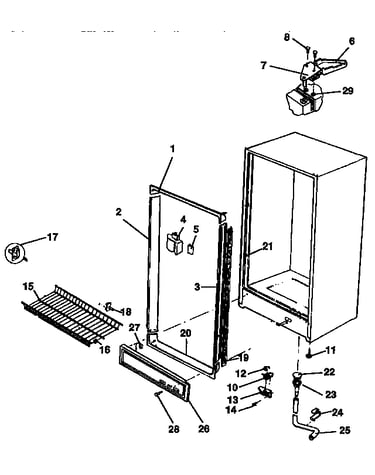

Cabinet parts diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Freezer Inner Door Panel Rivet 5303212828
#26

Door parts diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
End Cap 216257700
#30

Door parts diagram

End cap

Part #216257700

Replaced by #5303925377

?
Manufacturer substitution
This part replaces 216257700. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
End Cap 216257600
#29

Door parts diagram

End cap

Part #216257600

Replaced by #5303925377

?
Manufacturer substitution
This part replaces 216257600. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Support 3091418
#10B

Unit parts diagram

Support

Part #3091418

Replaced by #297001600

?
Manufacturer substitution
This part replaces 3091418. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Support 08037928
#10A

Unit parts diagram

Support

Part #08037928

Replaced by #297001500

?
Manufacturer substitution
This part replaces 08037928. Substitute parts can look different from the original.
This item is not returnable
$18.32 |
10% OFF Phone Price : $20.32
In Stock
Freezer Breather Valve 5309950074
#15

Door parts diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Freezer Wire Harness Clamp 5303212614
#30

Unit parts diagram

Freezer wire harness clamp

Part #5303212614

This item is not returnable
$2.16
In Stock
