Craftsman
Gas Walk-Behind Mower

Model # 917374951 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374951 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 253 parts  |
Lawn & Garden Equipment Nut 409148
#33

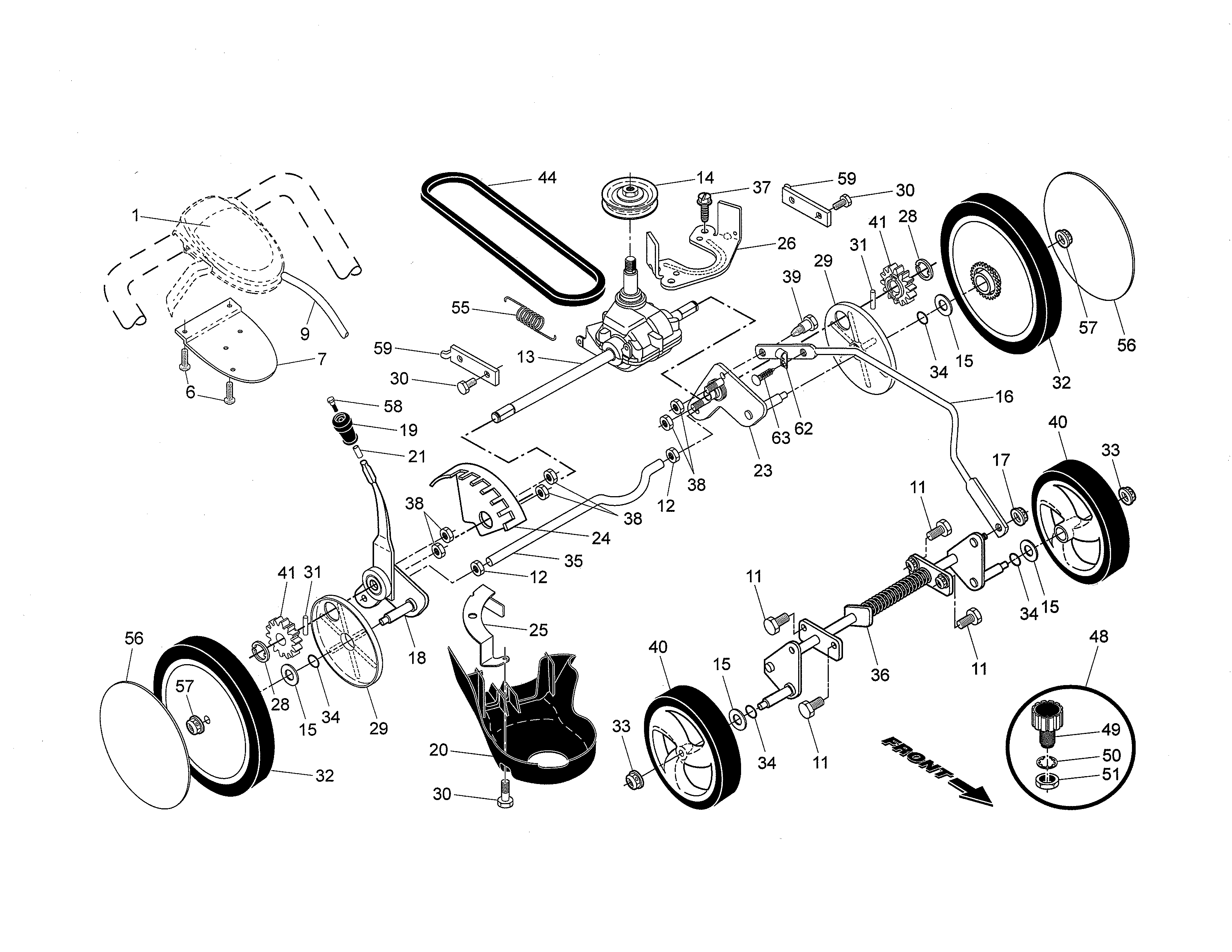

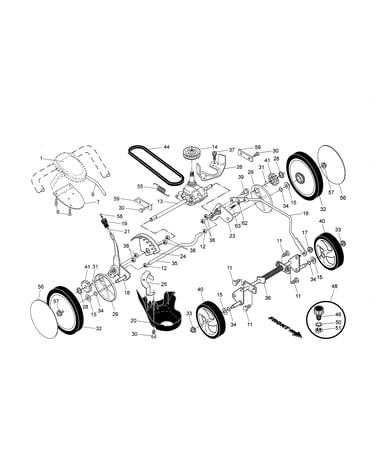

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#57

Drive control/gear case/wheels diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Blade Adapter 421782
#46

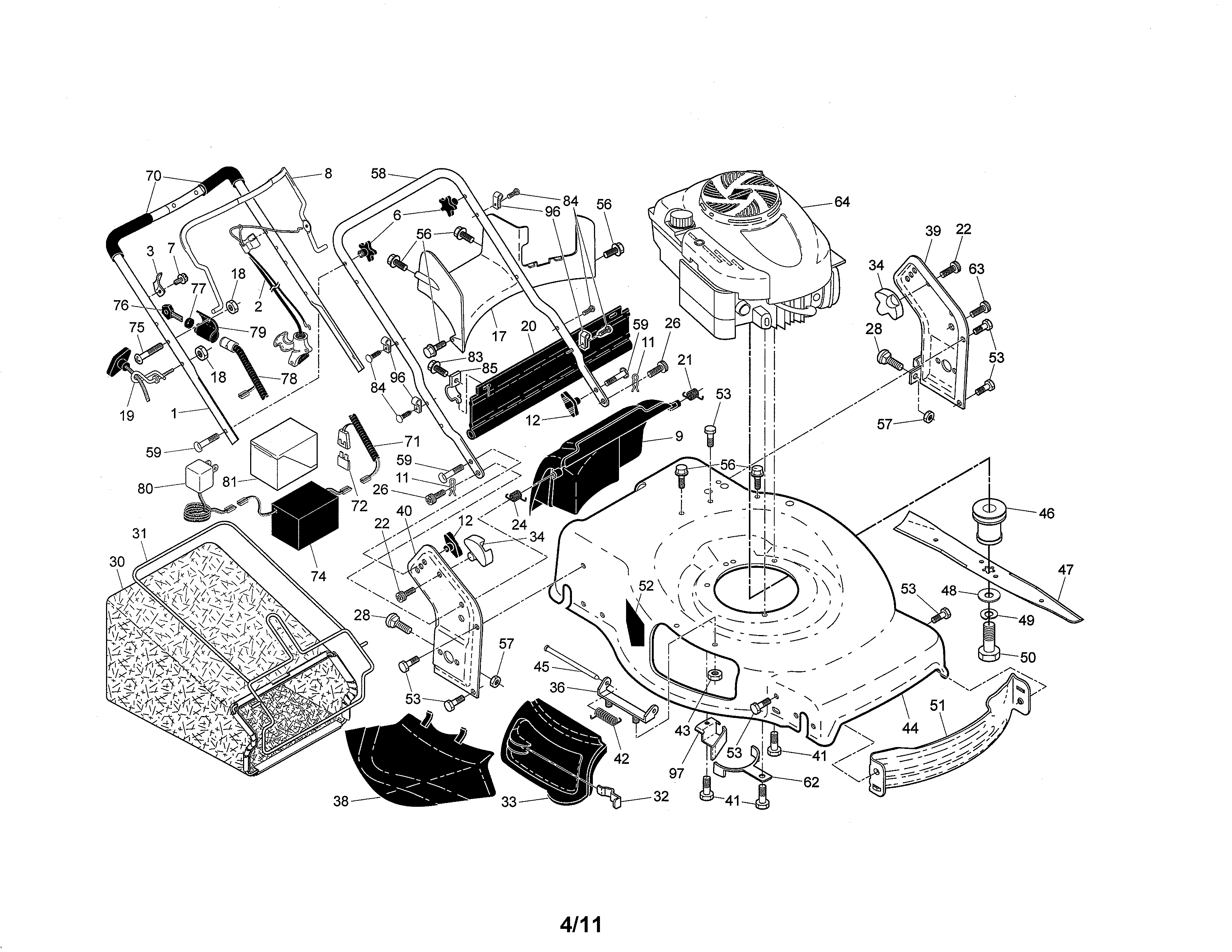

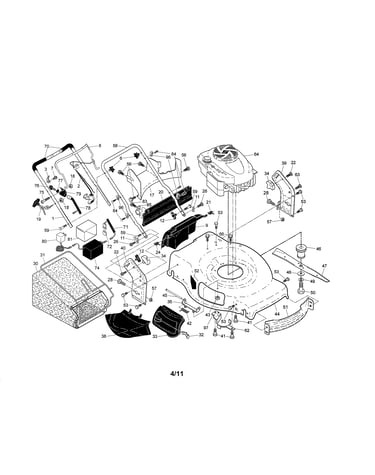

Engine/housing/handle diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Hndl.knob.bl 189713X428
#12

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Grass Bag Frame 419951
#31

Engine/housing/handle diagram

Lawn mower grass bag frame

Part #419951

Replaced by #585054702

?
Manufacturer substitution
This part replaces 419951. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Lawn Mower Battery Charger 190097
#80

Engine/housing/handle diagram

Lawn mower battery charger

Part #190097

Replaced by #597186301

?
Manufacturer substitution
This part replaces 190097. Substitute parts can look different from the original.
BEST SELLER
$32.98 |
15% OFF Phone Price : $38.98
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Wheel, 8 X 1.75-in 400249X460
#40

Drive control/gear case/wheels diagram

Lawn mower wheel, 8 x 1.75-in

Part #400249X460

Replaced by #583733801

?
Manufacturer substitution
This part replaces 400249X460. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Return Spring 406558
#55

Drive control/gear case/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Mulching Door 420019
#33

Engine/housing/handle diagram

Mulching door

Part #420019

Replaced by #532420019

?
Manufacturer substitution
This part replaces 420019. Substitute parts can look different from the original.
BEST SELLER
$19.98 |
9% OFF Phone Price : $21.98
In Stock
