Lawn & Garden Engine

Model # 143966502 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143966502 engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143966502 Engine
Lamination 34443A
#100

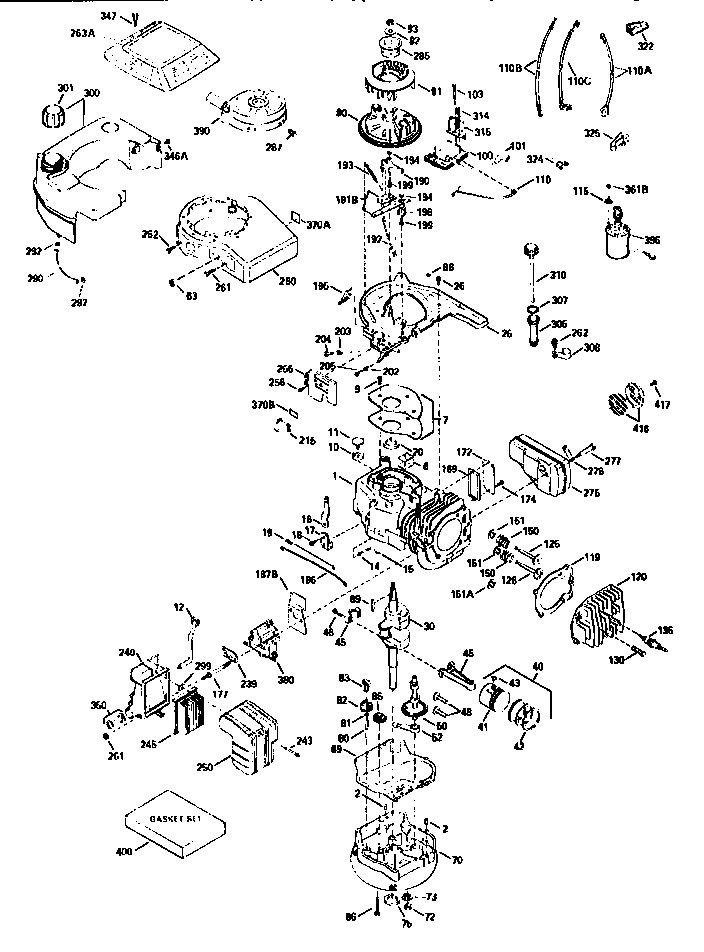

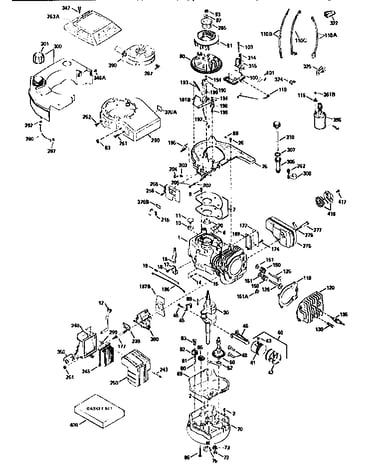

Engine 143.966502 (71/143) diagram

Lamination

Part #34443A

Replaced by #34443D

?
Manufacturer substitution
This part replaces 34443A. Substitute parts can look different from the original.
BEST SELLER
$40.75
13% OFF Phone Price : $46.75
In Stock
Washer 632673
#33

Carburetor 632671 (71/143) diagram

Washer

Part #632673

Replaced by #27110A

?
Manufacturer substitution
This part replaces 632673. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
Back Order
Line 34357
#290

Engine 143.966502 (71/143) diagram

Line

Part #34357

Replaced by #29774

?
Manufacturer substitution
This part replaces 34357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
Back Order
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#292

Engine 143.966502 (71/143) diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Cap 36246
#301

Engine 143.966502 (71/143) diagram

Cap

Part #36246

Replaced by #37844

?
Manufacturer substitution
This part replaces 36246. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.69
13% OFF Phone Price : $7.69
Back Order
Troybilt Lawn & Garden Equipment O-ring 35499
#307

Engine 143.966502 (71/143) diagram

Troybilt lawn & garden equipment o-ring

Part #35499

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Stop Wire Terminal 610973
#195

Engine 143.966502 (71/143) diagram

Generac lawn & garden equipment engine stop wire terminal

Part #610973

This item is not returnable
$4.11
20% OFF Phone Price : $5.11
In Stock
Lawn & Garden Equipment Engine Recoil Starter Handle (replaces 590443, 590452) 590701
Lawn & garden equipment engine recoil starter handle (replaces 590443, 590452)

Part #590701

This item is not returnable
$7.80
11% OFF Phone Price : $8.80
In Stock
Plug 30572
#72

Engine 143.966502 (71/143) diagram

Plug

Part #30572

Replaced by #36083

?
Manufacturer substitution
This part replaces 30572. Substitute parts can look different from the original.
This item is not returnable
$7.89
11% OFF Phone Price : $8.89
In Stock
Generac Lawn & Garden Equipment Engine Valve Cover Gasket 27234A
#169

Engine 143.966502 (71/143) diagram

Generac lawn & garden equipment engine valve cover gasket

Part #27234A

This item is not returnable
In Stock
