Model # 6654098997 Official Kenmore wall oven
Here are the diagrams and repair parts for Official Kenmore 6654098997 wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

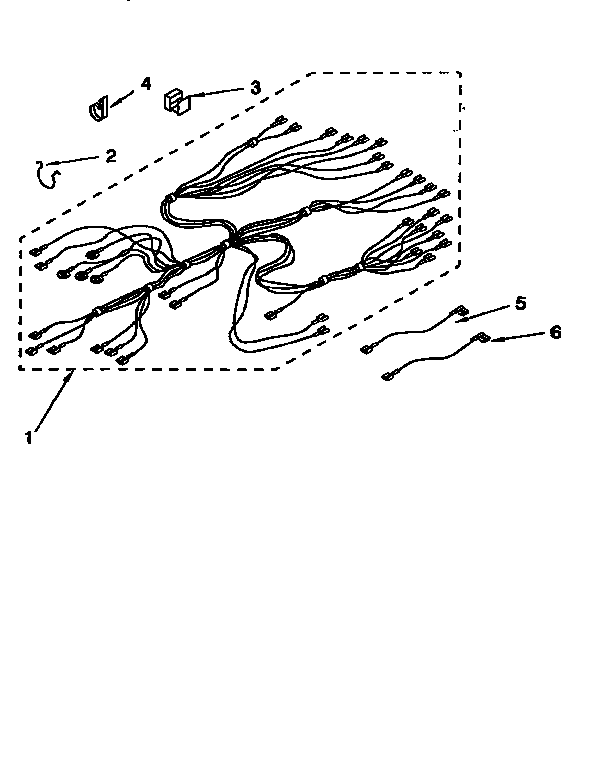

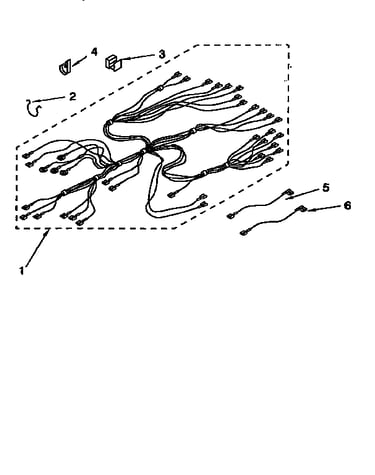

SELECT DIAGRAM
Browse Parts for6654098997 Wall Ovens
- #37

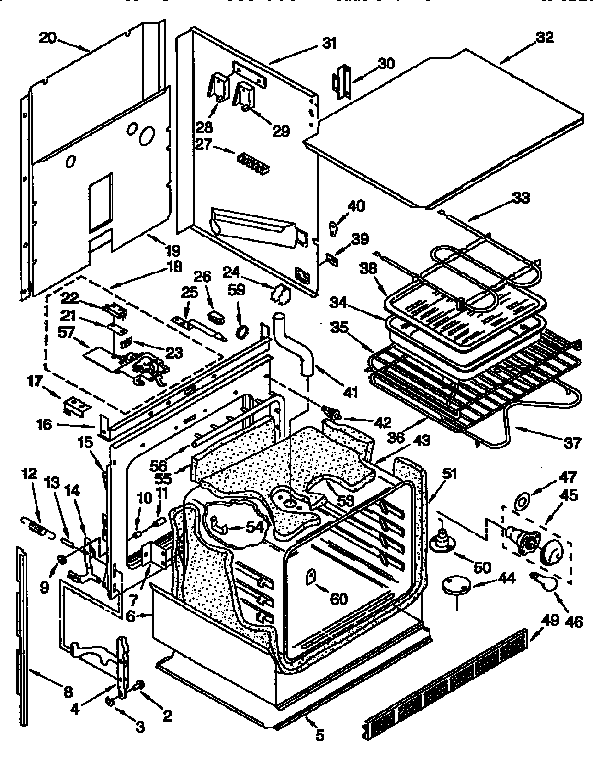

Oven diagram
Bake elementPart #661170
Replaced by #WP308180
?Manufacturer substitutionThis part replaces 661170. Substitute parts can look different from the original.$34.57 |15% OFF Phone Price : $40.57In Stock - #46
Oven diagram
Light bulbPart #311255
Replaced by #8009
?Manufacturer substitutionThis part replaces 311255. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock - #45
Oven diagram
Light socketPart #3150505
Replaced by #W11594027
?Manufacturer substitutionThis part replaces 3150505. Substitute parts can look different from the original.$62.81 |9% OFF Phone Price : $68.81In Stock - #47
Oven diagram
Gaskt-litePart #3184533
Replaced by #WP3184533
?Manufacturer substitutionThis part replaces 3184533. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - #7

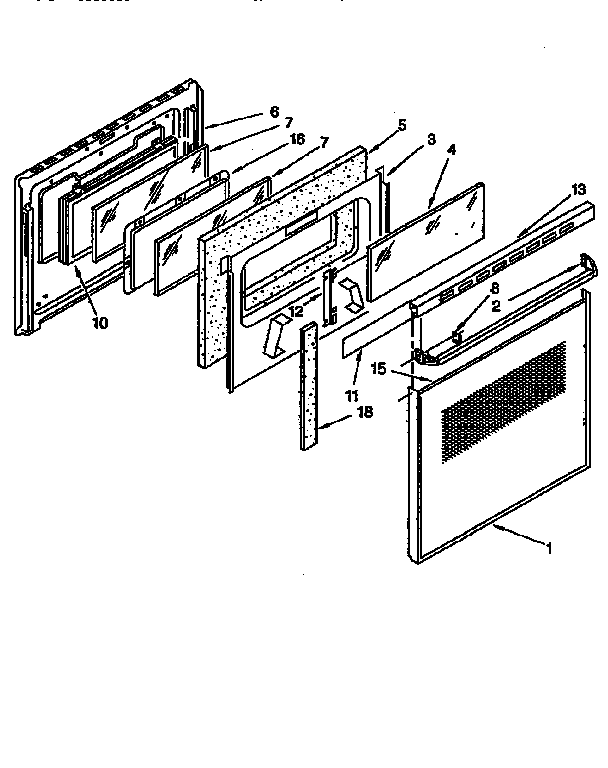

Door diagram
Wall oven door inner glassPart #3169203
Replaced by #WP3169203
?Manufacturer substitutionThis part replaces 3169203. Substitute parts can look different from the original.$68.16 |8% OFF Phone Price : $74.16In Stock - #27
Oven diagram
Terminal blockPart #258076
Replaced by #WP8203546
?Manufacturer substitutionThis part replaces 258076. Substitute parts can look different from the original.This item is not returnable$17.40 |10% OFF Phone Price : $19.40In Stock - #24

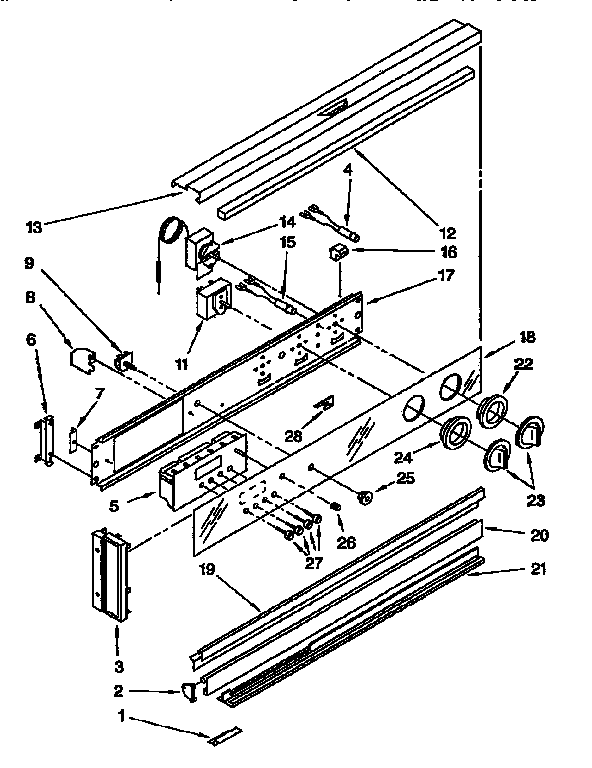

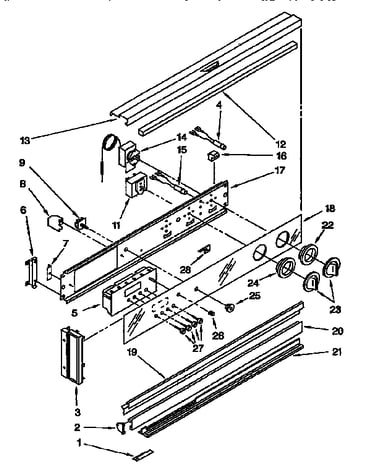

Control panel diagram
Oven dial (black)Part #311068
Replaced by #WP311068
?Manufacturer substitutionThis part replaces 311068. Substitute parts can look different from the original.$36.12 |14% OFF Phone Price : $42.12In Stock - #13
Oven diagram
Spring anchorPart #308125
Replaced by #WP308125
?Manufacturer substitutionThis part replaces 308125. Substitute parts can look different from the original.$9.09 |10% OFF Phone Price : $10.09In Stock - #27A
Oven diagram
NutPart #112432
Replaced by #WP112432
?Manufacturer substitutionThis part replaces 112432. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #39A
Oven diagram
Range screwPart #308544
Replaced by #WP308544
?Manufacturer substitutionThis part replaces 308544. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock
