Crosley
Dryer

Model # CEDC392PQ0 Official Crosley dryer

Here are the diagrams and repair parts for Official Crosley CEDC392PQ0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Dryer Idler Pulley 691366
#9

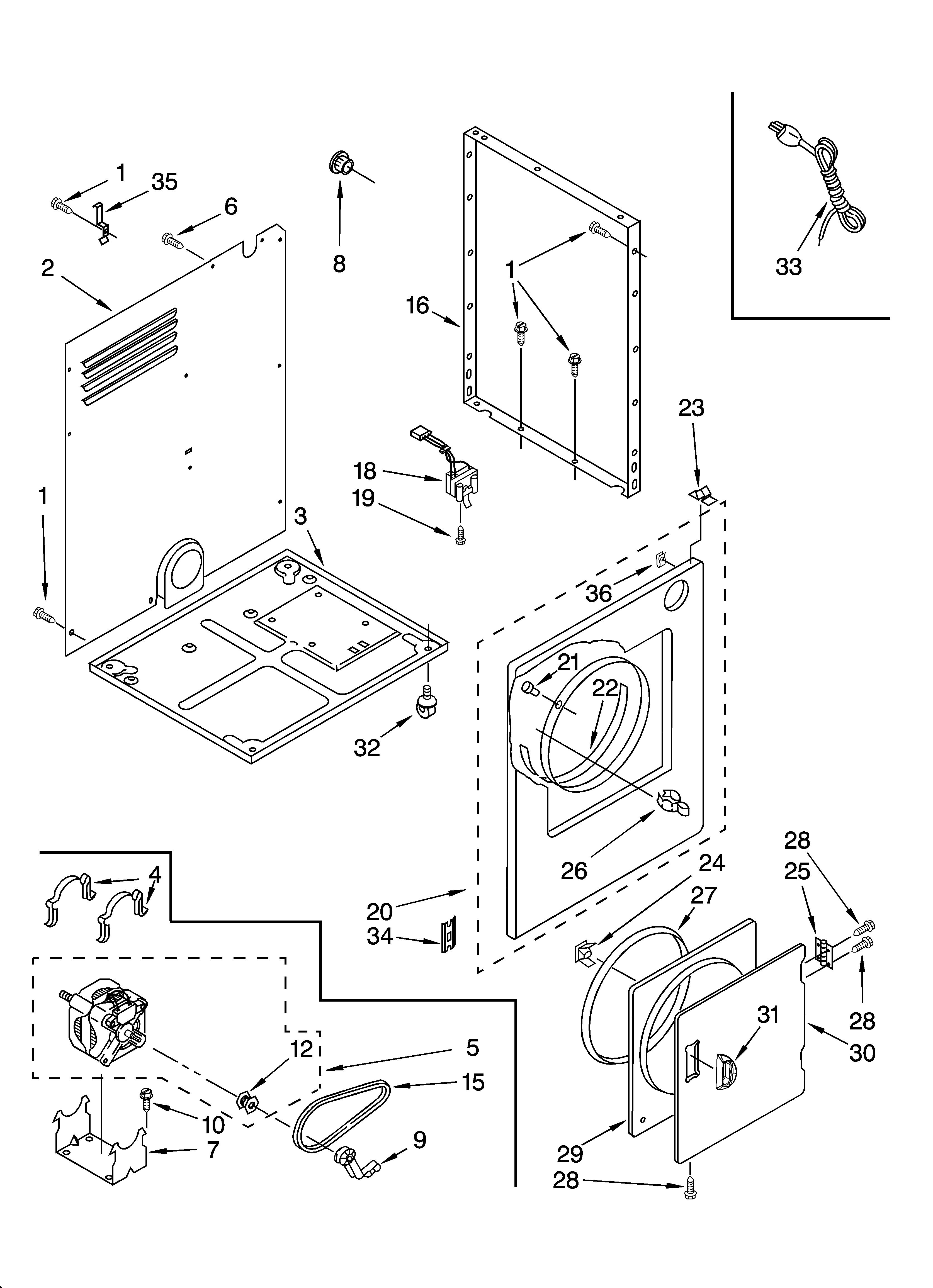

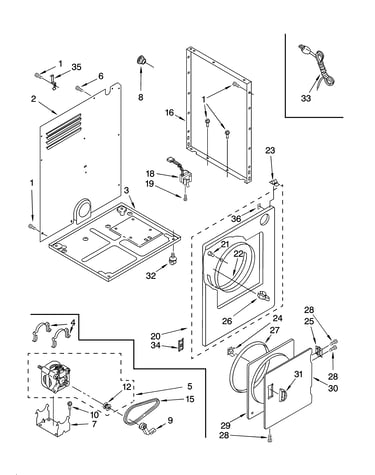

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Dryer Tri-ring Retainer 690997
#34

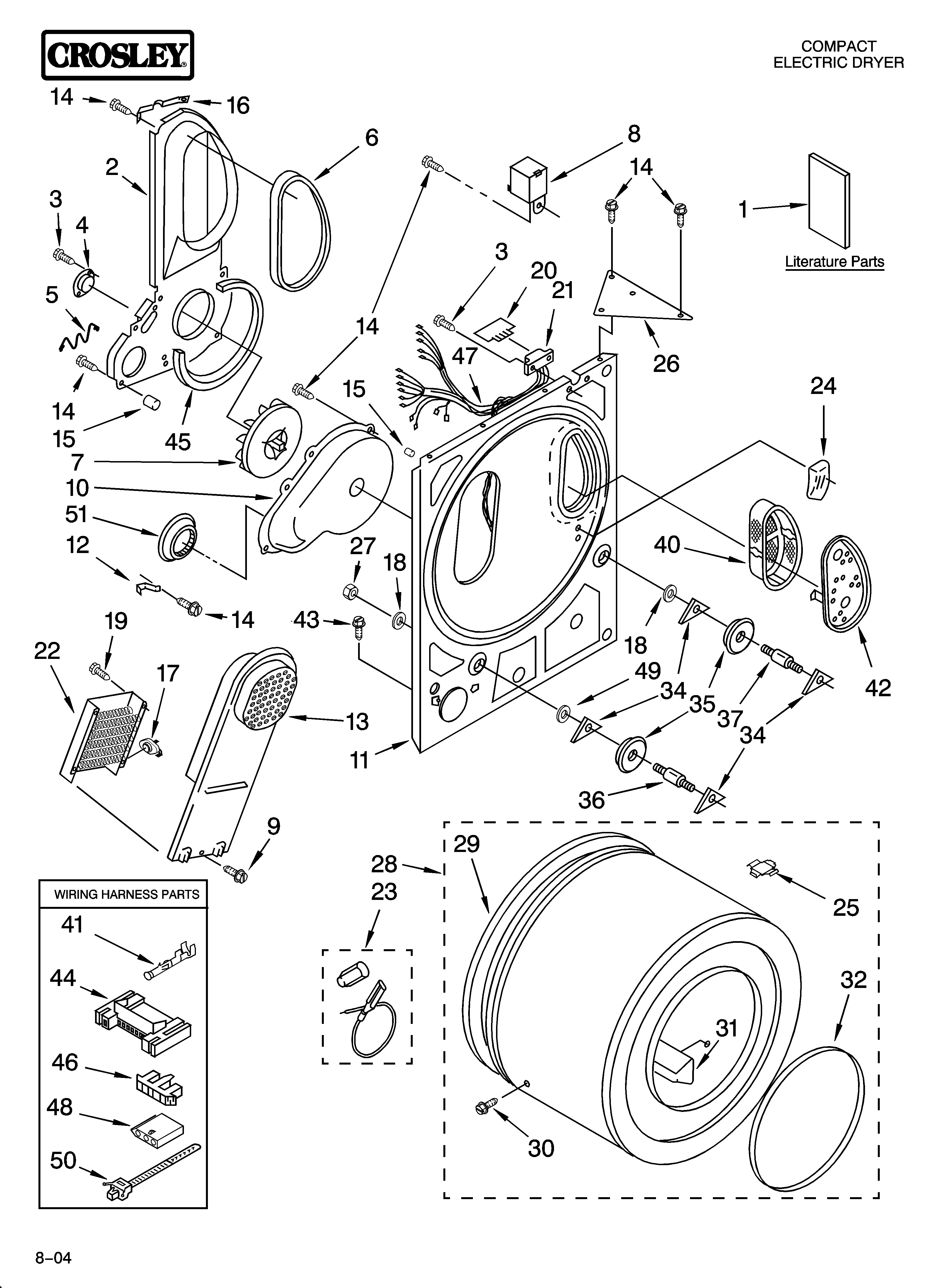

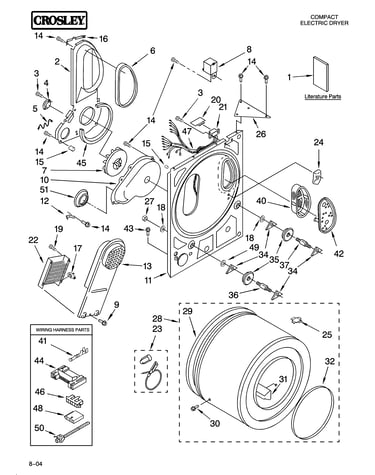

Bulkhead parts diagram

Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Door Switch 3406104
#18

Cabinet parts diagram

Door switch

Part #3406104

Replaced by #WP3406105

?
Manufacturer substitution
This part replaces 3406104. Substitute parts can look different from the original.
BEST SELLER
$33.72 |
15% OFF Phone Price : $39.72
In Stock
Roller Shaft Left Side 3399506
#36

Bulkhead parts diagram

Roller shaft left side

Part #3399506

Replaced by #WPW10359270

?
Manufacturer substitution
This part replaces 3399506. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Dryer Door Catch 3389441
#24

Cabinet parts diagram

Dryer door catch

Part #3389441

Replaced by #WP3389441

?
Manufacturer substitution
This part replaces 3389441. Substitute parts can look different from the original.
BEST SELLER
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Thermostat 660074
#4

Bulkhead parts diagram

Thermostat

Part #660074

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 660074. Substitute parts can look different from the original.
BEST SELLER
$57.19 |
9% OFF Phone Price : $63.19
In Stock
Dryer Lint Screen Housing Foam Seal 339956
#6

Bulkhead parts diagram

Dryer lint screen housing foam seal

Part #339956

Replaced by #WP339956

?
Manufacturer substitution
This part replaces 339956. Substitute parts can look different from the original.
BEST SELLER
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Shaft 3399507
#37

Bulkhead parts diagram

Shaft

Part #3399507

Replaced by #WPW10359269

?
Manufacturer substitution
This part replaces 3399507. Substitute parts can look different from the original.
BEST SELLER
$40.92 |
13% OFF Phone Price : $46.92
In Stock
Laundry Appliance Control Knob Clip 688805
#6

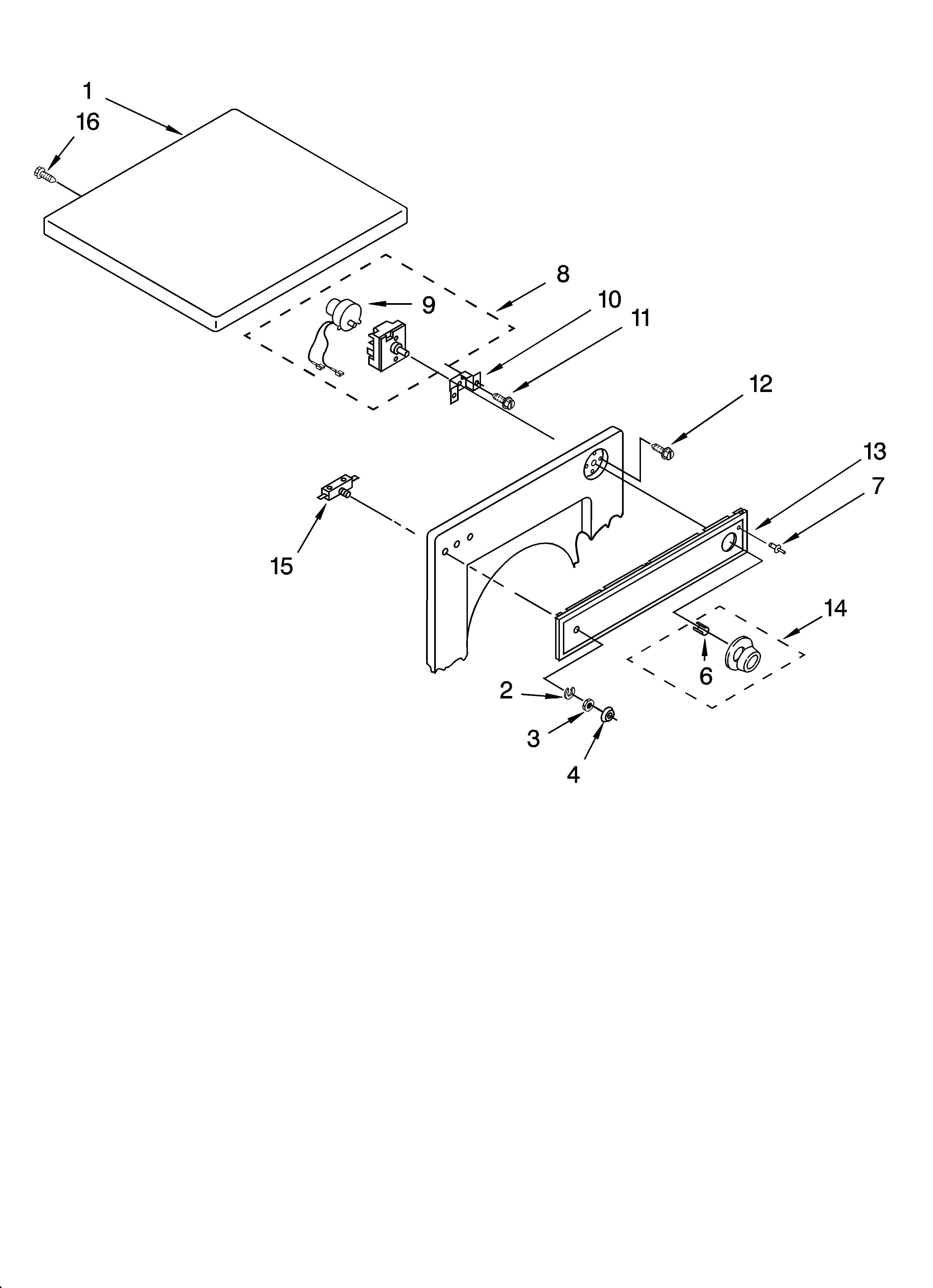

Top and console parts, optional parts (not included) diagram

Laundry appliance control knob clip

Part #688805

Replaced by #WP688805

?
Manufacturer substitution
This part replaces 688805. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Top and console parts, optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
