Model # 7MMVWC417FW0 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag 7MMVWC417FW0 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

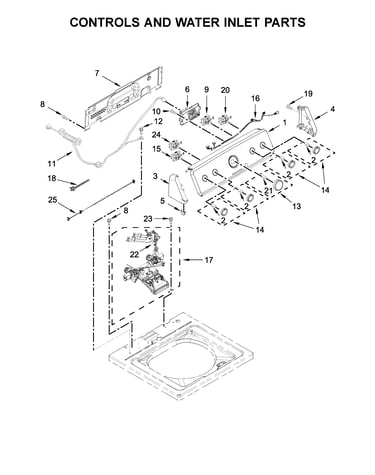

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
7MMVWC417FW0 Washer
Whirlpool Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#15

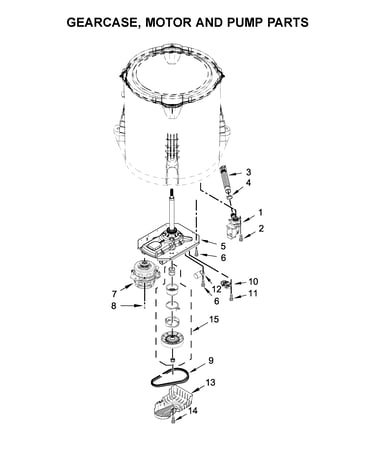

Gearcase, motor and pump parts diagram

Whirlpool washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

4.23 (13)
BEST SELLER
$52.73 |
10% OFF Phone Price : $58.73
In Stock
Washer Actuator W10815026
#10

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10815026

Replaced by #W10913953

?
Manufacturer substitution
This part replaces W10815026. Substitute parts can look different from the original.
4.42 (12)
BEST SELLER
$50.22 |
11% OFF Phone Price : $56.22
In Stock
Driveblock - W10396887
#9

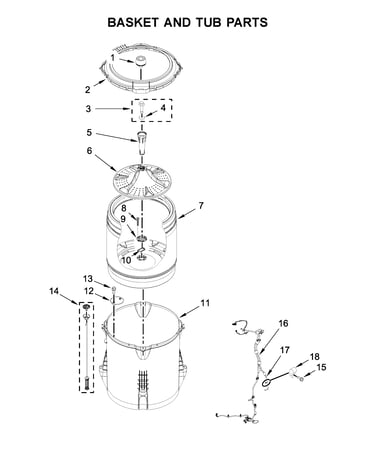

Basket and tub parts diagram

Driveblock -

Part #W10396887

Replaced by #W10528947

?
Manufacturer substitution
This part replaces W10396887. Substitute parts can look different from the original.
5 (4)
BEST SELLER
$35.14 |
15% OFF Phone Price : $41.14
In Stock
Washer Lid Lock W10682535
#14

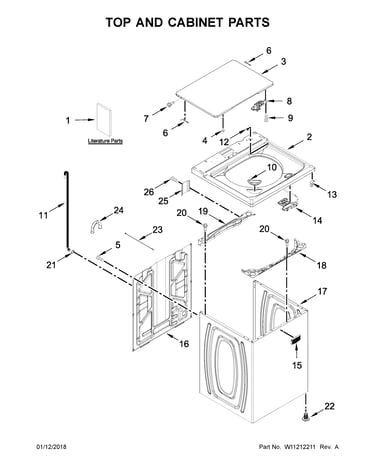

Top and cabinet parts diagram

Washer lid lock

Part #W10682535

Replaced by #W11307244

?
Manufacturer substitution
This part replaces W10682535. Substitute parts can look different from the original.
3.33 (12)
BEST SELLER
$81.14 |
7% OFF Phone Price : $87.14
In Stock
Drive Belt W10808317
#9

Gearcase, motor and pump parts diagram

Drive belt

Part #W10808317

Replaced by #W11239857

?
Manufacturer substitution
This part replaces W10808317. Substitute parts can look different from the original.
1 (1)
BEST SELLER
$32.84 |
15% OFF Phone Price : $38.84
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

4 (11)
BEST SELLER

Get free shipping with Automatic Reorder

$11.56 |
15% OFF Phone Price : $13.56
In Stock
Capacitor/in W10866250
#12

Gearcase, motor and pump parts diagram

Capacitor/in

Part #W10866250

Replaced by #W11395618

?
Manufacturer substitution
This part replaces W10866250. Substitute parts can look different from the original.
3.17 (6)
BEST SELLER
$56.29 |
10% OFF Phone Price : $62.29
In Stock
Washer Screw W10003790
#3

Basket and tub parts diagram

Washer screw

Part #W10003790

Replaced by #W10772621

?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
4.33 (3)
BEST SELLER
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Washer Screw 8533953
#8

Basket and tub parts diagram

Washer screw

Part #8533953

Replaced by #WP8533953

?
Manufacturer substitution
This part replaces 8533953. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Drain Pump W10775446
#1

Gearcase, motor and pump parts diagram

Washer drain pump

Part #W10775446

Replaced by #W10919003

?
Manufacturer substitution
This part replaces W10775446. Substitute parts can look different from the original.
4 (4)
BEST SELLER
$145.53 |
8% OFF Phone Price : $157.53
In Stock
