Model # 72180592000 Official Kenmore microwave
Here are the diagrams and repair parts for Official Kenmore 72180592000 microwave, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
72180592000 Microwave
#5018

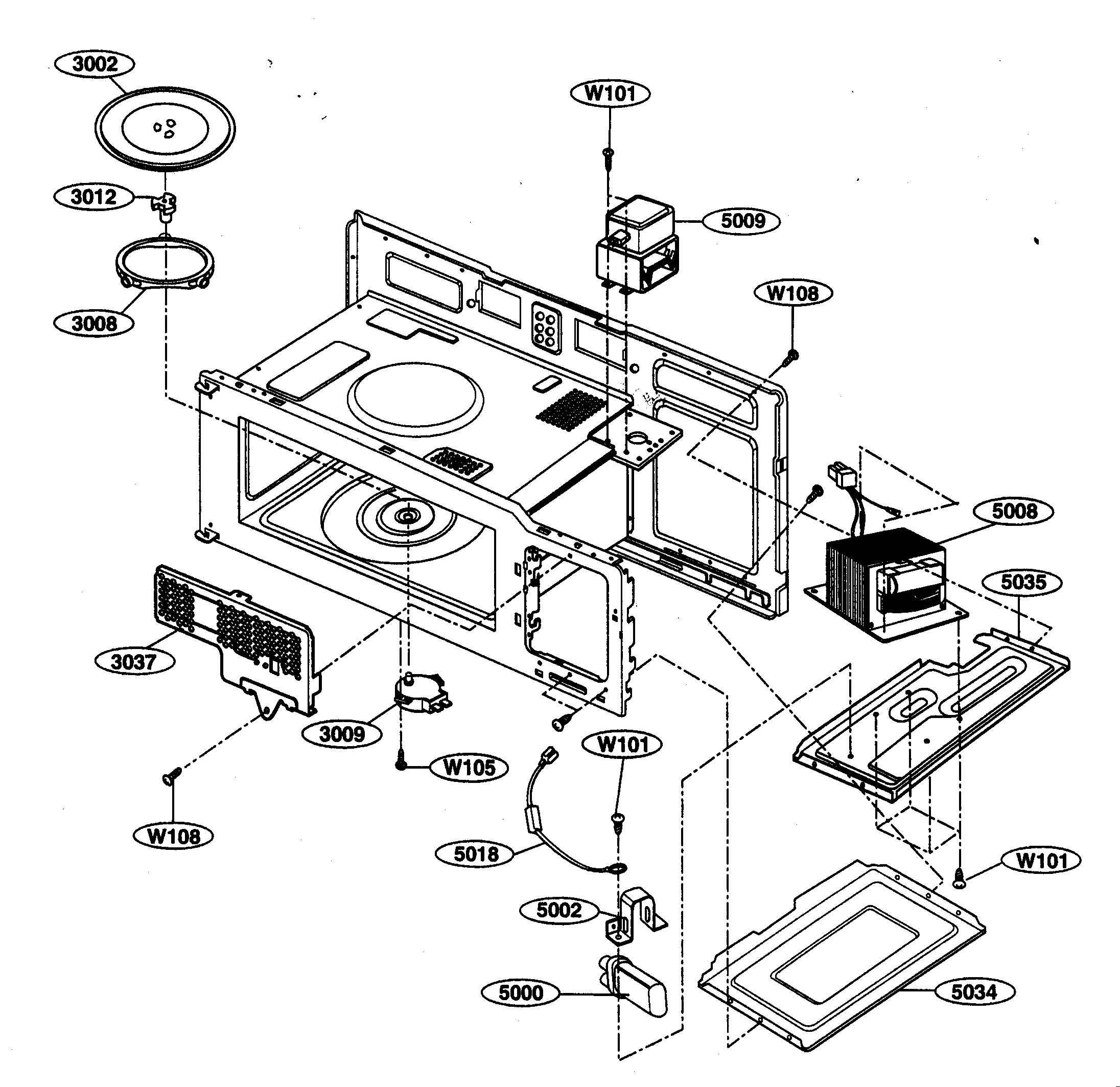

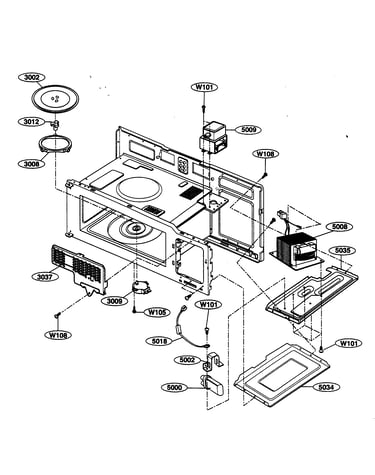

Interior parts 1 diagram
High-voltage diode
Part #6021W3B001A
Replaced by #6021W3B001V
?
Manufacturer substitution
This part replaces 6021W3B001A. Substitute parts can look different from the original.
$10.84 |
16% OFF Phone Price : $12.84
In Stock
#3026

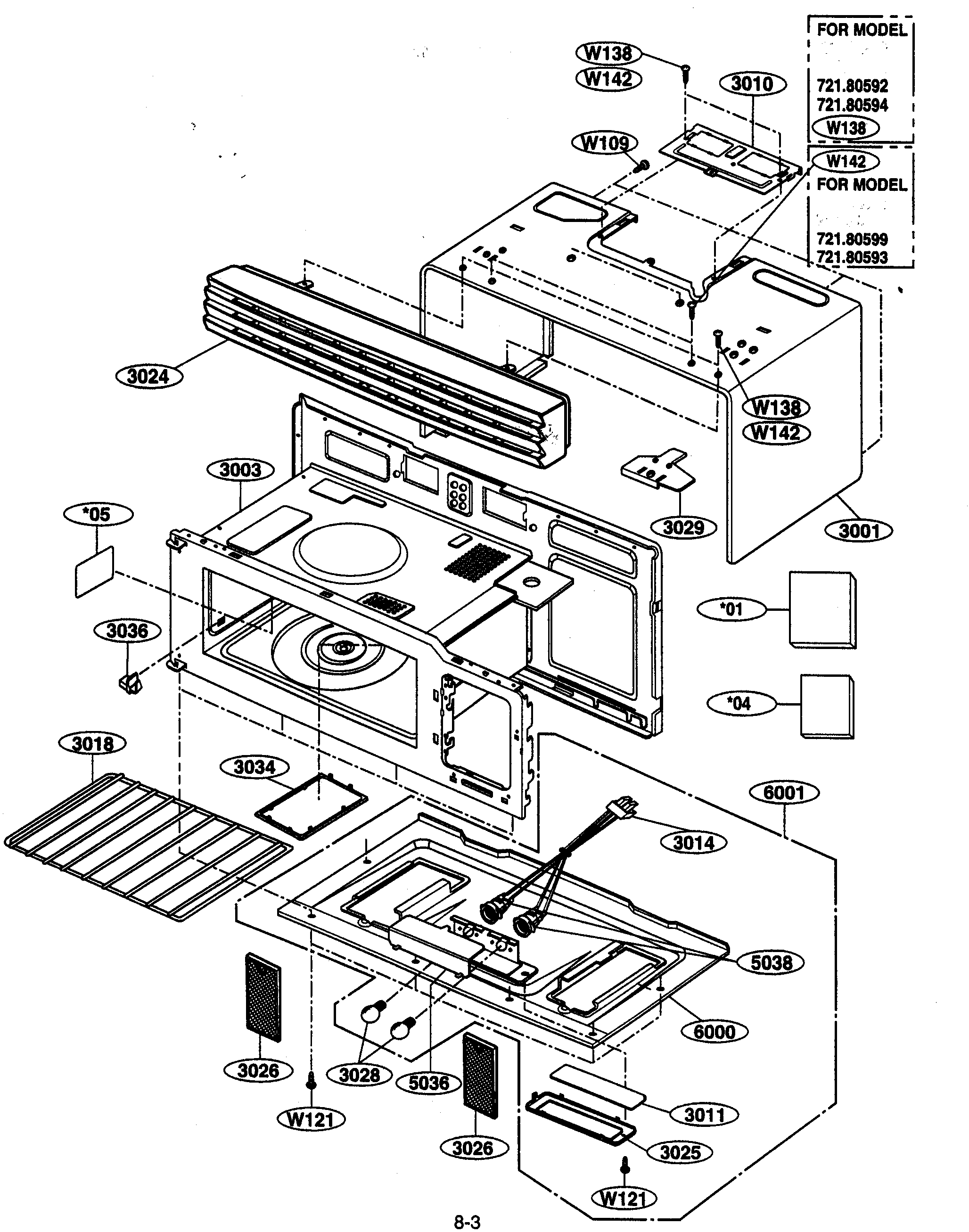

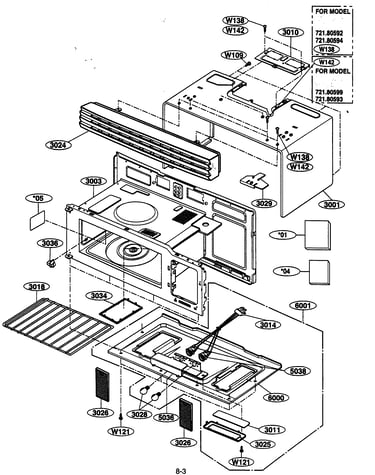

Oven cavity parts diagram
Grease filter
Part #2B72705B
Replaced by #5230W1A012B
?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
$11.65 |
15% OFF Phone Price : $13.65
In Stock
#4003

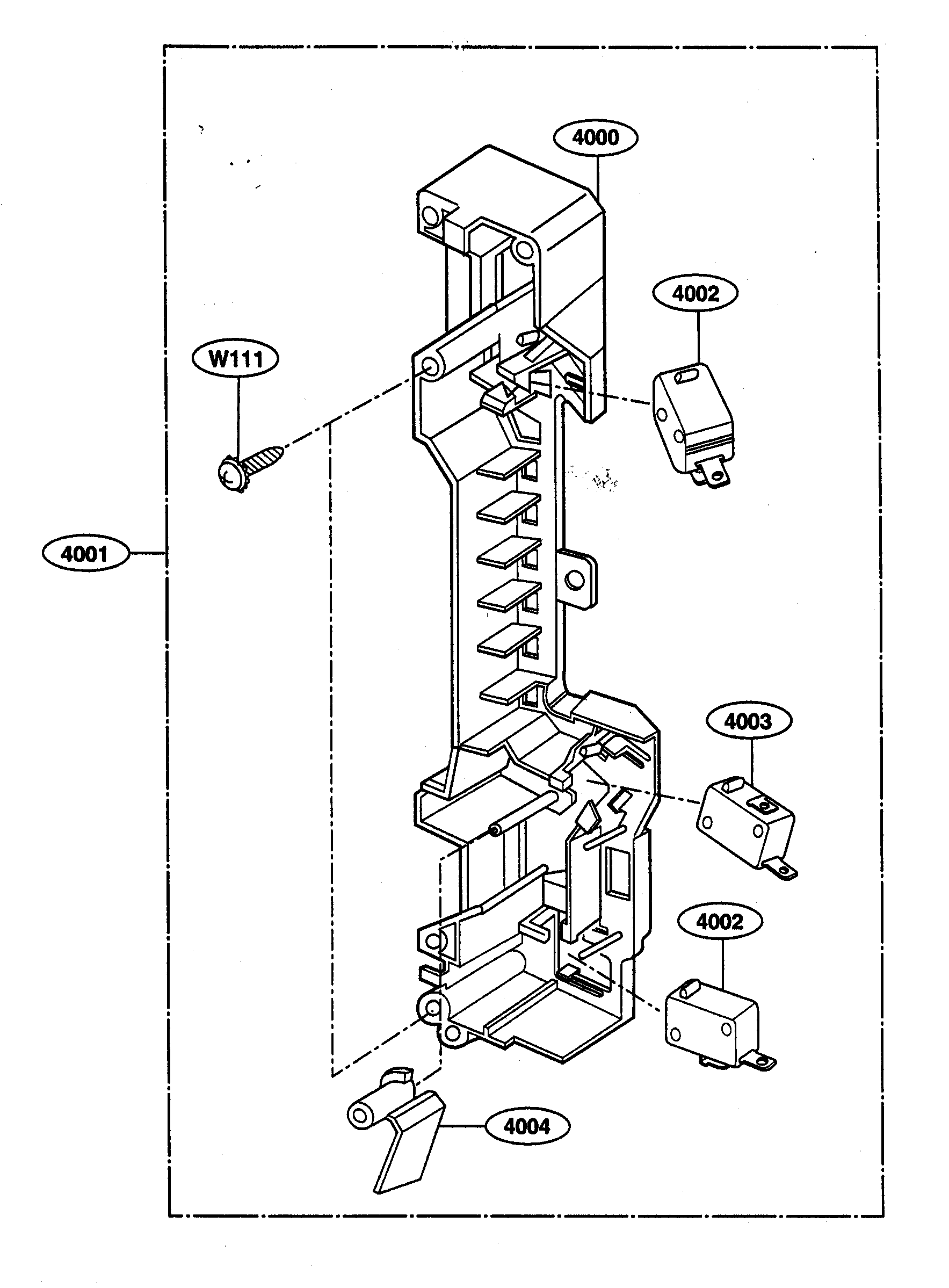

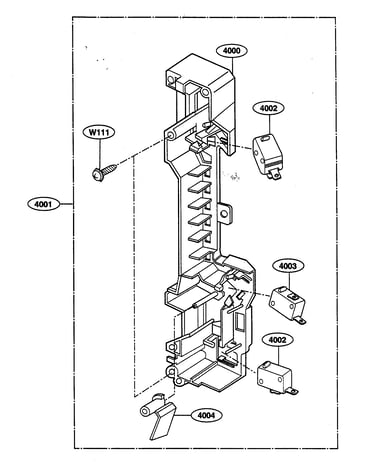

Latch board parts diagram
Microwave door interlock switch
Part #3B73361E
Replaced by #6600W1K001C
?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
$13.47 |
13% OFF Phone Price : $15.47
In Stock
#3028
Oven cavity parts diagram
Oven lamp
Part #6912W3Q001A
Replaced by #6912W1Z004B
?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
#5016

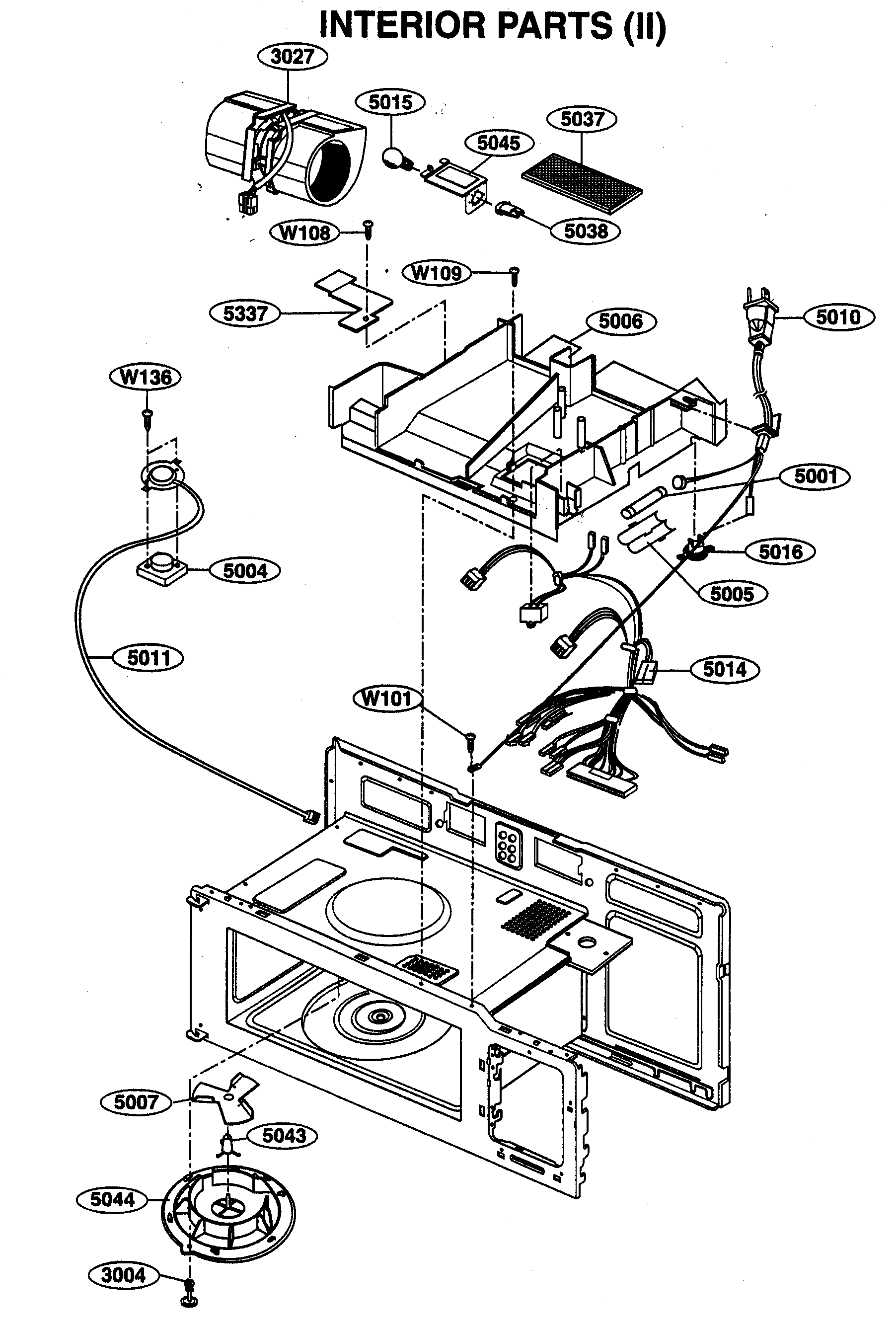

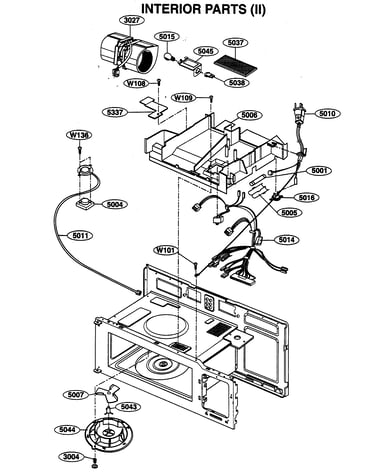

Interior parts 2 diagram
Thermostat
Part #6930W1A002K
Replaced by #6930W1A003J
?
Manufacturer substitution
This part replaces 6930W1A002K. Substitute parts can look different from the original.
$12.76 |
14% OFF Phone Price : $14.76
In Stock
#3002
Interior parts 1 diagram
Microwave glass turntable tray
Part #1B71961E
Replaced by #1B71961H
?
Manufacturer substitution
This part replaces 1B71961E. Substitute parts can look different from the original.
$39.33 |
13% OFF Phone Price : $45.33
In Stock
#4001
Latch board parts diagram
Microwave latch body assembly (replaces 3501w1a019p)
Part #3501W1A019C
Replaced by #AEJ75540901
?
Manufacturer substitution
This part replaces 3501W1A019C. Substitute parts can look different from the original.
$8.00 |
11% OFF Phone Price : $9.00
In Stock
#1006

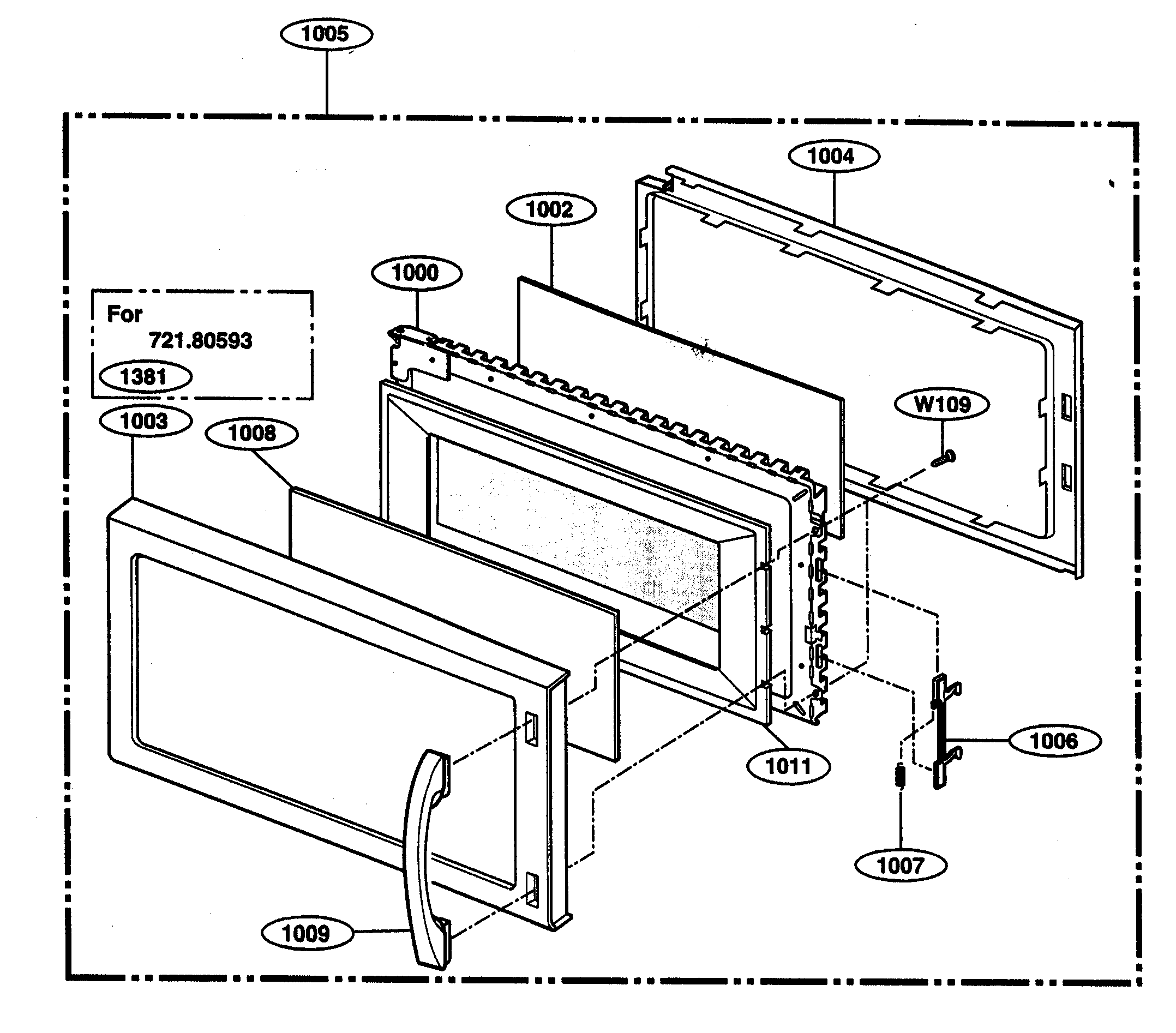

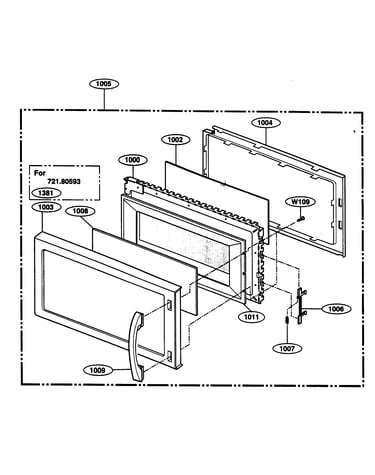

Door parts diagram
Microwave door latch hook
Part #4026W2A015A
Replaced by #4026W2A019C
?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
This item is not returnable
$8.00 |
11% OFF Phone Price : $9.00
In Stock
#4002
Latch board parts diagram
Oven switch
Part #503387
Replaced by #3B73362F
?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
$12.76 |
14% OFF Phone Price : $14.76
In Stock
#5044
Interior parts 2 diagram
Stirrer cover
Part #3550W1A126A
Replaced by #3550W1A126D
?
Manufacturer substitution
This part replaces 3550W1A126A. Substitute parts can look different from the original.
$20.12 |
23% OFF Phone Price : $26.12
In Stock
