Model # F3119 Official Hoover floor scrubber

Here are the diagrams and repair parts for Official Hoover F3119 floor scrubber, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Nuts

ALL PARTS

Showing 10 of 58 parts |

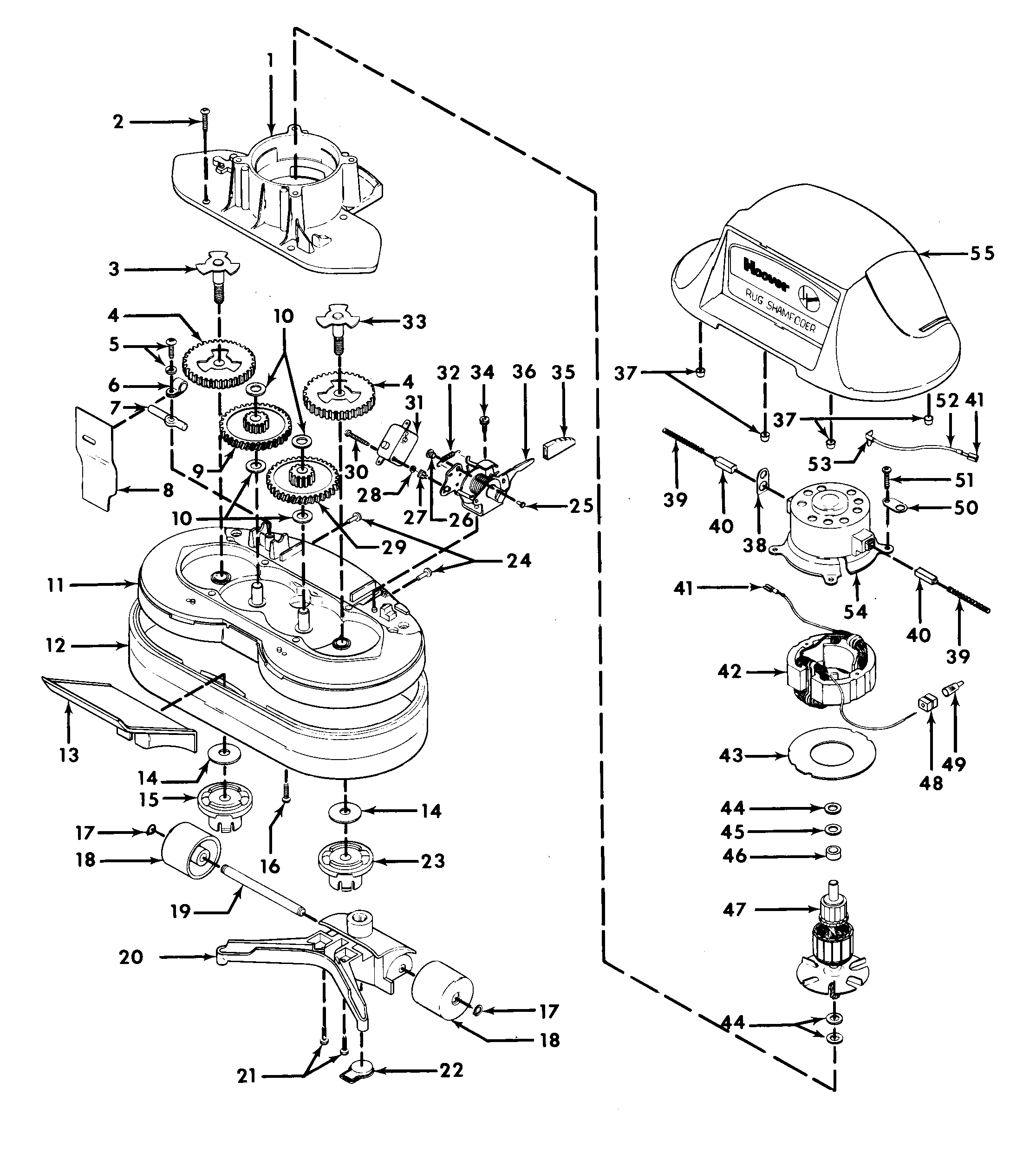

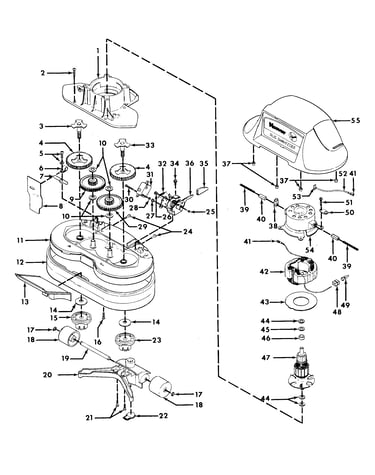

Motor, hood, switch, gears diagram

Gear cover

Part #012165--

The manufacturer no longer makes this part, and there's no substitute part

Motor, hood, switch, gears diagram

Brush gear

Part #38541002

The manufacturer no longer makes this part, and there's no substitute part

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

#14

Motor, hood, switch, gears diagram

Washer

Part #21312757

The manufacturer no longer makes this part, and there's no substitute part

Floor Scrubber Wool Polishing Pad, 2-pack 48483003

#7B

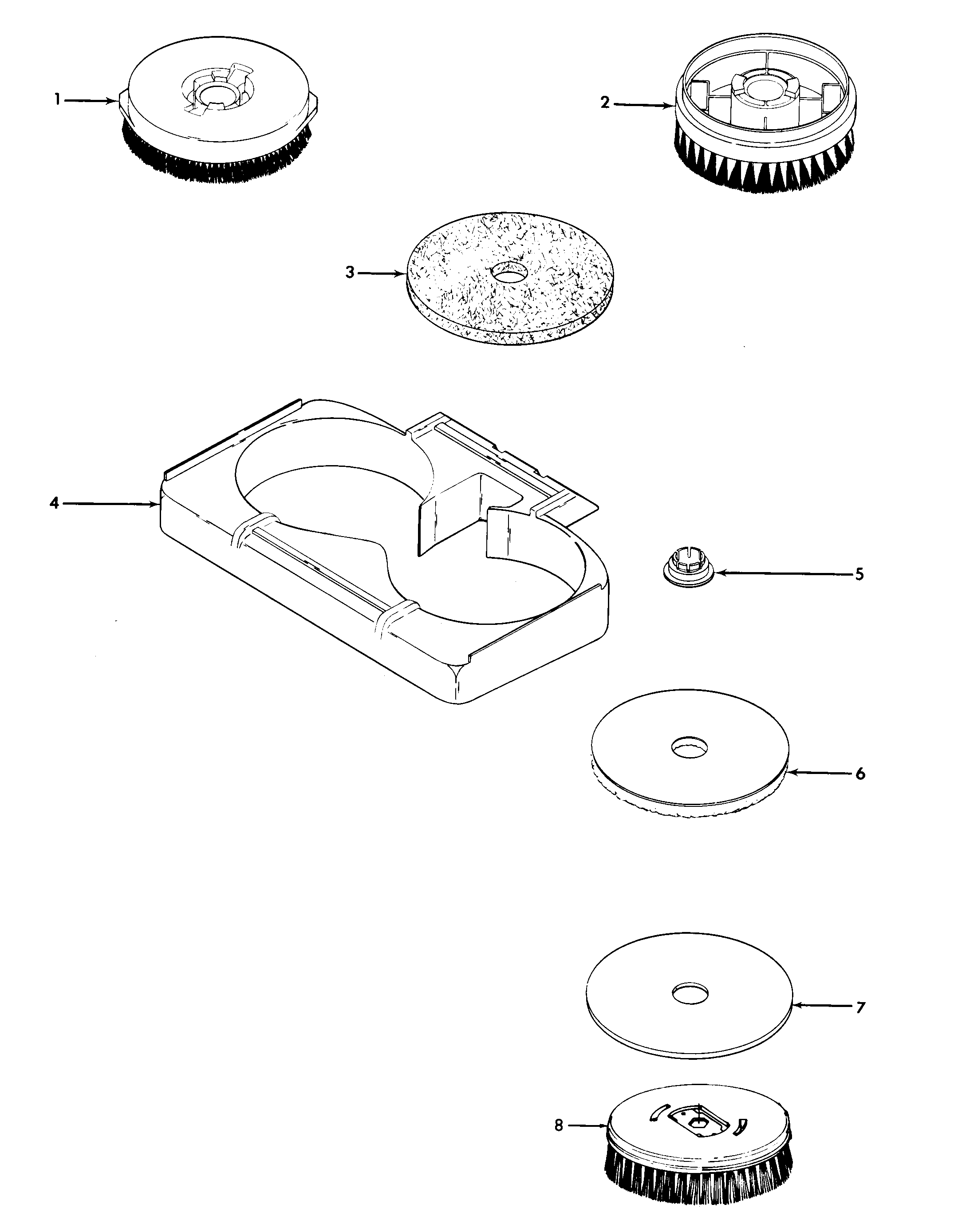

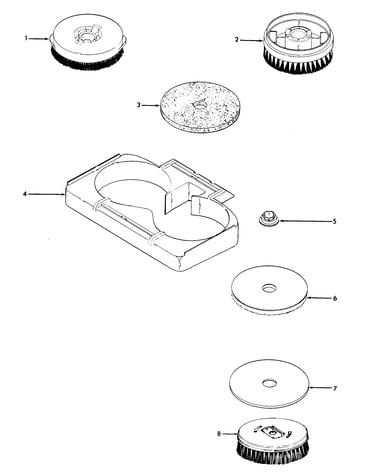

Brushes_pads diagram

Floor scrubber wool polishing pad, 2-pack

Part #48483003

The manufacturer no longer makes this part, and there's no substitute part

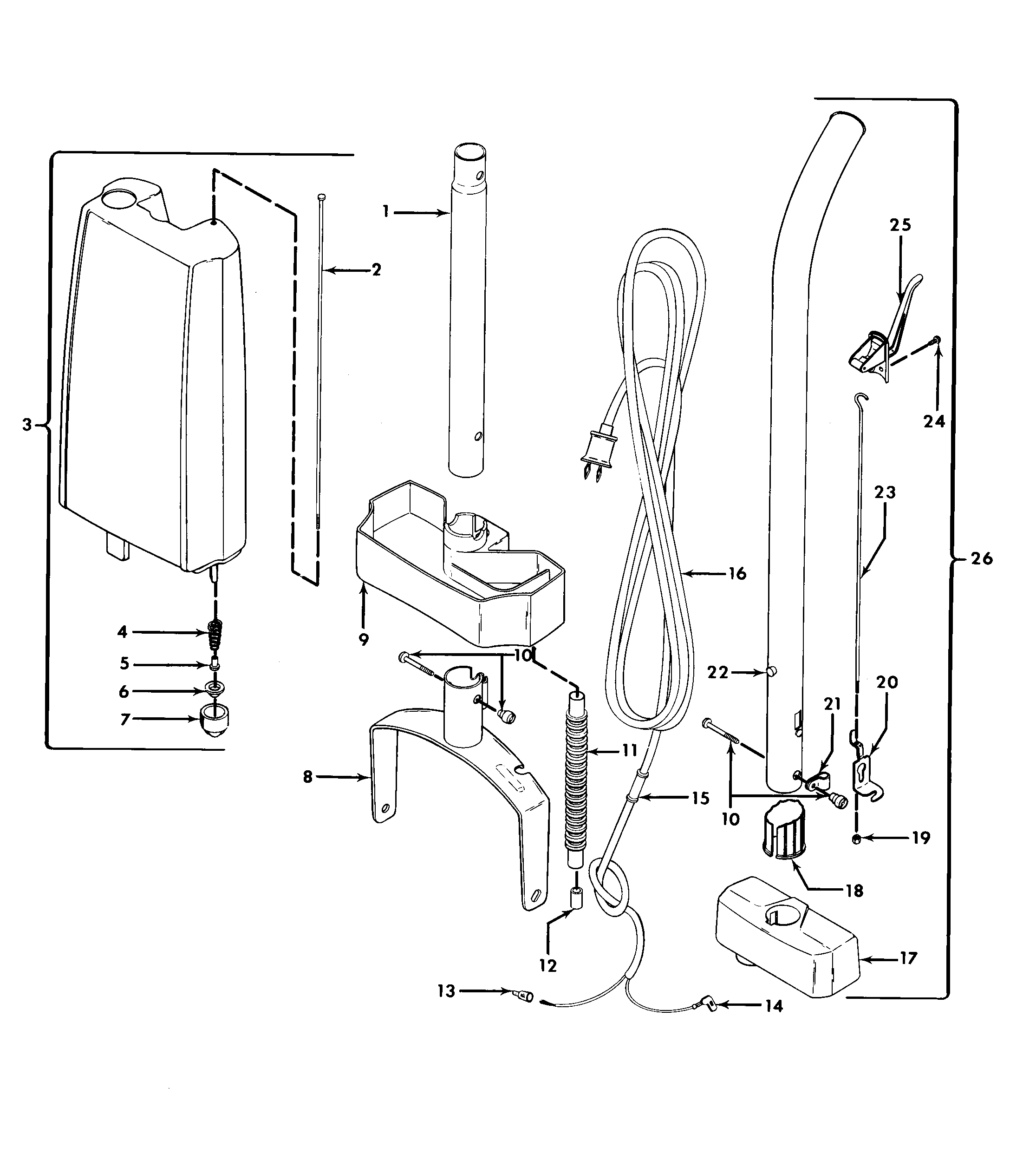

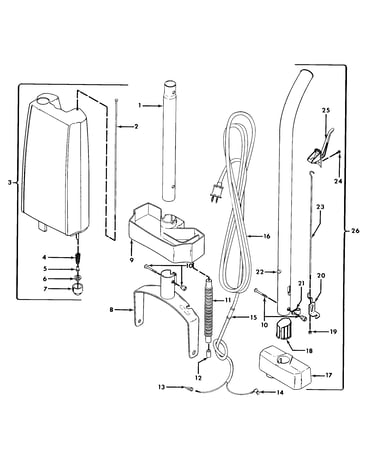

Handle, tank diagram

Valve rod

Part #019717--

The manufacturer no longer makes this part, and there's no substitute part

#54

Motor, hood, switch, gears diagram

Motor cap assembly

Part #42197002

The manufacturer no longer makes this part, and there's no substitute part

#40

Motor, hood, switch, gears diagram

Brush spring

Part #47311005

The manufacturer no longer makes this part, and there's no substitute part

#44

Motor, hood, switch, gears diagram

Washer

Part #21312720

The manufacturer no longer makes this part, and there's no substitute part

#10

Motor, hood, switch, gears diagram

Washer

Part #21312724

The manufacturer no longer makes this part, and there's no substitute part
