Model # 1067690210 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 1067690210 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

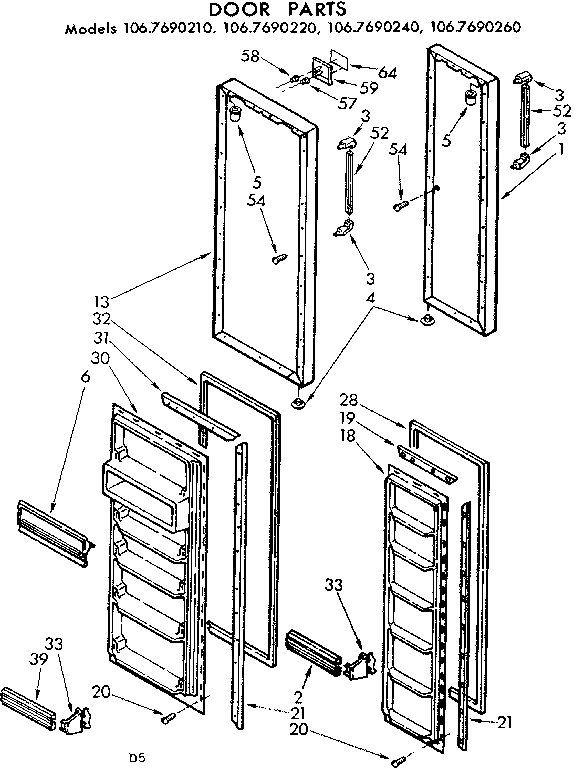

Browse Parts for1067690210 Refrigerator
- #17

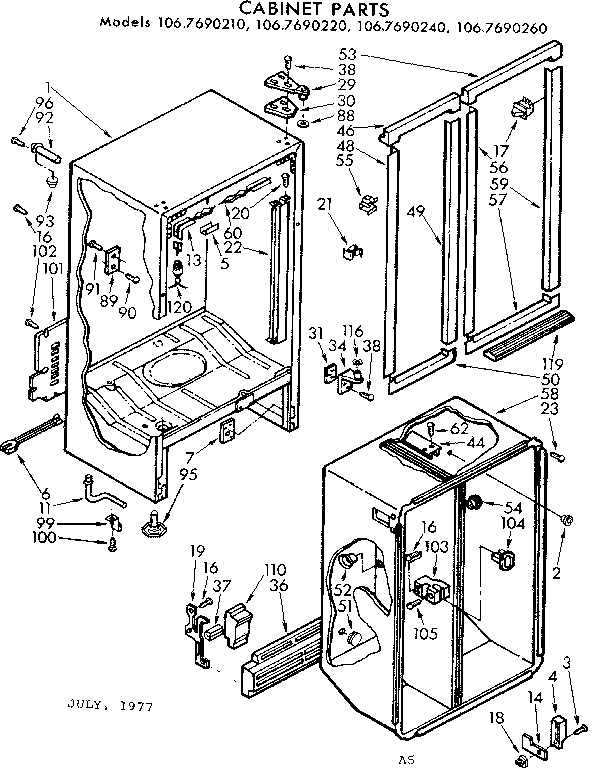

Cabinet parts diagram
Refrigerator switchPart #549695
Replaced by #W11384469
?Manufacturer substitutionThis part replaces 549695. Substitute parts can look different from the original.$21.10 |22% OFF Phone Price : $27.10In Stock - #14

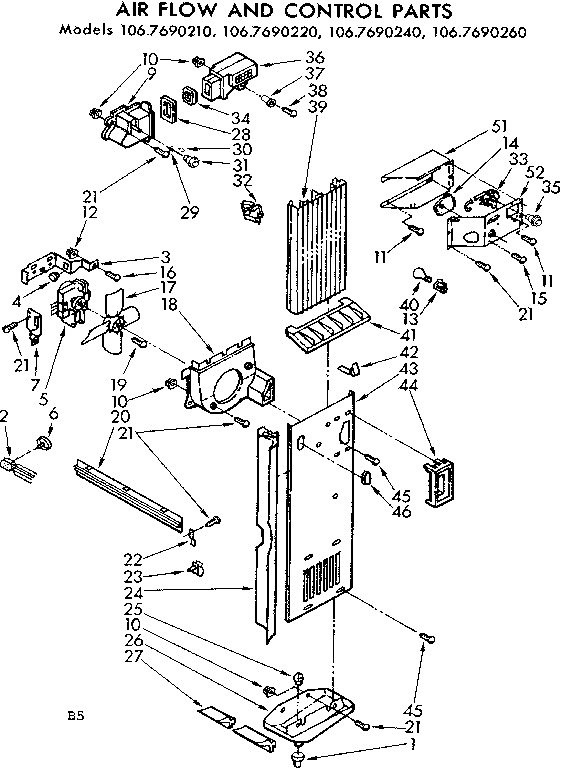

Air flow and control parts diagram
TimerPart #851160
Replaced by #W10822278
?Manufacturer substitutionThis part replaces 851160. Substitute parts can look different from the original.$27.67 |18% OFF Phone Price : $33.67In Stock - #32

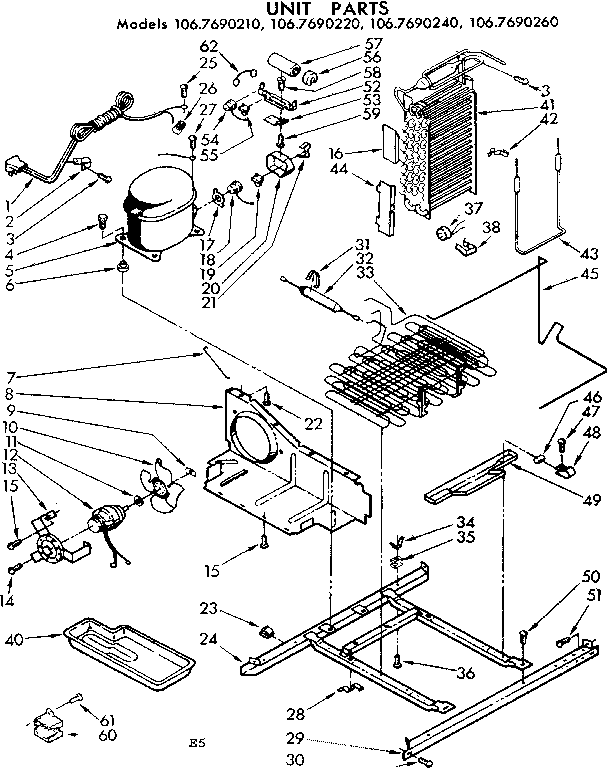

Unit parts diagram
Drier tubePart #978246
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 978246. Substitute parts can look different from the original.$30.51 |16% OFF Phone Price : $36.51In Stock - #12
Unit parts diagram
Fan motorPart #851618
Replaced by #833697
?Manufacturer substitutionThis part replaces 851618. Substitute parts can look different from the original.$53.93 |10% OFF Phone Price : $59.93In Stock - #59
Unit parts diagram
ScrewPart #488778
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 488778. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - Screw
Part #488624
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 488624. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - Screw
Part #486993
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 486993. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #20B
Cabinet parts diagram
ScrewPart #488258
Replaced by #WP308685
?Manufacturer substitutionThis part replaces 488258. Substitute parts can look different from the original.This item is not returnable$4.36 |19% OFF Phone Price : $5.36In Stock - #19

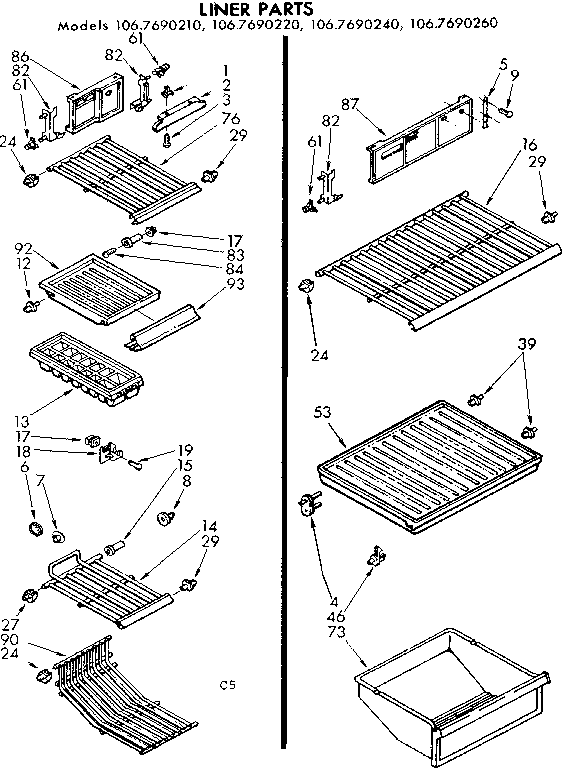

Liner parts diagram
ScrewPart #488552
Replaced by #WP681414
?Manufacturer substitutionThis part replaces 488552. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock #NI
All parts diagram
GreasePart #481634
Replaced by #WP542638
?Manufacturer substitutionThis part replaces 481634. Substitute parts can look different from the original.$31.44 |16% OFF Phone Price : $37.44In Stock
