GE
Washer

Model # GFAN1000L4WW Official GE washer

Here are the diagrams and repair parts for Official GE GFAN1000L4WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

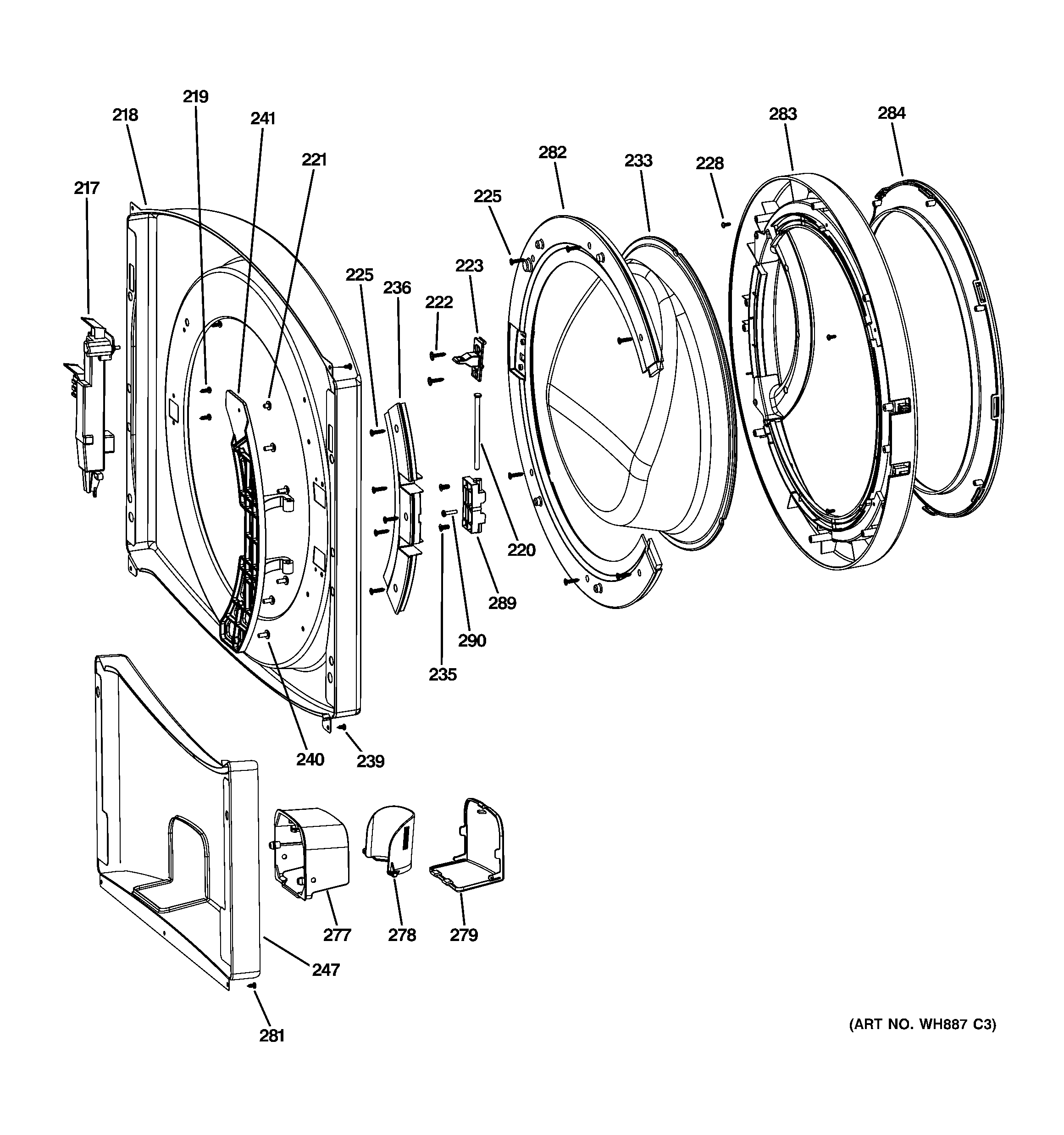

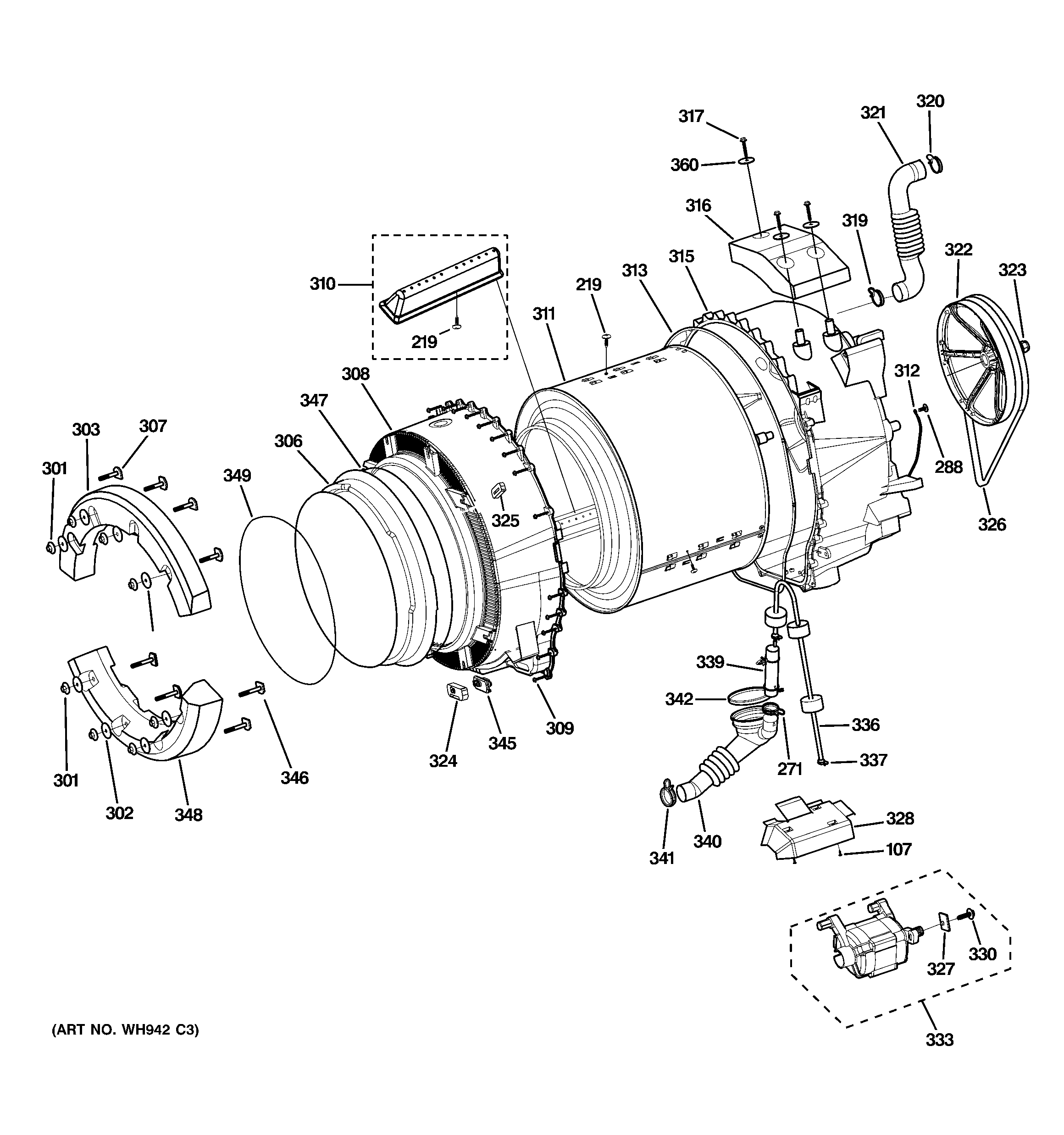

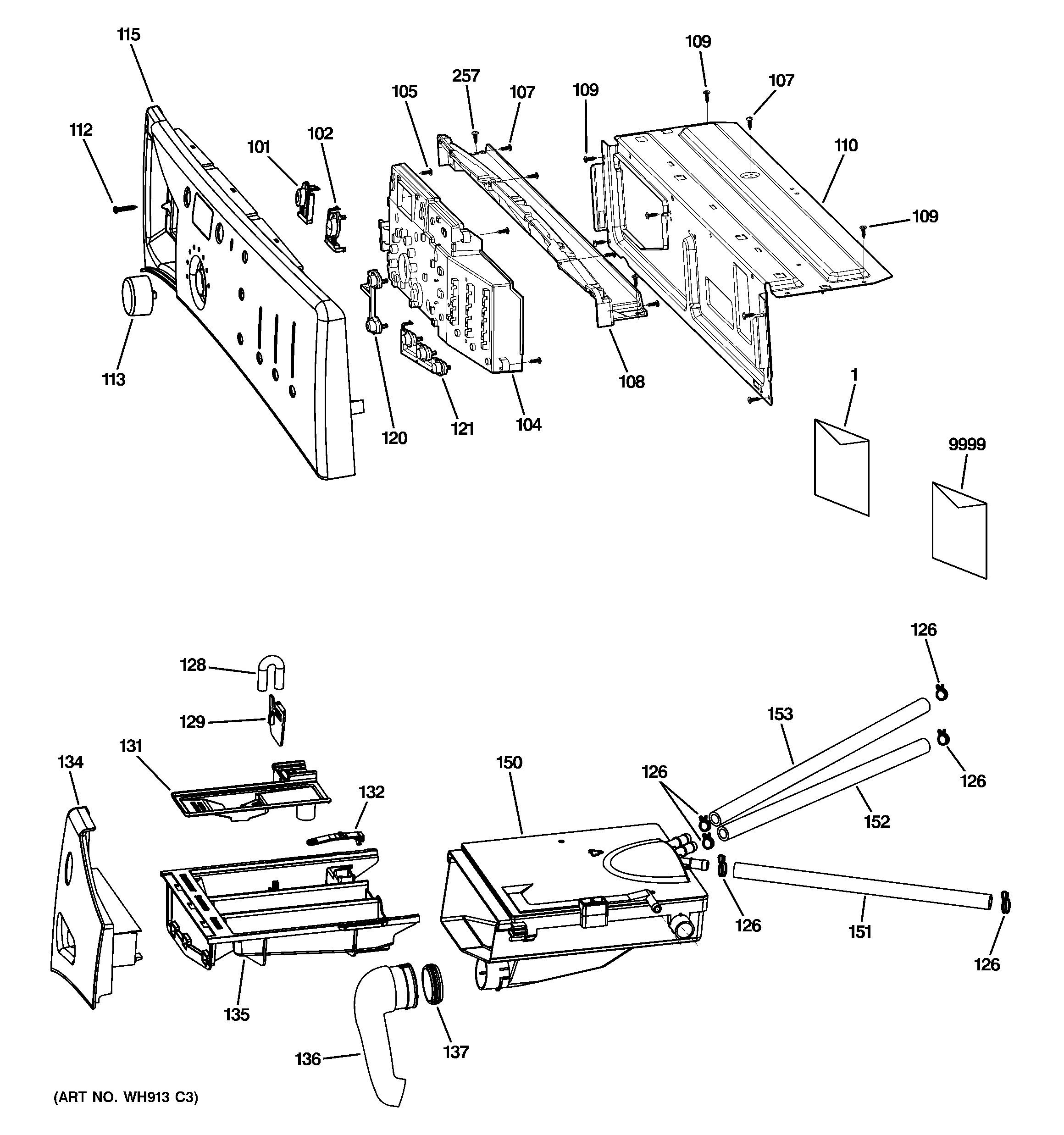

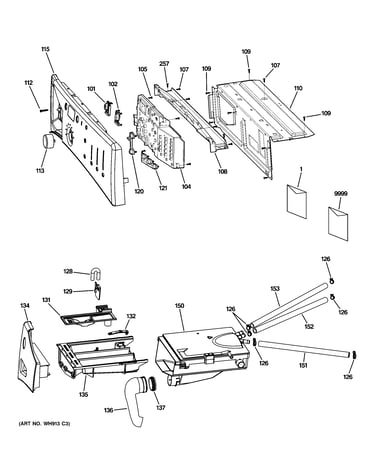

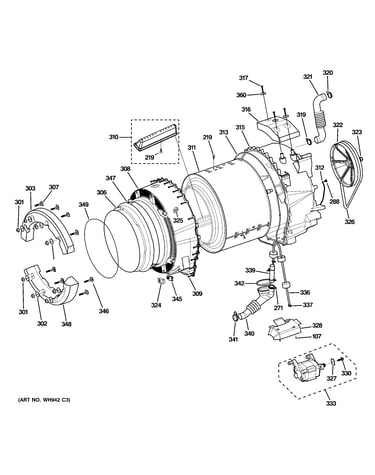

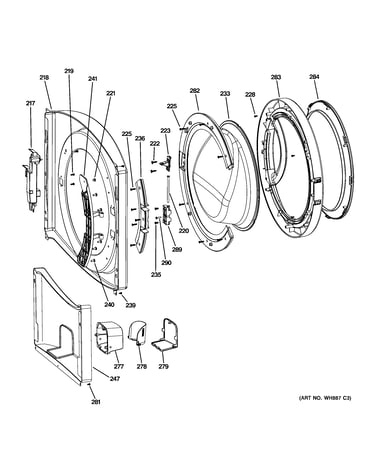

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Washer Drain Pump Assembly (replaces Wh23x10026, Wh23x10037) WH23X10028
#249

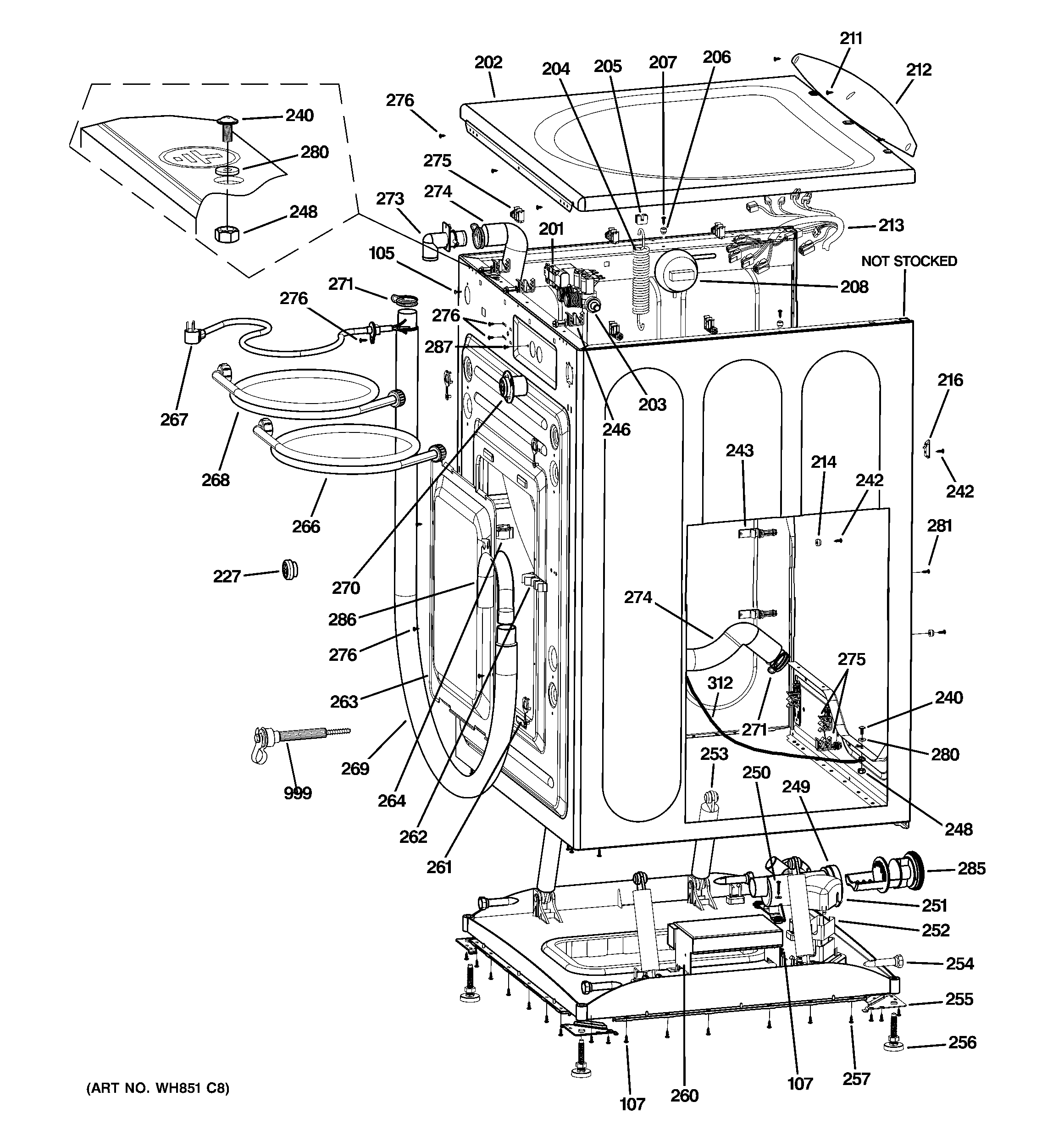

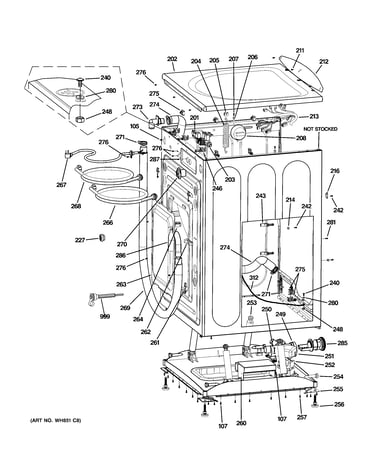

Cabinet & top panel diagram

Washer drain pump assembly (replaces wh23x10026, wh23x10037)

Part #WH23X10028

BEST SELLER
$181.46 |
6% OFF Phone Price : $193.46
In Stock
Washer Water Inlet Valve WH13X10029
#203

Cabinet & top panel diagram

Washer water inlet valve

Part #WH13X10029

$109.33 |
10% OFF Phone Price : $121.33
In Stock
Washer Drain Pump Filter (replaces Wh23x10027, Wh23x20840) WH23X10029
#285

Cabinet & top panel diagram

Washer drain pump filter (replaces wh23x10027, wh23x20840)

Part #WH23X10029

Replaced by #WH11X34741

?
Manufacturer substitution
This part replaces WH23X10029. Substitute parts can look different from the original.
$97.31
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

Cabinet & top panel diagram

Washer shock absorber mounting pin

Part #WH01X10261

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Suspension Spring WH05X10009
#204

Cabinet & top panel diagram

Washer suspension spring

Part #WH05X10009

$27.78 |
18% OFF Phone Price : $33.78
In Stock
Hanger Spring WH01X10251
#205

Cabinet & top panel diagram

Hanger spring

Part #WH01X10251

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Drain Hose WH41X10126
#269

Cabinet & top panel diagram

Washer drain hose

Part #WH41X10126

$37.61 |
14% OFF Phone Price : $43.61
In Stock
Damper WH01X10260
#253

Cabinet & top panel diagram

Damper

Part #WH01X10260

Replaced by #WH01X10343

?
Manufacturer substitution
This part replaces WH01X10260. Substitute parts can look different from the original.
$61.71 |
9% OFF Phone Price : $67.71
In Stock
Emi Filter WH41X10298
#201

Cabinet & top panel diagram

Emi filter

Part #WH41X10298

Replaced by #WH41X10301

?
Manufacturer substitution
This part replaces WH41X10298. Substitute parts can look different from the original.
$68.36 |
8% OFF Phone Price : $74.36
In Stock
Washer Leveling Leg Bracket WH16X10077
#255

Cabinet & top panel diagram

Washer leveling leg bracket

Part #WH16X10077

$13.51
In Stock
