GE
Side-By-Side Refrigerator

Model # GSS22IBTACC Official GE refrigerator - t series

Here are the diagrams and repair parts for Official GE GSS22IBTACC refrigerator - t series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Damper & The WR50X10034
#242

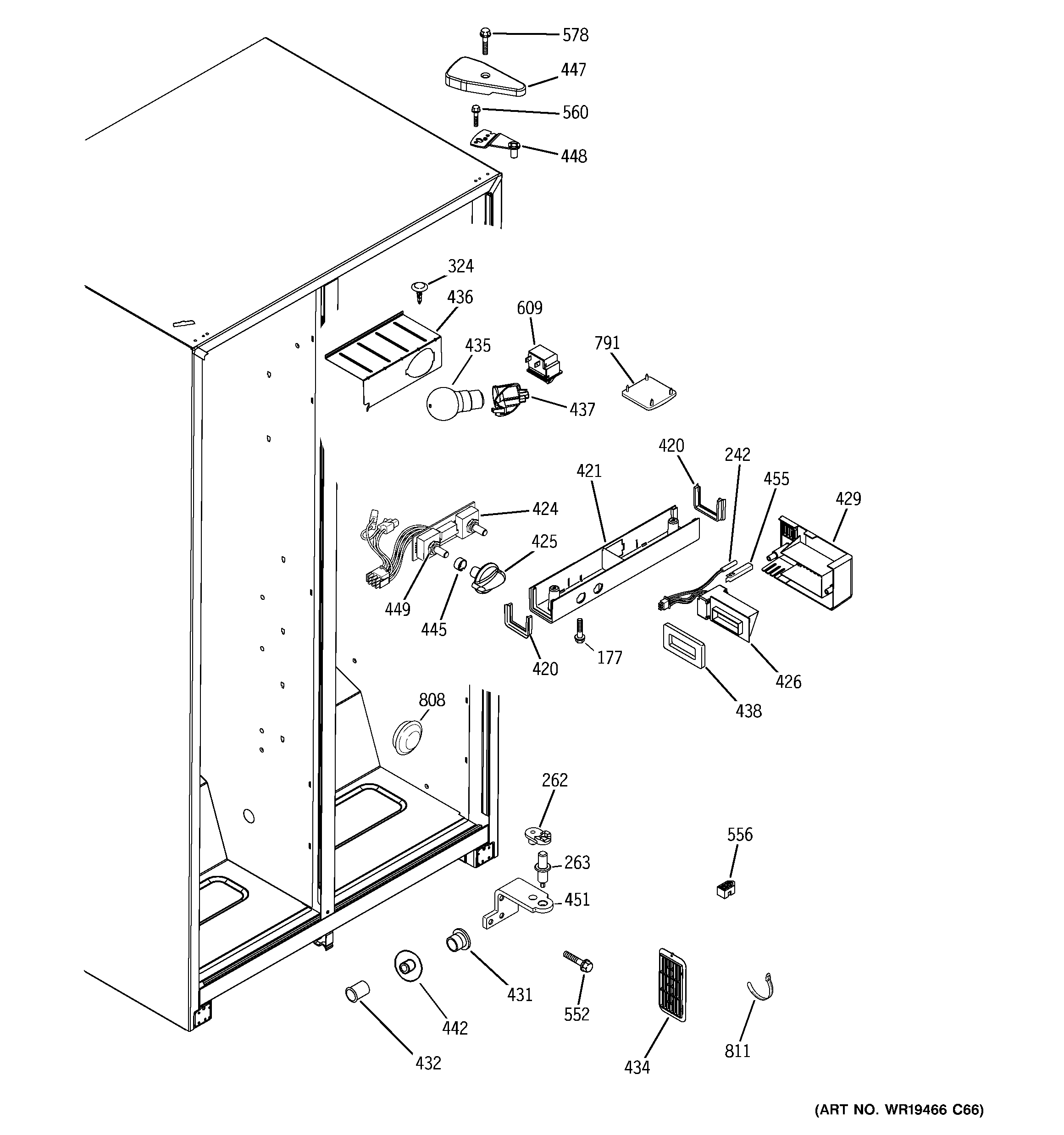

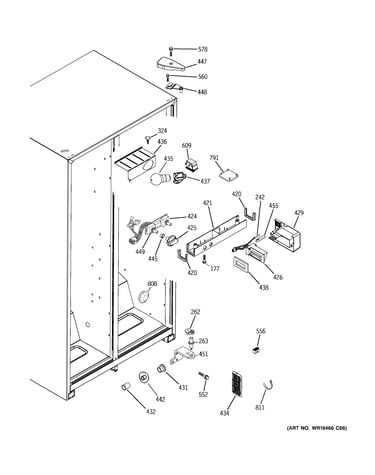

Fresh food section diagram

Damper & the

Part #WR50X10034

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10034. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Temperature Sensor WR50X10027
#241

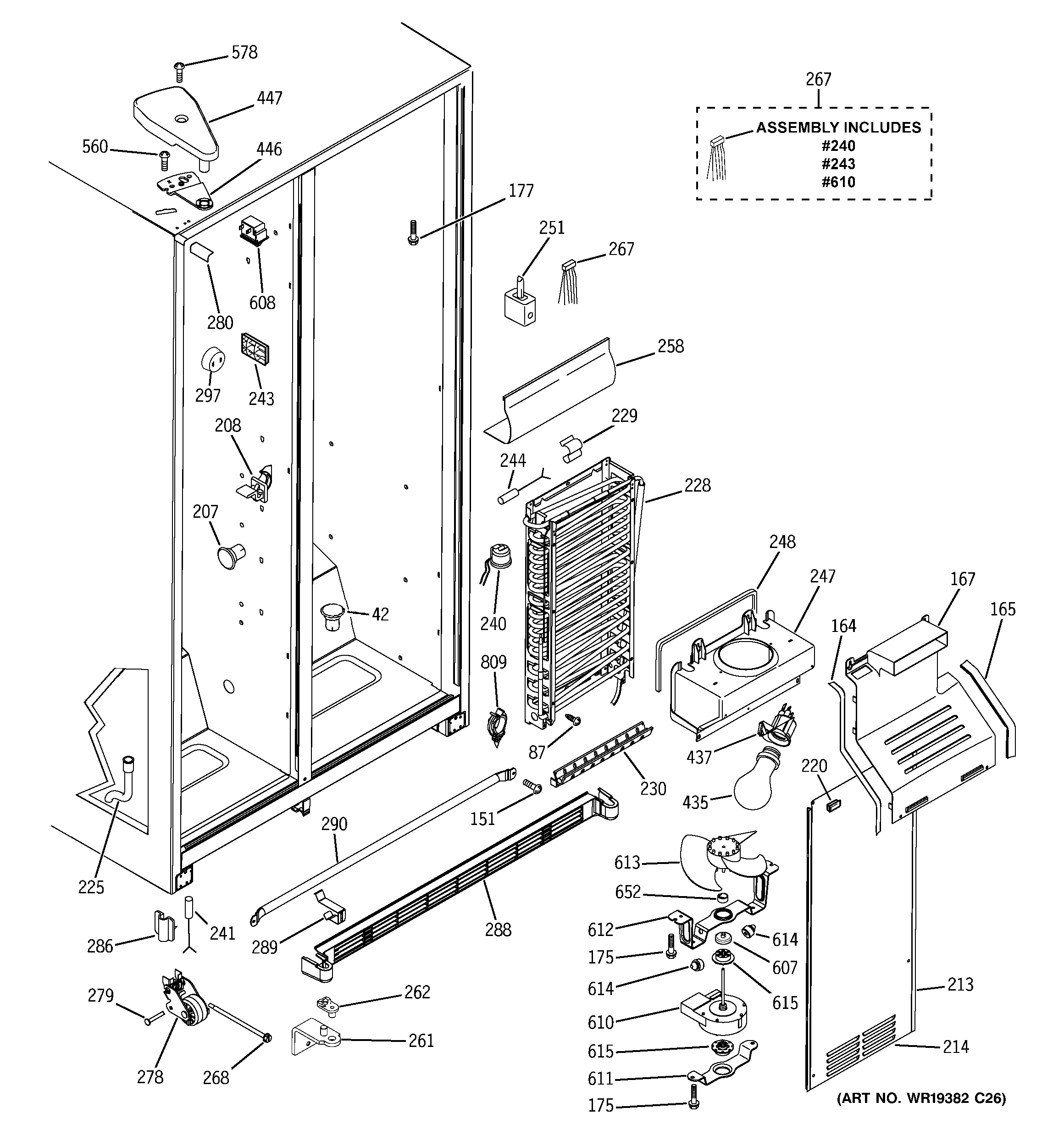

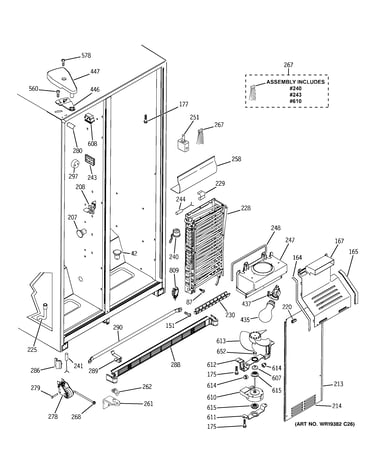

Freezer section diagram

Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Temperature Sensor WR50X10067
#244

Freezer section diagram

Refrigerator temperature sensor

Part #WR50X10067

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10067. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Filter Dryer WR86X96
#740

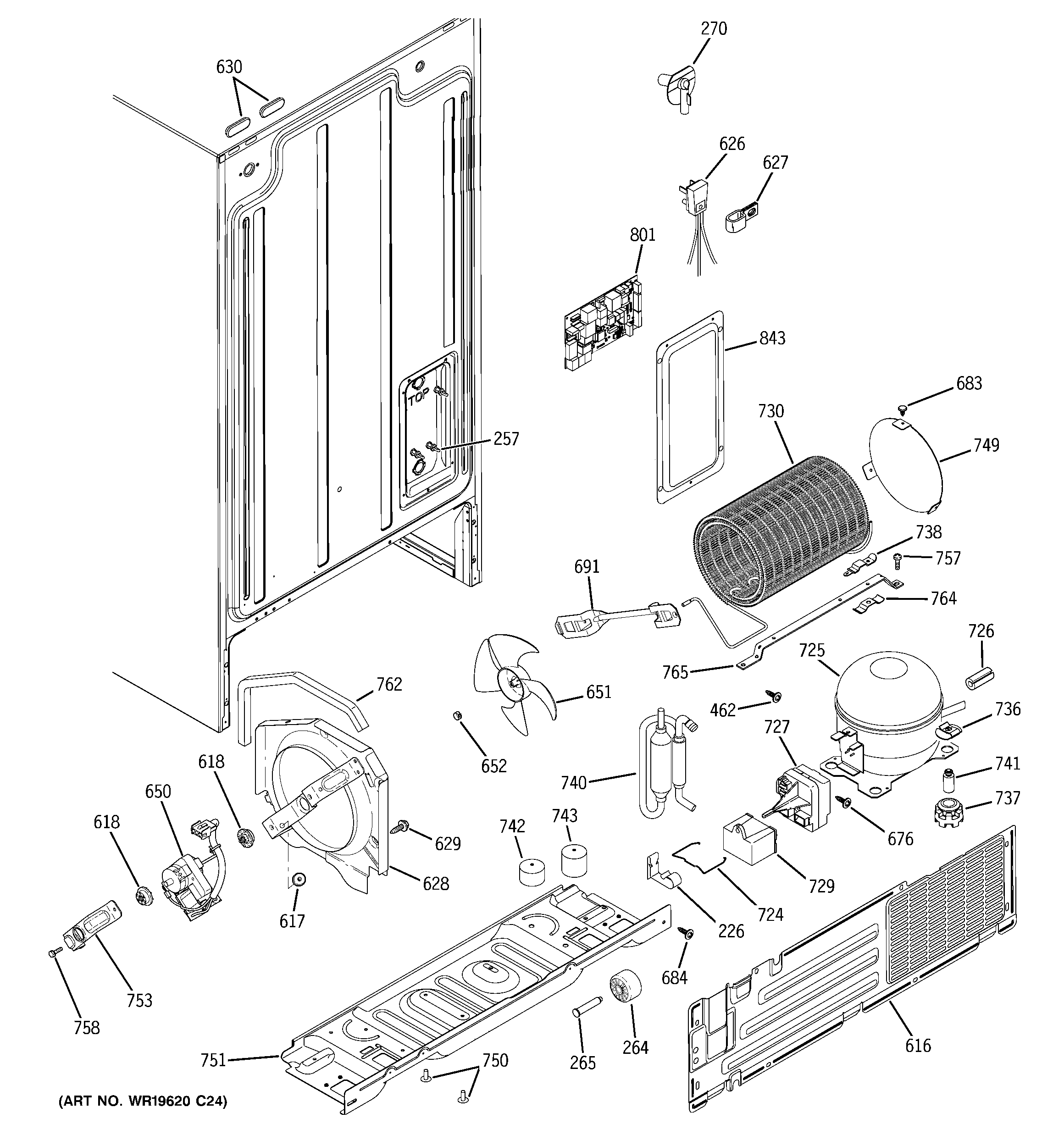

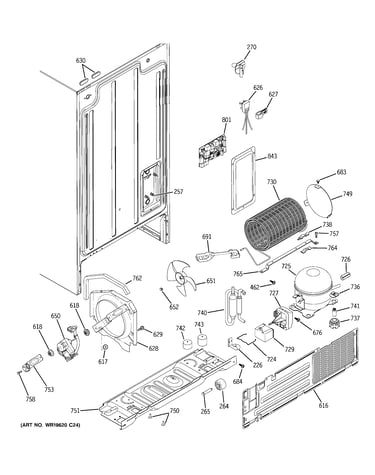

Sealed system & mother board diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Thermostat WR50X10074
#240

Freezer section diagram

Thermostat

Part #WR50X10074

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10074. Substitute parts can look different from the original.
BEST SELLER
$20.93 |
22% OFF Phone Price : $26.93
In Stock
Capacitor 12 WR62X10048
#729

Sealed system & mother board diagram

Capacitor 12

Part #WR62X10048

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X10048. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Sealed system & mother board diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Damper & The WR60X10159
#426

Fresh food section diagram

Damper & the

Part #WR60X10159

Replaced by #WR09X10050

?
Manufacturer substitution
This part replaces WR60X10159. Substitute parts can look different from the original.
BEST SELLER
$83.83 |
7% OFF Phone Price : $89.83
In Stock
Ge Profile Refrigerator Condenser Coil (replaces Wr49x10151, Wr84x10065, Wr84x10071, Wr84x10072, Wr84x10074, Wr84x10078, Wr84x37865, Wr87x37966) WR84X10022
#730

Sealed system & mother board diagram

Ge profile refrigerator condenser coil (replaces wr49x10151, wr84x10065, wr84x10071, wr84x10072, wr84x10074, wr84x10078, wr84x37865, wr87x37966)

Part #WR84X10022

BEST SELLER
$386.88 |
$12.00 OFF Phone Price : $398.88
In Stock
