Here are the diagrams and repair parts for Official GE PDCE1NBWAJSS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

Error Codes

By Schematic

By Part

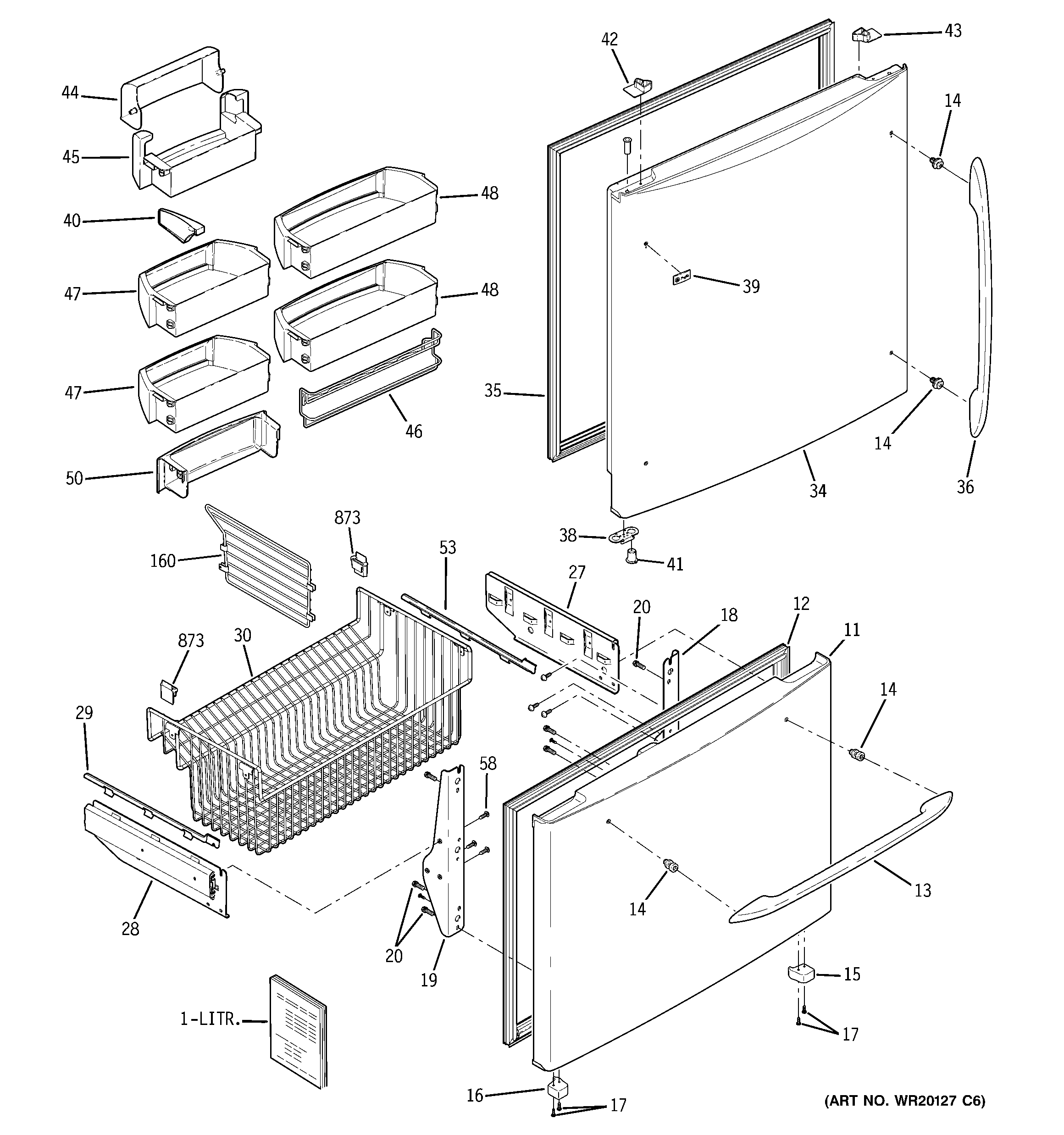

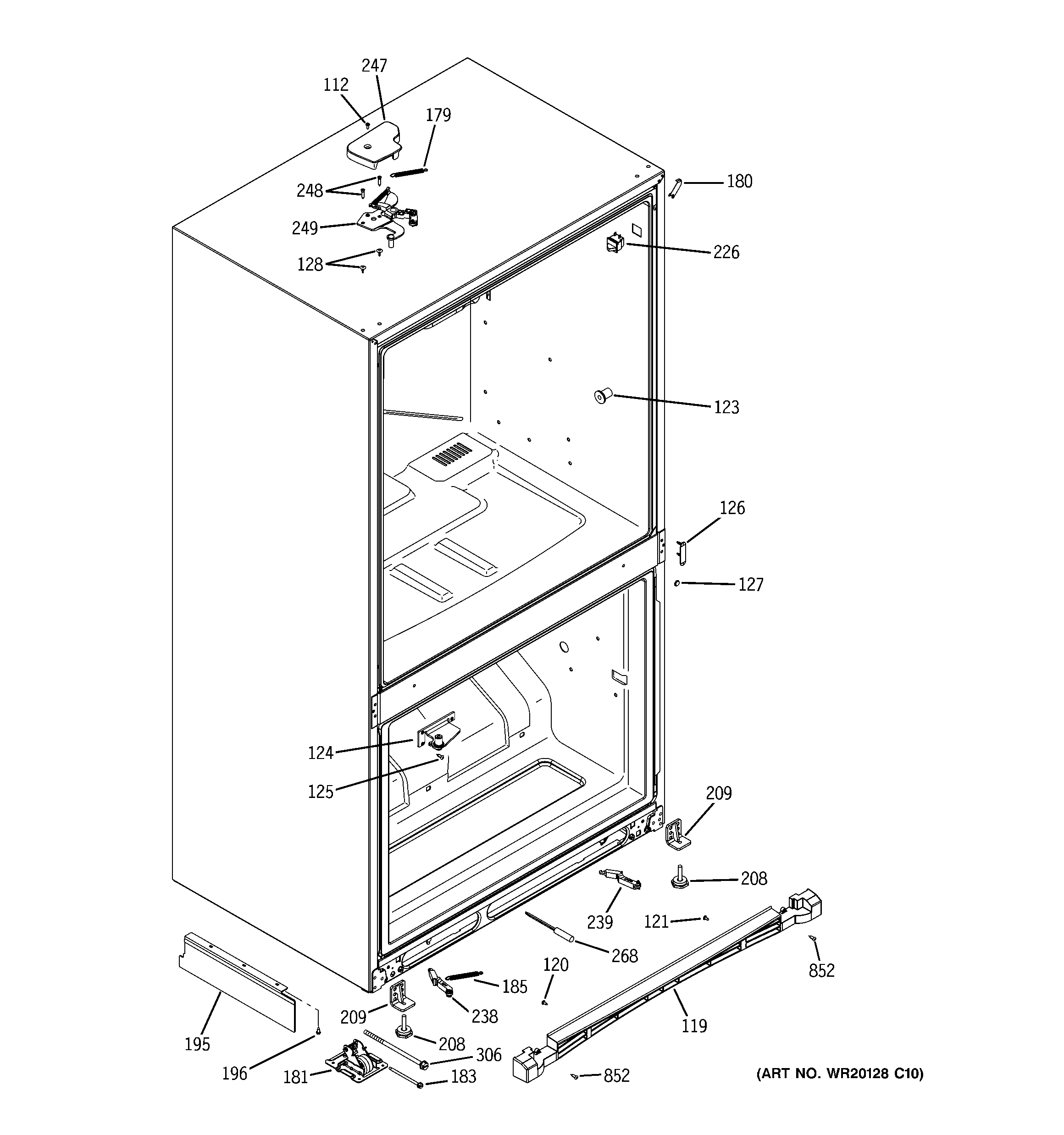

SELECT DIAGRAM

Browse Parts forPDCE1NBWAJSS Refrigerators

Temperature sensor
Part #WR55X10711
Replaced by #WR55X10025
?
Manufacturer substitution
This part replaces WR55X10711. Substitute parts can look different from the original.
4.5 (2)
$19.24 |
9% OFF Phone Price : $21.24
In Stock
Qty
#740

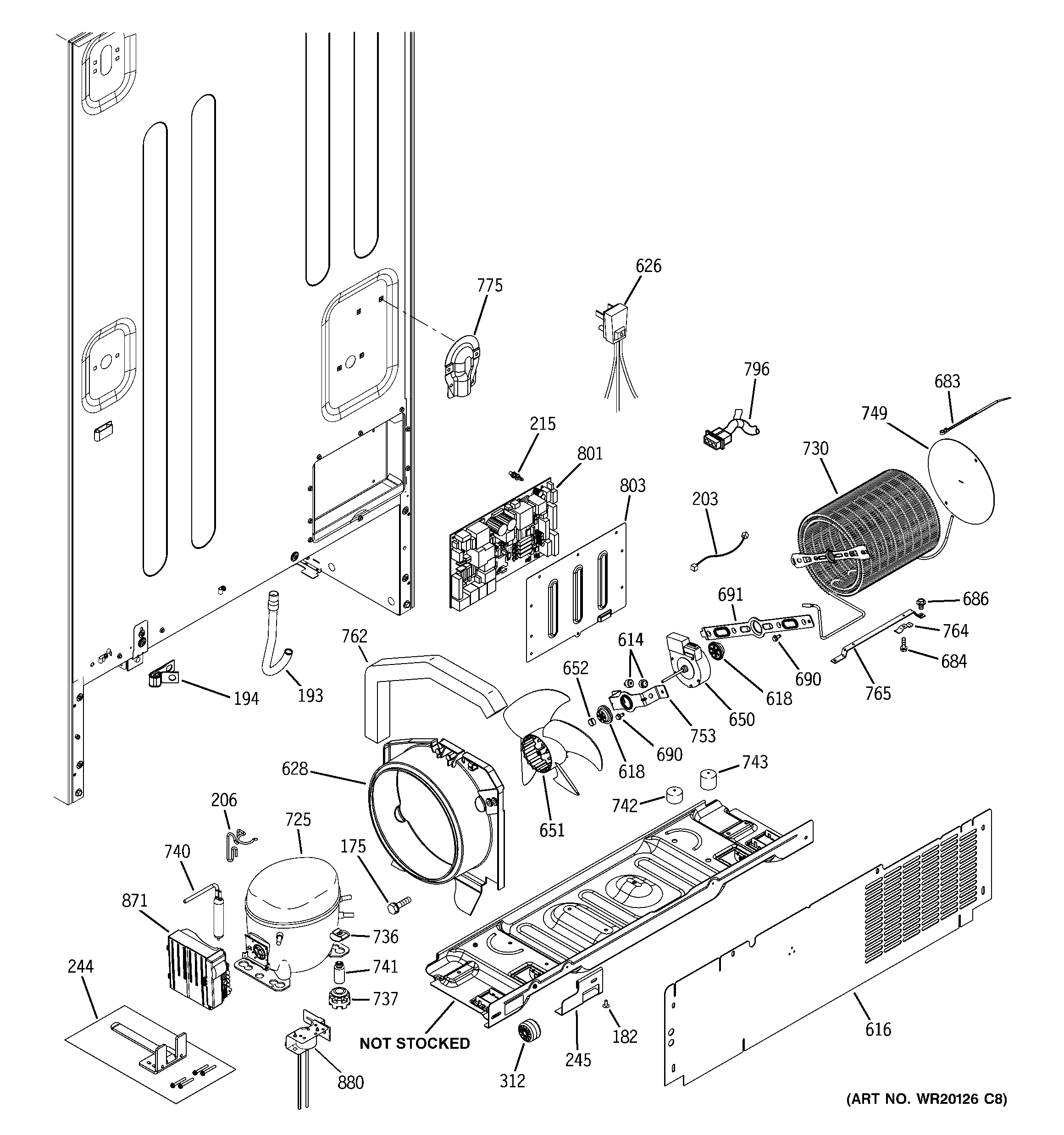

Machine compartment diagram
Dryer filter
Part #WR86X0096
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
$74.11 |
7% OFF Phone Price : $80.11
In Stock
Qty
#252

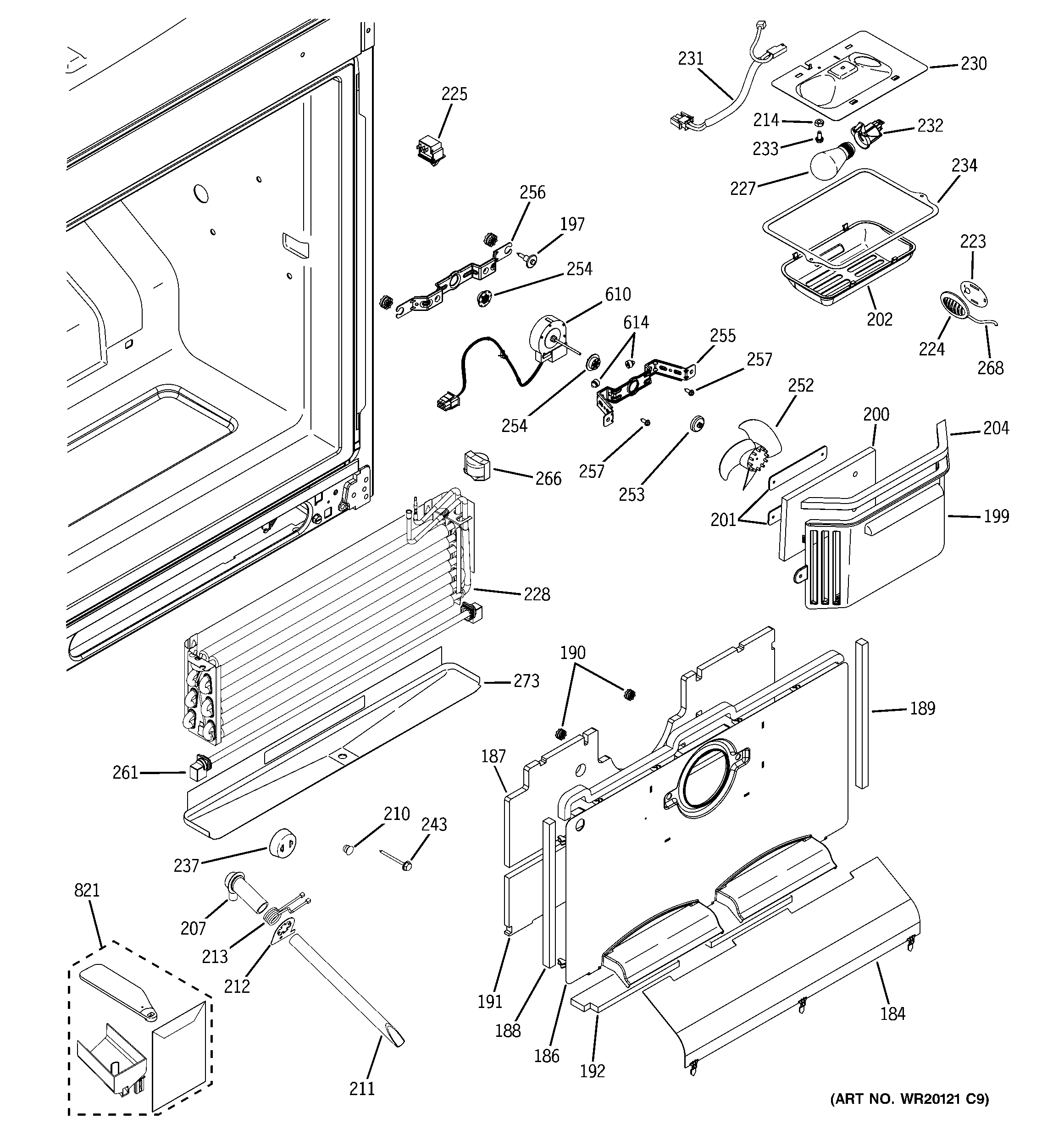

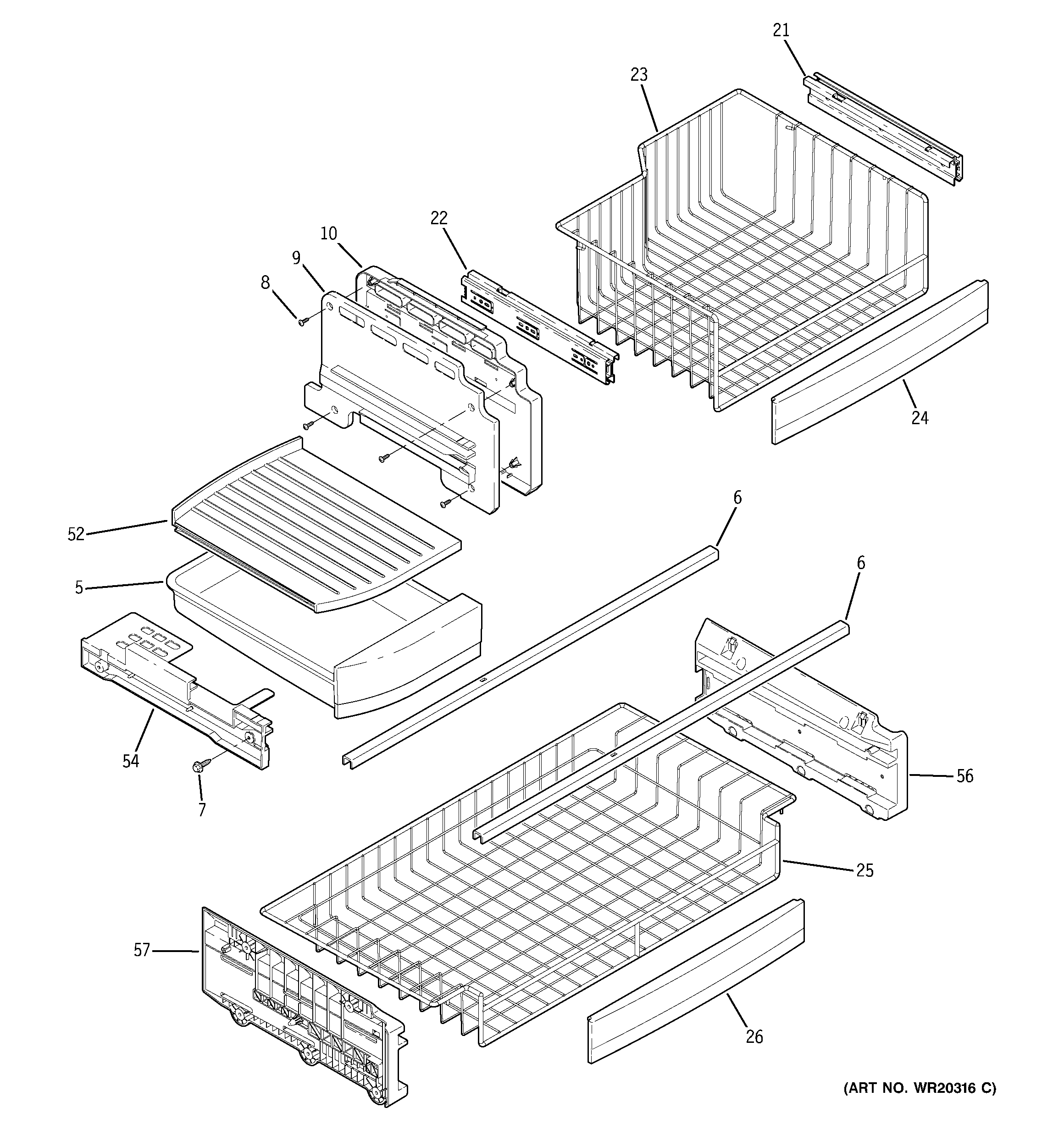

Freezer section diagram
Refrigerator evaporator fan blade
Part #WR60X10208
Replaced by #WR60X30922
?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
3.4 (5)
$88.62 |
6% OFF Phone Price : $94.62
In Stock
Qty
#725
Machine compartment diagram
Compressor v
Part #WR87X10123
Replaced by #WR87X10111
?
Manufacturer substitution
This part replaces WR87X10123. Substitute parts can look different from the original.
5 (1)
$735.57 |
$12.00 OFF Phone Price : $747.57
In Stock
Qty
#650
Machine compartment diagram
Condenser motor
Part #WR60X10216
Replaced by #WR60X10209
?
Manufacturer substitution
This part replaces WR60X10216. Substitute parts can look different from the original.
5 (3)
$60.17 |
9% OFF Phone Price : $66.17
In Stock
Qty
#651
Machine compartment diagram
Refrigerator condenser fan blade
Part #WR60X10206
Replaced by #WR60X24484
?
Manufacturer substitution
This part replaces WR60X10206. Substitute parts can look different from the original.
This item is not returnable
$29.22 |
17% OFF Phone Price : $35.22
In Stock
Qty
#193
Machine compartment diagram
Refrigerator drain tube
Part #WR02X11426
This item is not returnable
$19.16 |
9% OFF Phone Price : $21.16
In Stock
Qty
#424

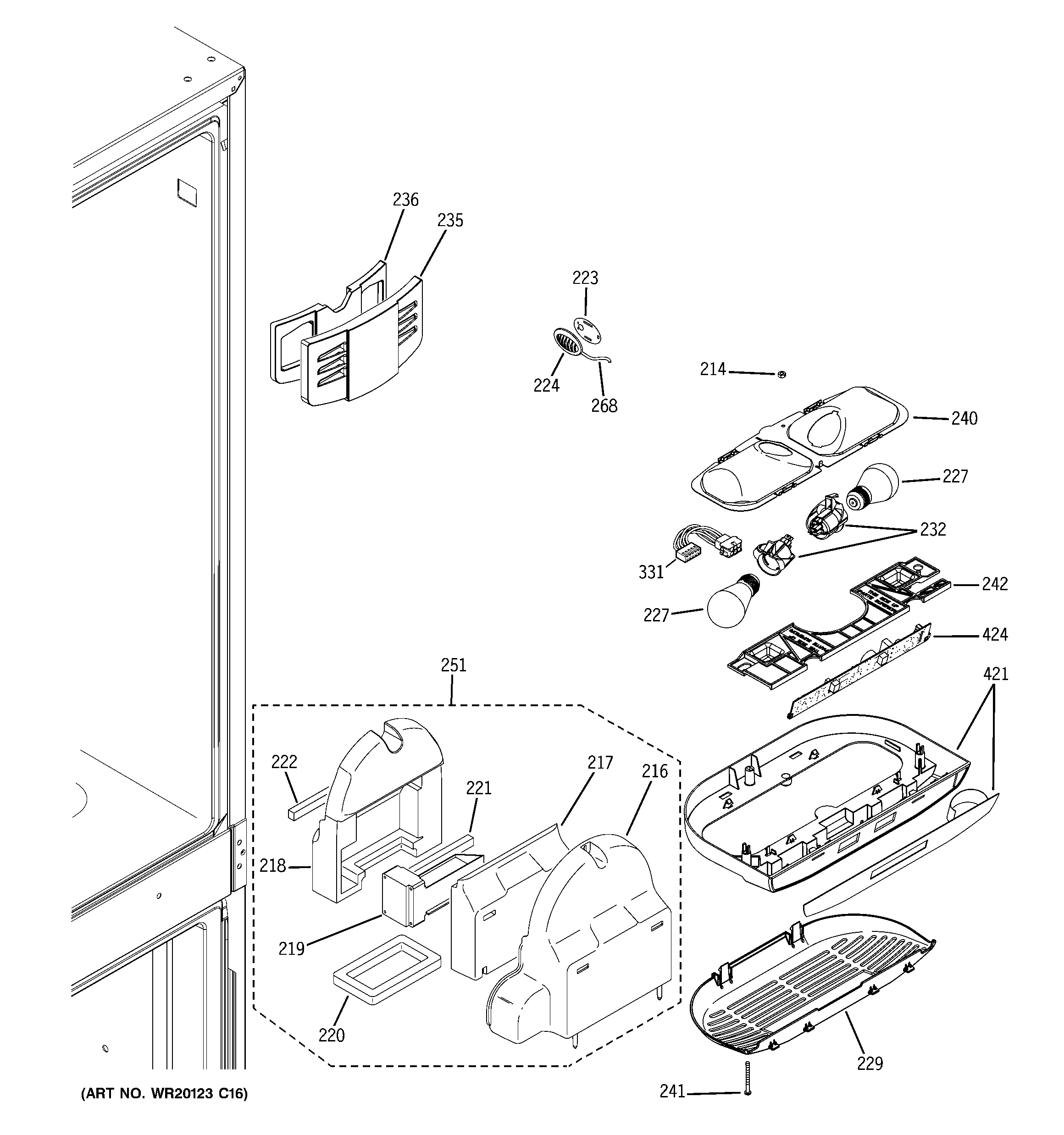

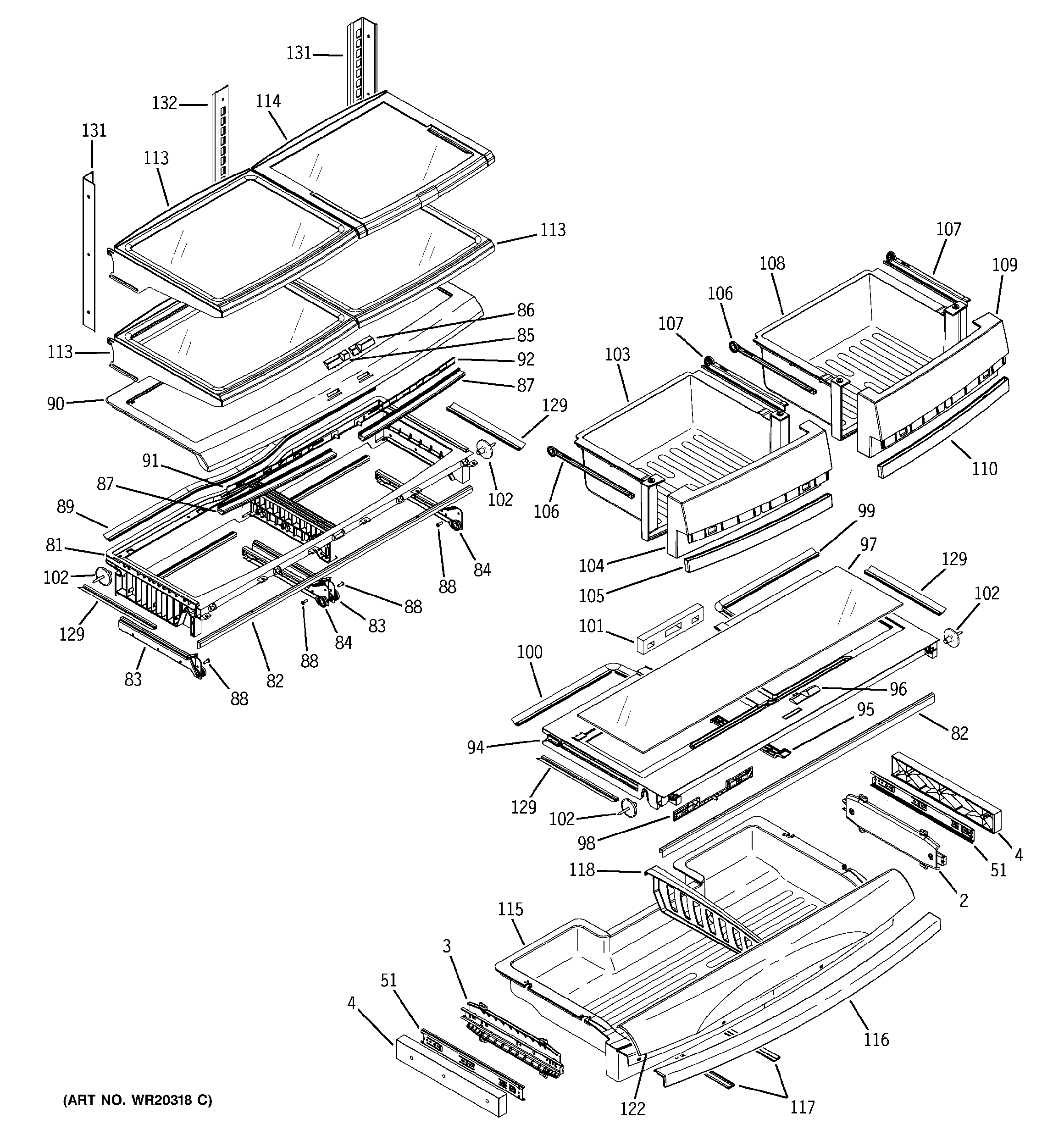

Fresh food section diagram
Refrigerator temperature control board
Part #WR55X10684
This item is not returnable
$179.01 |
6% OFF Phone Price : $191.01
In Stock
Qty
#207
Freezer section diagram
Refrigerator grommet
Part #WR02X9153
Replaced by #WR2X8474
?
Manufacturer substitution
This part replaces WR02X9153. Substitute parts can look different from the original.
$32.58 |
16% OFF Phone Price : $38.58
In Stock
Qty
Refrigerator temperature sensor cover
Part #WR02X10647
5 (1)
This item is not returnable
$8.00 |
11% OFF Phone Price : $9.00
In Stock
Qty
