Craftsman
Gas Walk-Behind Mower

Model # 917380091 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380091 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

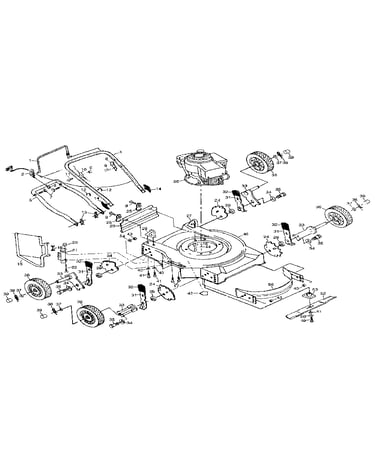

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Washer 61537
#54

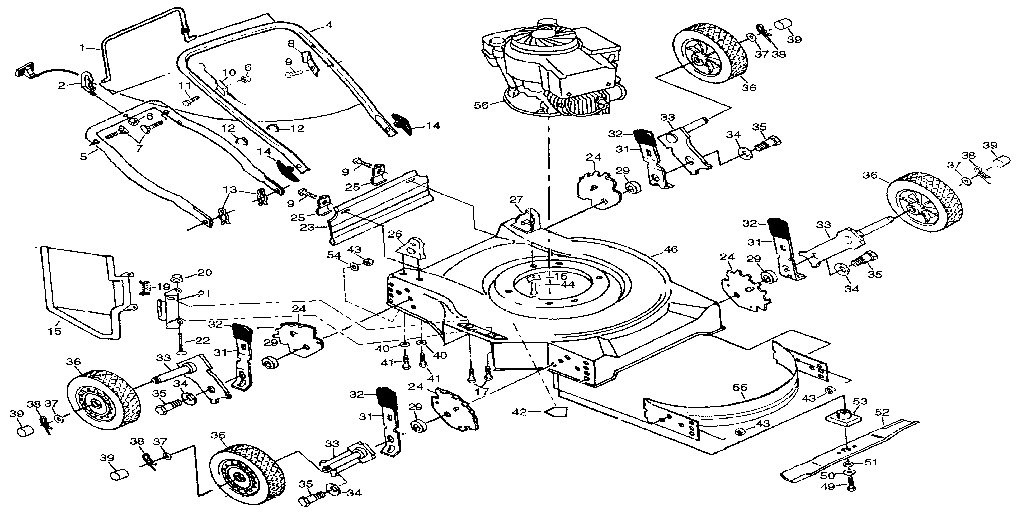

Replacement parts diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Mower Blade Adapter 850977
#53

Replacement parts diagram

Lawn mower blade adapter

Part #850977

Replaced by #581547901

?
Manufacturer substitution
This part replaces 850977. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#32

Replacement parts diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Spring 850855X004
#31

Replacement parts diagram

Spring

Part #850855X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 850855X004. Substitute parts can look different from the original.
$8.54
In Stock
Tapping Screw 750097
#9

Replacement parts diagram

Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Handle Bolt 131959
#7

Replacement parts diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#51

Replacement parts diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Hinge Rod 801728
#22

Replacement parts diagram

Hinge rod

Part #801728

Replaced by #532150215

?
Manufacturer substitution
This part replaces 801728. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Washer 59289
#40

Replacement parts diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Part 135152X417
#27

Replacement parts diagram

Part

Part #135152X417

Replaced by #532192983

?
Manufacturer substitution
This part replaces 135152X417. Substitute parts can look different from the original.
$37.31
In Stock
