Model # HC64A Official Adobe Aire master cool ii

Here are the diagrams and repair parts for Official Adobe Aire HC64A master cool ii, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Pump EP480A-PMPA212
#3C

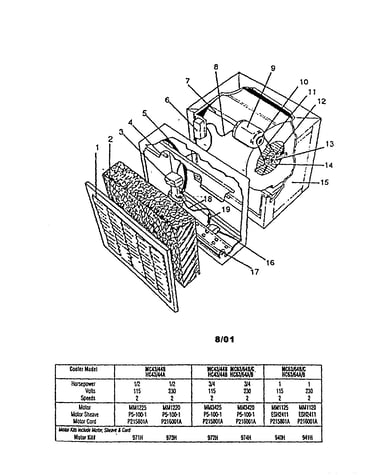

Replacement parts diagram

Pump

Part #EP480A-PMPA212

The manufacturer no longer makes this part, and there's no substitute part

Media Support Tray (hc43/44a) (hc63/64a/b) M507904J
#17A

Replacement parts diagram

Media support tray (hc43/44a) (hc63/64a/b)

Part #M507904J

The manufacturer no longer makes this part, and there's no substitute part

Pump Assembly 230v (mc43/44b) (hc43/44a) (mc63/64b/c) EP400H/PMPM652
#3B

Replacement parts diagram

Pump assembly 230v (mc43/44b) (hc43/44a) (mc63/64b/c)

Part #EP400H/PMPM652

The manufacturer no longer makes this part, and there's no substitute part

Pulley (mc63/64c, Hc63/64b) P503901F
#13C

Replacement parts diagram

Pulley (mc63/64c, hc63/64b)

Part #P503901F

The manufacturer no longer makes this part, and there's no substitute part

Valve 12-p FM600A
#16

Replacement parts diagram

Valve 12-p

Part #FM600A

The manufacturer no longer makes this part, and there's no substitute part

Support RK102A
#7

Replacement parts diagram

Support

Part #RK102A

The manufacturer no longer makes this part, and there's no substitute part

Bleed-off Tube (lg) P910303A
#18A

Replacement parts diagram

Bleed-off tube (lg)

Part #P910303A

The manufacturer no longer makes this part, and there's no substitute part

Pulley P502901F
#13B

Replacement parts diagram

Pulley

Part #P502901F

The manufacturer no longer makes this part, and there's no substitute part

Washer (pink) P5-402-4

#NI

All parts diagram

Washer (pink)

Part #P5-402-4

The manufacturer no longer makes this part, and there's no substitute part

Media Spacer Panel (hc43/44a) (mc63/64b/c) P910510A

#NI

All parts diagram

Media spacer panel (hc43/44a) (mc63/64b/c)

Part #P910510A

The manufacturer no longer makes this part, and there's no substitute part
