Model # EIED200QSW00 Official Electrolux dryer

Here are the diagrams and repair parts for Official Electrolux EIED200QSW00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

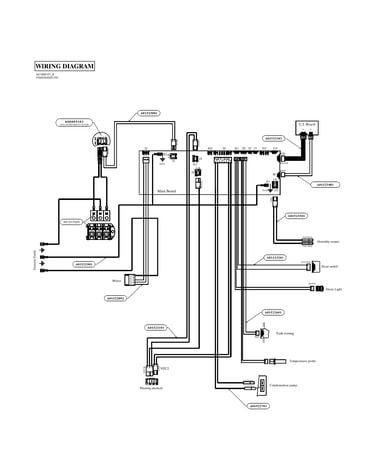

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Dryer Heating Element Assembly 136611032
#510

Burner diagram

Dryer heating element assembly

Part #136611032

BEST SELLER
$100.43 |
11% OFF Phone Price : $112.43
In Stock
Dryer Motor Assembly 808643202
#504

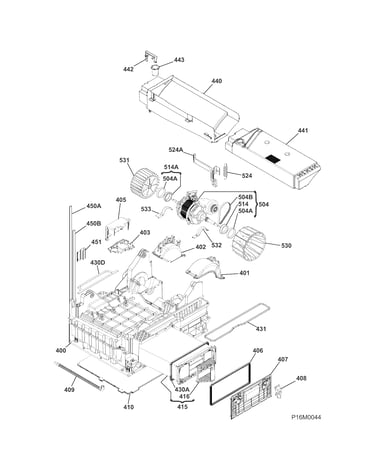

Motor/fan diagram

Dryer motor assembly

Part #808643202

$354.46 |
$12.00 OFF Phone Price : $366.46
In Stock
Dryer Drum Seal, Front 136808930
#604

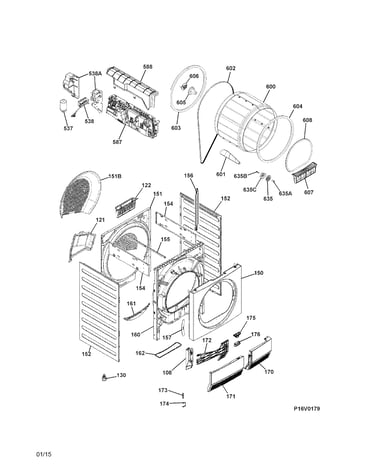

Cabinet/drum diagram

Dryer drum seal, front

Part #136808930

$104.49 |
10% OFF Phone Price : $116.49
In Stock
Dryer Drum Belt 809183801
#602

Cabinet/drum diagram

Dryer drum belt

Part #809183801

$36.35 |
14% OFF Phone Price : $42.35
In Stock
Dryer Door Seal 136606311
#608

Cabinet/drum diagram

Dryer door seal

Part #136606311

$65.79 |
8% OFF Phone Price : $71.79
In Stock
Dryer Condenser Assembly 136701301
#415

Motor/fan diagram

Dryer condenser assembly

Part #136701301

$173.99 |
6% OFF Phone Price : $185.99
In Stock
Dryer Pump Float Switch Assembly 136614001
#512

Burner diagram

Dryer pump float switch assembly

Part #136614001

$110.09 |
10% OFF Phone Price : $122.09
In Stock
Dryer Door Hinge 136625323
#363

Door diagram

Dryer door hinge

Part #136625323

$129.89 |
8% OFF Phone Price : $141.89
In Stock
Dryer Noise Filter 808089303
#537

Cabinet/drum diagram

Dryer noise filter

Part #808089303

$174.99 |
6% OFF Phone Price : $186.99
In Stock
Dryer Door Lock 809041102
#521

Door diagram

Dryer door lock

Part #809041102

$167.19 |
7% OFF Phone Price : $179.19
In Stock
