Skil
Circular Saw

Model # 5275 TYPE 1 Official Skil 7-1/4" circular saw

Here are the diagrams and repair parts for Official Skil 5275-TYPE-1 7-1/4" circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

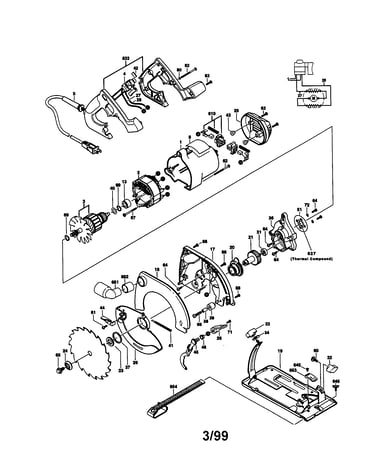

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Skil Armature 2610968412
#3

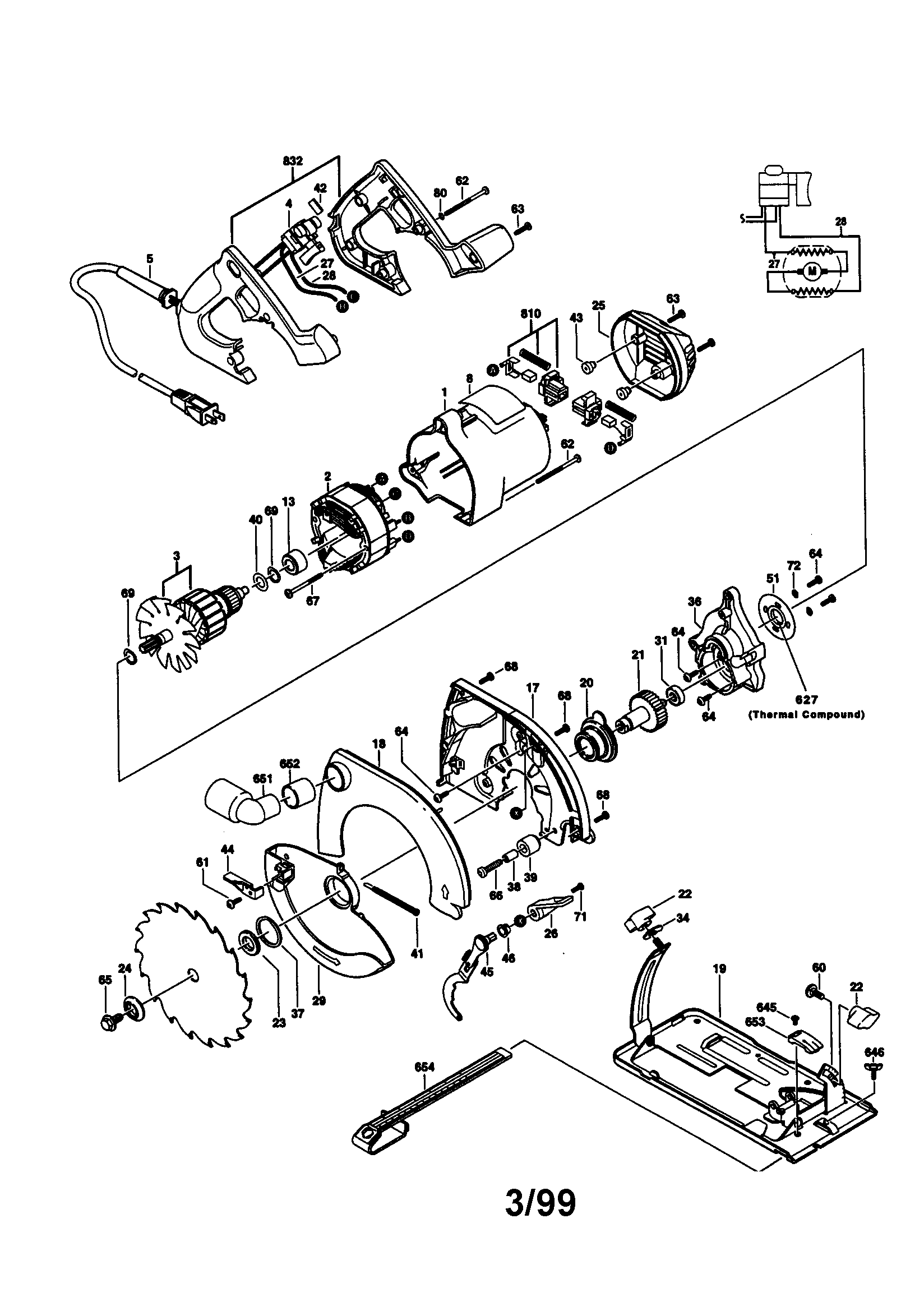

7-1/4" circular saw diagram

Skil armature

Part #2610968412

The manufacturer no longer makes this part, and there's no substitute part

Skil Screw 2610992551
#68

7-1/4" circular saw diagram

Skil screw

Part #2610992551

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 2610968438
#62

7-1/4" circular saw diagram

Bosch screw

Part #2610968438

The manufacturer no longer makes this part, and there's no substitute part

Skil Heat Sink 2610990808
#51

7-1/4" circular saw diagram

Skil heat sink

Part #2610990808

The manufacturer no longer makes this part, and there's no substitute part

Skil Screw 2610990818
#64

7-1/4" circular saw diagram

Skil screw

Part #2610990818

The manufacturer no longer makes this part, and there's no substitute part

Skil Swivel Arm 2610968418
#45

7-1/4" circular saw diagram

Skil swivel arm

Part #2610968418

The manufacturer no longer makes this part, and there's no substitute part

Skil Spacer 2610968653
#652

7-1/4" circular saw diagram

Skil spacer

Part #2610968653

The manufacturer no longer makes this part, and there's no substitute part

Skil Cover 2610968309
#25

7-1/4" circular saw diagram

Skil cover

Part #2610968309

The manufacturer no longer makes this part, and there's no substitute part

Skil Spring 2610968416
#41

7-1/4" circular saw diagram

Skil spring

Part #2610968416

The manufacturer no longer makes this part, and there's no substitute part

Skil Nameplate 2610968440
#8

7-1/4" circular saw diagram

Skil nameplate

Part #2610968440

The manufacturer no longer makes this part, and there's no substitute part
