Craftsman
Drill/Driver

Model # 315279940 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315279940 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

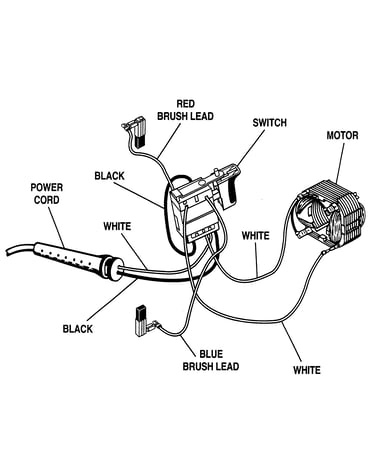

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Field Assembly 982554-001
#20

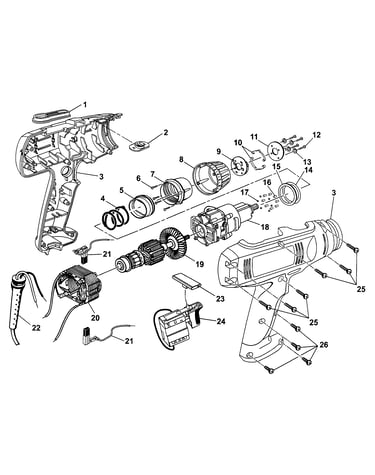

Motor/gear diagram

Field assembly

Part #982554-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 2305604
#19

Motor/gear diagram

Armature

Part #2305604

The manufacturer no longer makes this part, and there's no substitute part

Holder 981925-001
#9

Motor/gear diagram

Holder

Part #981925-001

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 981929-001
#5

Motor/gear diagram

Sleeve

Part #981929-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 982508-001
#5

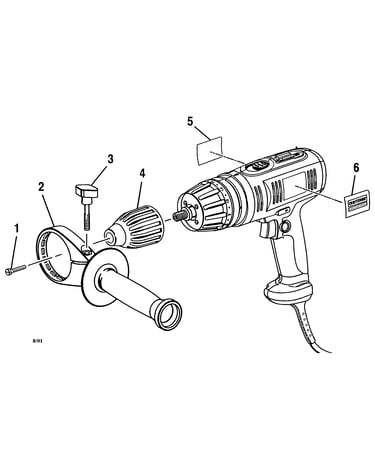

Housing diagram

Data plate

Part #982508-001

The manufacturer no longer makes this part, and there's no substitute part

Bit Holder 5660201
#1

Motor/gear diagram

Bit holder

Part #5660201

The manufacturer no longer makes this part, and there's no substitute part

Washer 6360001
#14

Motor/gear diagram

Washer

Part #6360001

The manufacturer no longer makes this part, and there's no substitute part

Plate 981924-001
#11

Motor/gear diagram

Plate

Part #981924-001

The manufacturer no longer makes this part, and there's no substitute part

Gear Train 2200901
#18

Motor/gear diagram

Gear train

Part #2200901

The manufacturer no longer makes this part, and there's no substitute part

Handle 981839-001
#2

Housing diagram

Handle

Part #981839-001

The manufacturer no longer makes this part, and there's no substitute part
