Frigidaire
Top-Mount Refrigerator

Model # FRT21PRHB3 Official Frigidaire refrigerator - p5995329777

Here are the diagrams and repair parts for Official Frigidaire FRT21PRHB3 refrigerator - p5995329777, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

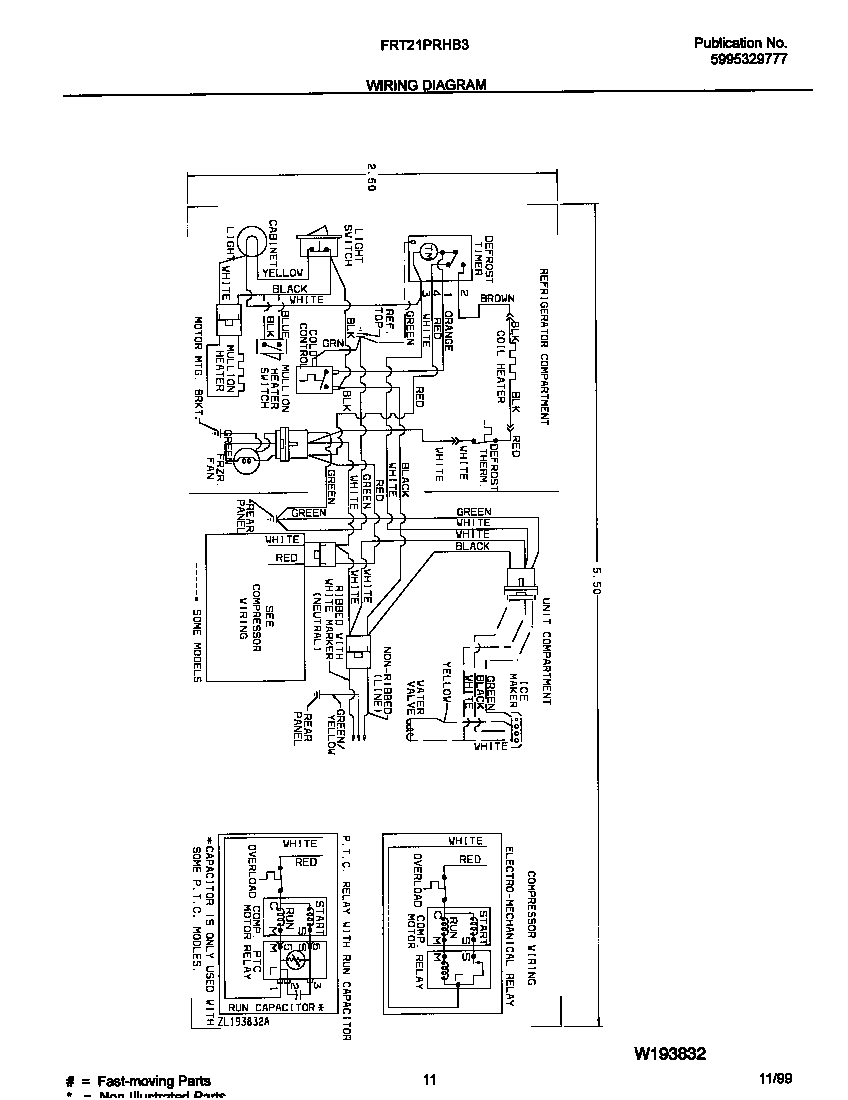

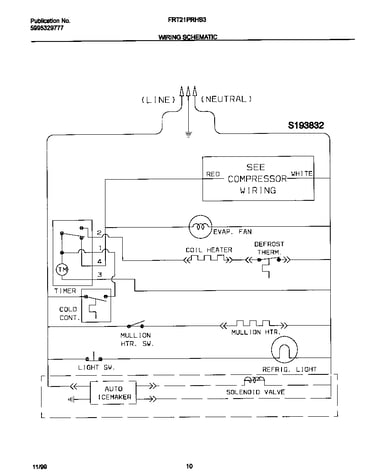

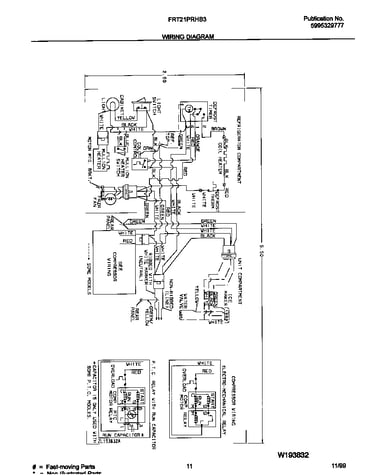

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Refrigerator Filter Drier 218944001
#4

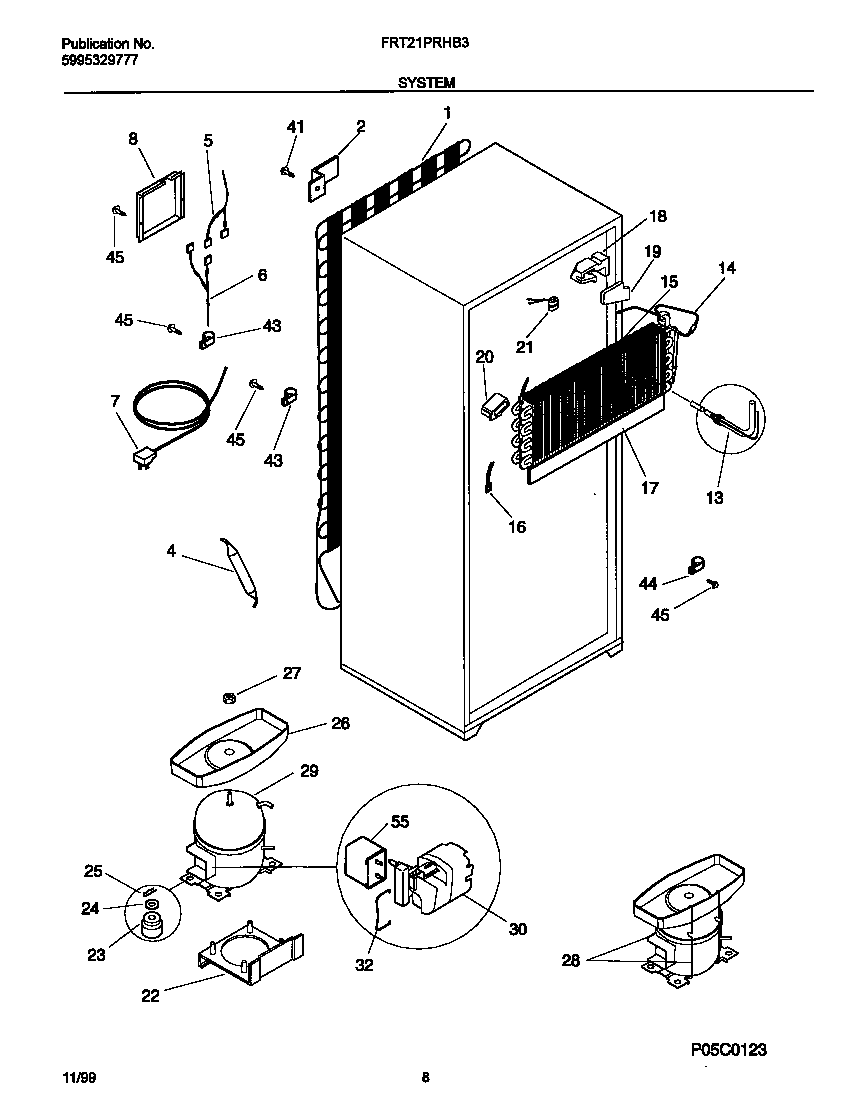

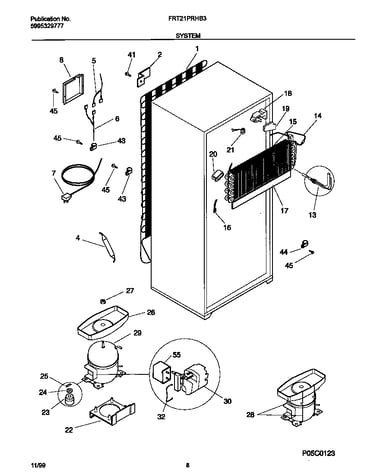

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

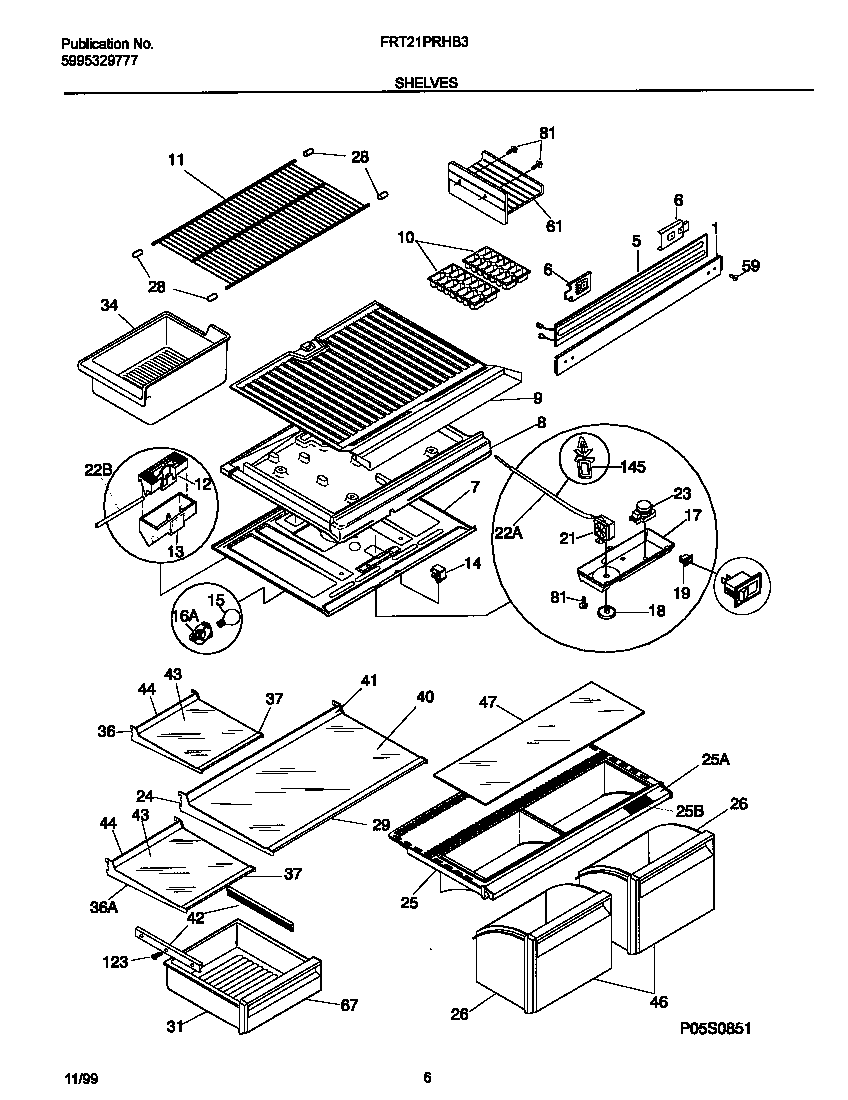

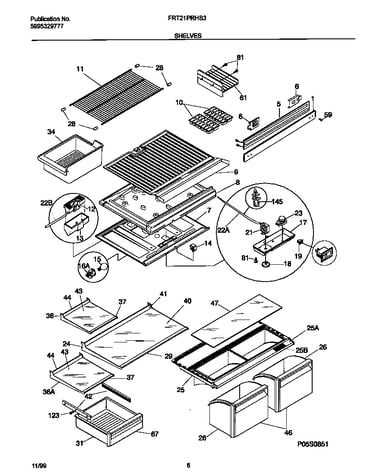

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Thermostat 218969901
#21

System diagram

Thermostat

Part #218969901

Replaced by #297216600

?
Manufacturer substitution
This part replaces 218969901. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Refrigerator Timer 215846606
#23

Shelves diagram

Refrigerator timer

Part #215846606

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215846606. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Light Socket 218906801
#16

Shelves diagram

Refrigerator light socket

Part #218906801

Replaced by #218906802

?
Manufacturer substitution
This part replaces 218906801. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Refrigerator Evaporator Fan Mounting Bracket Screw 5308016566
Refrigerator evaporator fan mounting bracket screw

Part #5308016566

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 5308016566. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Refrigerator Cabinet Hole Plug (replaces 75303208309) 5303208309
#11

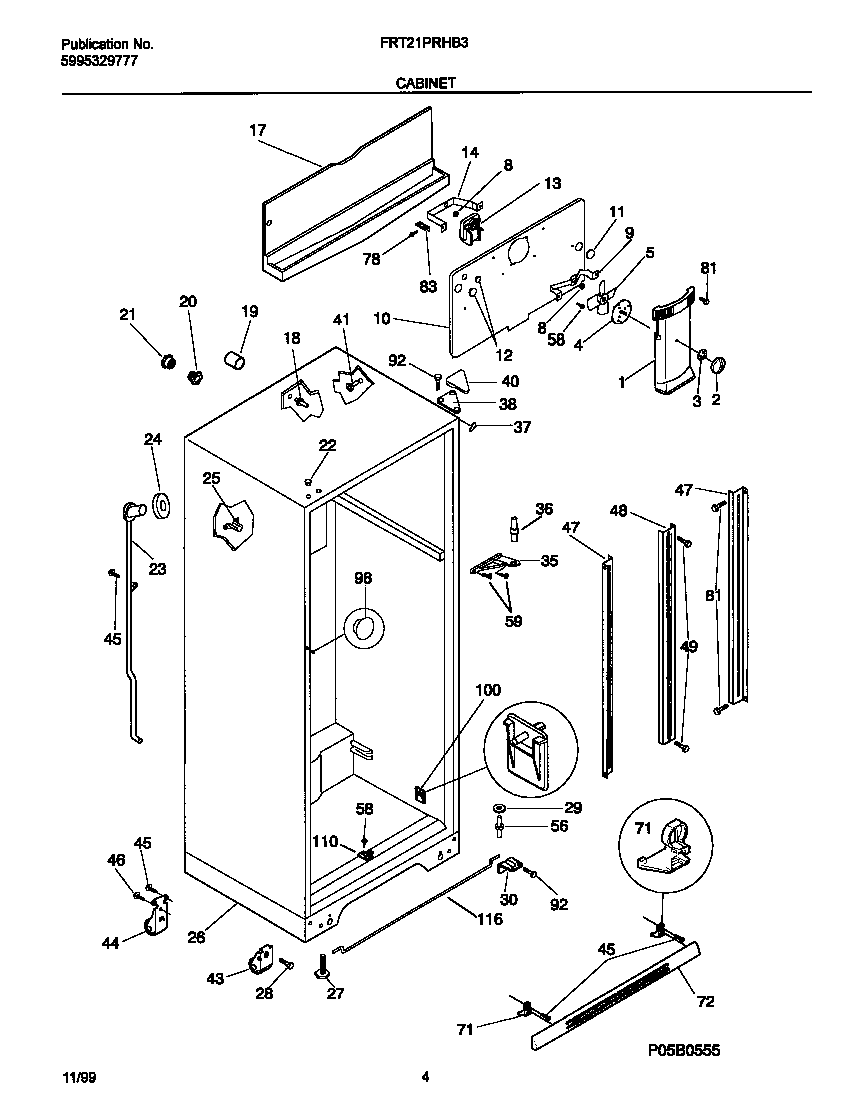

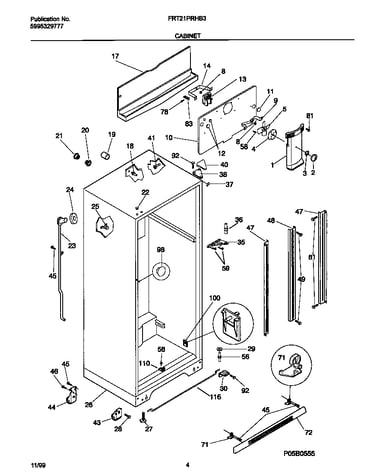

Cabinet diagram

Refrigerator cabinet hole plug (replaces 75303208309)

Part #5303208309

$34.59 |
15% OFF Phone Price : $40.59
In Stock
Refrigerator Door Bin Support 218809701
#5

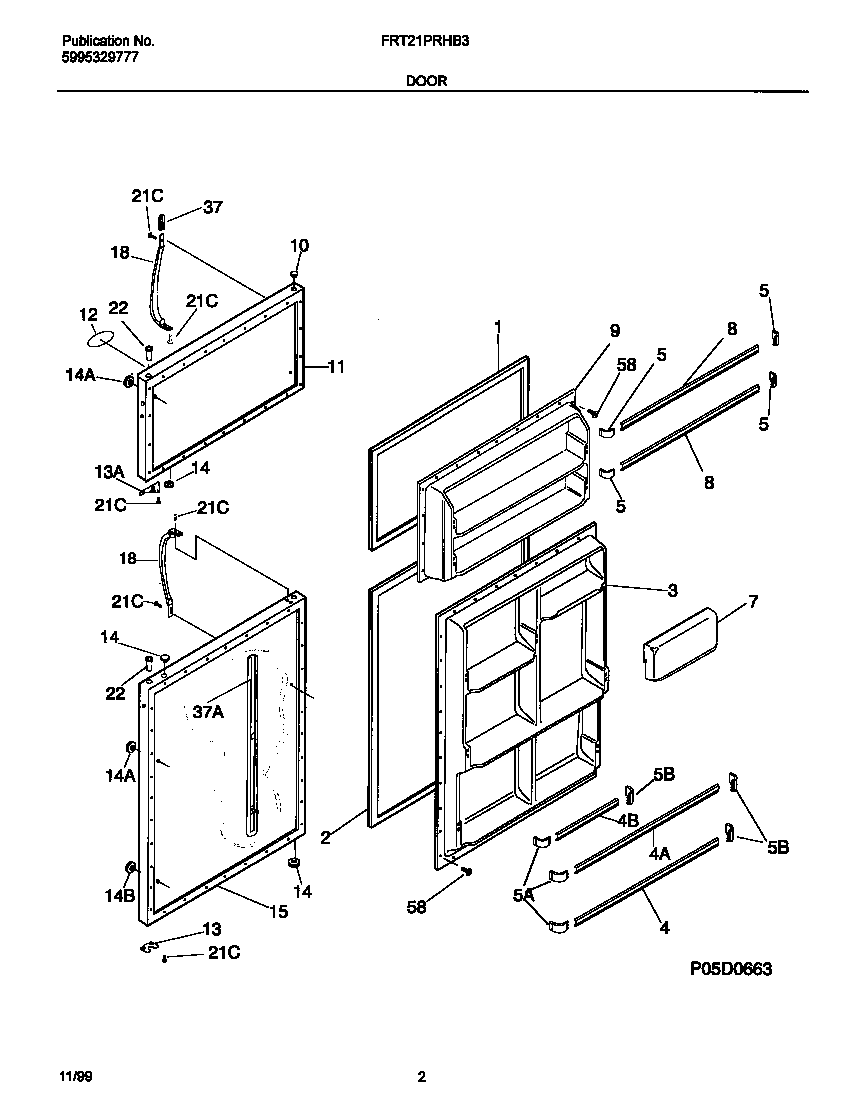

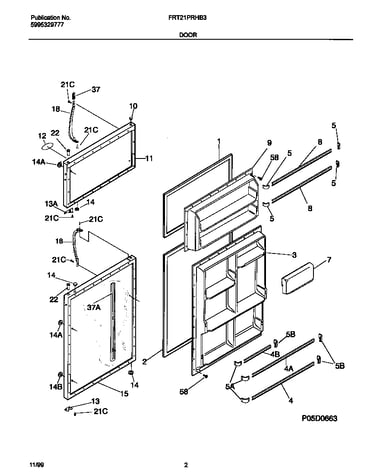

Doors diagram

Refrigerator door bin support

Part #218809701

$35.74 |
14% OFF Phone Price : $41.74
In Stock
Refrigerator Door Rack 218763644
#4

Doors diagram

Refrigerator door rack

Part #218763644

Replaced by #215516220

?
Manufacturer substitution
This part replaces 218763644. Substitute parts can look different from the original.
$39.02 |
13% OFF Phone Price : $45.02
In Stock
Pan Hanger 5304404463
#42B

Shelves diagram

Pan hanger

Part #5304404463

Replaced by #218971302

?
Manufacturer substitution
This part replaces 5304404463. Substitute parts can look different from the original.
$60.09 |
9% OFF Phone Price : $66.09
In Stock
