Model # MQU2056ARW Official Maytag upright freezer

Here are the diagrams and repair parts for Official Maytag MQU2056ARW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

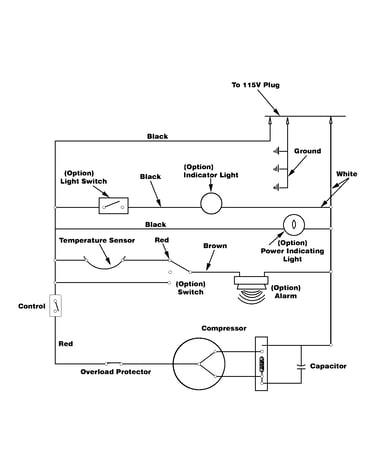

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

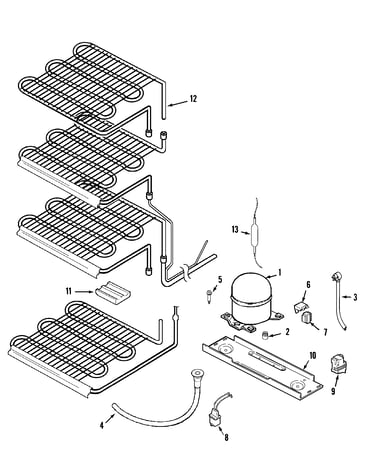

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 68001324
#5

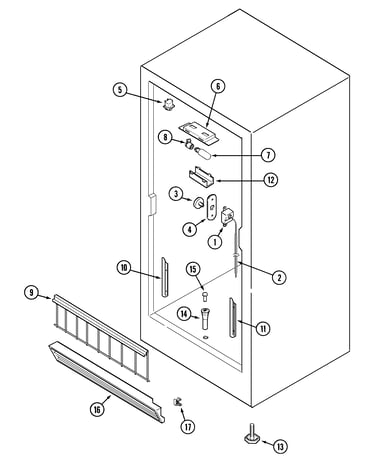

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Compressor 68001494
#1

Unit compartment & system diagram

Compressor

Part #68001494

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 68001494. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Screw (1 1/4 68001196
#12B

Unit compartment & system diagram

Screw (1 1/4

Part #68001196

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Sleeve Control 68001604
#2

Freezer compartment diagram

Sleeve control

Part #68001604

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 68001604. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Screw 68001474
#17A

Freezer compartment diagram

Screw

Part #68001474

Replaced by #WP489464

?
Manufacturer substitution
This part replaces 68001474. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Support, Fen 68001067
#10

Freezer compartment diagram

Support, fen

Part #68001067

Replaced by #4-80576-202

?
Manufacturer substitution
This part replaces 68001067. Substitute parts can look different from the original.
This item is not returnable
$16.15 |
11% OFF Phone Price : $18.15
In Stock
Nameplate (m 68001606
#19

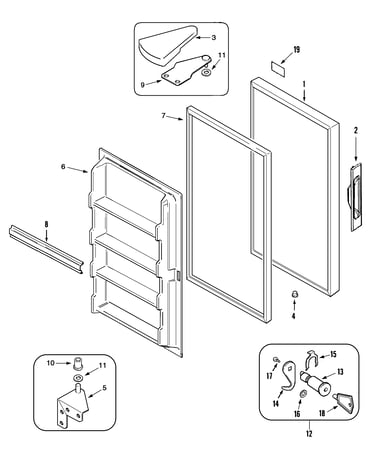

Door diagram

Nameplate (m

Part #68001606

$20.96
In Stock
Heat Evaporator 68001497
#12

Unit compartment & system diagram

Heat evaporator

Part #68001497

This item is not returnable
$177.13
In Stock
Clip 045520-01
#17

Freezer compartment diagram

Clip

Part #045520-01

Replaced by #1-80247-101

?
Manufacturer substitution
This part replaces 045520-01. Substitute parts can look different from the original.
$8.22 |
11% OFF Phone Price : $9.22
In Stock
