KitchenAid
Top-Mount Refrigerator

Model # KTRS19KFWH00 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KTRS19KFWH00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

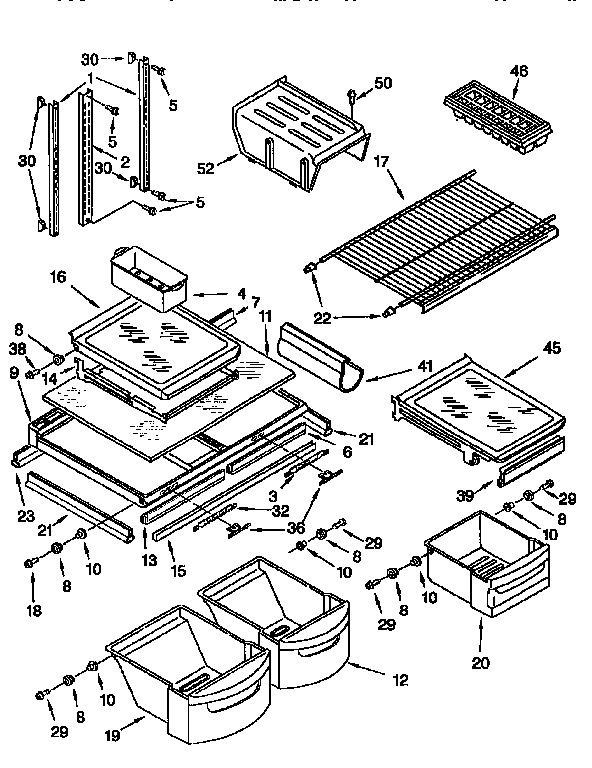

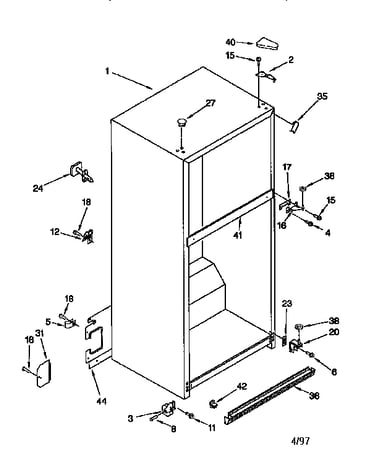

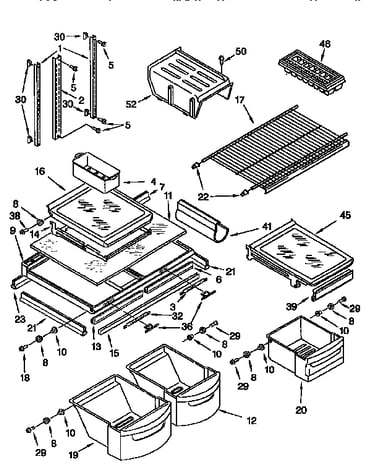

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Light Bulb 527949
#17

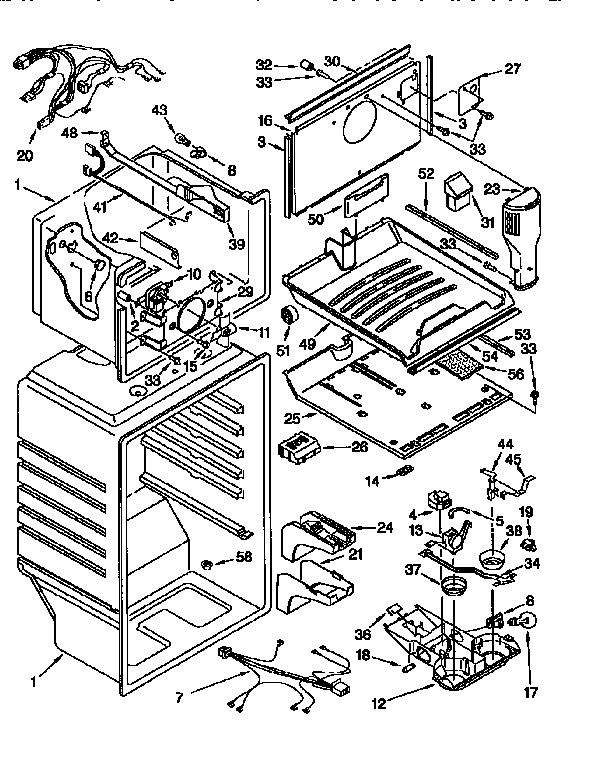

Liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Defrost Timer 2193084
#4

Liner diagram

Refrigerator defrost timer

Part #2193084

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2193084. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
18% OFF Phone Price : $33.82
In Stock
Refrigerator Defrost Bi-metal 2182380
#2

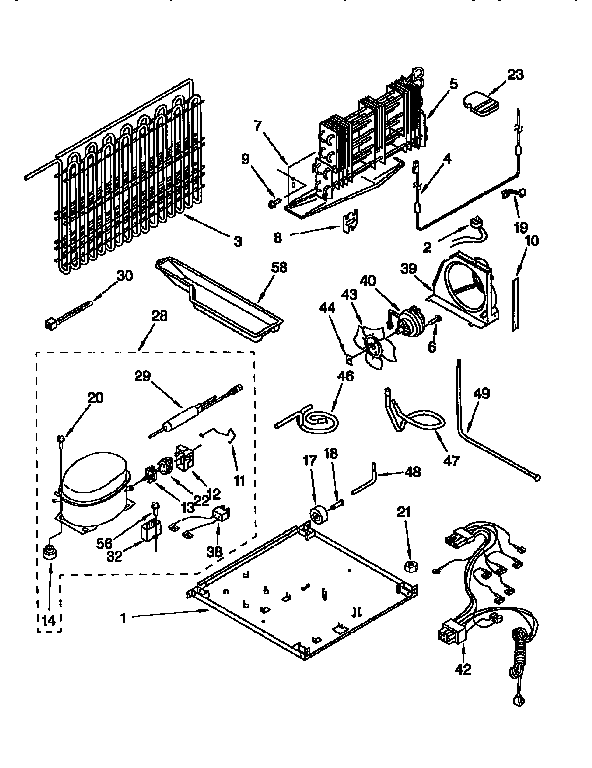

Unit diagram

Refrigerator defrost bi-metal

Part #2182380

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2182380. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

Liner diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Refrigerator Compressor 2176660
#28

Unit diagram

Refrigerator compressor

Part #2176660

Replaced by #W10823815

?
Manufacturer substitution
This part replaces 2176660. Substitute parts can look different from the original.
BEST SELLER
$364.37 |
$12.00 OFF Phone Price : $376.37
In Stock
Screw 487909
#17

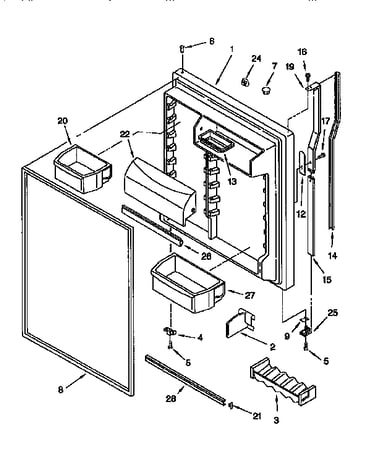

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764

#NI

All parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Spray Paint (white) 350930

#NI

All parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
