Frigidaire
Countertop Microwave

Model # FMT117U1B0 Official Frigidaire microwave - 95264214

Here are the diagrams and repair parts for Official Frigidaire FMT117U1B0 microwave - 95264214, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

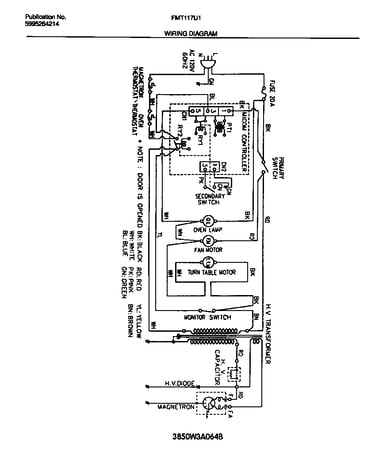

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Screw 5303307907
#20

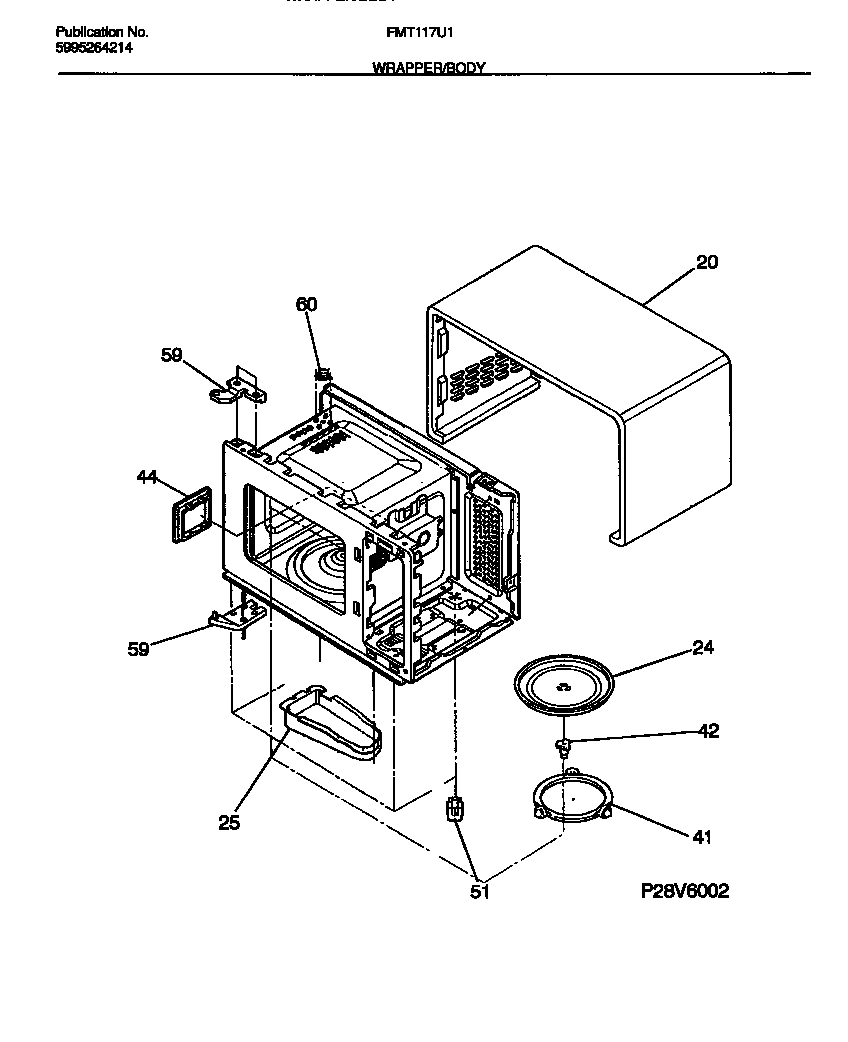

Wrapper/body diagram

Screw

Part #5303307907

This item is not returnable
In Stock
Thermostat 5303305363
#60

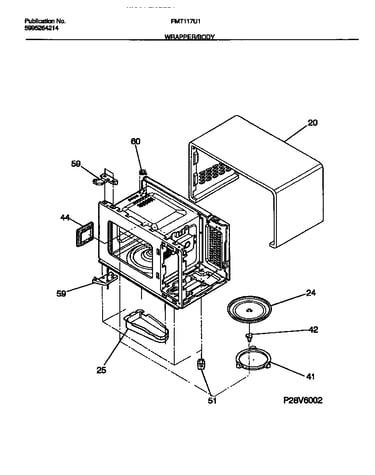

Wrapper/body diagram

Thermostat

Part #5303305363

In Stock
Door Cover 5303308326
#10

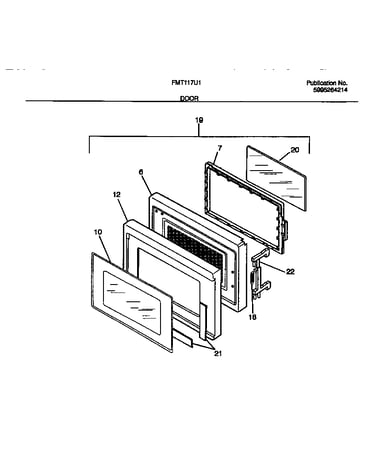

Door diagram

Door cover

Part #5303308326

In Stock
Spring 5303307952
#11

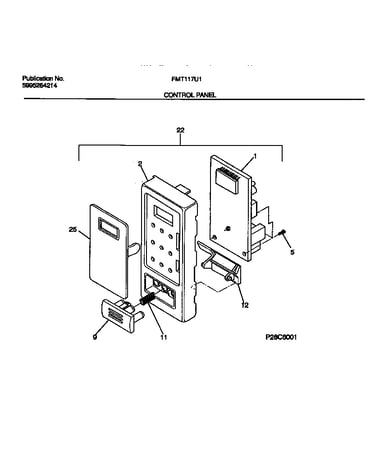

Control panel diagram

Spring

Part #5303307952

This item is not returnable
In Stock
Double Tape 5303307946
#21

Door diagram

Double tape

Part #5303307946

This item is not returnable
In Stock
Complete Door 5303308323
#19

Door diagram

Complete door

Part #5303308323

In Stock
Screw 5303305360
#82B

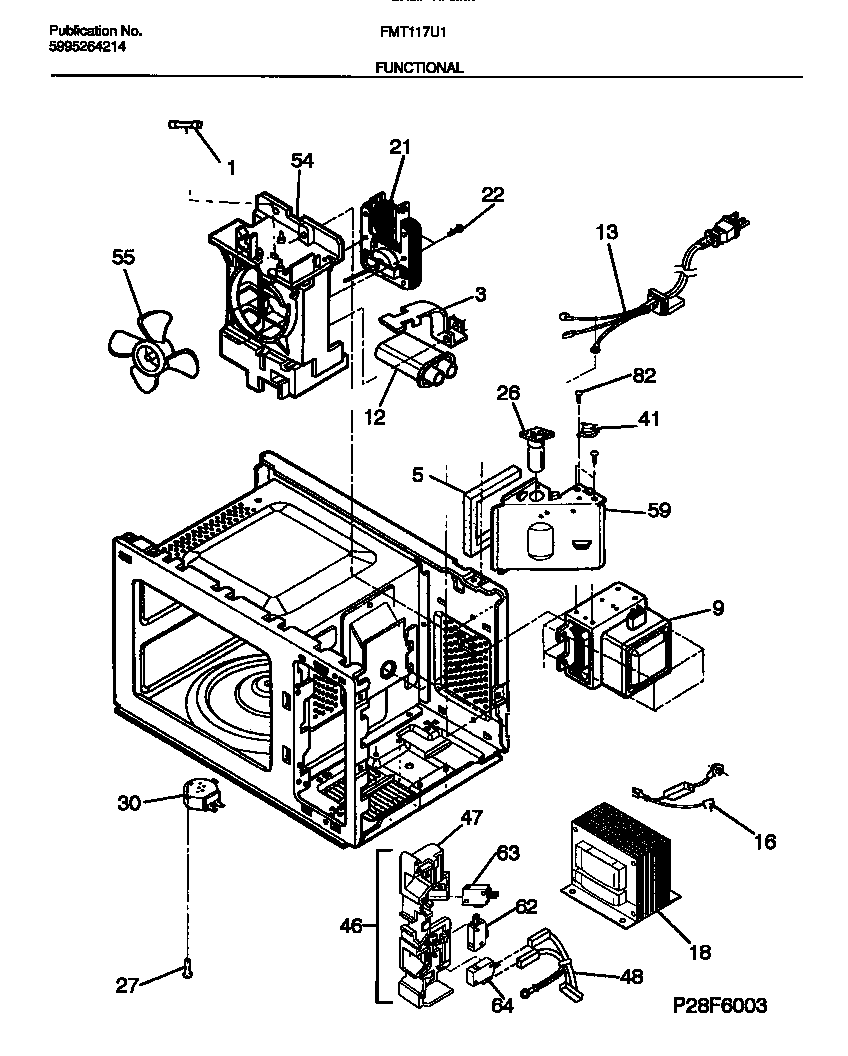

Functional diagram

Screw

Part #5303305360

This item is not returnable
In Stock
Screw 5303305373
#27

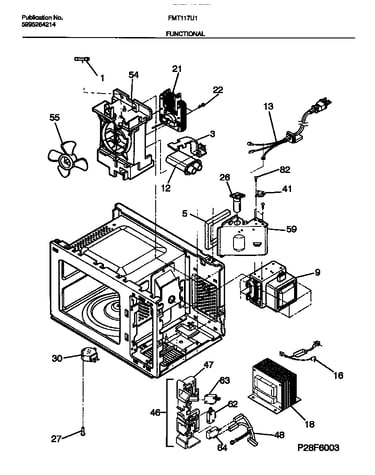

Functional diagram

Screw

Part #5303305373

This item is not returnable
In Stock
Spring 5303305352
#18

Door diagram

Spring

Part #5303305352

This item is not returnable
In Stock
Door Latch 5303305351
#22

Door diagram

Door latch

Part #5303305351

This item is not returnable
In Stock
