Bosch
Dishwasher

Model # SHX33A05UC/40 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHX33A05UC-40 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

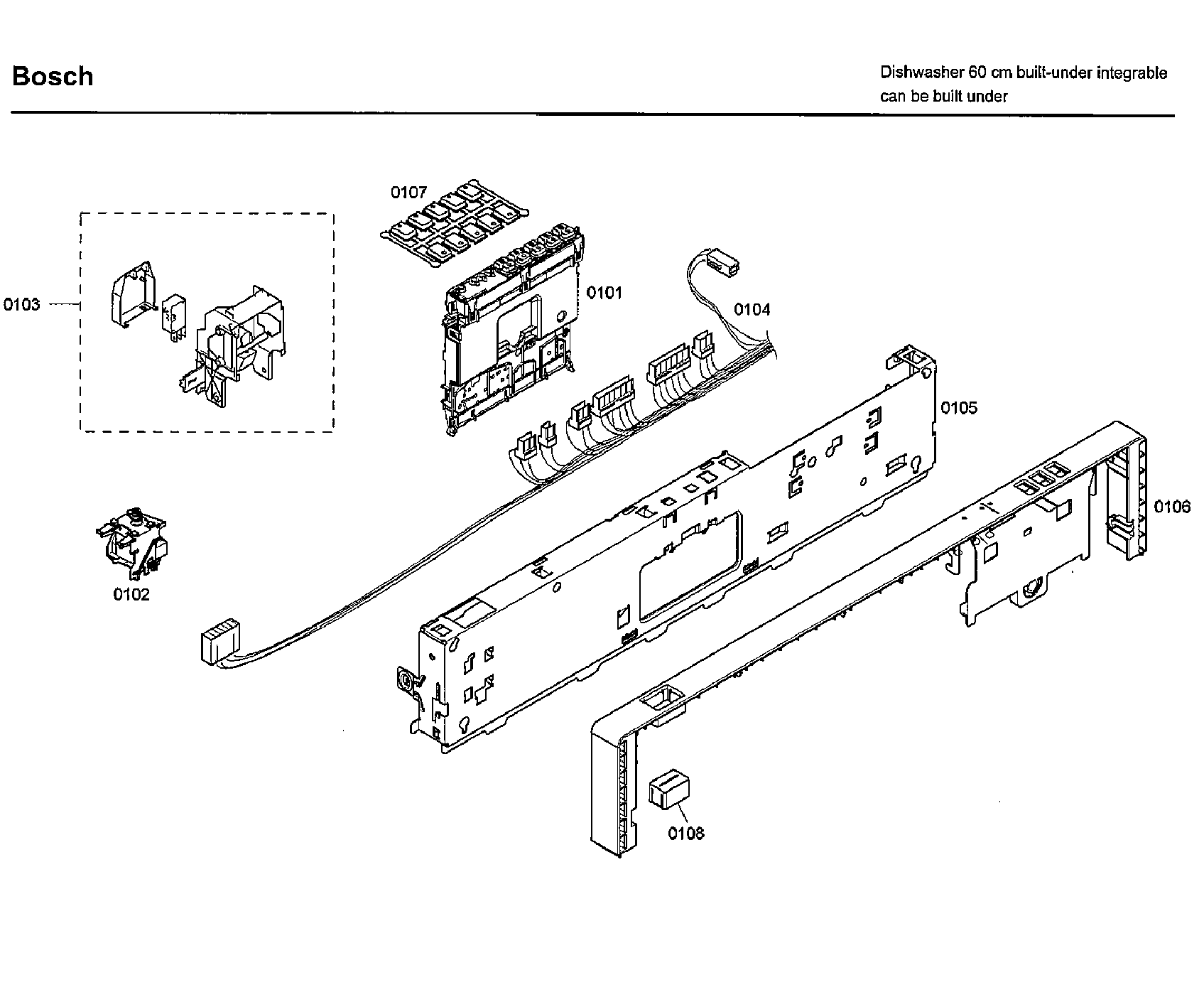

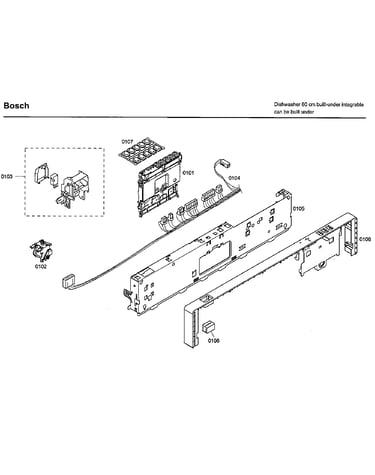

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Dishwasher Door Seal (replaces 494772) 00494772
#307

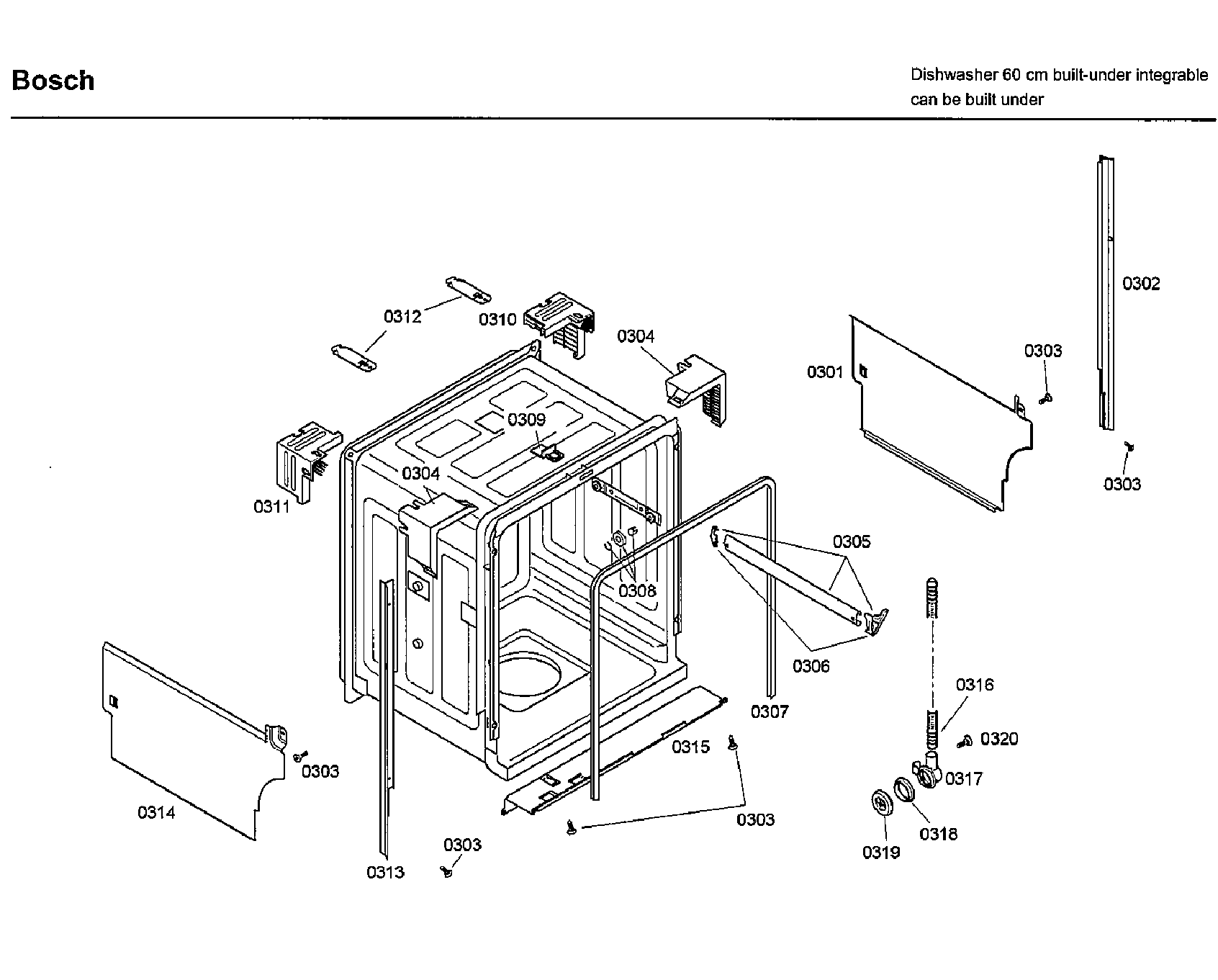

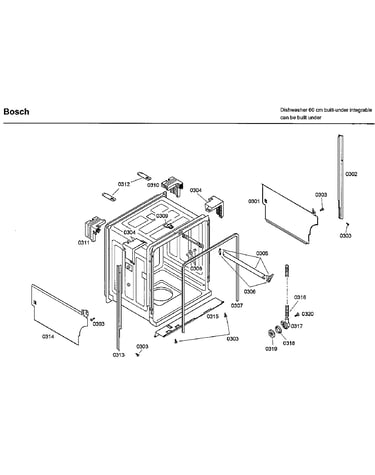

Tub diagram

Dishwasher door seal (replaces 494772)

Part #00494772

BEST SELLER
$31.53 |
16% OFF Phone Price : $37.53
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#410

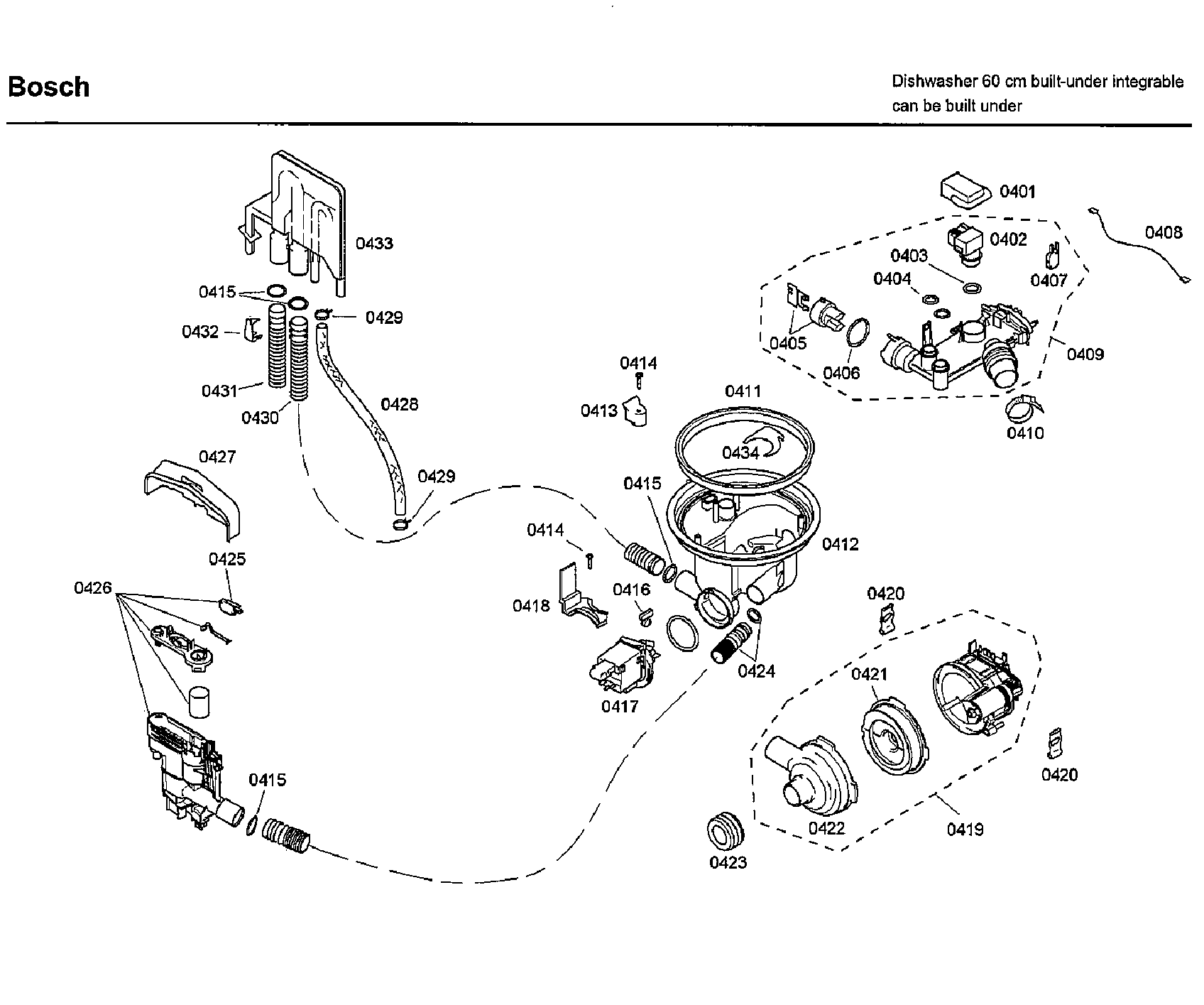

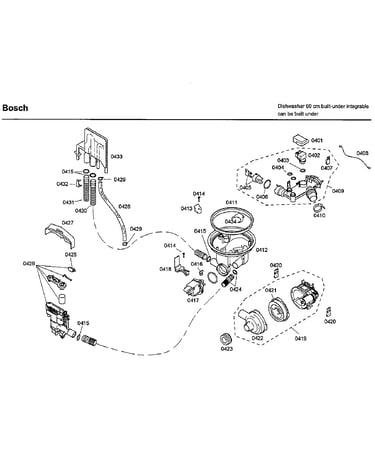

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Water Inlet Valve (replaces 00167081, 00189533, 00580009, 425458) 00425458
#520

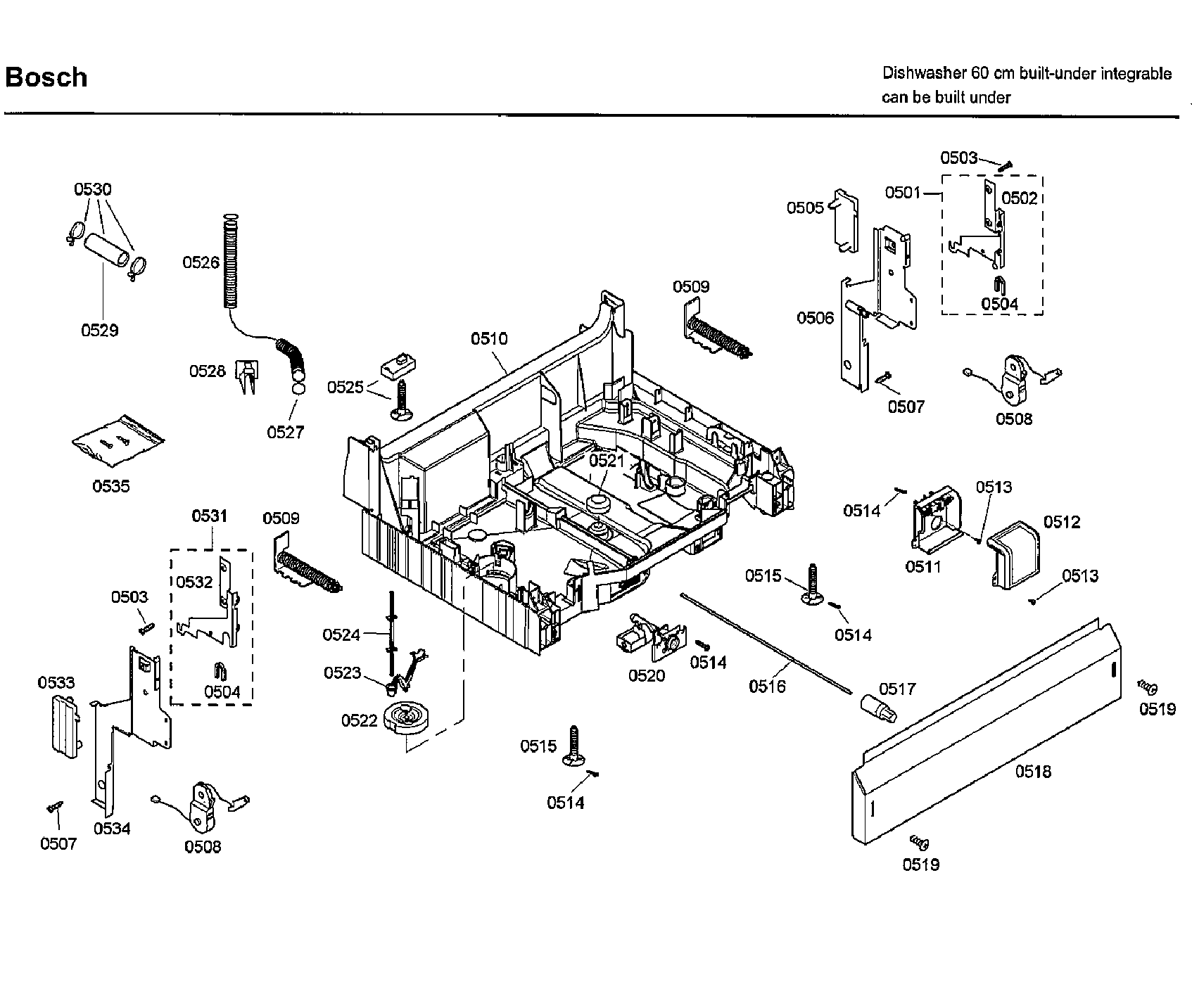

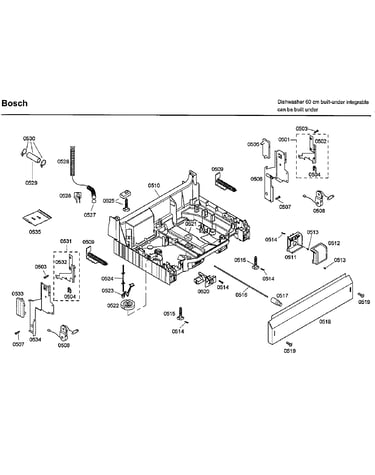

Base diagram

Dishwasher water inlet valve (replaces 00167081, 00189533, 00580009, 425458)

Part #00425458

BEST SELLER
$61.28 |
9% OFF Phone Price : $67.28
Back Order
Dispenser 00490472
#210

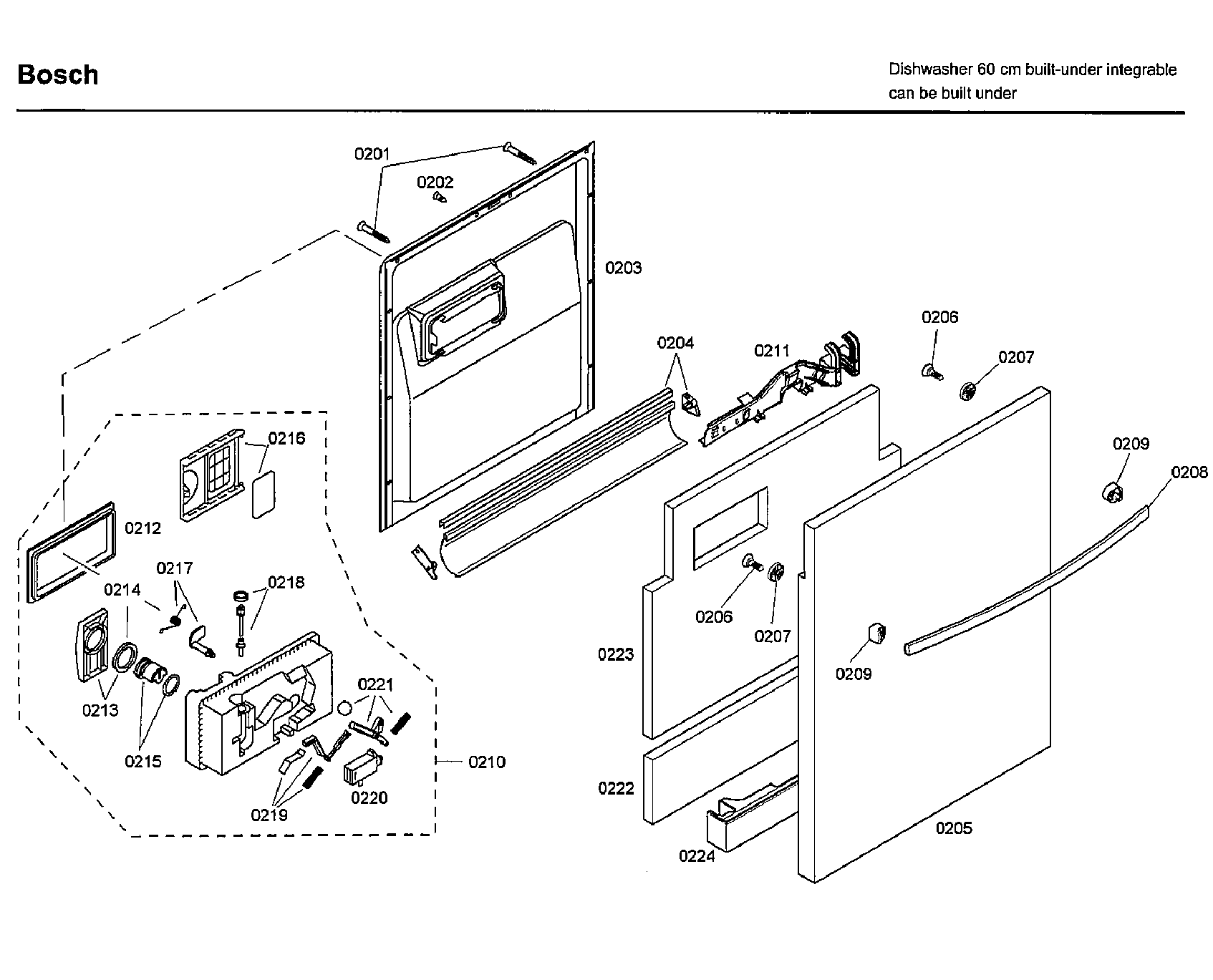

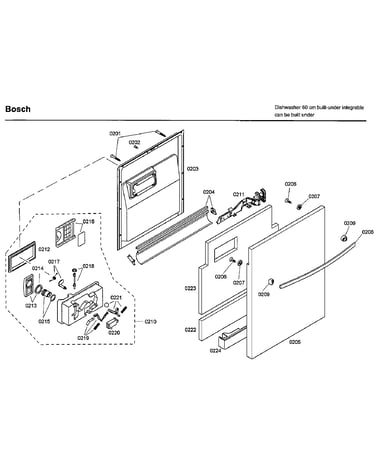

Door diagram

Dispenser

Part #00490472

Replaced by #00490467

?
Manufacturer substitution
This part replaces 00490472. Substitute parts can look different from the original.
BEST SELLER
$145.43 |
8% OFF Phone Price : $157.43
In Stock
Dishwasher Door Seal, Lower (replaces 00500038, 432490) 00432490
#204

Door diagram

Dishwasher door seal, lower (replaces 00500038, 432490)

Part #00432490

BEST SELLER
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Dishwasher Heating Element (replaces 00480316, 480317) 00480317
#409

Pump diagram

Dishwasher heating element (replaces 00480316, 480317)

Part #00480317

BEST SELLER
$260.67 |
$12.00 OFF Phone Price : $272.67
In Stock
Dishwasher Circulation Pump Gasket (replaces 171598) 00171598
#423

Pump diagram

Dishwasher circulation pump gasket (replaces 171598)

Part #00171598

BEST SELLER
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Crockery 00434647
#614

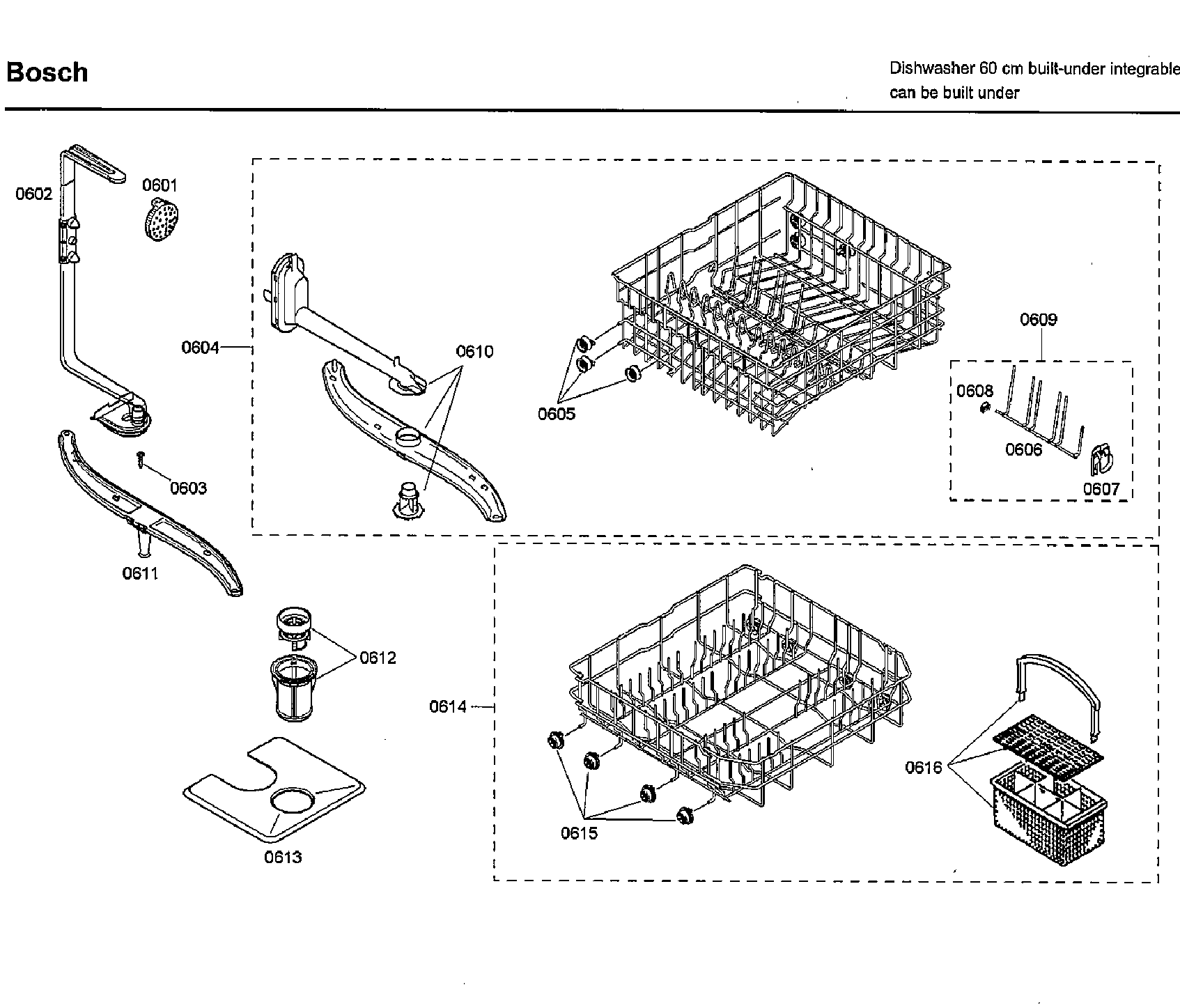

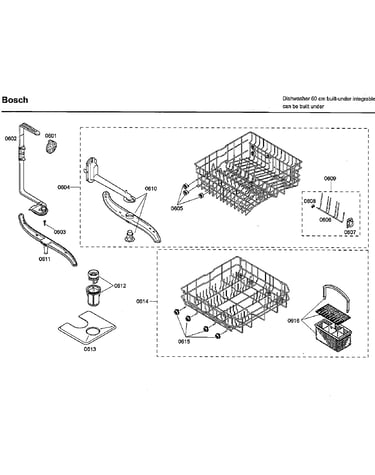

Baskets diagram

Crockery

Part #00434647

Replaced by #00249276

?
Manufacturer substitution
This part replaces 00434647. Substitute parts can look different from the original.
$278.54 |
$12.00 OFF Phone Price : $290.54
Back Order
Mounting Bracket 00605007
#312

Tub diagram

Mounting bracket

Part #00605007

Replaced by #00619985

?
Manufacturer substitution
This part replaces 00605007. Substitute parts can look different from the original.
$13.89 |
13% OFF Phone Price : $15.89
In Stock
Dishwasher Dishrack Roller (replaces 00420198, 165314) 00165314
#615

Baskets diagram

Dishwasher dishrack roller (replaces 00420198, 165314)

Part #00165314

$11.49 |
15% OFF Phone Price : $13.49
In Stock
