Model # AJHS08ASAM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AJHS08ASAM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
J-line Contr 49-7397
#9999

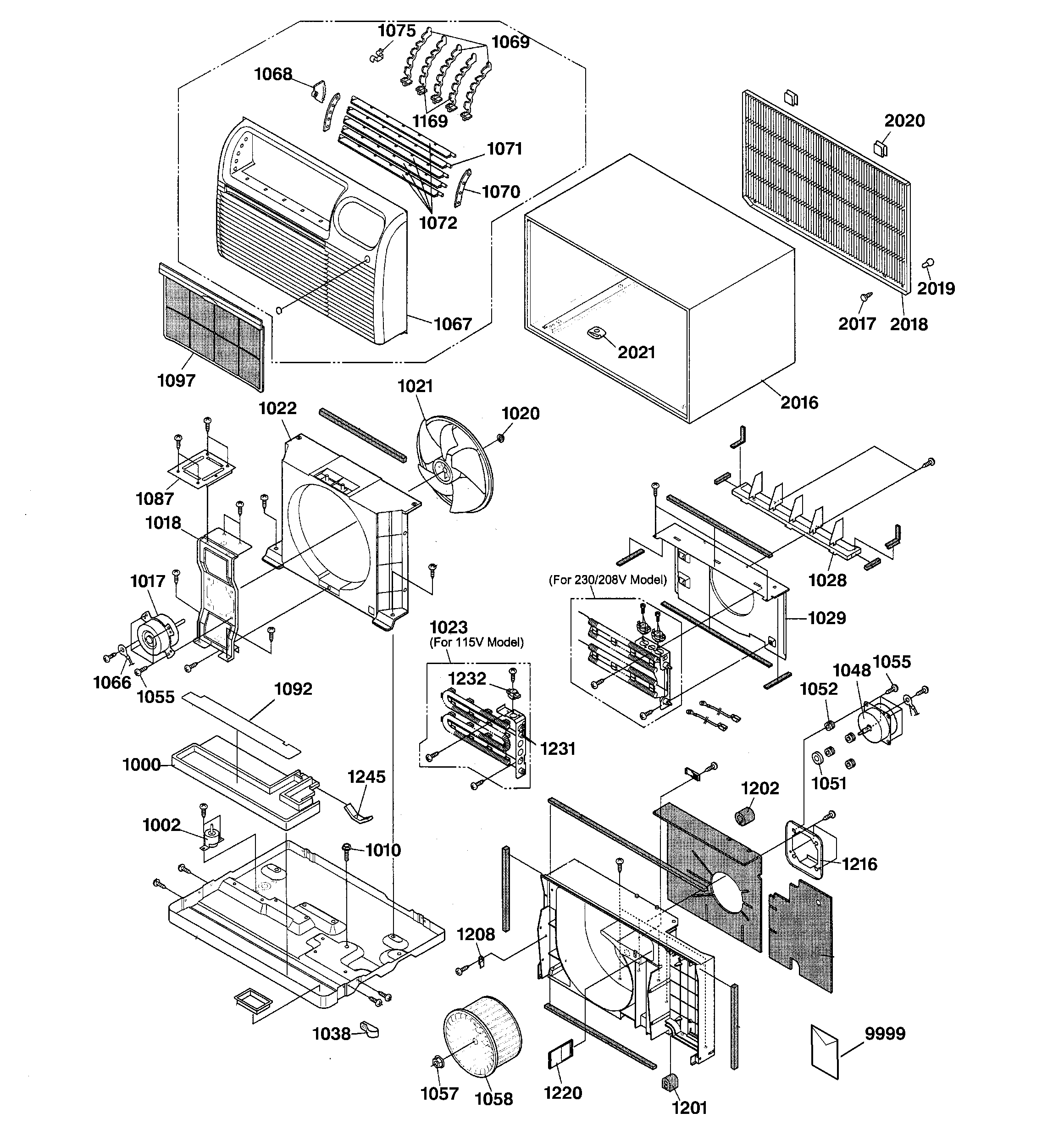

Cabinet & components diagram

J-line contr

Part #49-7397

$8.49
In Stock
Louver Holder WJ01X10142
#1169

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
Complete Cushion WJ01X10002
#1084

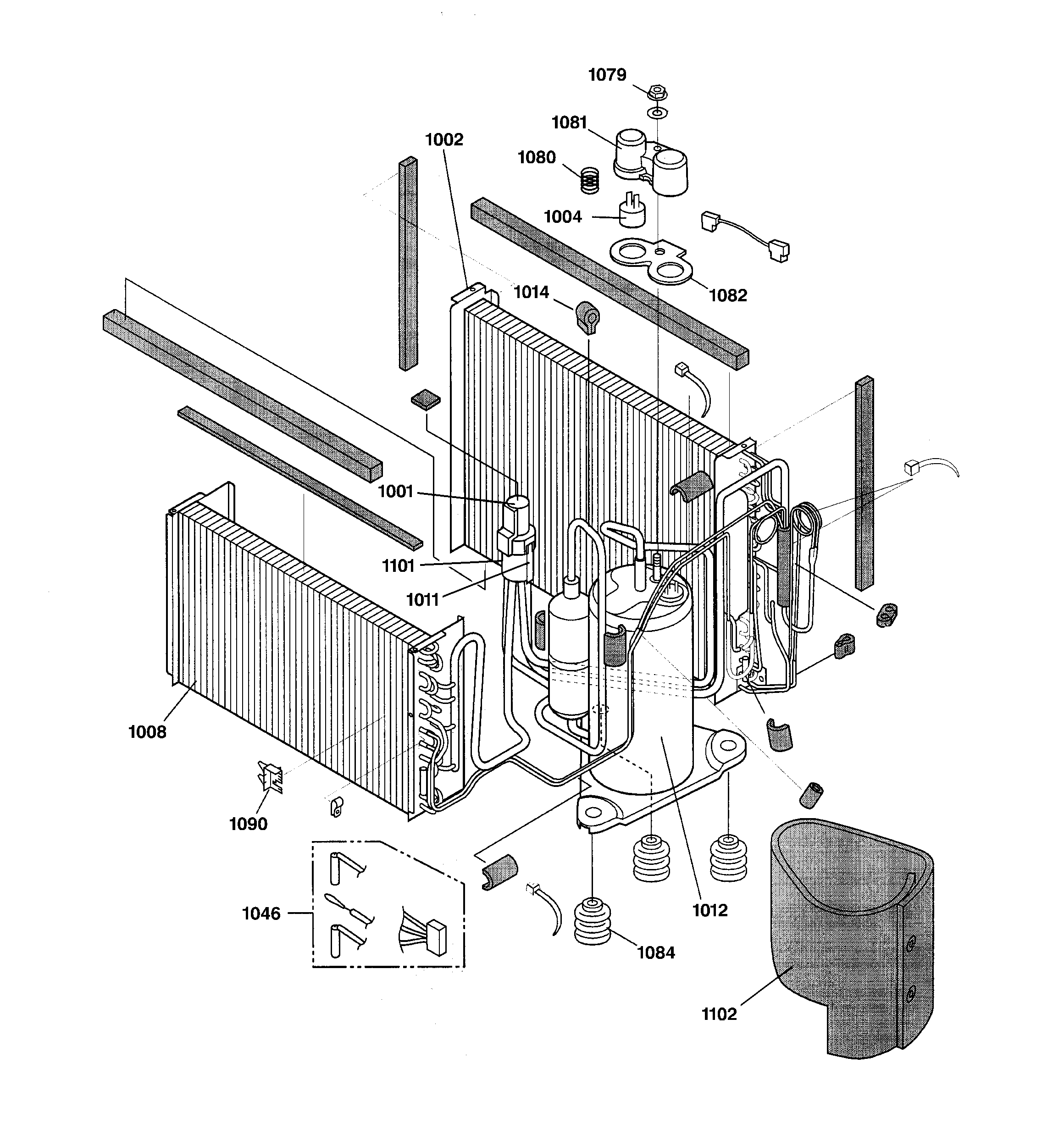

Sealed system components diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Room Air Conditioner Fan Blade Nut WJ01X10041
#1020

Cabinet & components diagram

Room air conditioner fan blade nut

Part #WJ01X10041

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
J Models Ret 49-7398
#9999

Cabinet & components diagram

J models ret

Part #49-7398

$8.49
In Stock
Room Air Conditioner Indoor Fan Motor Cushion WJ01X10034
#1052

Cabinet & components diagram

Room air conditioner indoor fan motor cushion

Part #WJ01X10034

The manufacturer no longer makes this part, and there's no substitute part

Side Angle L WJ66X10041
#2007

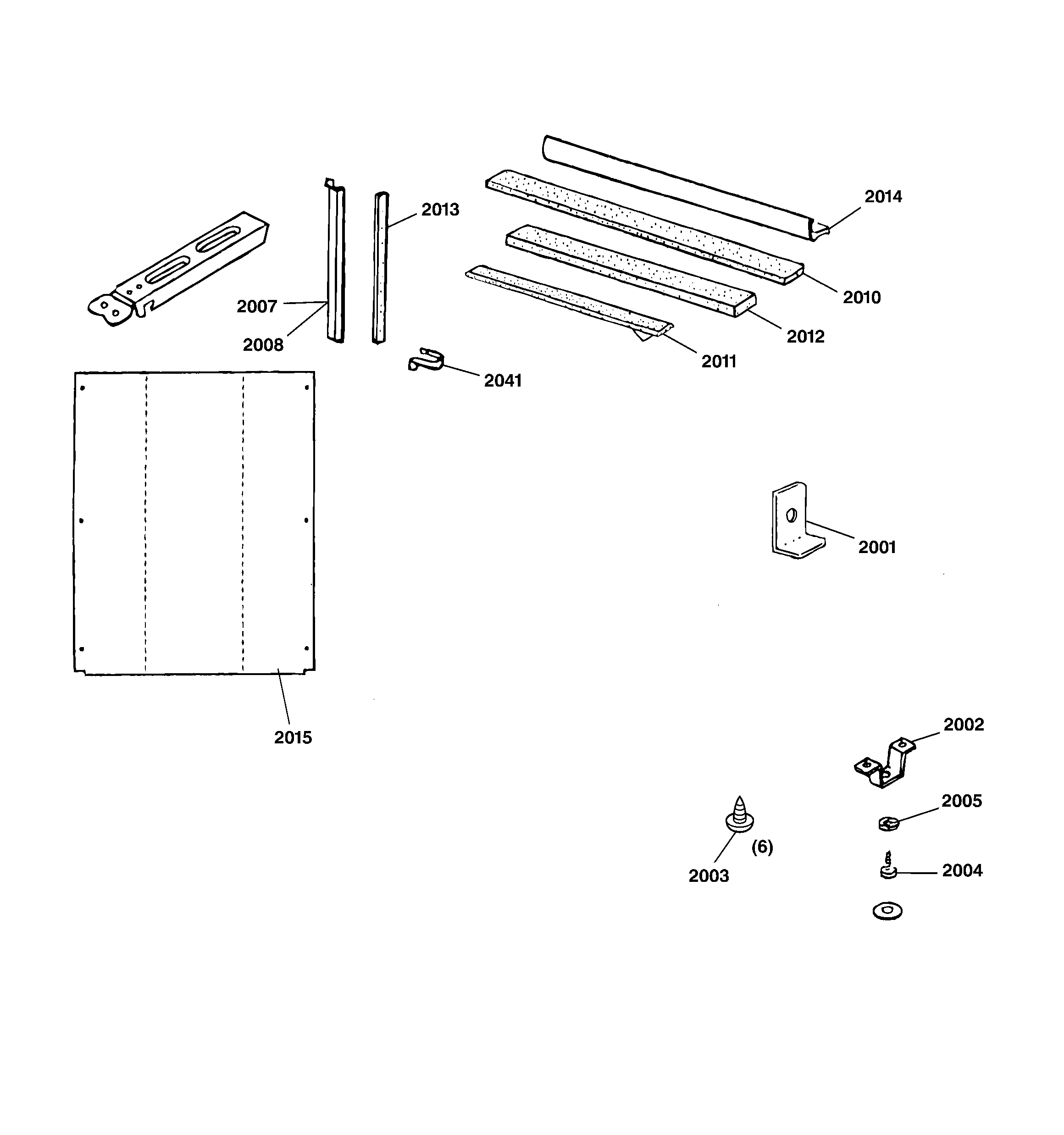

Mounting parts & frame diagram

Side angle l

Part #WJ66X10041

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual 31-60654
#9999

Cabinet & components diagram

Mini manual

Part #31-60654

The manufacturer no longer makes this part, and there's no substitute part

Power Supply WJ35X10008
#1042

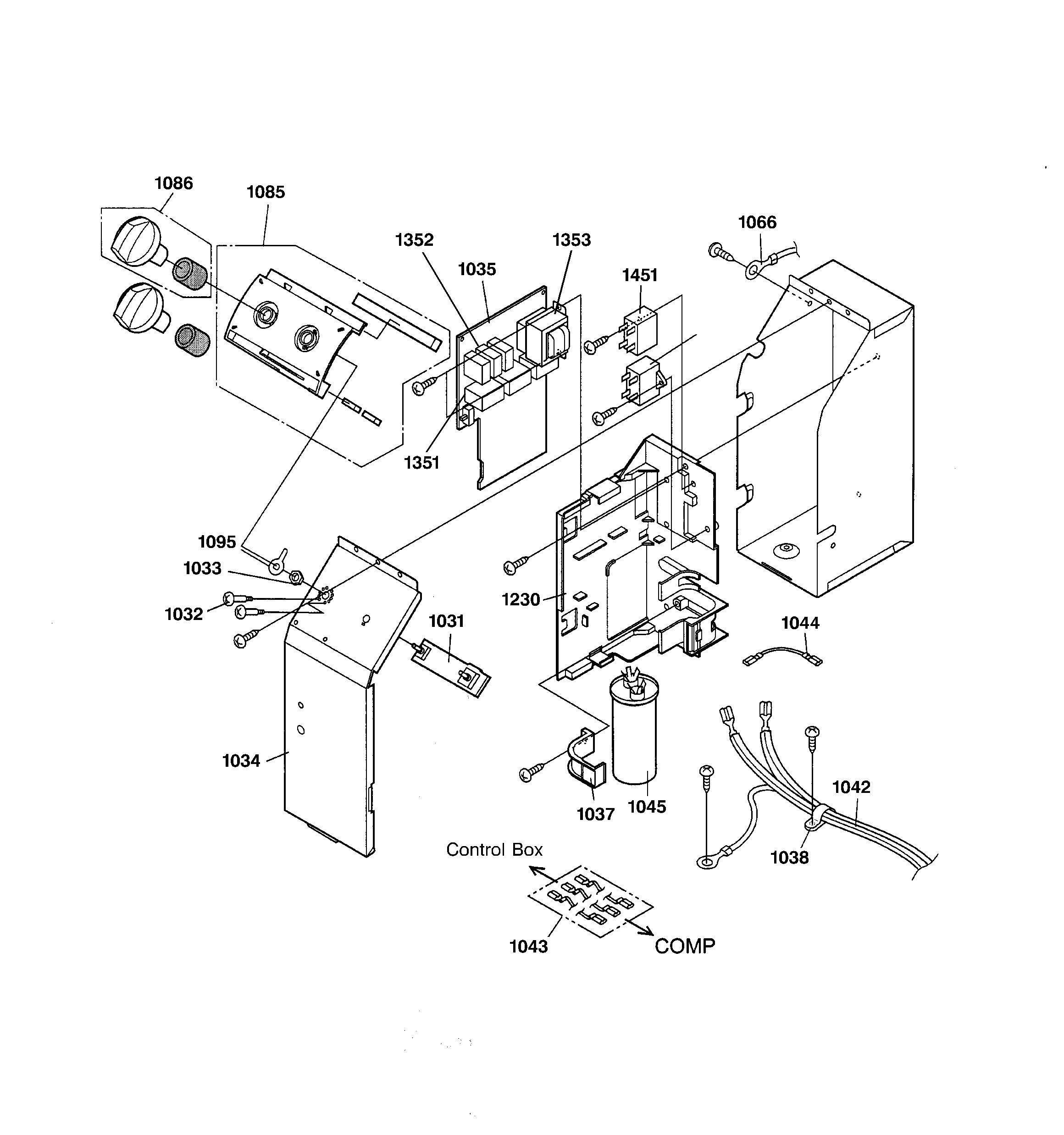

Control parts diagram

Power supply

Part #WJ35X10008

The manufacturer no longer makes this part, and there's no substitute part
