Model # PB900TP1WW Official GE electric range

Here are the diagrams and repair parts for Official GE PB900TP1WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

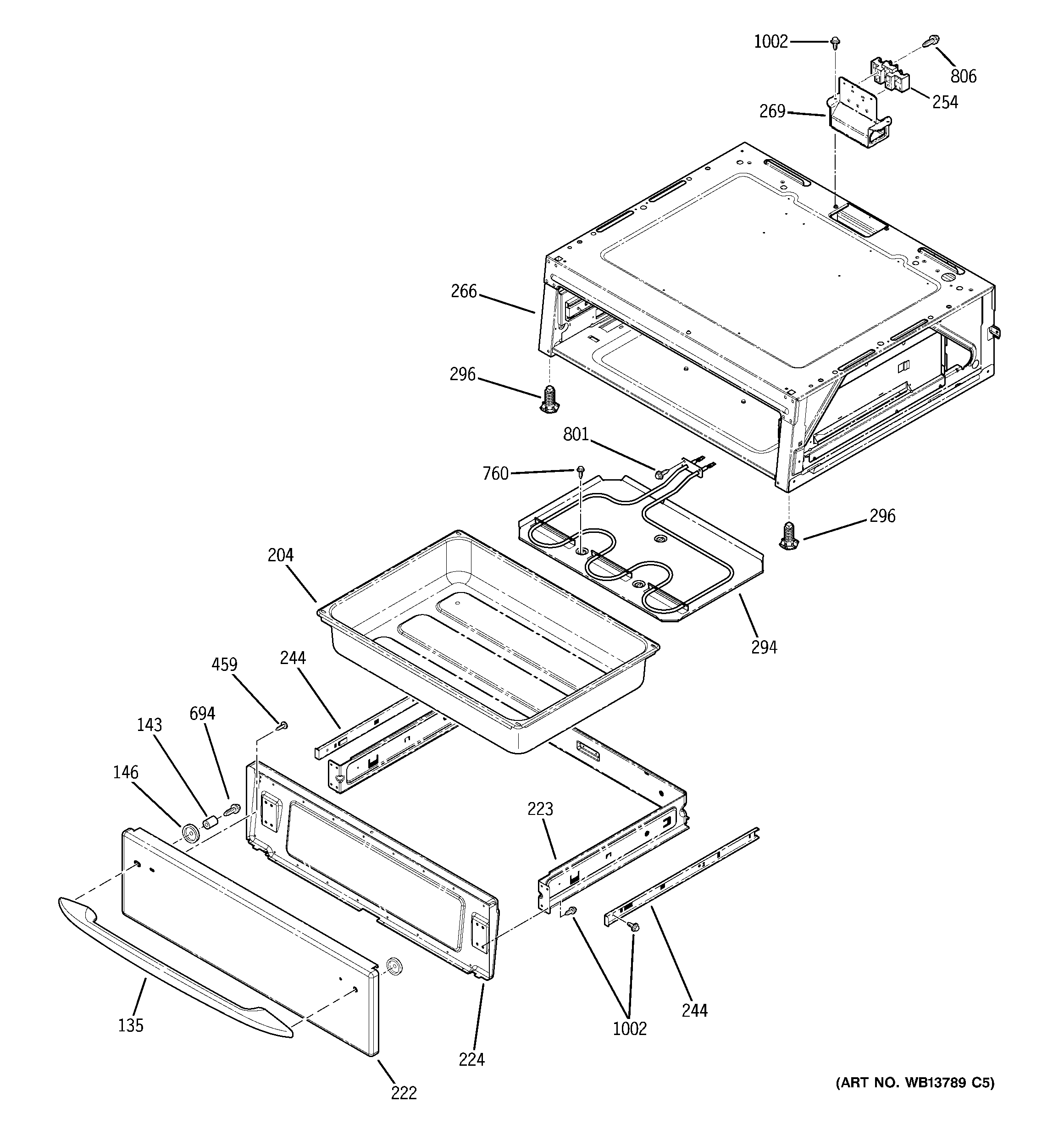

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Range Oven Light Bulb WX12X1510
#257

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Halogen Surface Element WB30T10130
#57

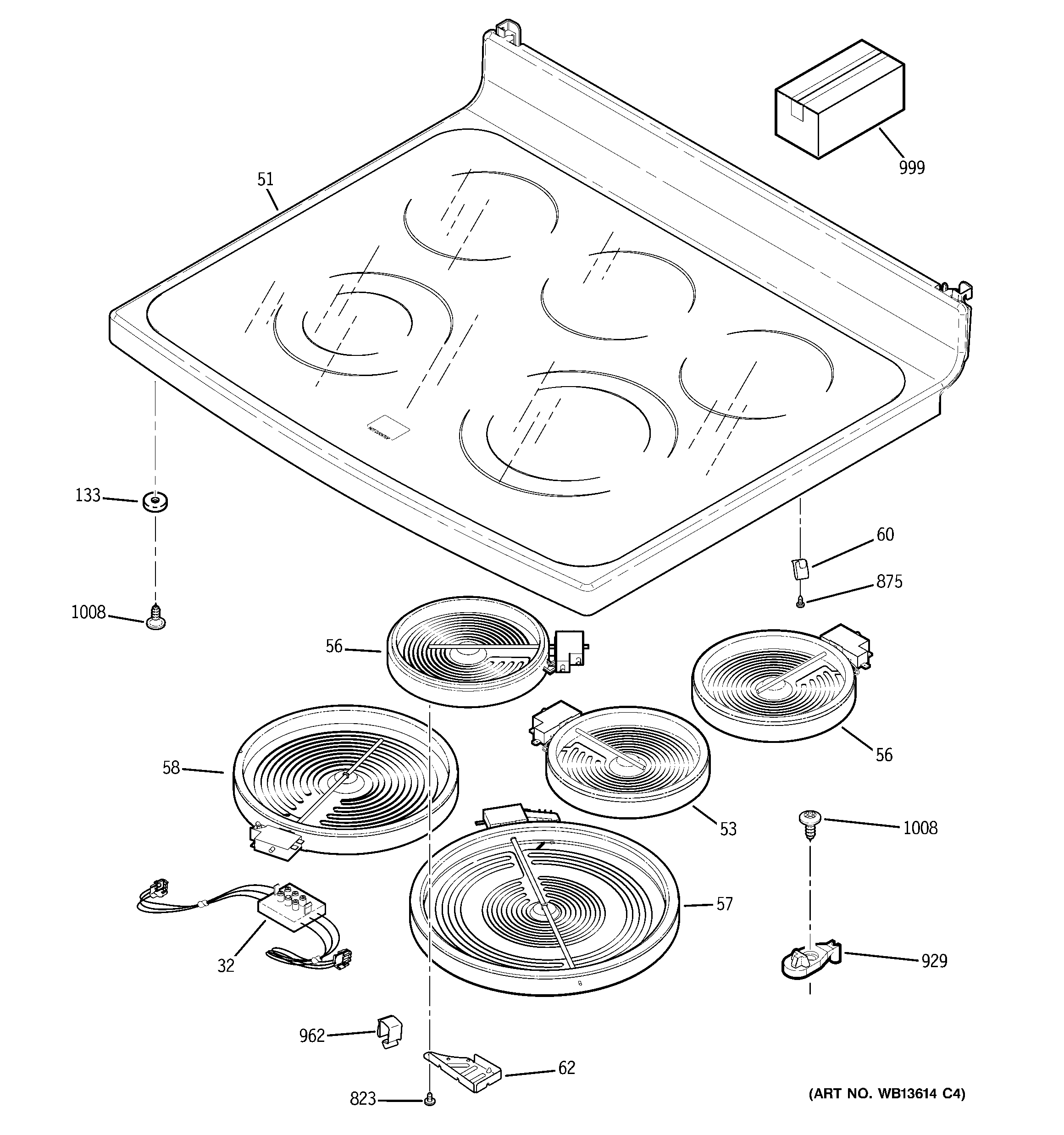

Cooktop diagram

Range halogen surface element

Part #WB30T10130

BEST SELLER
$143.90 |
8% OFF Phone Price : $155.90
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

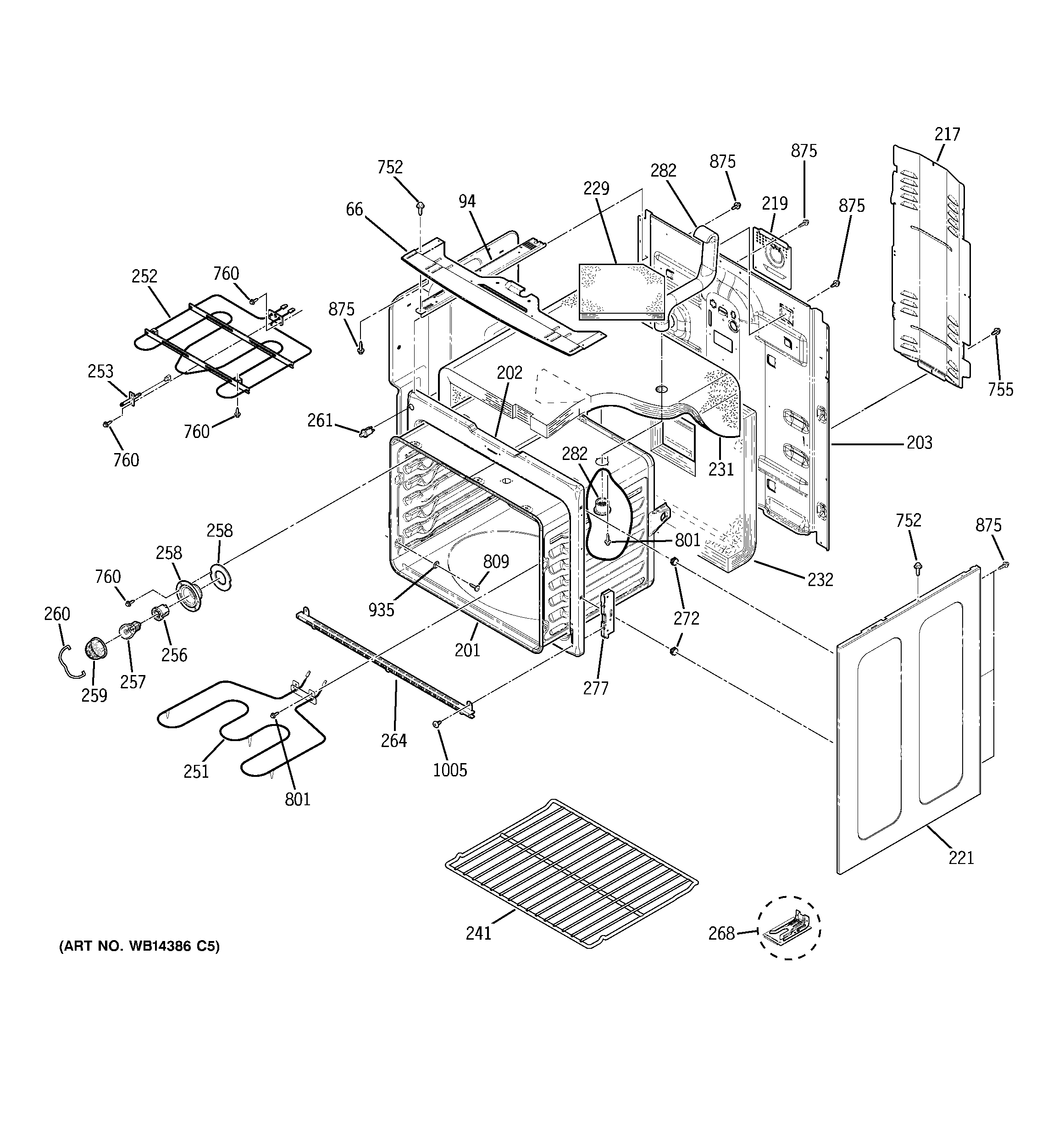

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Range Bake Element (replaces Wb44t10059) WB44T10011
#251

Body parts diagram

Range bake element (replaces wb44t10059)

Part #WB44T10011

BEST SELLER
$77.17 |
7% OFF Phone Price : $83.17
In Stock
Range Dual Radiant Element WB30T10133
#58

Cooktop diagram

Range dual radiant element

Part #WB30T10133

BEST SELLER
$100.37 |
11% OFF Phone Price : $112.37
In Stock
Range Surface Element Control Switch (replaces Wb27t10384) WB24T10153
#22

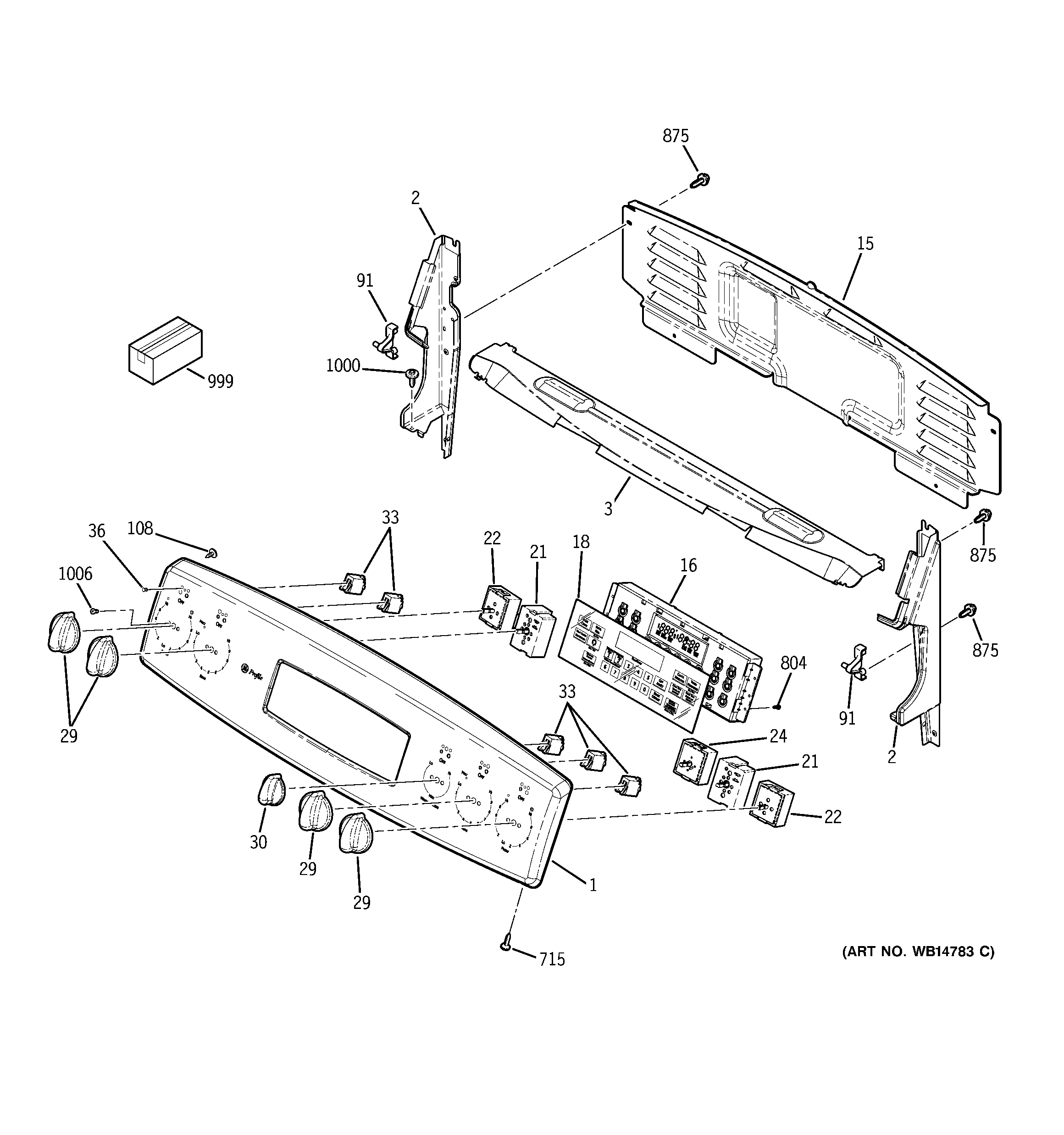

Control panel diagram

Range surface element control switch (replaces wb27t10384)

Part #WB24T10153

BEST SELLER
$98.13 |
11% OFF Phone Price : $110.13
In Stock
Pack Window WB56T10152
#338

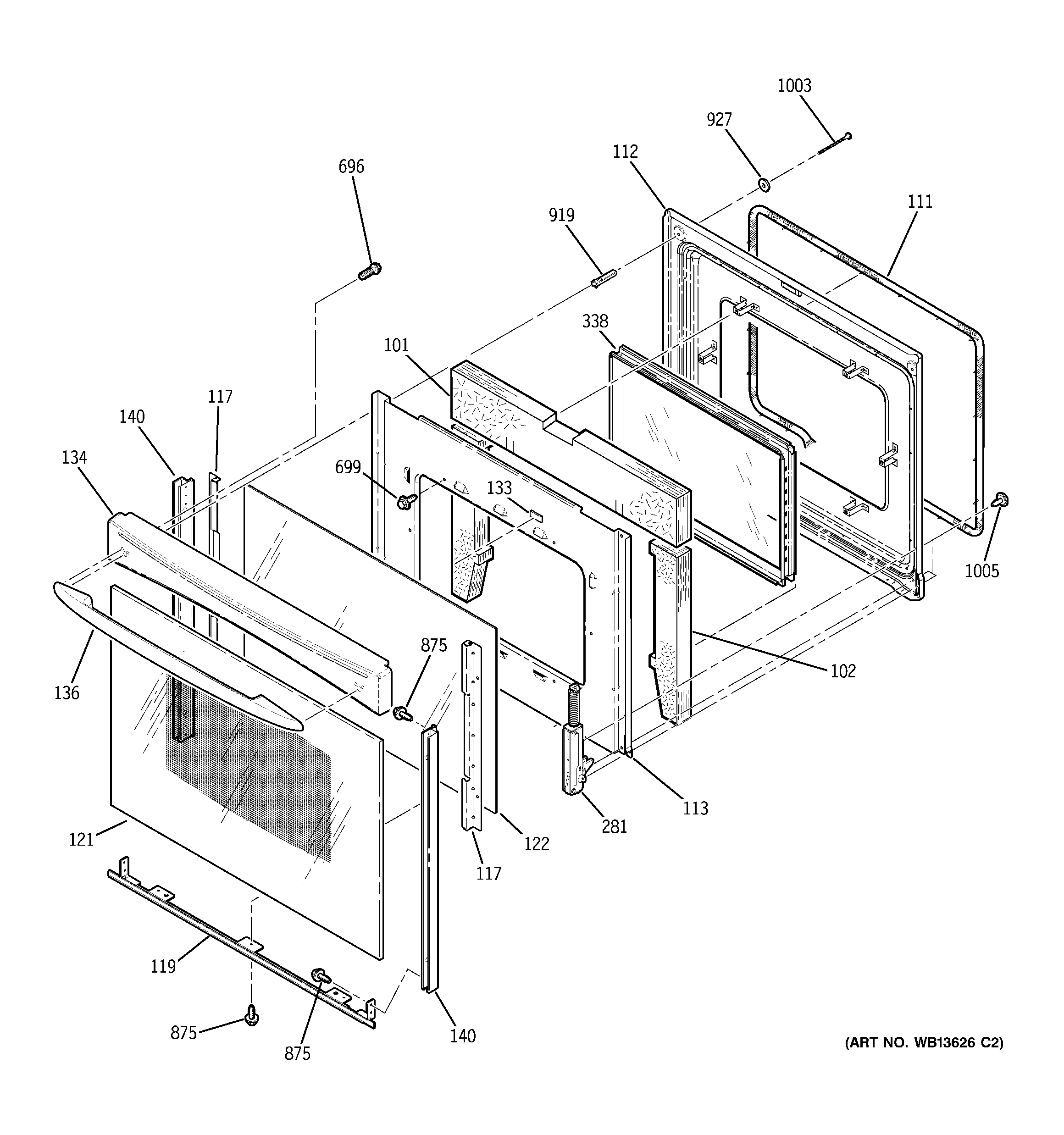

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Range Surface Element Control Switch WB24T10145
#21

Control panel diagram

Range surface element control switch

Part #WB24T10145

BEST SELLER
This item is not returnable
$72.78 |
8% OFF Phone Price : $78.78
In Stock
Range Oven Door Trim, Lower (white) WB07T10478
#119

Door diagram

Range oven door trim, lower (white)

Part #WB07T10478

Replaced by #WB07X42948

?
Manufacturer substitution
This part replaces WB07T10478. Substitute parts can look different from the original.
$14.71
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#256

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
