Model # FG3140 Official Speed Queen home laundry dryer

Here are the diagrams and repair parts for Official Speed Queen FG3140 home laundry dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

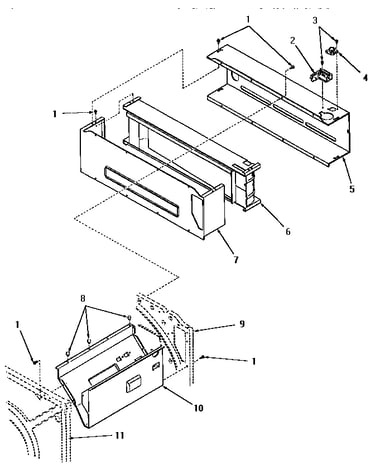

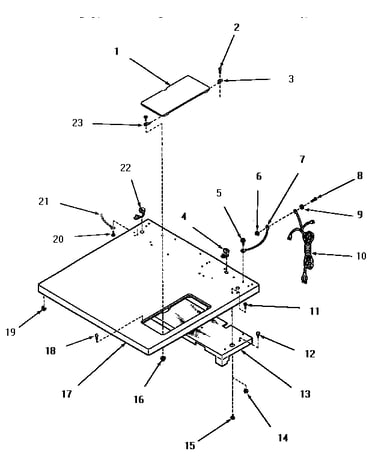

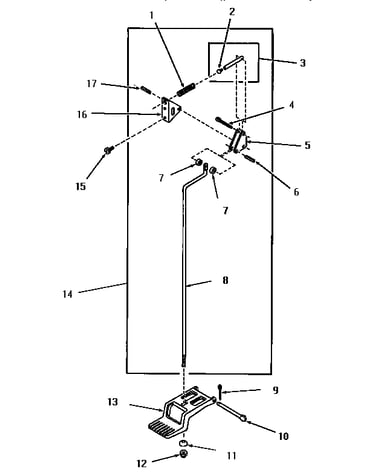

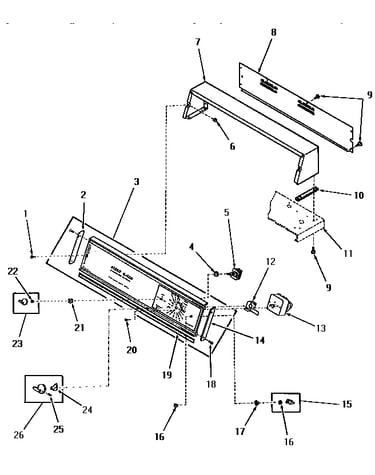

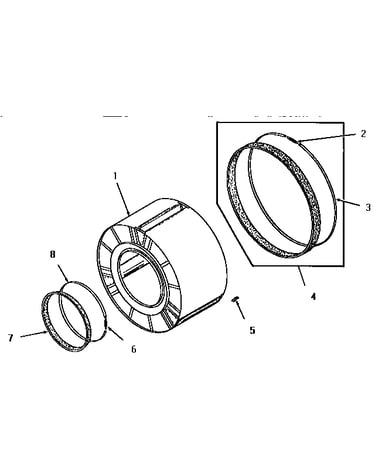

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FG3140 HOME LAUNDRY DRYER
Idler Wheel 54414
#17

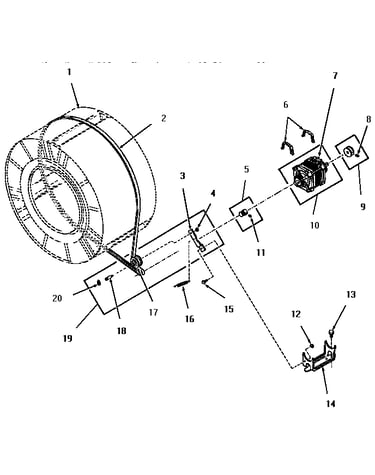

Motor, idler and belt diagram

Idler wheel

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
10% OFF Phone Price : $20.57
In Stock
Clip 51789
#6

Motor, idler and belt diagram

Clip

Part #51789

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 51789. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Door Strike 54661
#17

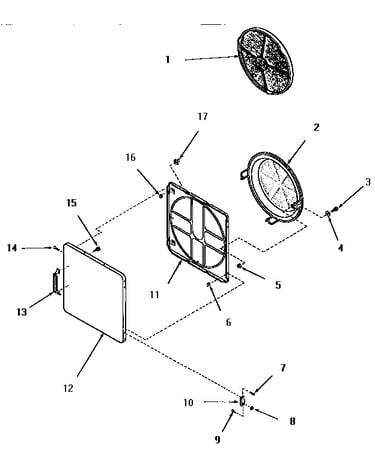

Loading door diagram

Door strike

Part #54661

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54661. Substitute parts can look different from the original.
This item is not returnable
$23.42 |
20% OFF Phone Price : $29.42
In Stock
Door Catch 54660
#19

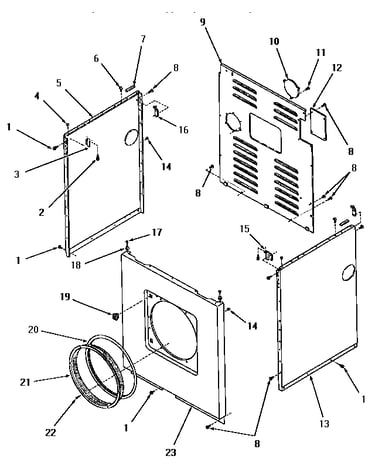

Panels diagram

Door catch

Part #54660

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54660. Substitute parts can look different from the original.
This item is not returnable
$23.42 |
20% OFF Phone Price : $29.42
In Stock
Foot 52696
#15

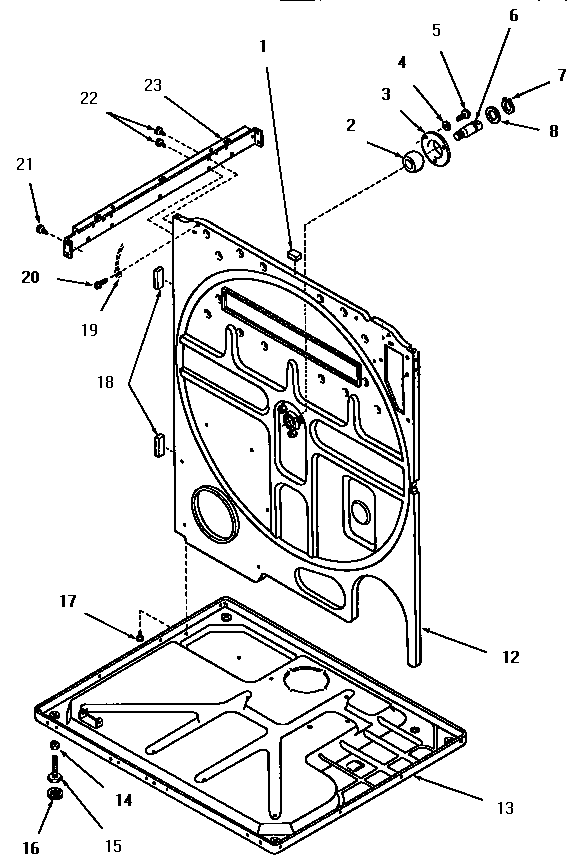

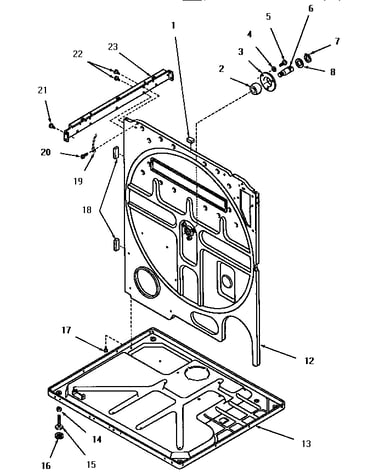

Rear frame and frame base diagram

Foot

Part #52696

Replaced by #W10176519

?
Manufacturer substitution
This part replaces 52696. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Screw 25723
Screw

Part #25723

Replaced by #WP27001200

?
Manufacturer substitution
This part replaces 25723. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Coil 55433A
#20A

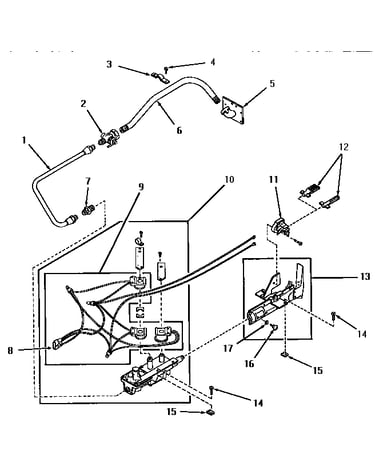

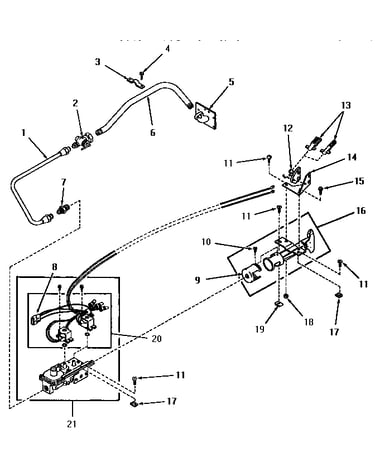

Glow bar ignition burner diagram

Coil

Part #55433A

$77.78
In Stock
Roller 53555
#7

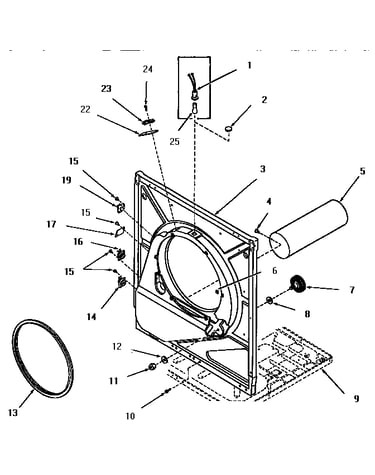

Front frame and air shroud diagram

Roller

Part #53555

Replaced by #56285P

?
Manufacturer substitution
This part replaces 53555. Substitute parts can look different from the original.
$30.33
In Stock
Terminal 00111
#22

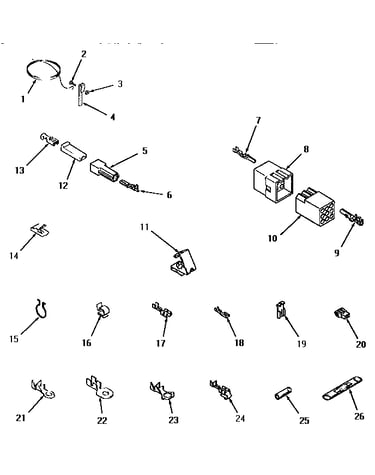

Wire and terminals diagram

Terminal

Part #00111

Replaced by #Y00111

?
Manufacturer substitution
This part replaces 00111. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw 52150
Screw

Part #52150

Replaced by #WP489464

?
Manufacturer substitution
This part replaces 52150. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
