Thermador
Range

Model # PDR364GDZS/05 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PDR364GDZS-05 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

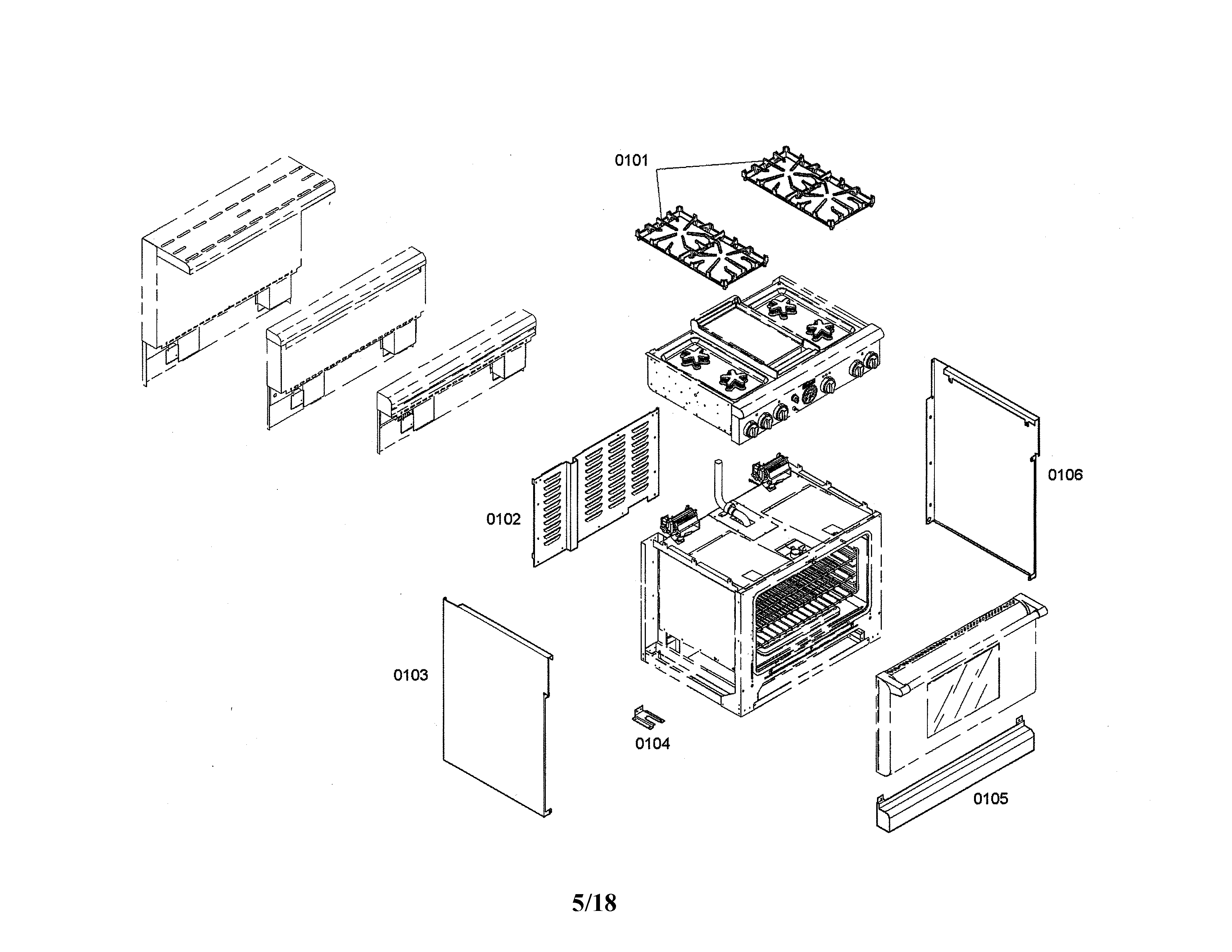

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Range Nut, 1-mm, 22-tpi 00188978
#309

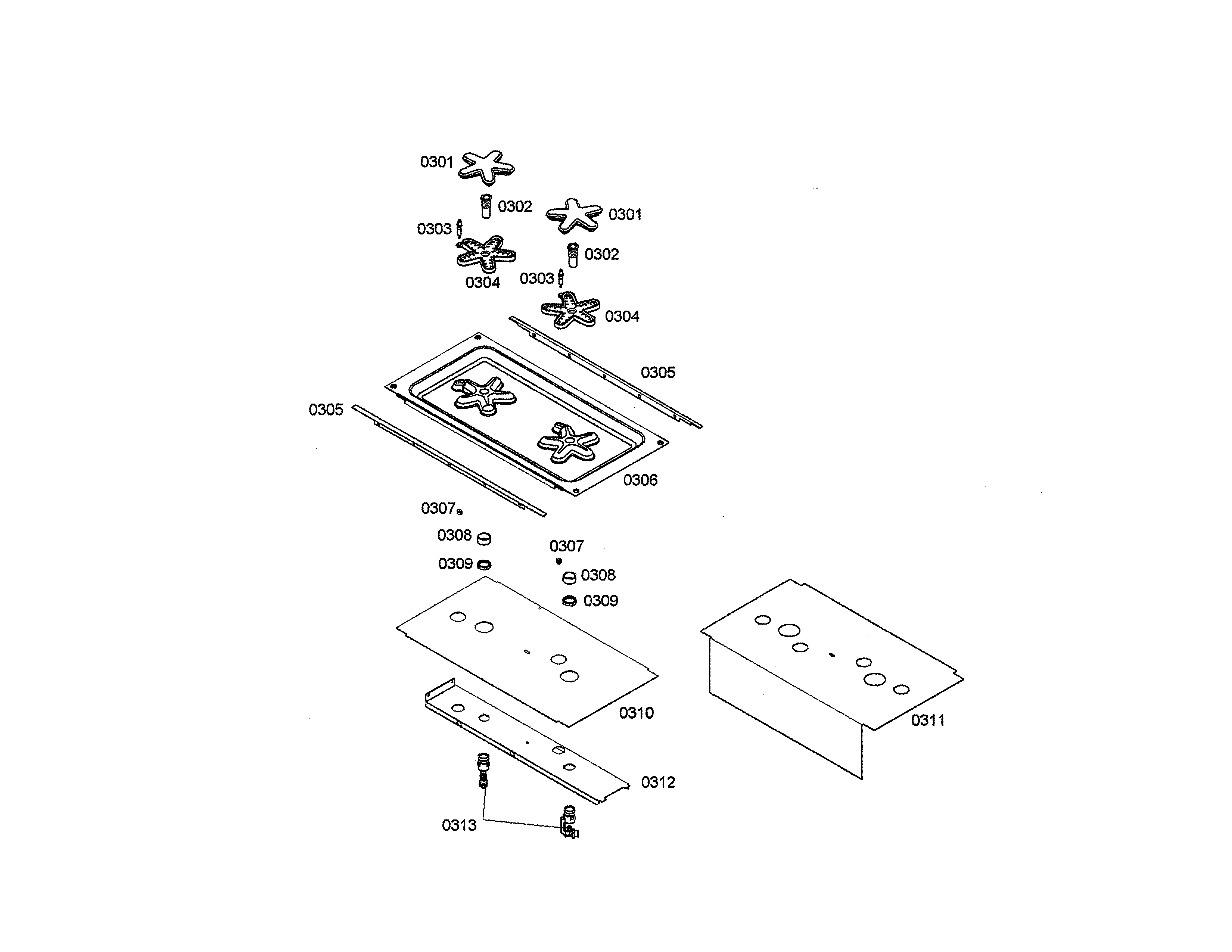

Tray/burner caps diagram

Range nut, 1-mm, 22-tpi

Part #00188978

$20.59 |
23% OFF Phone Price : $26.59
In Stock
Range Oven Door Hinge Support Bracket 00418120
#813

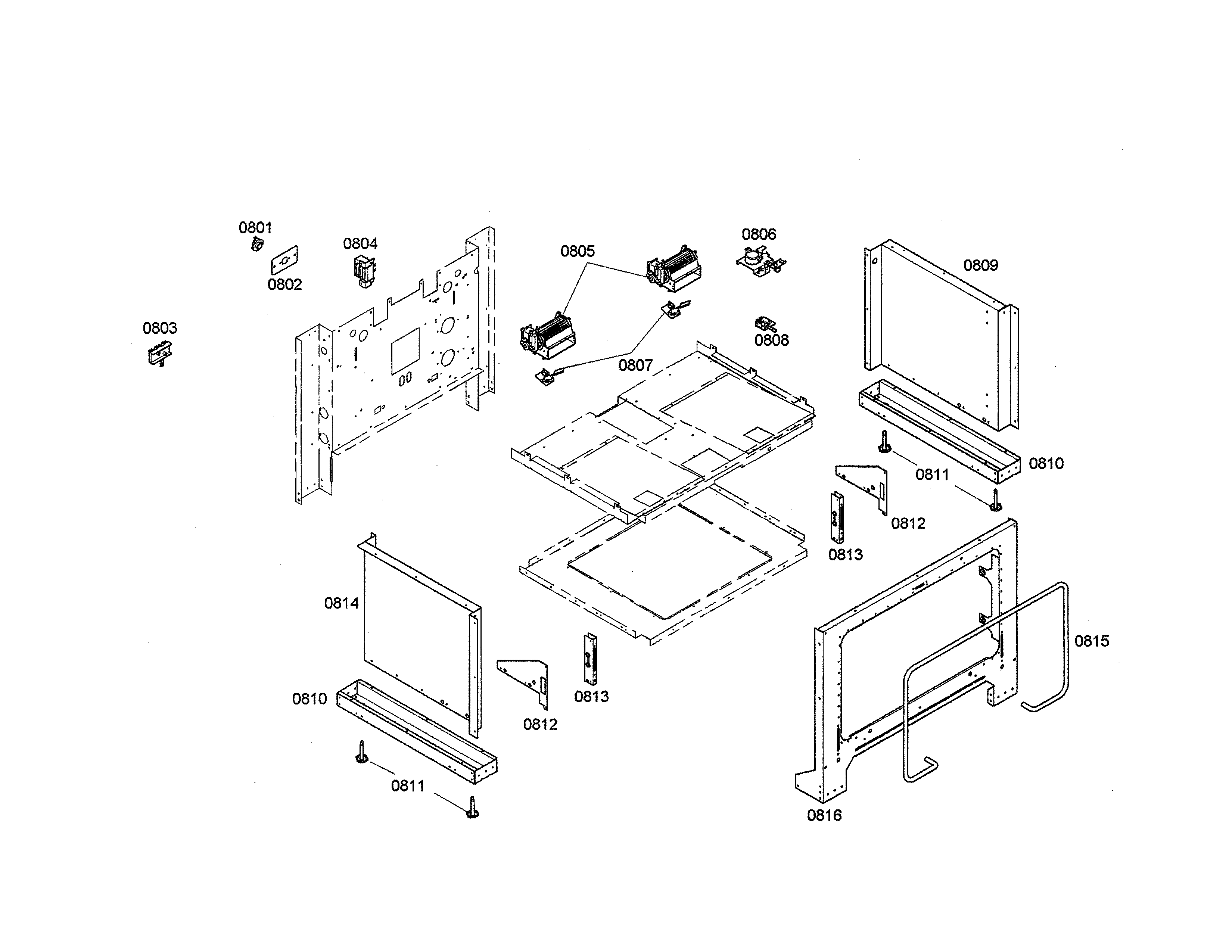

Side panels/cooling fan diagram

Range oven door hinge support bracket

Part #00418120

$83.29 |
7% OFF Phone Price : $89.29
In Stock
Motor 00497756
#706

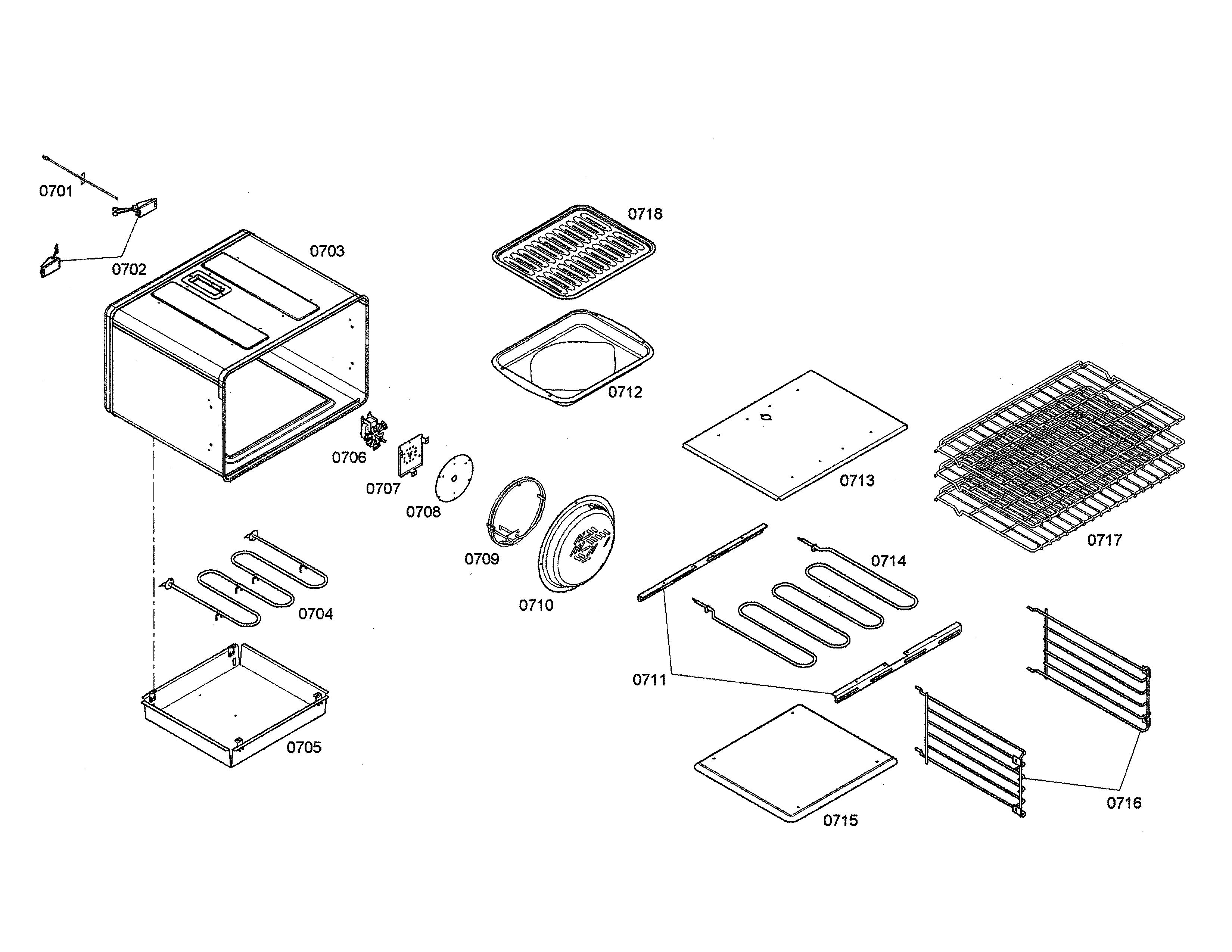

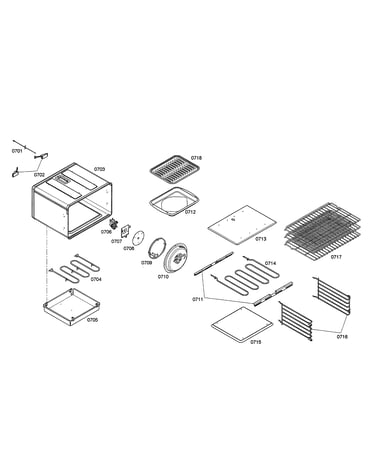

Motor/broil element diagram

Motor

Part #00497756

$259.73 |
$12.00 OFF Phone Price : $271.73
In Stock
Range Griddle Gas Control Valve 00418064
#512

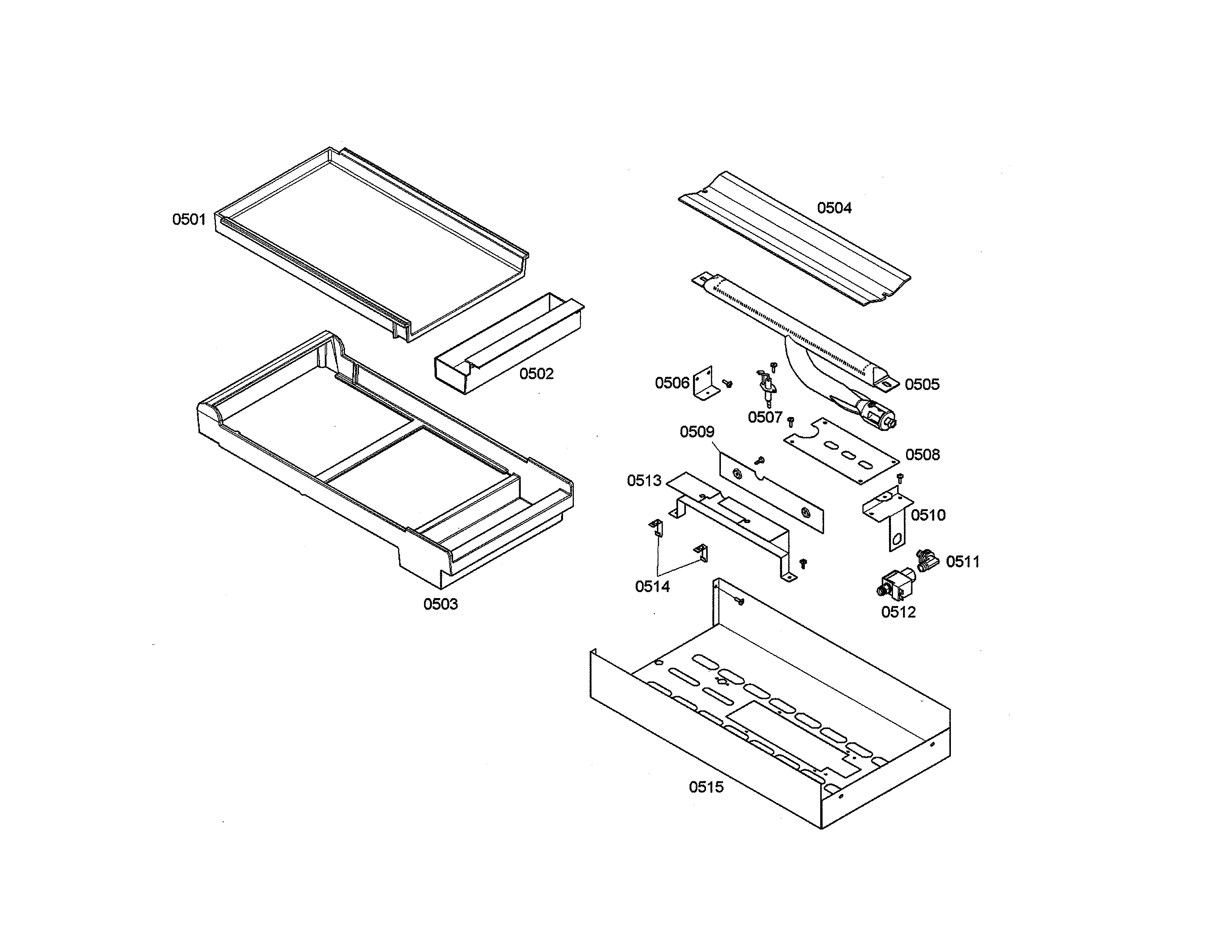

Griddle/heat shield diagram

Range griddle gas control valve

Part #00418064

$187.14
In Stock

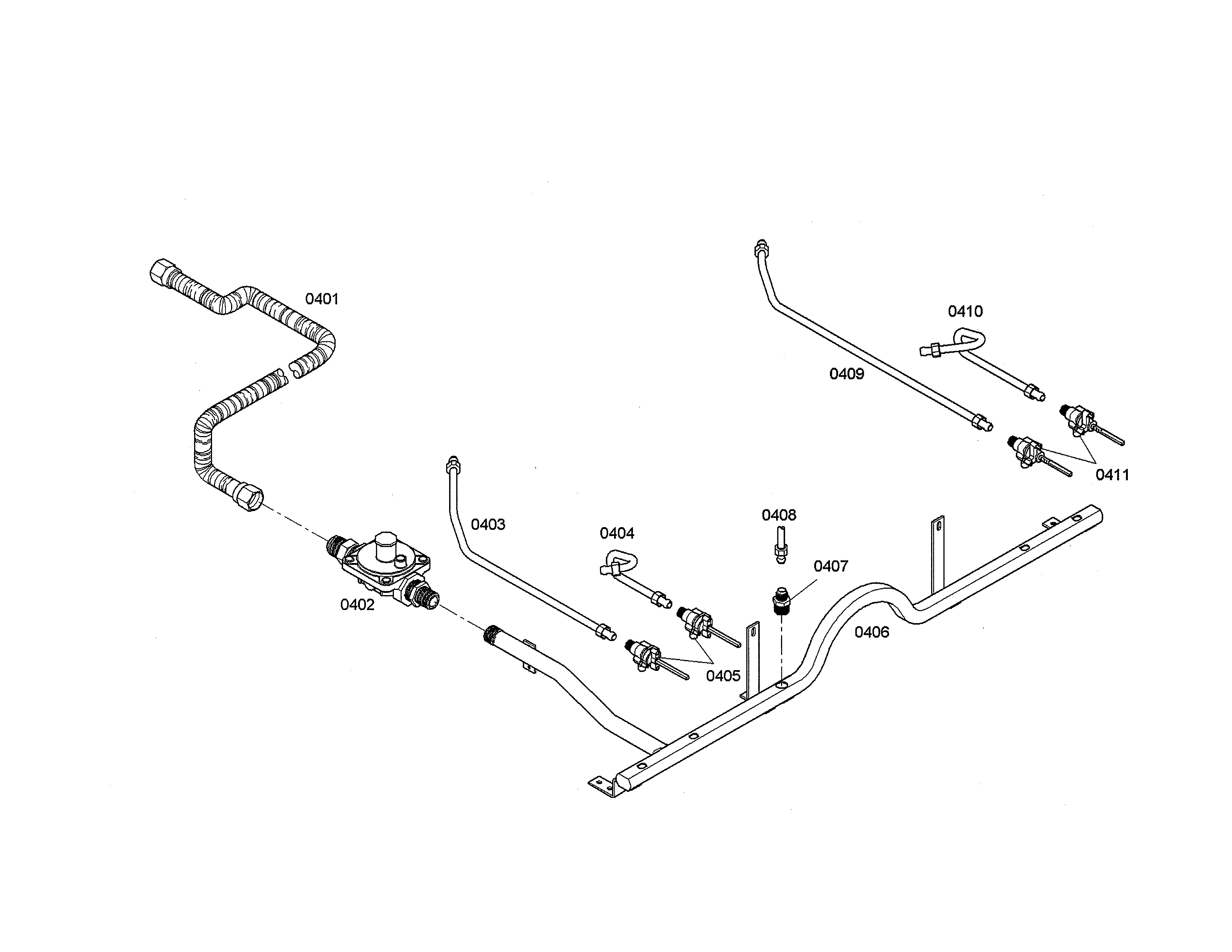

Range Surface Burner Flexible Supply Tube, 5/16 X 15-in 00432539
Range surface burner flexible supply tube, 5/16 x 15-in

Part #00432539

$51.91
In Stock
Wire 00219798
#651

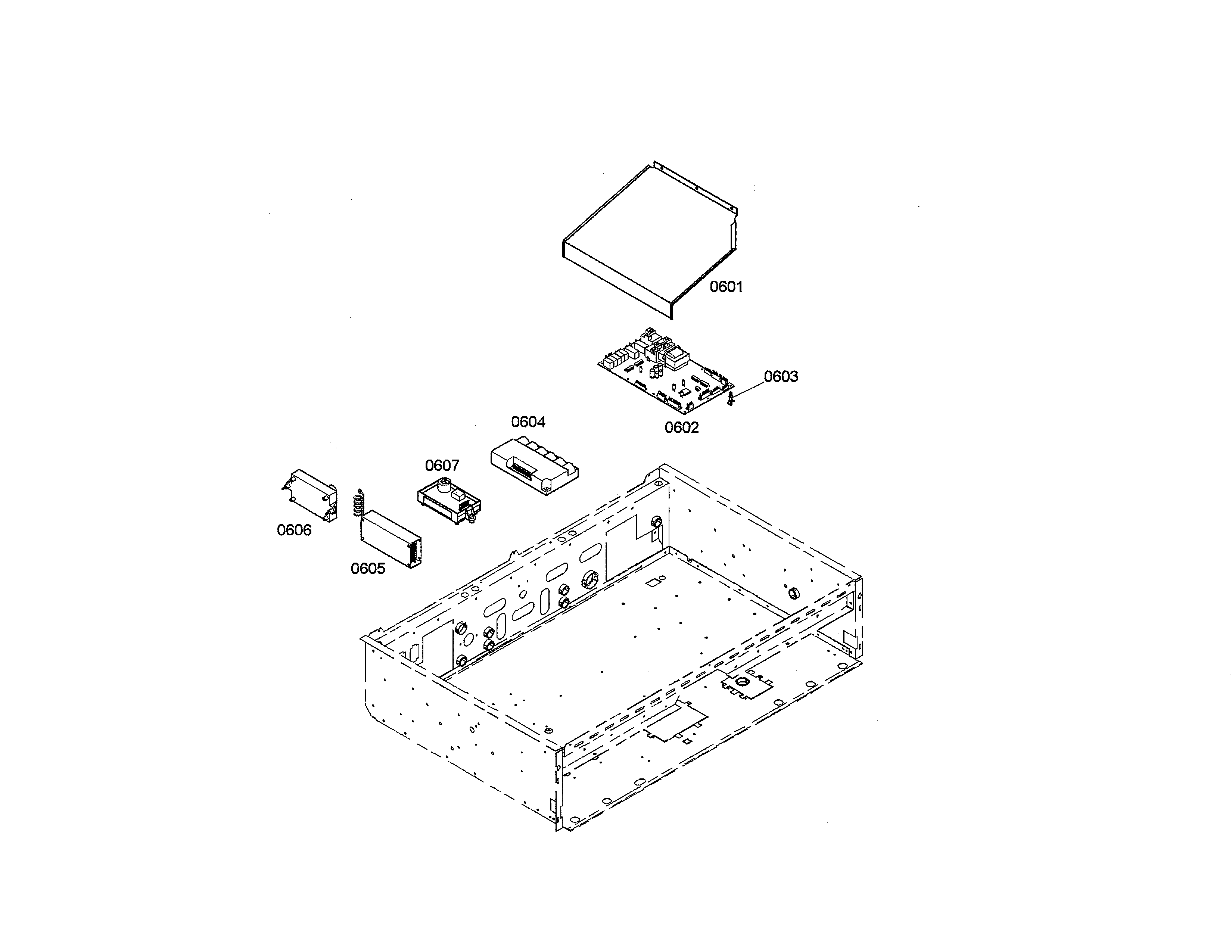

Pc board/dsi module diagram

Wire

Part #00219798

$29.78
In Stock
Range Oven Door Assembly 00431952
#901

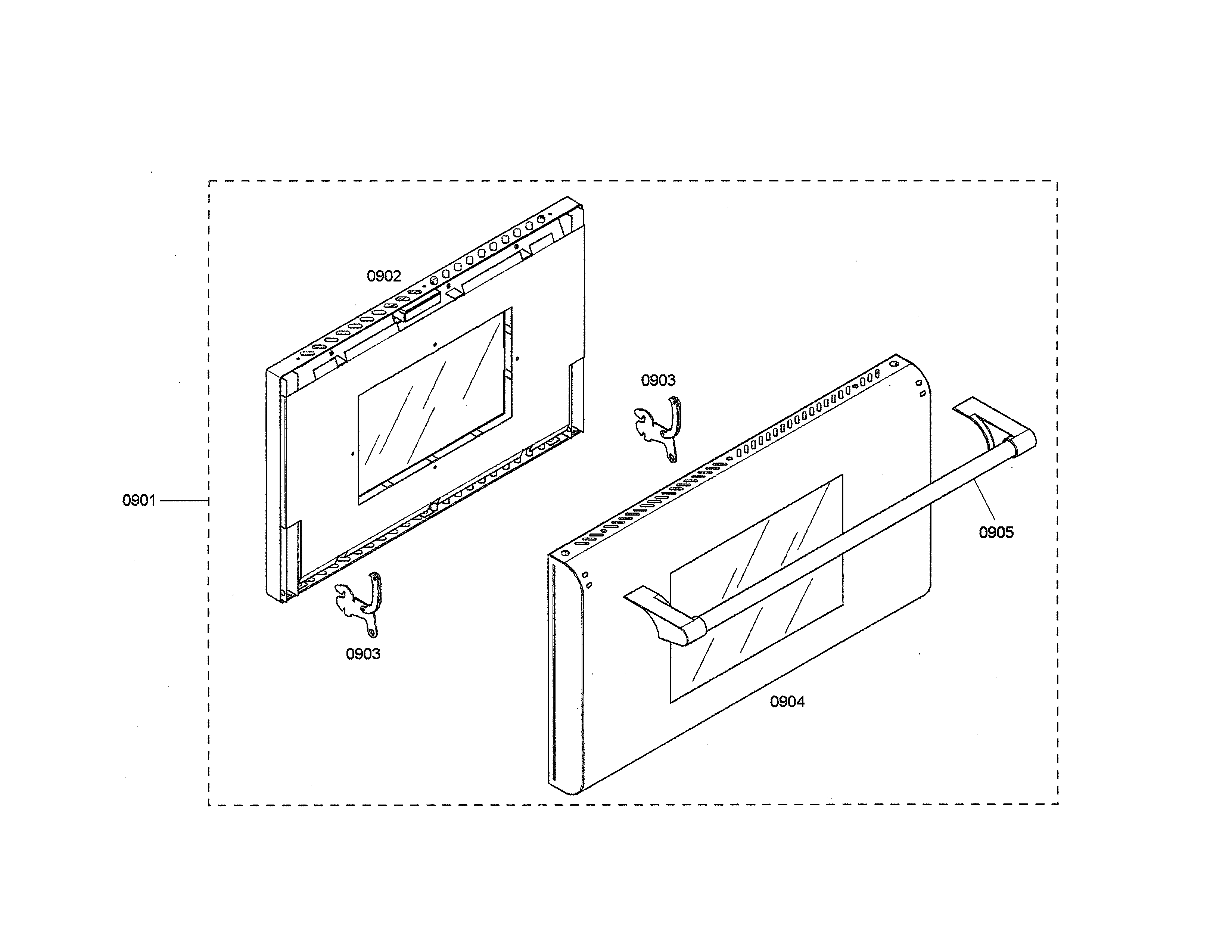

Door diagram

Range oven door assembly

Part #00431952

$1506.38
In Stock
Range Surface Burner Knob 00419035
#222

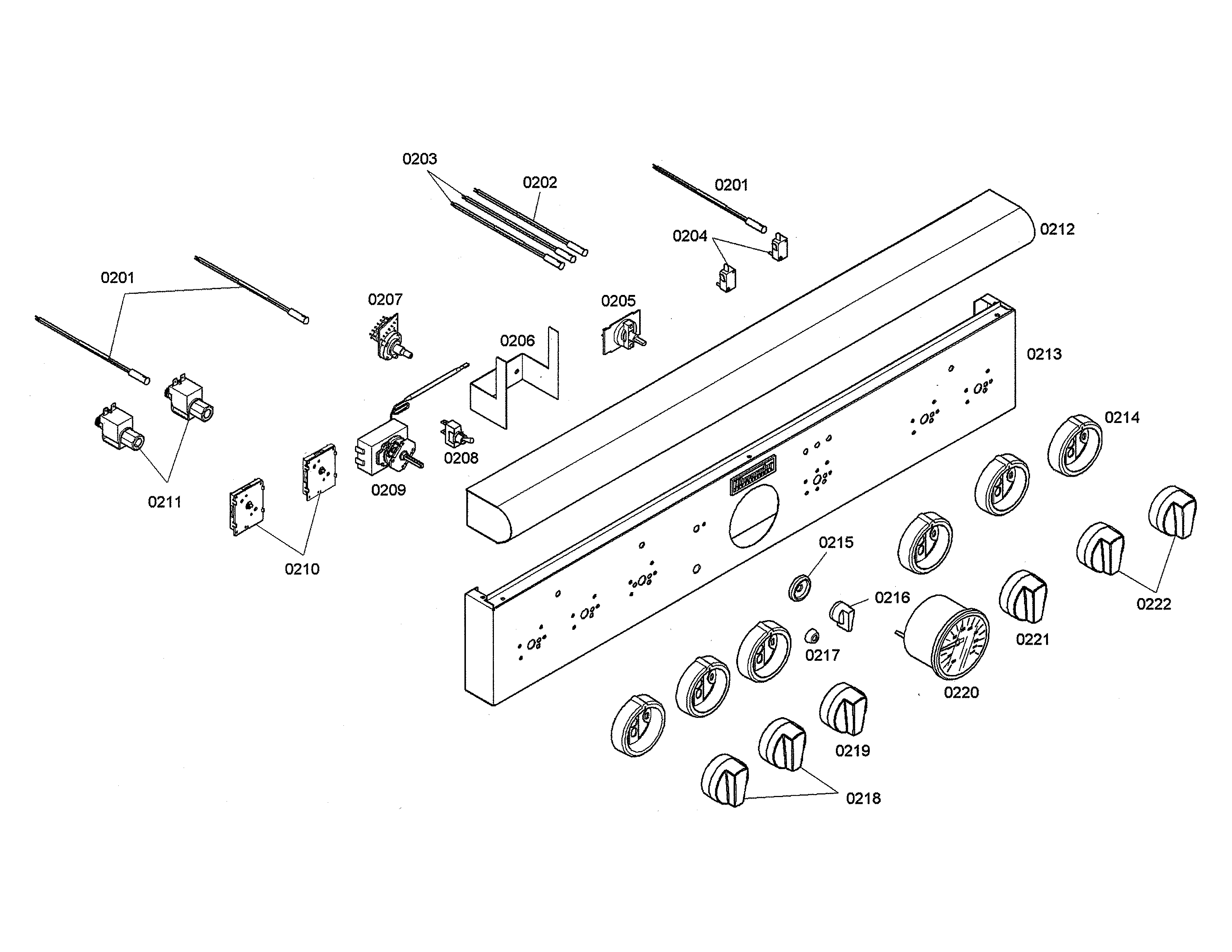

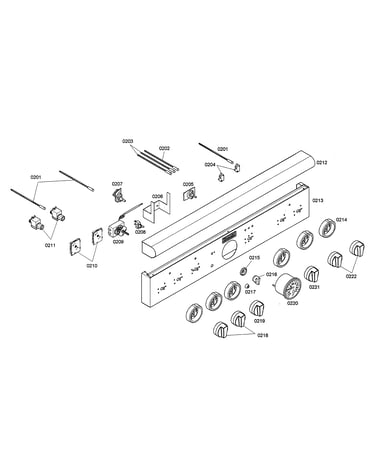

Control panel/knobs diagram

Range surface burner knob

Part #00419035

$26.44
In Stock
Range Broil Element 00431908
#714

Motor/broil element diagram

Range broil element

Part #00431908

$108.03 |
10% OFF Phone Price : $120.03
In Stock
Bracket 00418879
#951

Door diagram

Bracket

Part #00418879

$38.42
In Stock
