Model # 867743822 Official Kenmore oil-fired furnace
Here are the diagrams and repair parts for Official Kenmore 867743822 oil-fired furnace, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 154 parts |
#44A

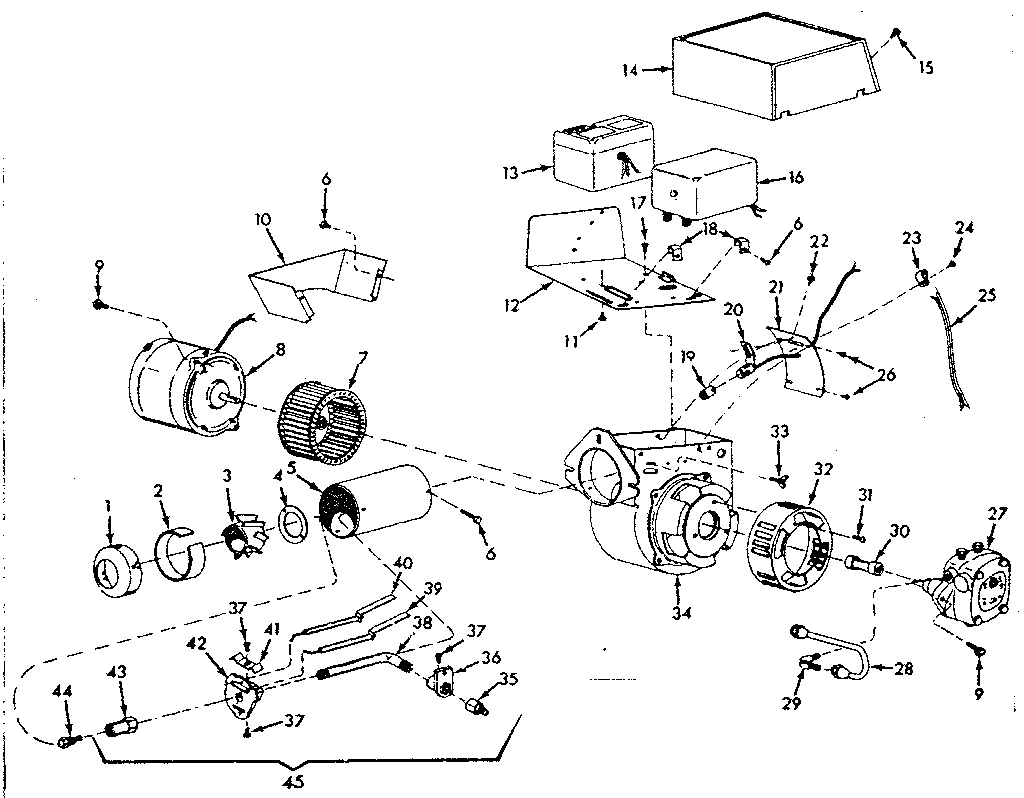

Oil burner assembly diagram
Nozzle
Part #64605
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostat
Part #9235
The manufacturer no longer makes this part, and there's no substitute part
#18

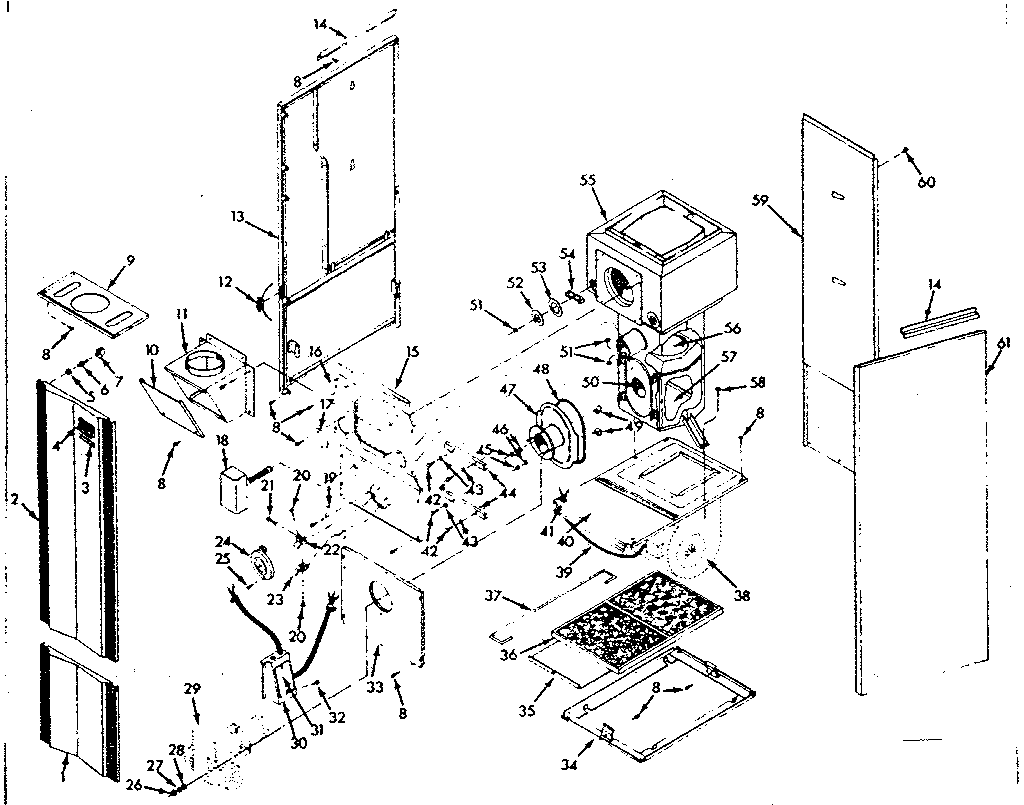

Furnace assembly diagram
Control
Part #91800
The manufacturer no longer makes this part, and there's no substitute part
#19A

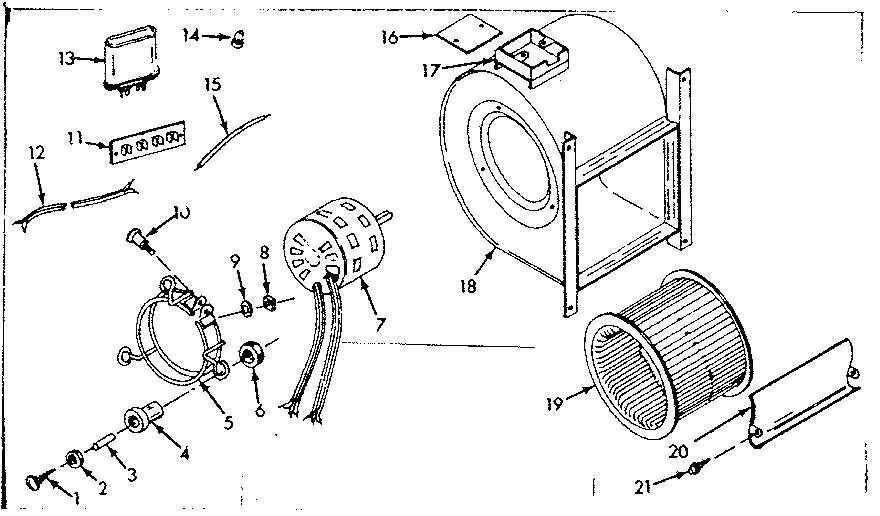

H-q blower assembly diagram
Fan wheel
Part #72978
Replaced by #600587
?
Manufacturer substitution
This part replaces 72978. Substitute parts can look different from the original.
$130.20 |
8% OFF Phone Price : $142.20
In Stock
#30B
Oil burner assembly diagram
Coupling
Part #68091
The manufacturer no longer makes this part, and there's no substitute part
#6
Oil burner assembly diagram
Screw
Part #448445
The manufacturer no longer makes this part, and there's no substitute part
#36A
Furnace assembly diagram
Air filter
Part #64488
The manufacturer no longer makes this part, and there's no substitute part
#19B
H-q blower assembly diagram
Blower wheel
Part #72400
Replaced by #601210
?
Manufacturer substitution
This part replaces 72400. Substitute parts can look different from the original.
$217.38
In Stock
#44B
Oil burner assembly diagram
Nozzle
Part #64485
The manufacturer no longer makes this part, and there's no substitute part
#27A
Oil burner assembly diagram
Pump
Part #91817
Replaced by #91817
?
Manufacturer substitution
This part replaces 91817. Substitute parts can look different from the original.
$197.80
In Stock
