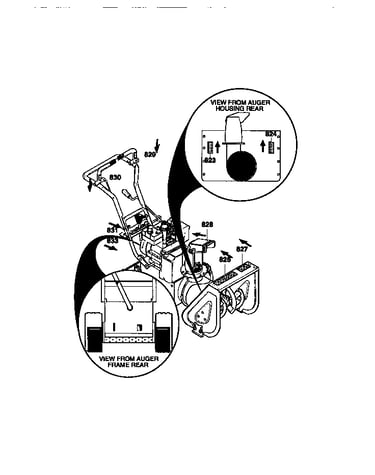

Model # 536886161 Official Craftsman 6-hp snow thrower
Here are the diagrams and repair parts for Official Craftsman 536886161 6-hp snow thrower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
536886161 Snowblowers
#57
Engine assembly diagram
Snowblower drive belt
Part #579932
Replaced by #1733324SM
?
Manufacturer substitution
This part replaces 579932. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$25.00 |
19% OFF Phone Price : $31.00
In Stock
#63
Engine assembly diagram
Auger belt
Part #581264
Replaced by #37X120MA
?
Manufacturer substitution
This part replaces 581264. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$26.86 |
18% OFF Phone Price : $32.86
In Stock
#246
Drive components assembly diagram
Disc wheel
Part #53830
Replaced by #1501435MA
?
Manufacturer substitution
This part replaces 53830. Substitute parts can look different from the original.
$28.70 |
17% OFF Phone Price : $34.70
In Stock
#611

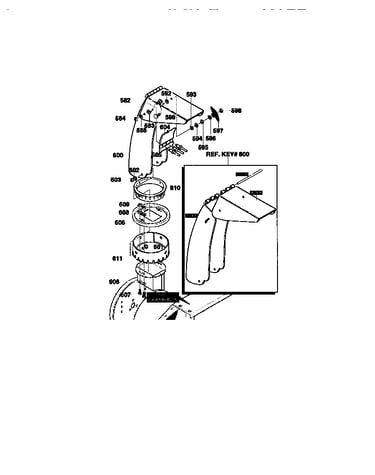

Chute assembly diagram
Snowblower chute retainer ring, outer
Part #585193
Replaced by #585193MA
?
Manufacturer substitution
This part replaces 585193. Substitute parts can look different from the original.
$31.87 |
16% OFF Phone Price : $37.87
In Stock
#744

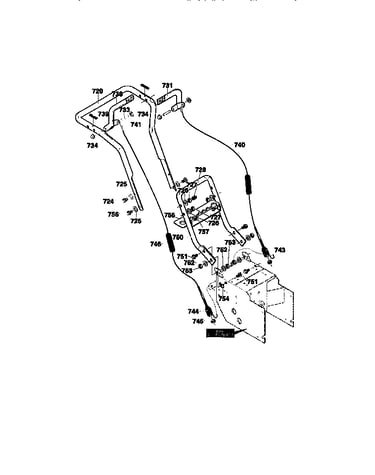

Handle assembly diagram
Auger clutch spacer
Part #1673
Replaced by #1673MA
?
Manufacturer substitution
This part replaces 1673. Substitute parts can look different from the original.
$12.67 |
14% OFF Phone Price : $14.67
In Stock
#525
Auger housing assembly diagram
Flat bearing
Part #9517
Replaced by #9517MA
?
Manufacturer substitution
This part replaces 9517. Substitute parts can look different from the original.
$8.76 |
10% OFF Phone Price : $9.76
In Stock
1/4-20 hex n
Part #780029
Replaced by #703232
?
Manufacturer substitution
This part replaces 780029. Substitute parts can look different from the original.
This item is not returnable
$6.44 |
13% OFF Phone Price : $7.44
In Stock
#609
Chute assembly diagram
Nut, 1/4-20
Part #782585
Replaced by #703251
?
Manufacturer substitution
This part replaces 782585. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Lock nut
Part #73826
Replaced by #703251
?
Manufacturer substitution
This part replaces 73826. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
#315
Gear case assembly diagram
Worm gear
Part #51405
Replaced by #51405MA
?
Manufacturer substitution
This part replaces 51405. Substitute parts can look different from the original.
$82.25 |
7% OFF Phone Price : $88.25
In Stock
