Model # KF200KDD4 Official White-Westinghouse electric range - 5995207874

Here are the diagrams and repair parts for Official White-Westinghouse KF200KDD4 electric range - 5995207874, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Range Coil Surface Element, 8-in 5303015715
#2

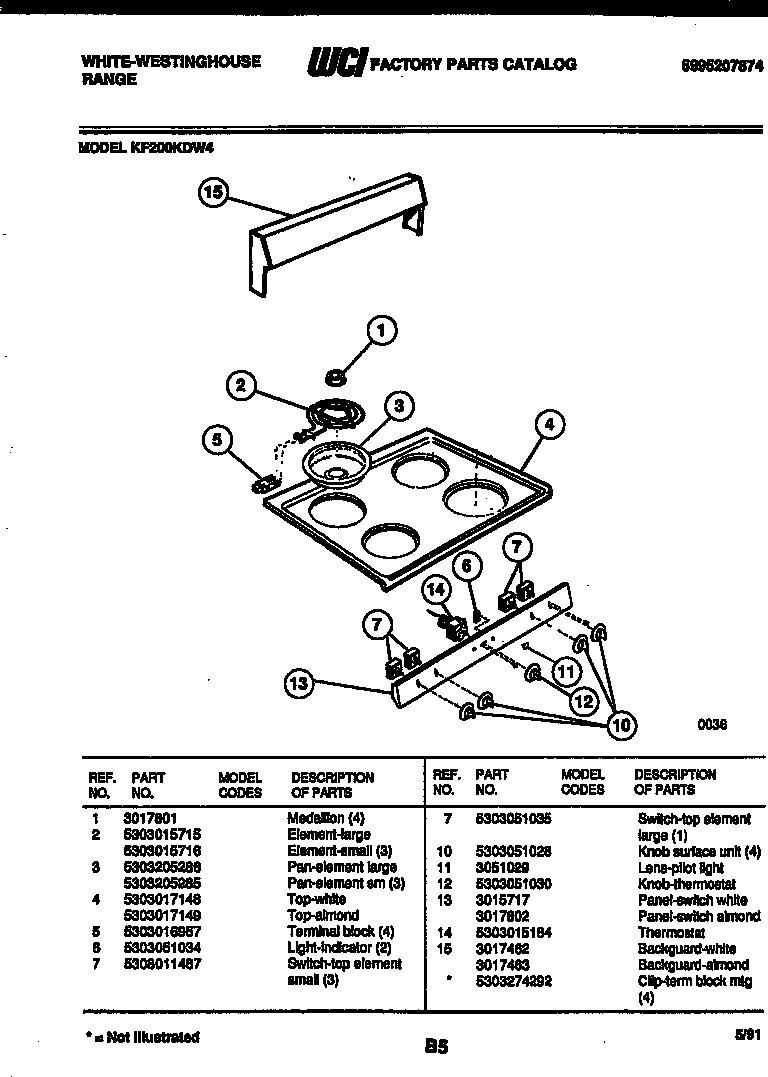

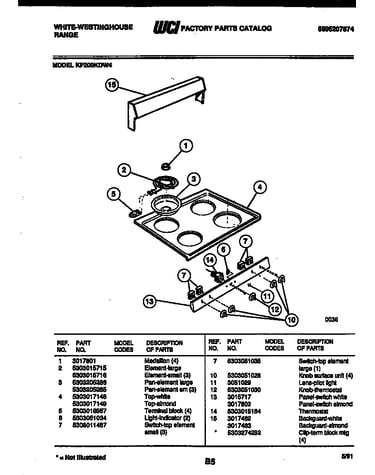

Backguard and cooktop parts diagram

Range coil surface element, 8-in

Part #5303015715

Replaced by #316442300

?
Manufacturer substitution
This part replaces 5303015715. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
19% OFF Phone Price : $32.03
In Stock
Range Coil Surface Element, 6-in 5303015716
#2A

Backguard and cooktop parts diagram

Range coil surface element, 6-in

Part #5303015716

Replaced by #318372210

?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Nut 3051038
#7

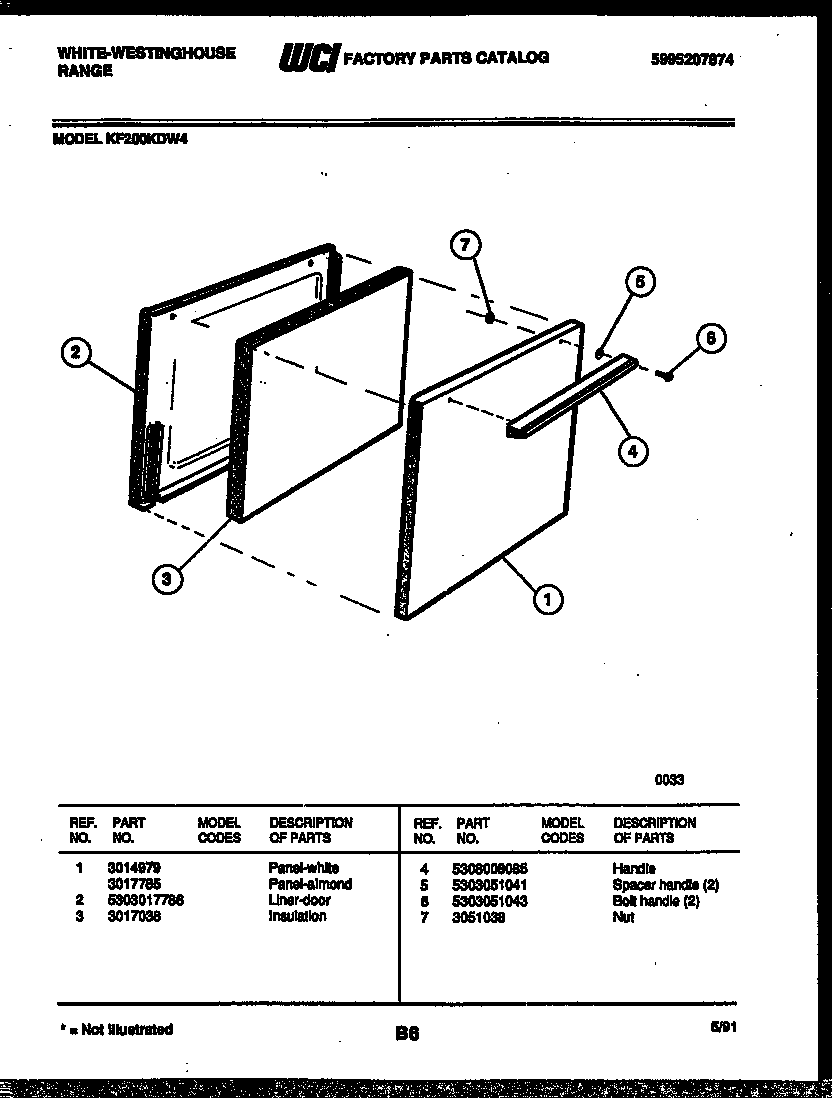

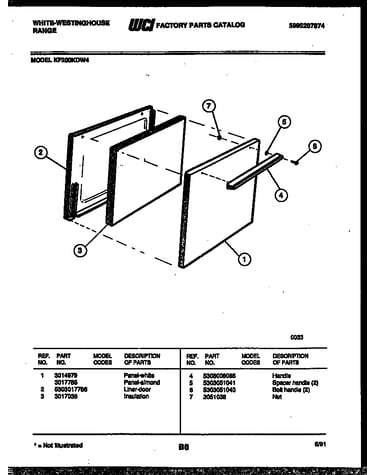

Door parts diagram

Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Range Surface Element Receptacle Support 5303274292

#NI

All parts diagram

Range surface element receptacle support

Part #5303274292

$37.80 |
14% OFF Phone Price : $43.80
In Stock
Pan 5303205286
#3

Backguard and cooktop parts diagram

Pan

Part #5303205286

Replaced by #316048413

?
Manufacturer substitution
This part replaces 5303205286. Substitute parts can look different from the original.
$7.52 |
12% OFF Phone Price : $8.52
In Stock
Switch 5303051035
#7

Backguard and cooktop parts diagram

Switch

Part #5303051035

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5303051035. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Level Bolt 5303210257
#21

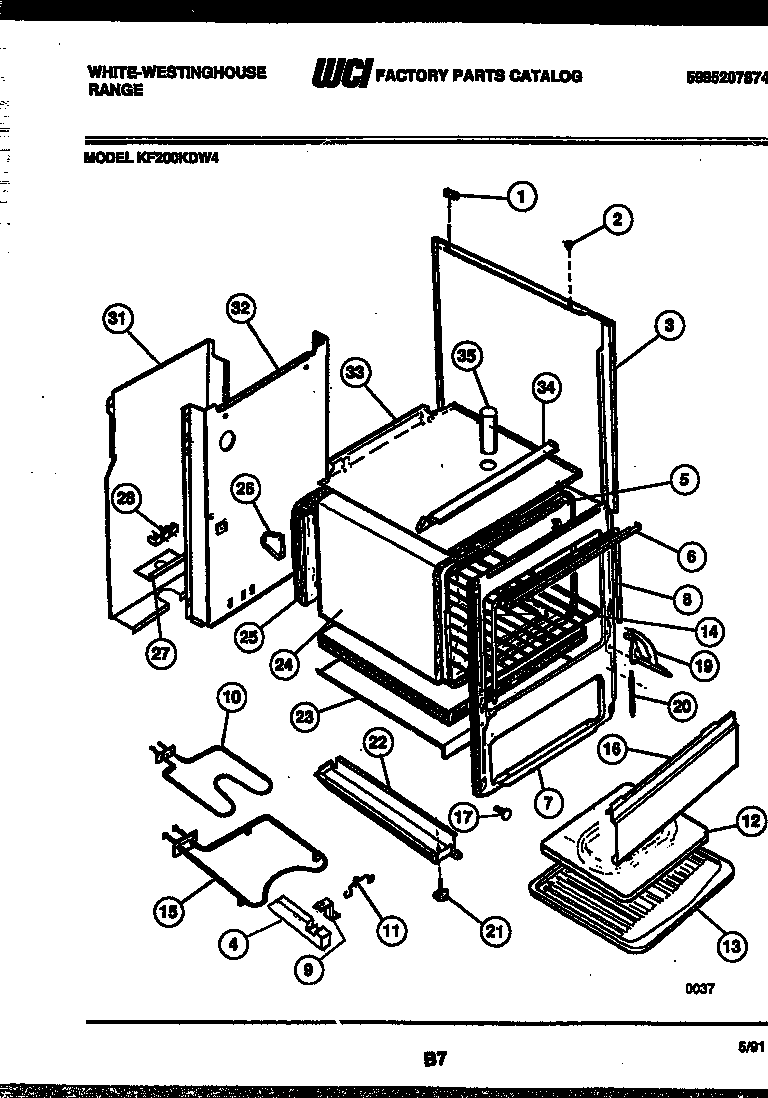

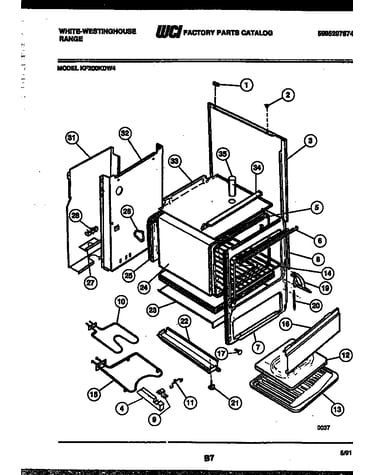

Body parts diagram
