DeWalt
Hammer Drill

Model # D25133K TYPE 1 Official DeWalt hammer drill

Here are the diagrams and repair parts for Official DeWalt D25133K-TYPE-1 hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Leadwire 1005879-01
#95

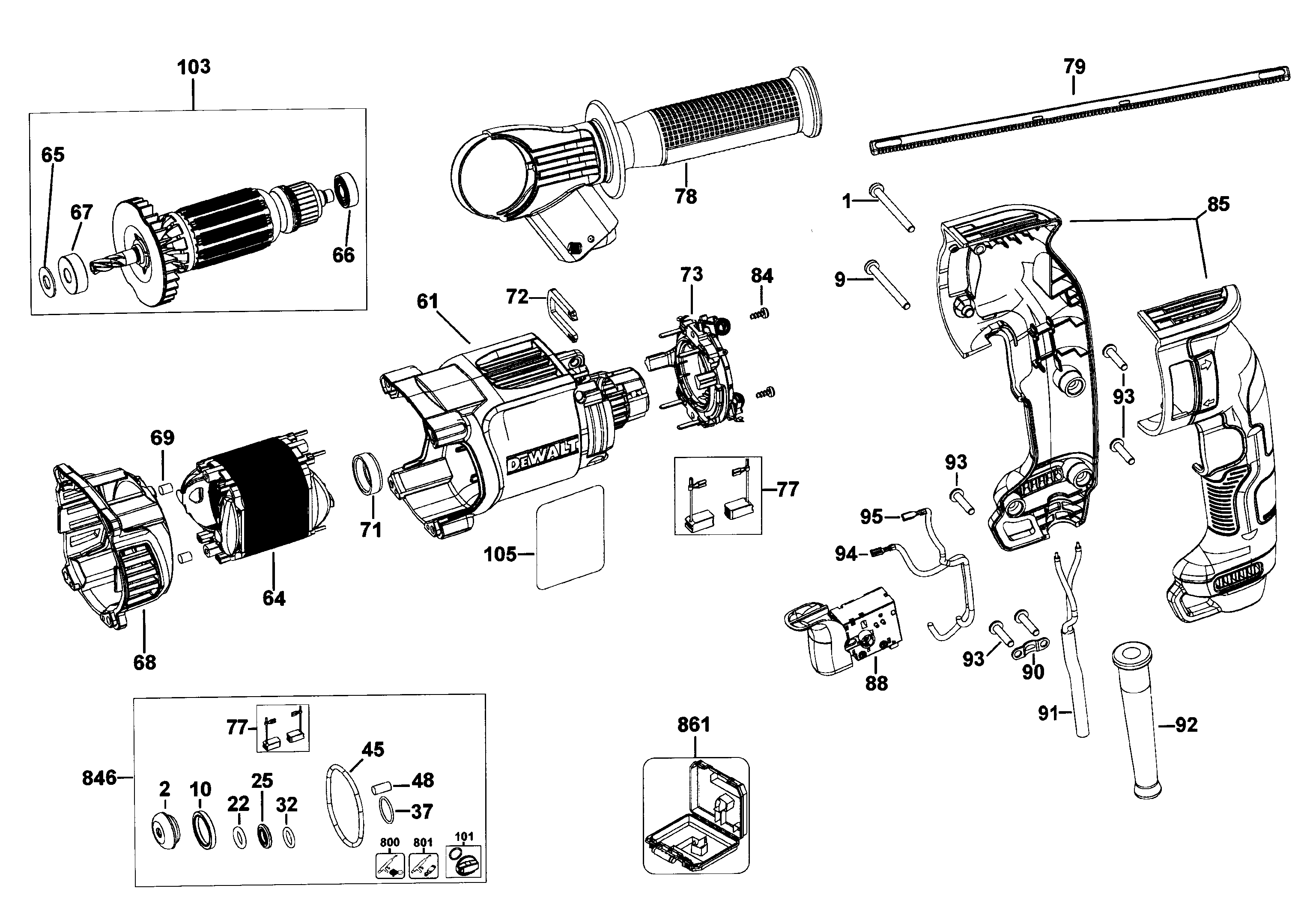

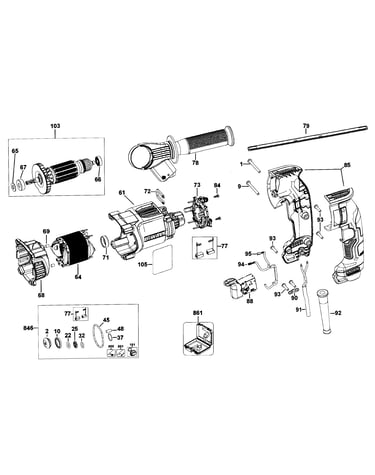

Main assy diagram

Leadwire

Part #1005879-01

The manufacturer no longer makes this part, and there's no substitute part

0-ring N091381-00
#55

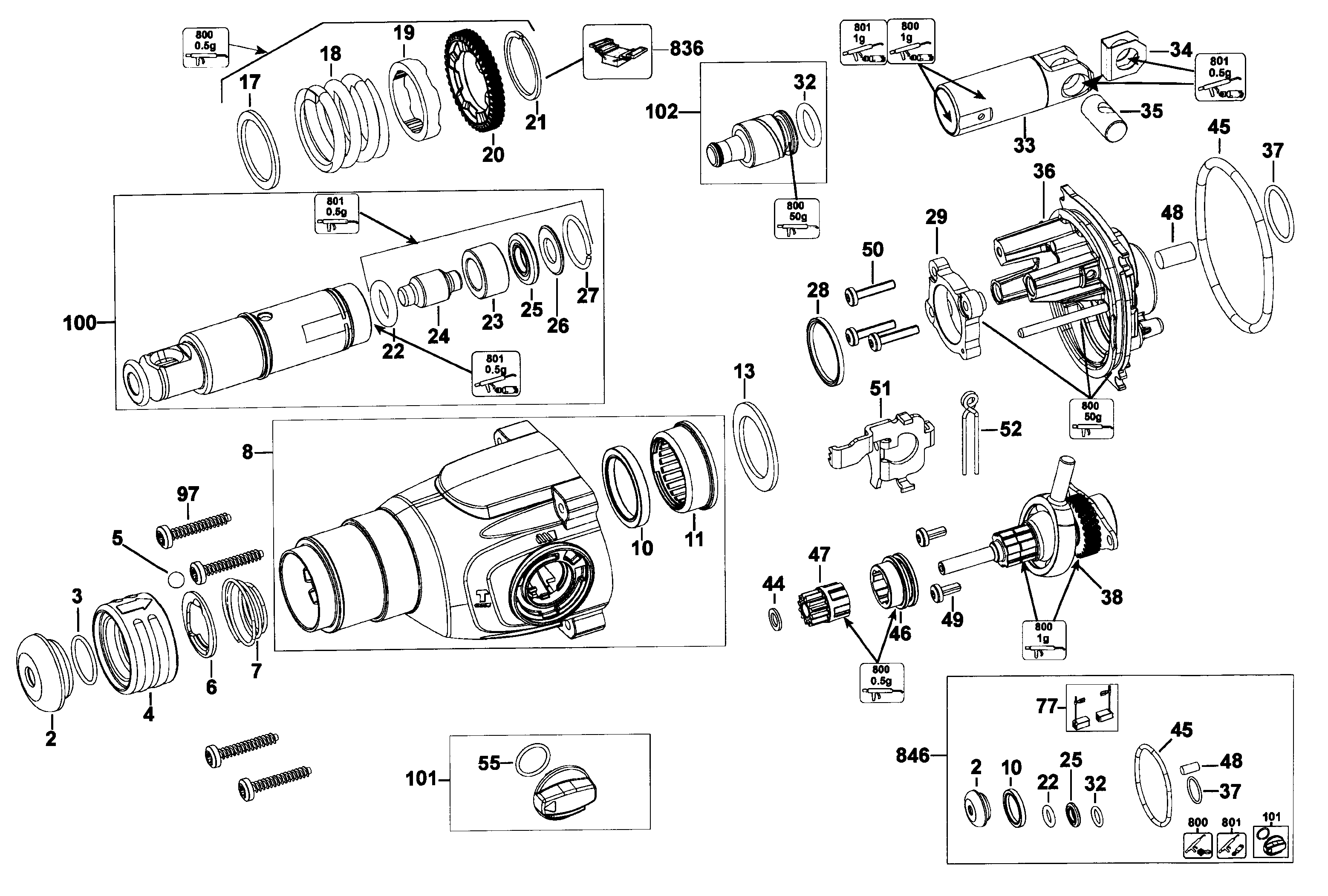

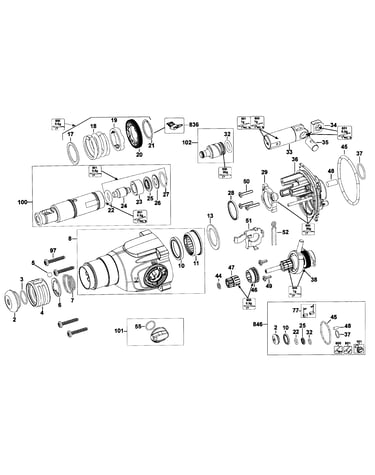

Drill assy diagram

0-ring

Part #N091381-00

The manufacturer no longer makes this part, and there's no substitute part

Grease 487130-04
Grease

Part #487130-04

The manufacturer no longer makes this part, and there's no substitute part

Beat Piece N417744
#24

Drill assy diagram

Beat piece

Part #N417744

The manufacturer no longer makes this part, and there's no substitute part

Bearing Co 1005865-00
#71

Main assy diagram

Bearing co

Part #1005865-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Kit Box N390353
#861

Main assy diagram

Dewalt kit box

Part #N390353

The manufacturer no longer makes this part, and there's no substitute part

Leadwire 1005879-00
#94

Main assy diagram

Leadwire

Part #1005879-00

The manufacturer no longer makes this part, and there's no substitute part

Ring 579212-00
#3

Drill assy diagram

Ring

Part #579212-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 327087-00
#26

Drill assy diagram

Washer

Part #327087-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 324006-14
#49

Drill assy diagram

Screw

Part #324006-14

The manufacturer no longer makes this part, and there's no substitute part
