Model # DG3000 TYPE 1 Official DeWalt generator

Here are the diagrams and repair parts for Official DeWalt DG3000-TYPE-1 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Spring 285817-19

#553

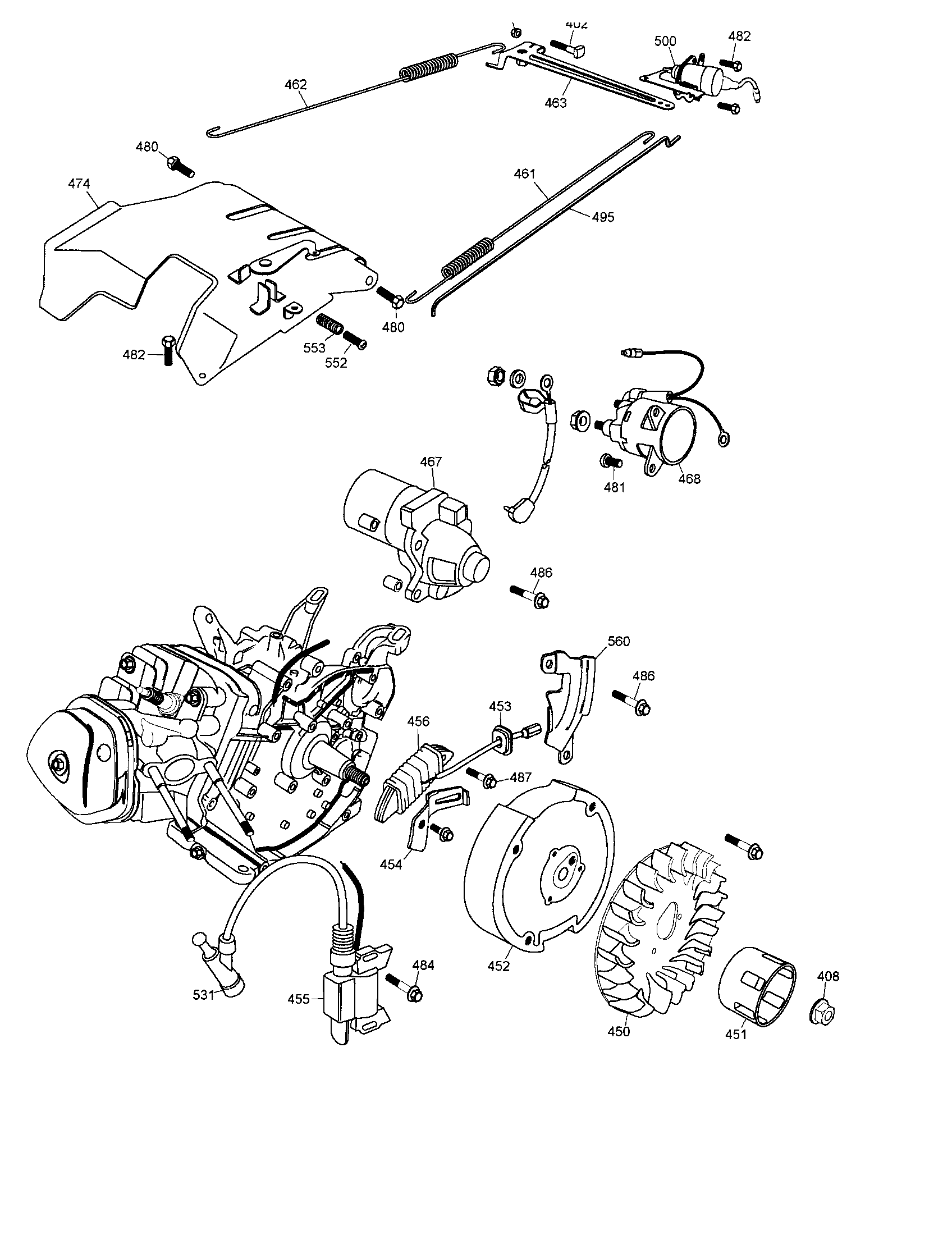

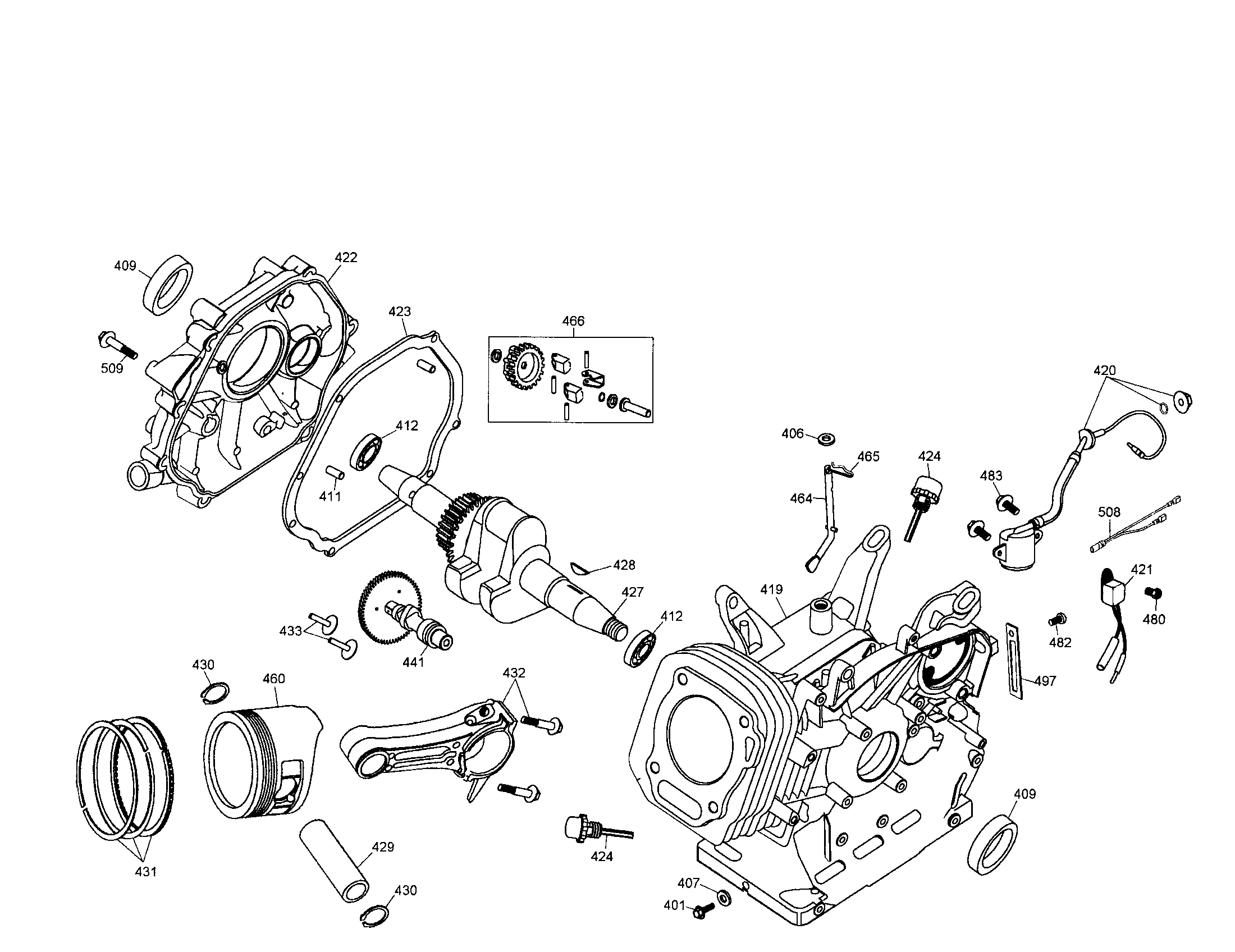

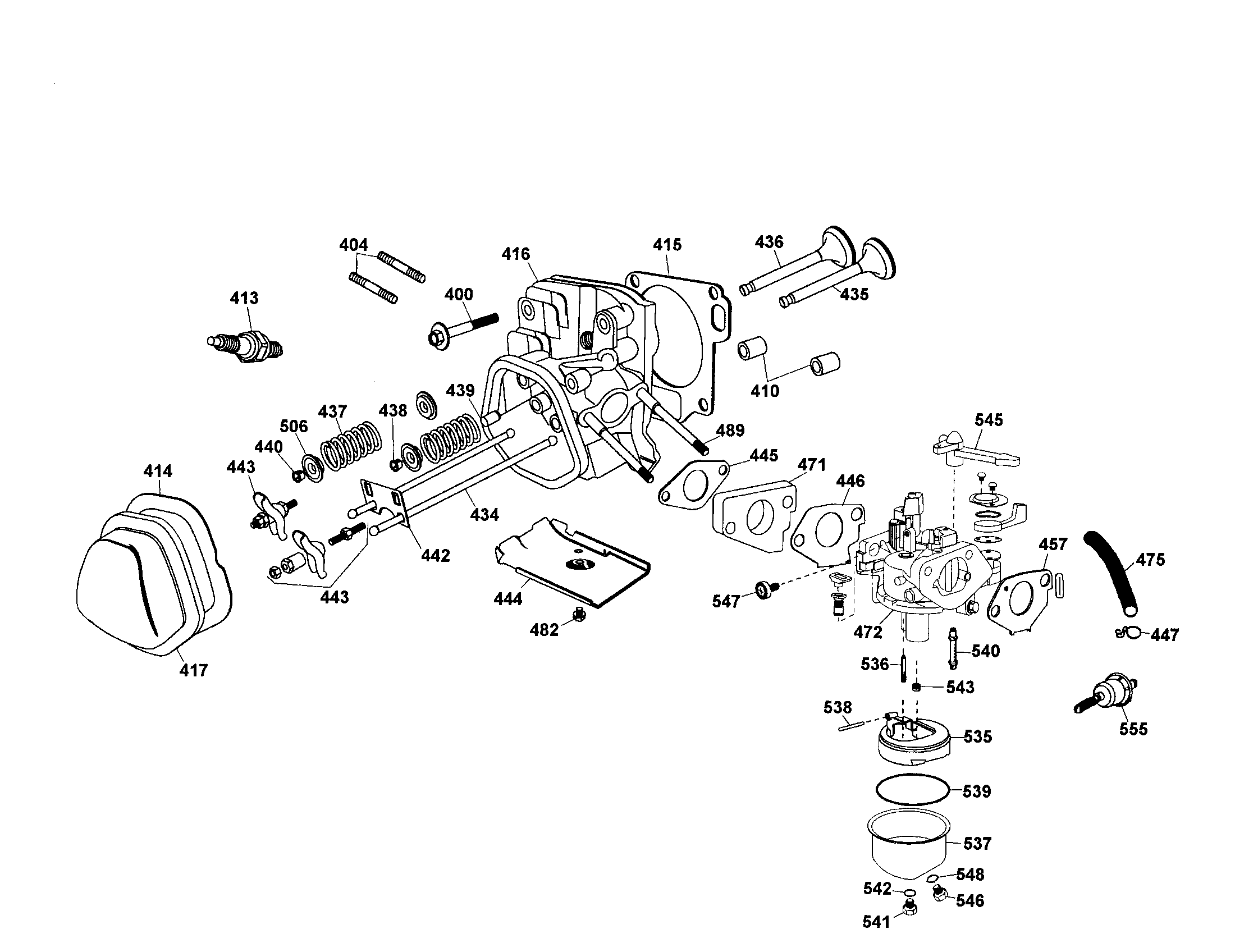

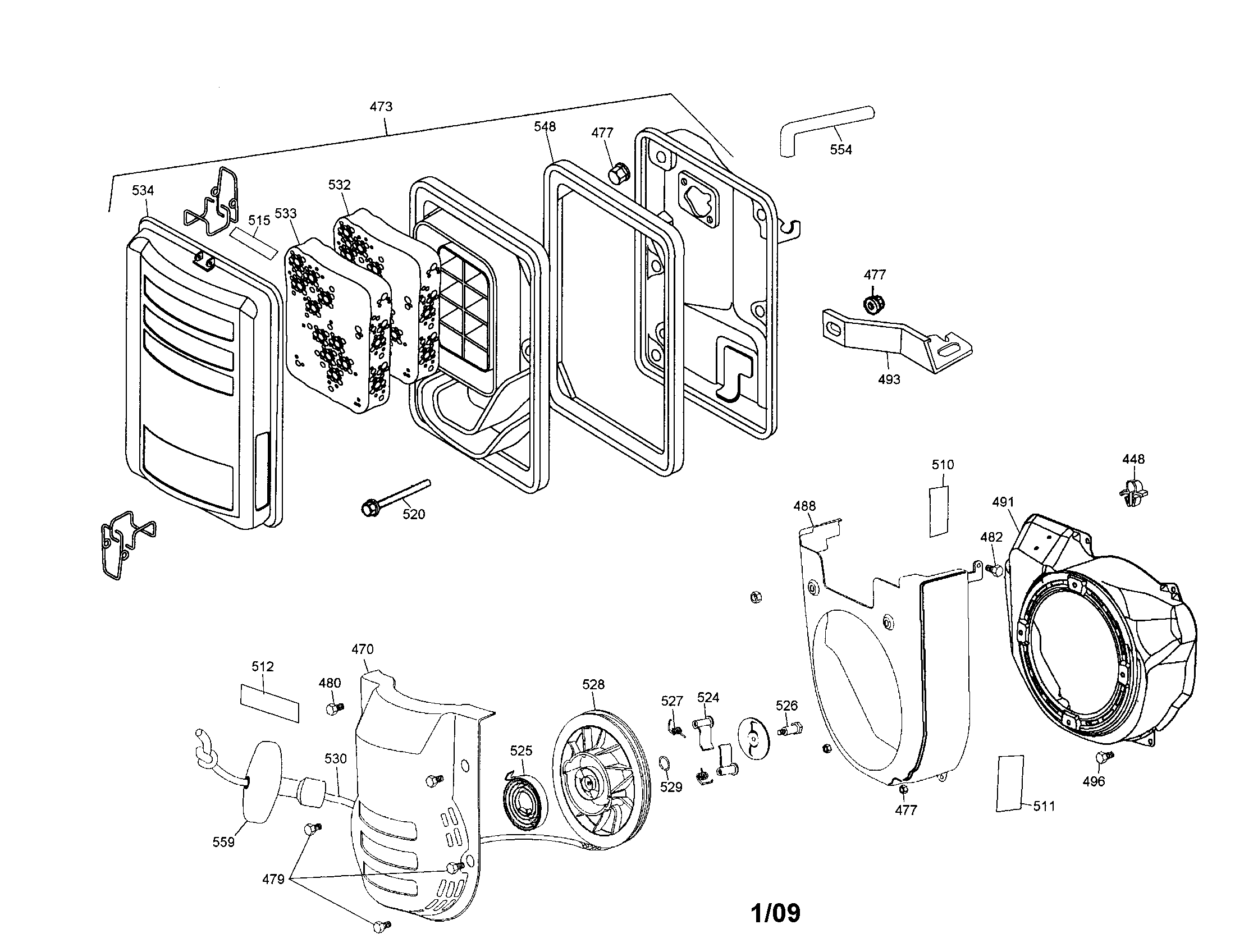

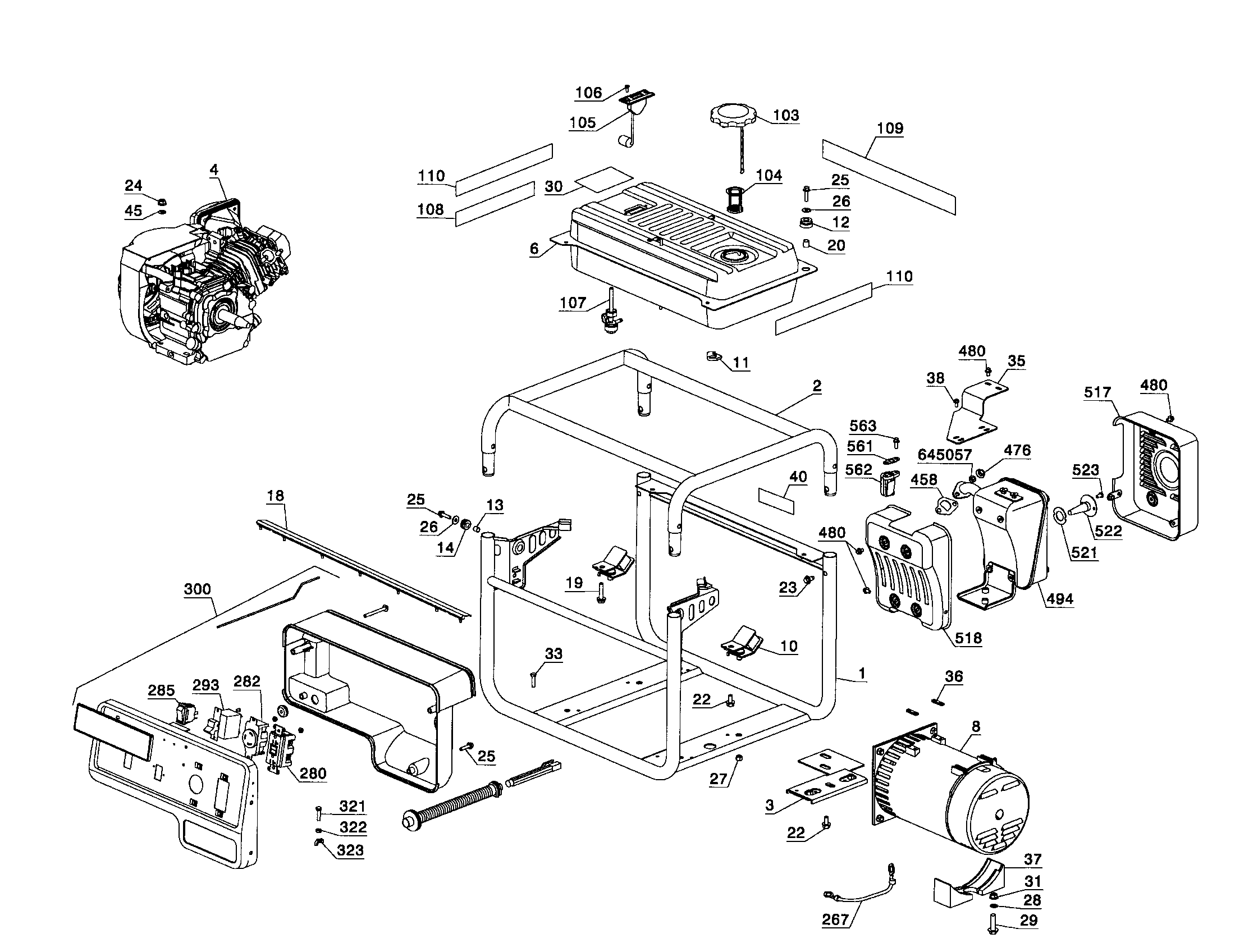

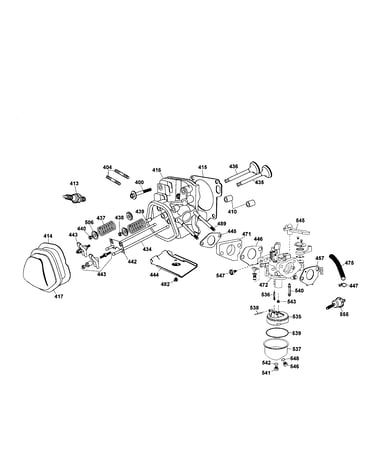

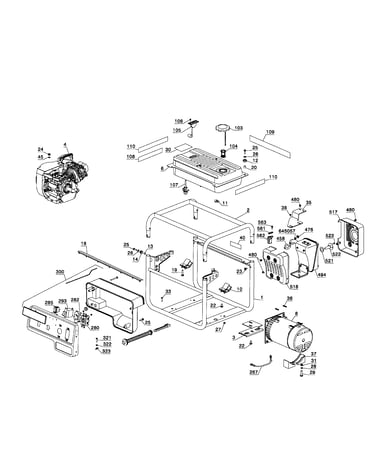

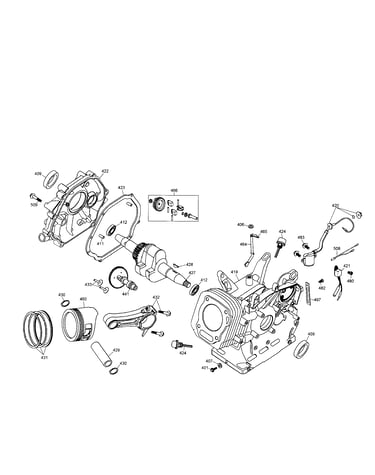

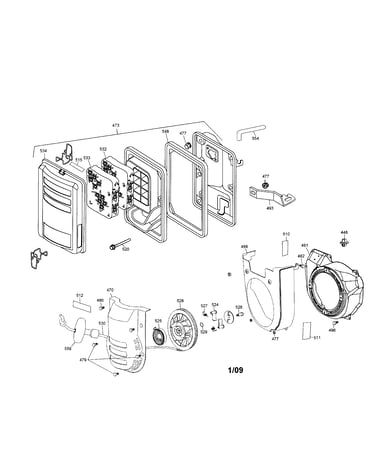

All parts diagram

Spring

Part #285817-19

The manufacturer no longer makes this part, and there's no substitute part

Clip (2) 285815-09

#447

All parts diagram

Clip (2)

Part #285815-09

The manufacturer no longer makes this part, and there's no substitute part

Push Rod (2) 285814-70

#434

All parts diagram

Push rod (2)

Part #285814-70

The manufacturer no longer makes this part, and there's no substitute part

Washer (8) 285814-07

#406

All parts diagram

Washer (8)

Part #285814-07

The manufacturer no longer makes this part, and there's no substitute part

Rope 285816-82

#530

All parts diagram

Rope

Part #285816-82

The manufacturer no longer makes this part, and there's no substitute part

Nut (12) 645024-00

#27

All parts diagram

Nut (12)

Part #645024-00

The manufacturer no longer makes this part, and there's no substitute part

Shroud 285814-99

#444

All parts diagram

Shroud

Part #285814-99

The manufacturer no longer makes this part, and there's no substitute part

Oil Sae 10w-30 Sj 32 D23215

#806

All parts diagram

Oil sae 10w-30 sj 32

Part #D23215

The manufacturer no longer makes this part, and there's no substitute part

Bolt (4) 285817-01

#520

All parts diagram

Bolt (4)

Part #285817-01

The manufacturer no longer makes this part, and there's no substitute part

Connecting Rod 285814-65

#432

All parts diagram

Connecting rod

Part #285814-65

The manufacturer no longer makes this part, and there's no substitute part
