Roper
Top-Mount Refrigerator

Model # 8614*0C Official Roper refrigerator

Here are the diagrams and repair parts for Official Roper 86140C refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 219 parts  |
Drier Tube 4339530
#14

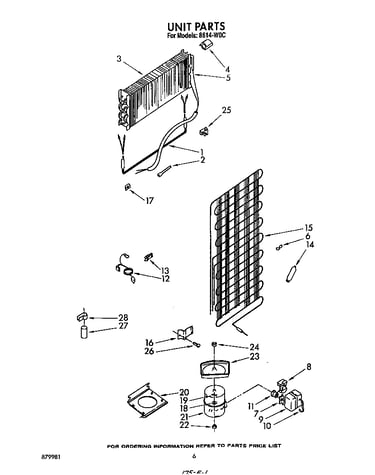

Unit diagram

Drier tube

Part #4339530

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4339530. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Start Relay 4342841
#8

Unit diagram

Refrigerator start relay

Part #4342841

Replaced by #WP2262181

?
Manufacturer substitution
This part replaces 4342841. Substitute parts can look different from the original.
$56.77 |
10% OFF Phone Price : $62.77
In Stock
Refrigerator Overload 4342859
#11

Unit diagram

Refrigerator overload

Part #4342859

Replaced by #4388953

?
Manufacturer substitution
This part replaces 4342859. Substitute parts can look different from the original.
$81.69
In Stock
Refrigerator Screw 4339677
#24B

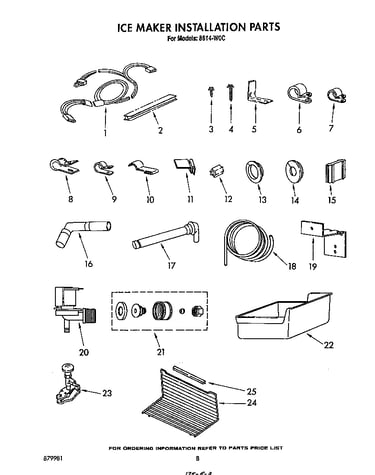

Ice maker installation diagram

Refrigerator screw

Part #4339677

The manufacturer no longer makes this part, and there's no substitute part

Frame Nameplate 4339436
#15

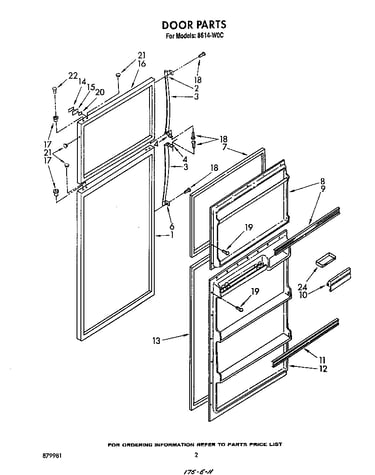

Door diagram

Frame nameplate

Part #4339436

The manufacturer no longer makes this part, and there's no substitute part

Grommet, Compressor Mounting 4339538
#22

Unit diagram

Grommet, compressor mounting

Part #4339538

The manufacturer no longer makes this part, and there's no substitute part

Screw, Center Hinge 4339451
#55

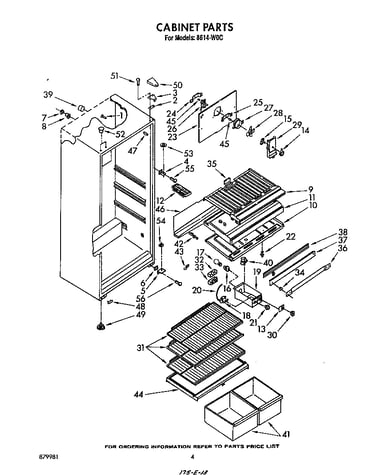

Cabinet diagram

Screw, center hinge

Part #4339451

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Technical Sheet LIT4342840

#NI

All parts diagram

Refrigerator technical sheet

Part #LIT4342840

The manufacturer no longer makes this part, and there's no substitute part

Buttom Plug, Hinge Hole (l.h) 4339507
#48

Cabinet diagram

Buttom plug, hinge hole (l.h)

Part #4339507

The manufacturer no longer makes this part, and there's no substitute part

Screw, 4-40 X 3/4 4339704
#26

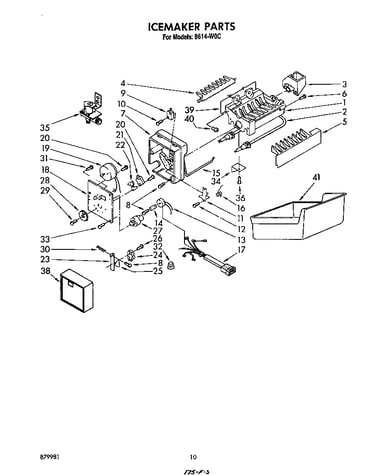

Ice maker diagram

Screw, 4-40 x 3/4

Part #4339704

The manufacturer no longer makes this part, and there's no substitute part
