Model # 917351360 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 917351360 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

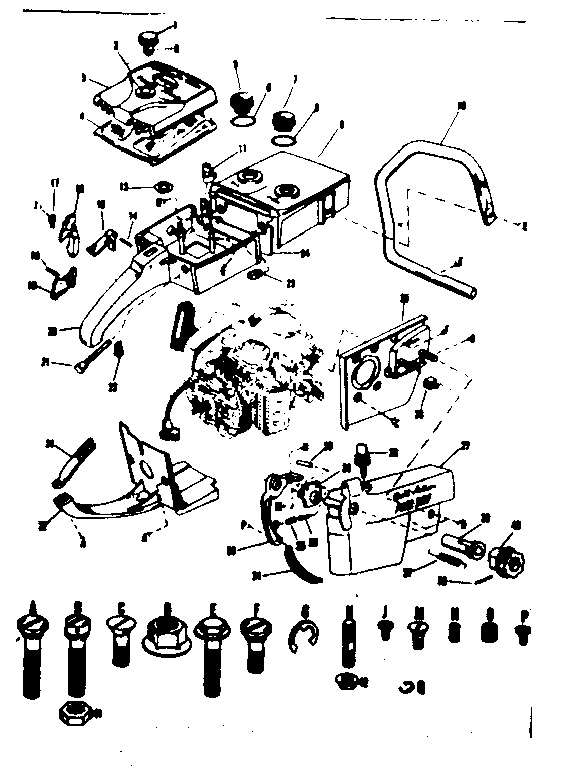

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 227 parts  |
Oil Seal 510105
#12

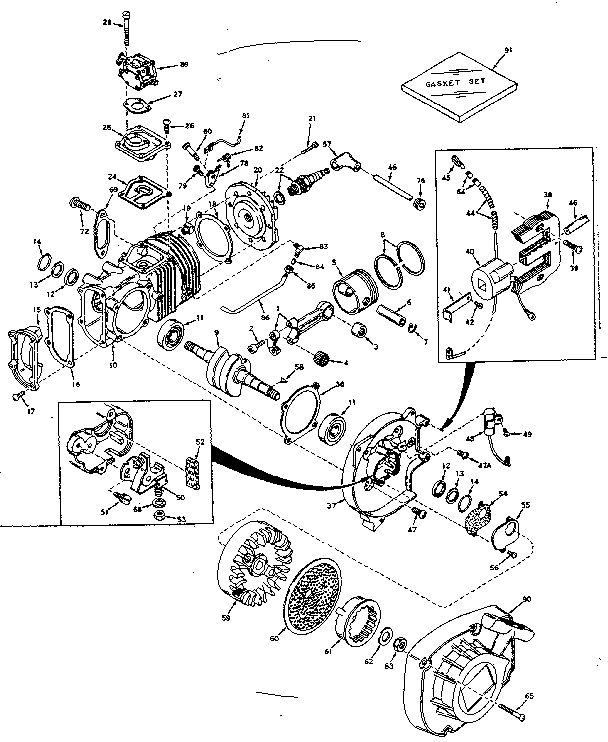

Engine (ah-490) diagram

Oil seal

Part #510105

Replaced by #510319

?
Manufacturer substitution
This part replaces 510105. Substitute parts can look different from the original.
$8.20
In Stock
Spring Retainer 510109
#14

Engine (ah-490) diagram

Spring retainer

Part #510109

Replaced by #510109A

?
Manufacturer substitution
This part replaces 510109. Substitute parts can look different from the original.
This item is not returnable
$4.14
In Stock
Retainer 510106
#13

Engine (ah-490) diagram

Retainer

Part #510106

Replaced by #510106A

?
Manufacturer substitution
This part replaces 510106. Substitute parts can look different from the original.
This item is not returnable
$4.14
In Stock
Screw 650350
#2

Engine (ah-490) diagram

Screw

Part #650350

Replaced by #650702

?
Manufacturer substitution
This part replaces 650350. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Gasket 510277
#24

Engine (ah-490) diagram

Gasket

Part #510277

Replaced by #510277A

?
Manufacturer substitution
This part replaces 510277. Substitute parts can look different from the original.
This item is not returnable
$4.14
In Stock
Retaining Ring 310167
#7

Engine (ah-490) diagram

Retaining ring

Part #310167

Replaced by #310296

?
Manufacturer substitution
This part replaces 310167. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cover Gasket 510232
#16

Engine (ah-490) diagram

Cover gasket

Part #510232

Replaced by #510270A

?
Manufacturer substitution
This part replaces 510232. Substitute parts can look different from the original.
This item is not returnable
$5.71
In Stock
Cover 610118
#57

Engine (ah-490) diagram

Cover

Part #610118

Replaced by #610118

?
Manufacturer substitution
This part replaces 610118. Substitute parts can look different from the original.
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Screw 650576
#26

Engine (ah-490) diagram

Screw

Part #650576

Replaced by #650597

?
Manufacturer substitution
This part replaces 650576. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 29626
#51

Engine (ah-490) diagram

Screw

Part #29626

Replaced by #29181

?
Manufacturer substitution
This part replaces 29626. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
