GE
Gas Range

Model # ZGP364NDR5SS Official GE gas range

Here are the diagrams and repair parts for Official GE ZGP364NDR5SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

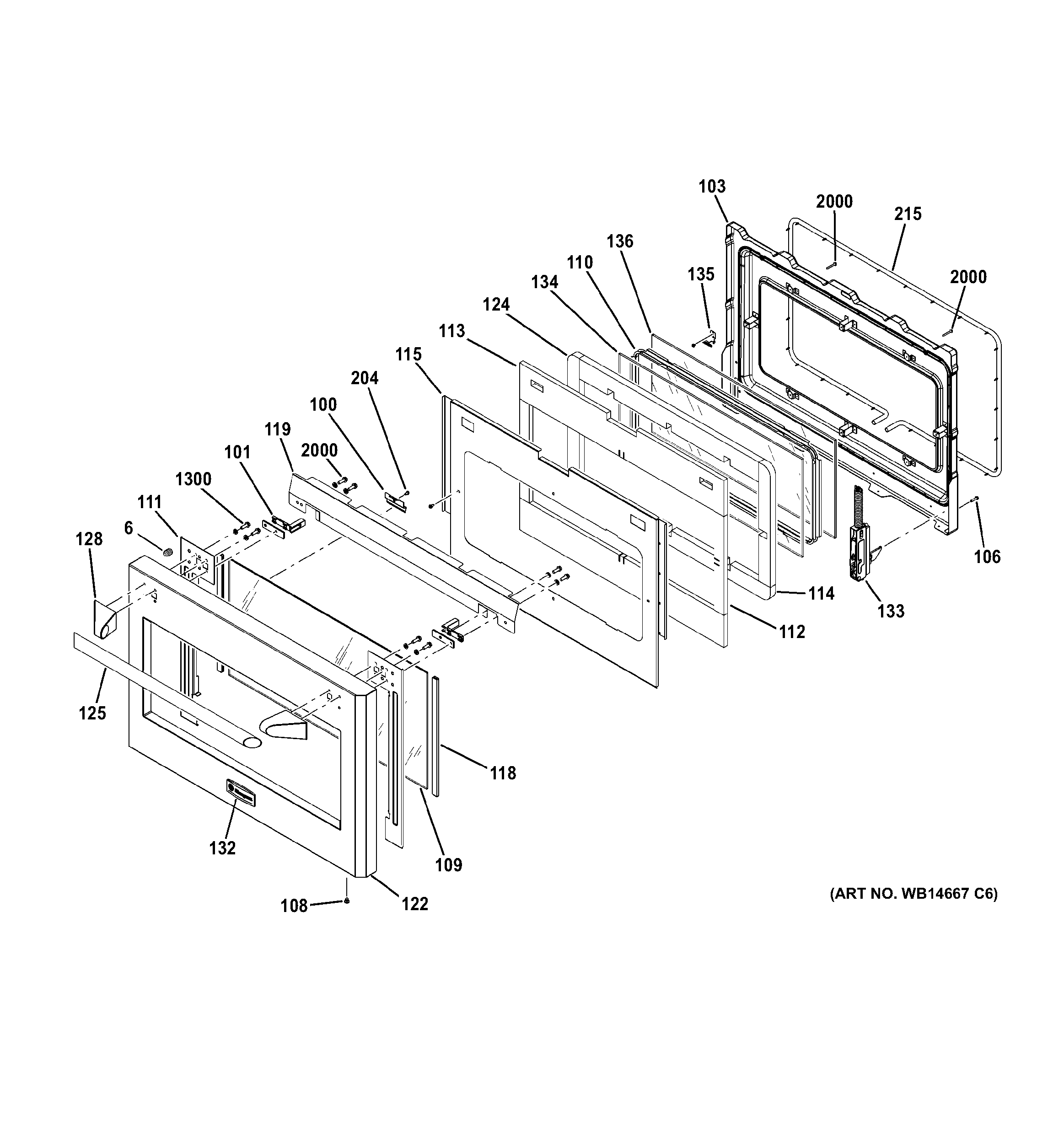

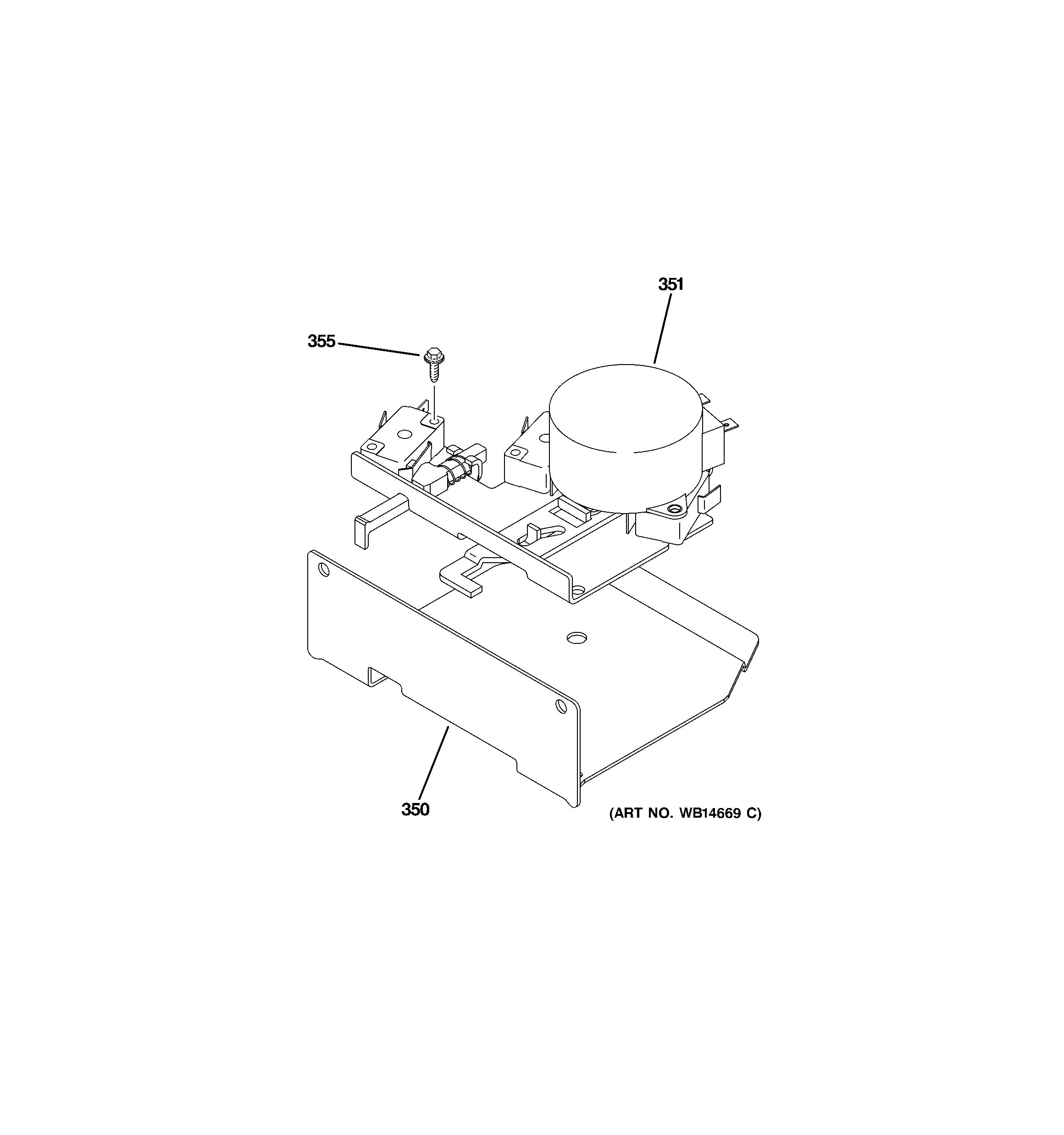

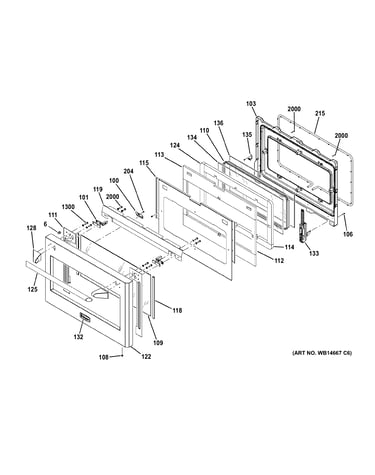

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Range Bake Igniter (replaces Wb13k10040) WB13X25264
#241

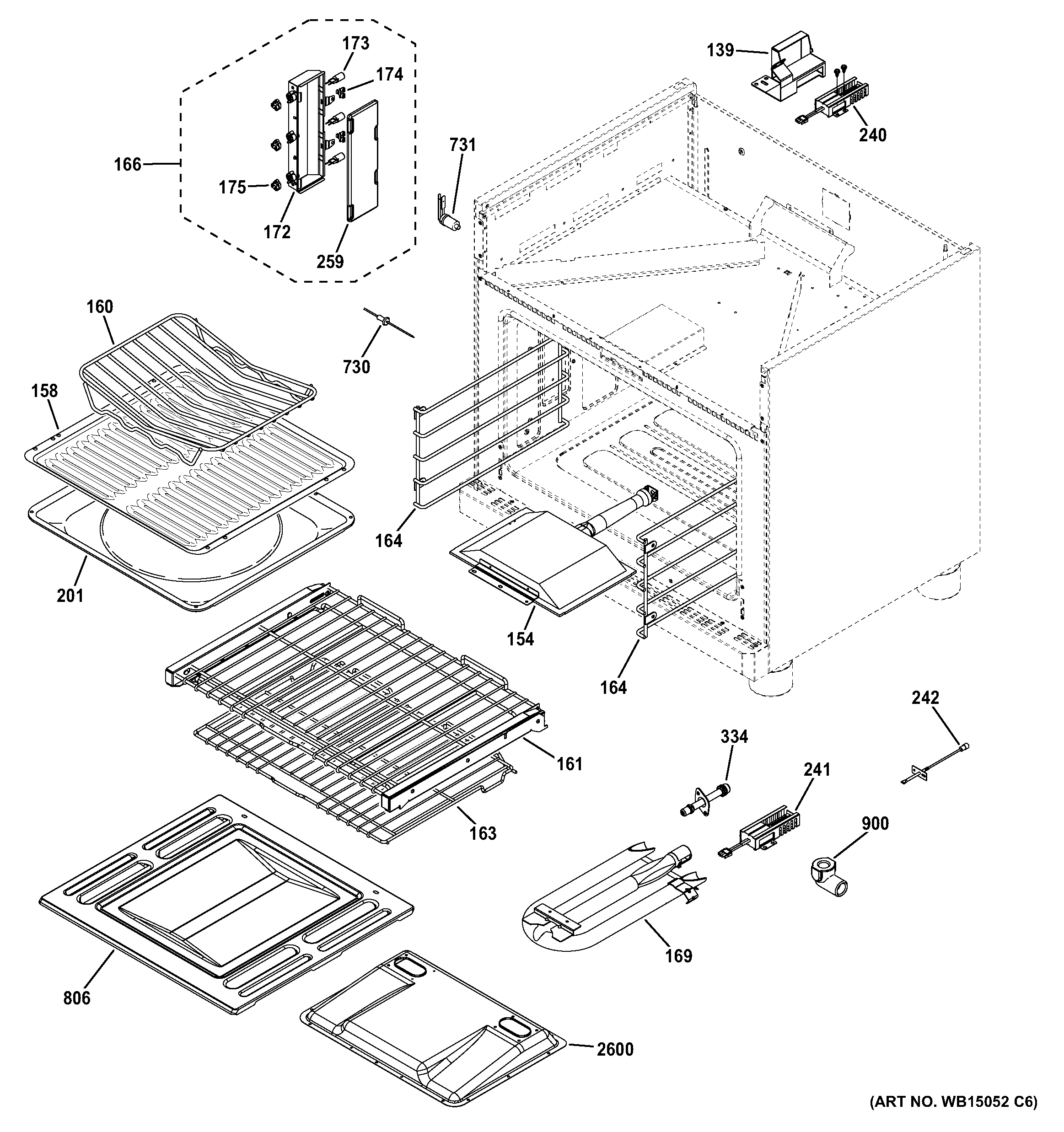

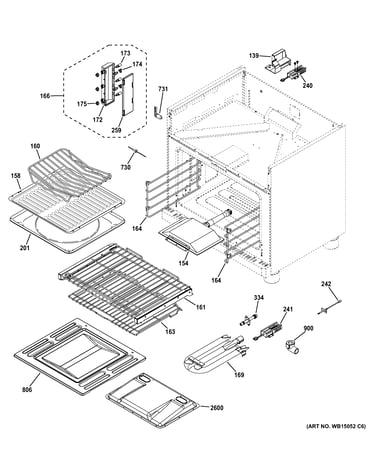

Oven cavity parts diagram

Range bake igniter (replaces wb13k10040)

Part #WB13X25264

BEST SELLER
$76.66 |
7% OFF Phone Price : $82.66
In Stock
Range Broil Igniter (replaces Wb13k10020) WB13X25261
#240

Oven cavity parts diagram

Range broil igniter (replaces wb13k10020)

Part #WB13X25261

BEST SELLER
$81.97 |
7% OFF Phone Price : $87.97
In Stock
Grate WB31K10224
#251

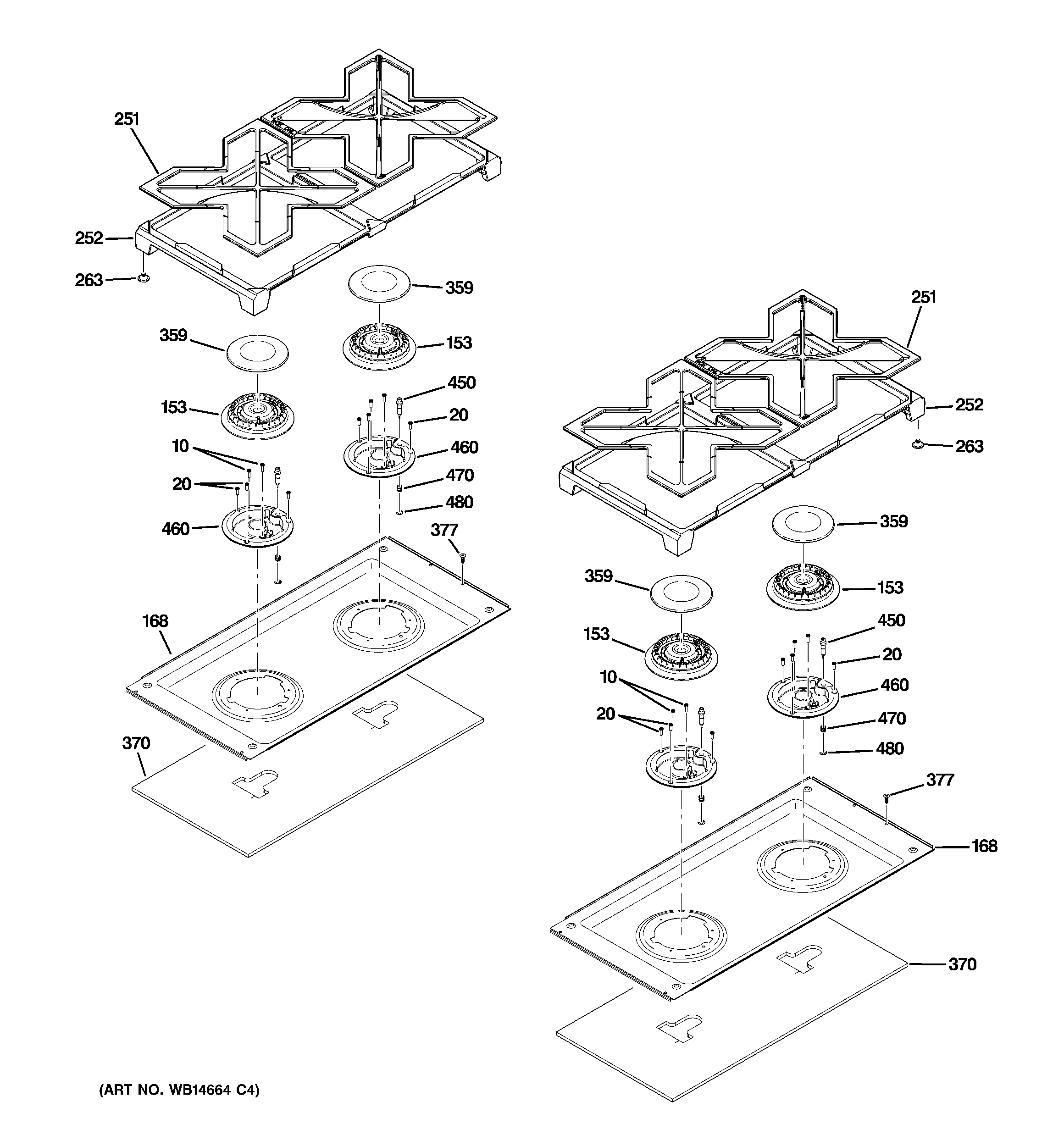

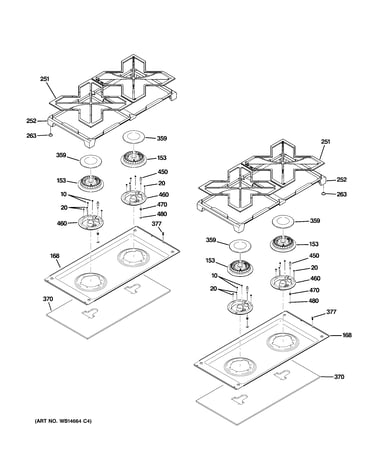

Cooktop diagram

Grate

Part #WB31K10224

Replaced by #WB31K10252

?
Manufacturer substitution
This part replaces WB31K10224. Substitute parts can look different from the original.
$123.58 |
9% OFF Phone Price : $135.58
In Stock
Nut WB02T10017
#404

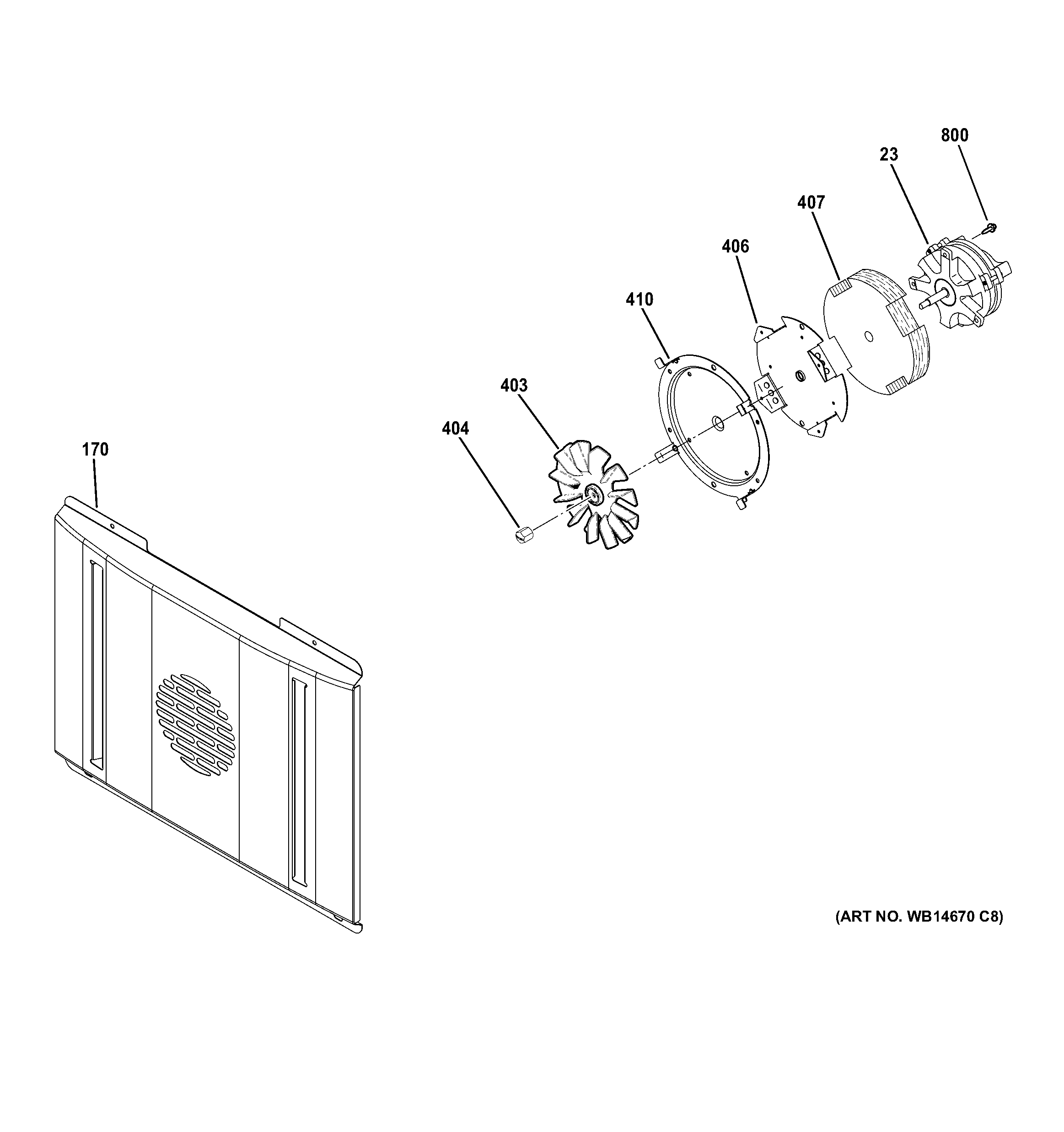

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Grill Surface Burner Igniter WB13K10030
#145

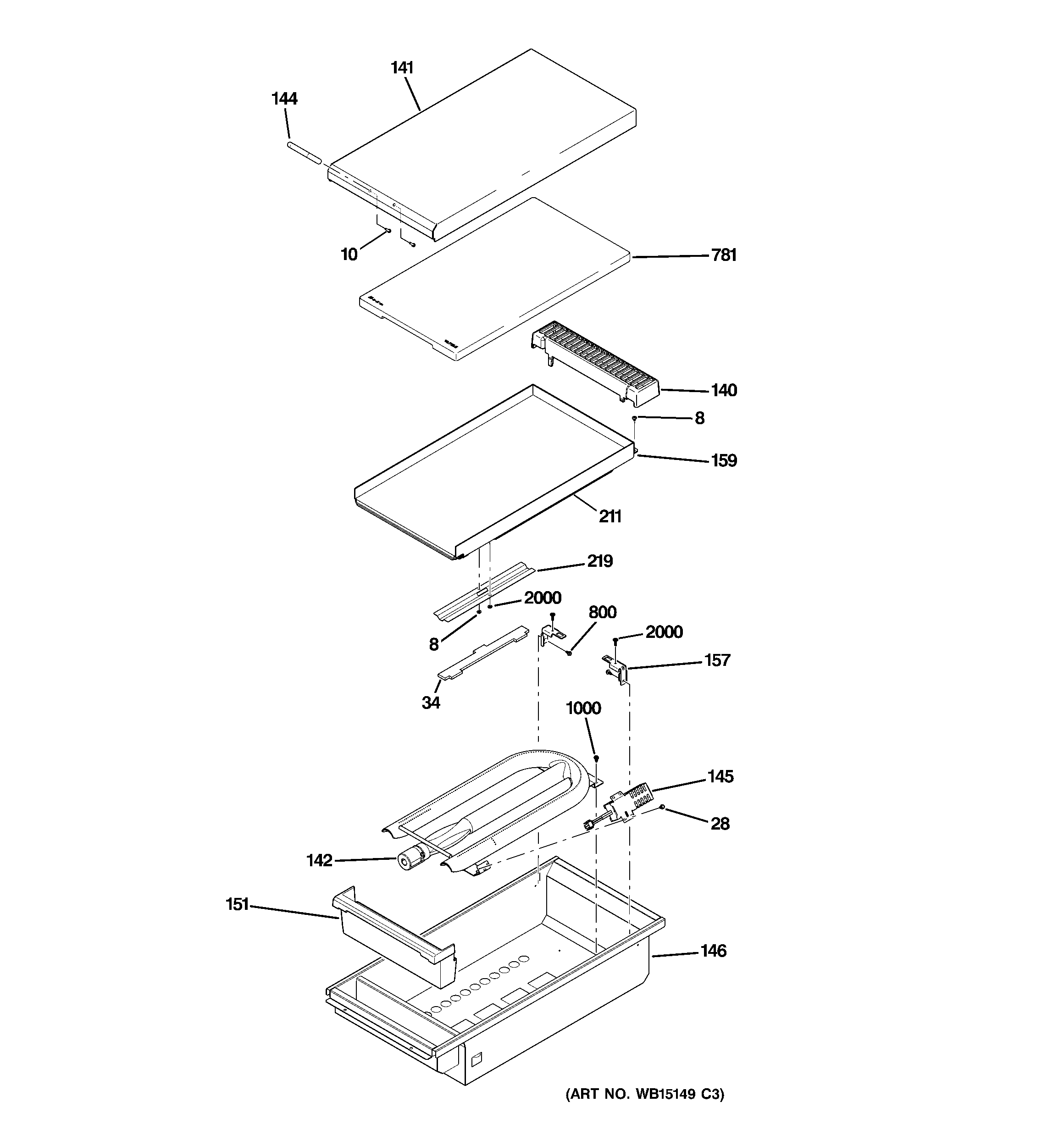

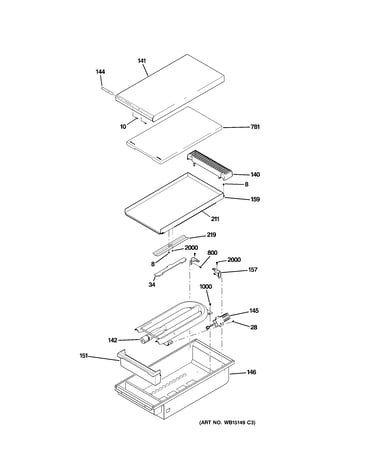

Griddle assembly diagram

Range grill surface burner igniter

Part #WB13K10030

$107.39 |
10% OFF Phone Price : $119.39
In Stock
Range Ignition Module Transformer WB27K10298
#322

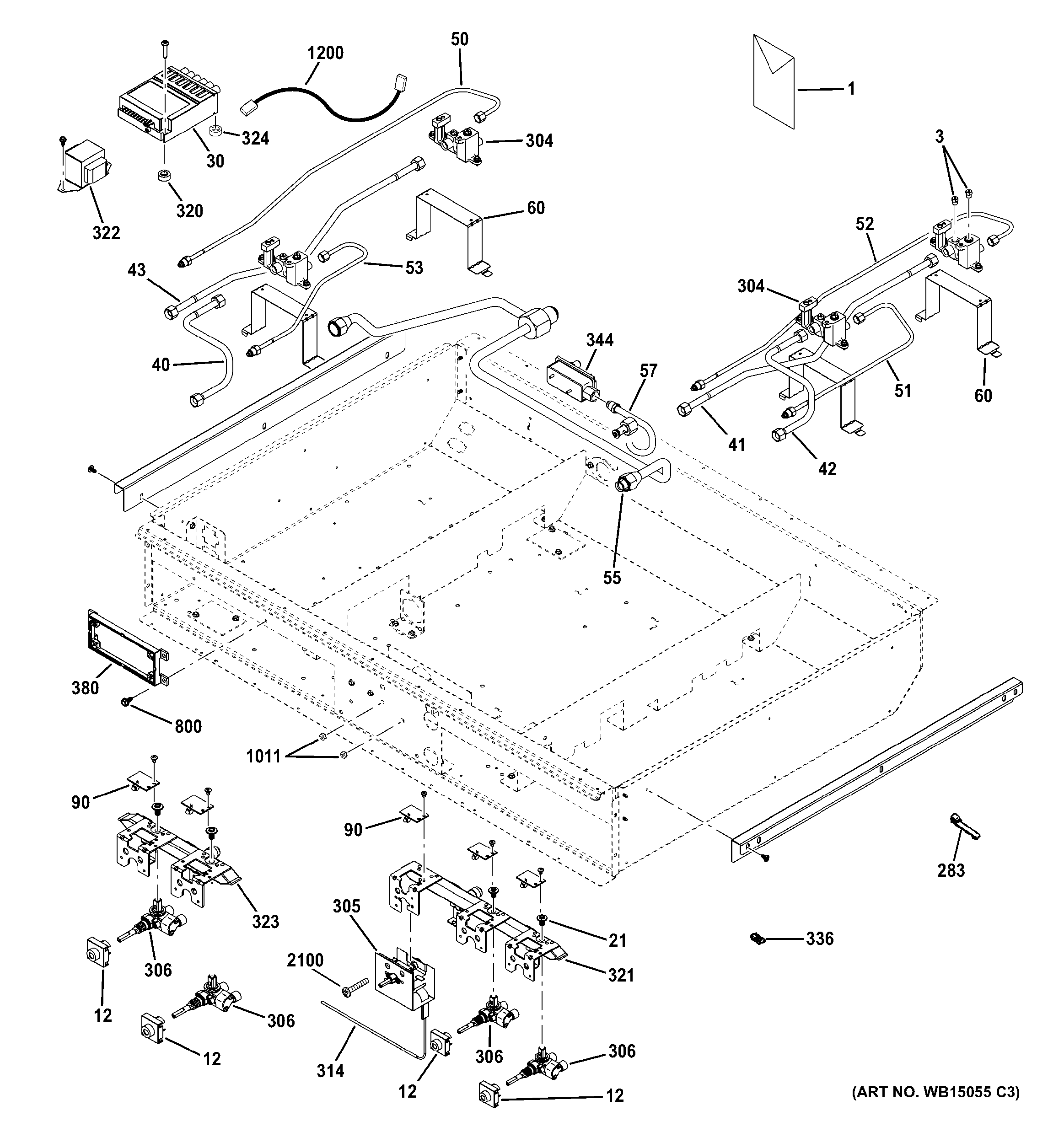

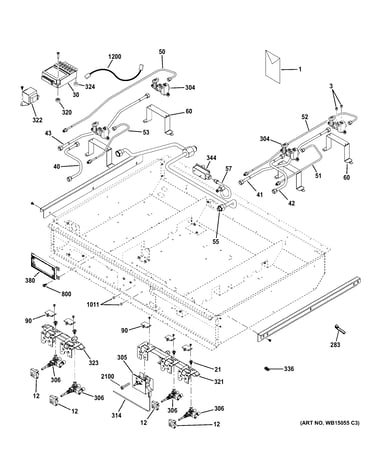

Gas & burner parts diagram

Range ignition module transformer

Part #WB27K10298

$165.01 |
7% OFF Phone Price : $177.01
In Stock
Encoder Assembly WB24K10081
#70

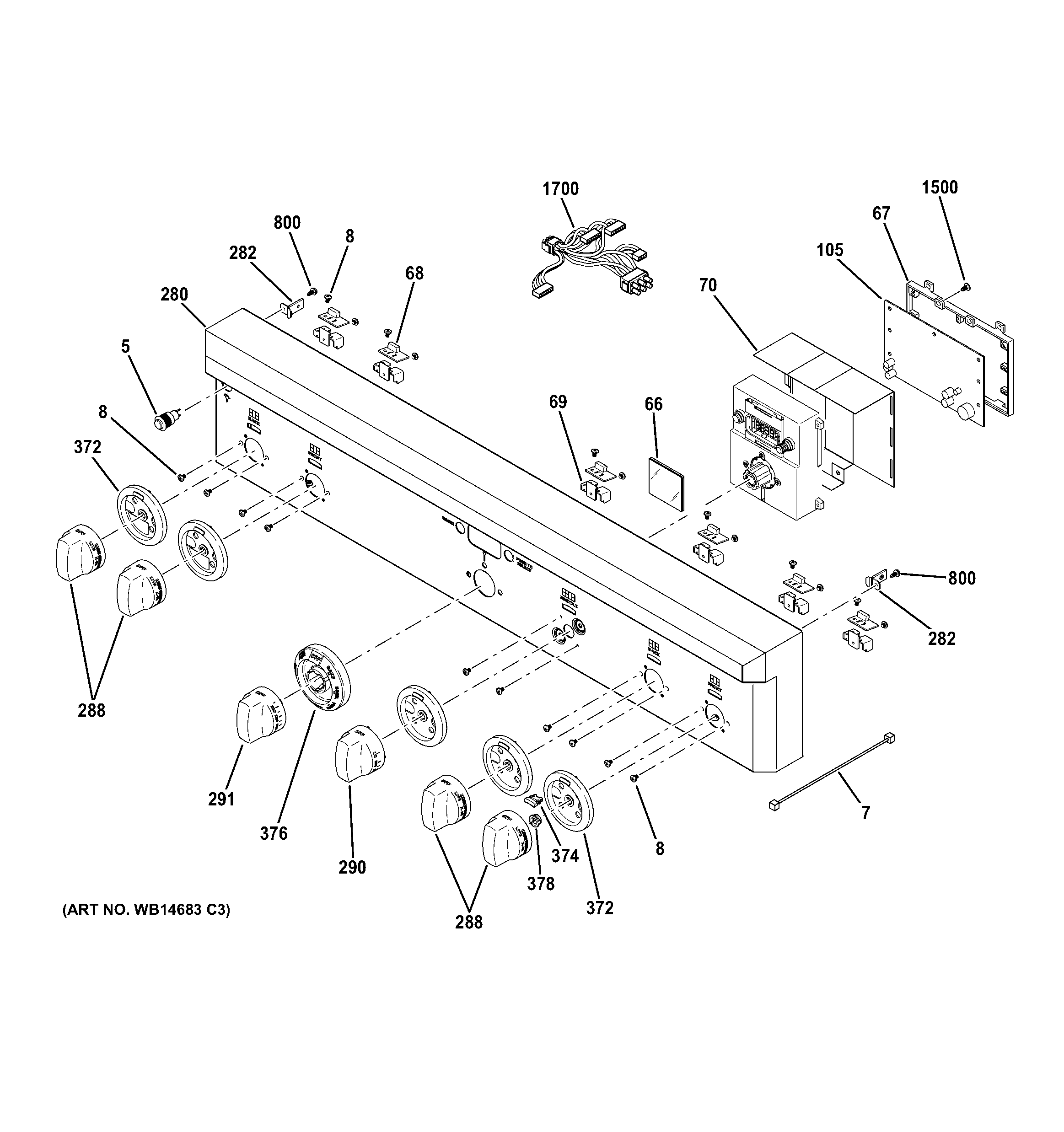

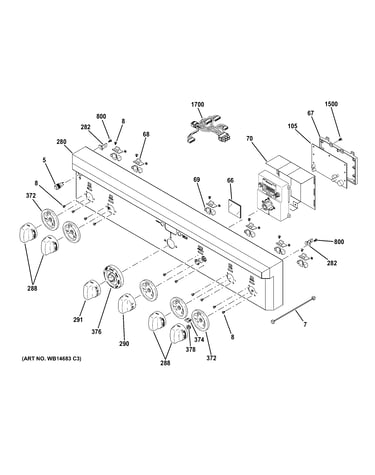

Control panel diagram

Encoder assembly

Part #WB24K10081

$225.65
In Stock
Refrigerator Door Handle Mounting Screw WR01X10590
#1100

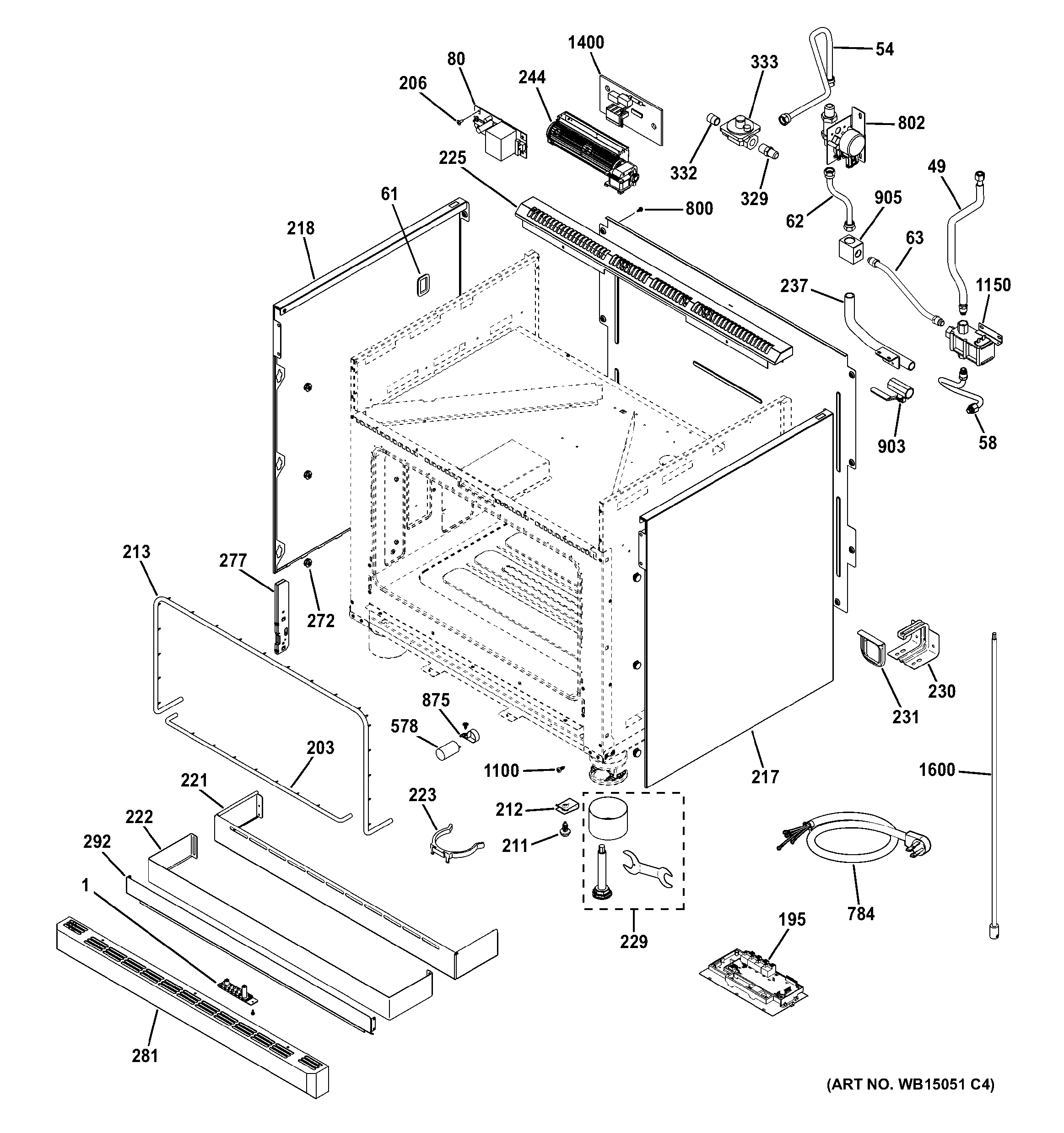

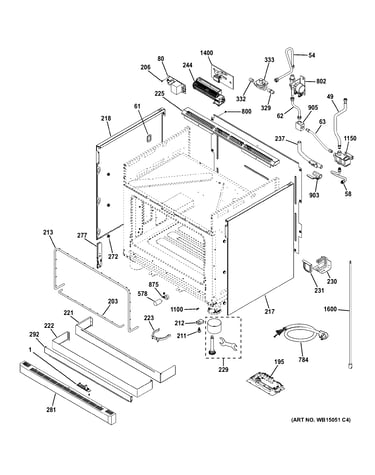

Body parts diagram

Refrigerator door handle mounting screw

Part #WR01X10590

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dispenser Control WB27K10305
#105

Control panel diagram

Dispenser control

Part #WB27K10305

This item is not returnable
$191.66 |
6% OFF Phone Price : $203.66
In Stock
Range Surface Burner Igniter Spring WB09T10011
#470

Cooktop diagram

Range surface burner igniter spring

Part #WB09T10011

This item is not returnable
$8.11
In Stock
